Drainage

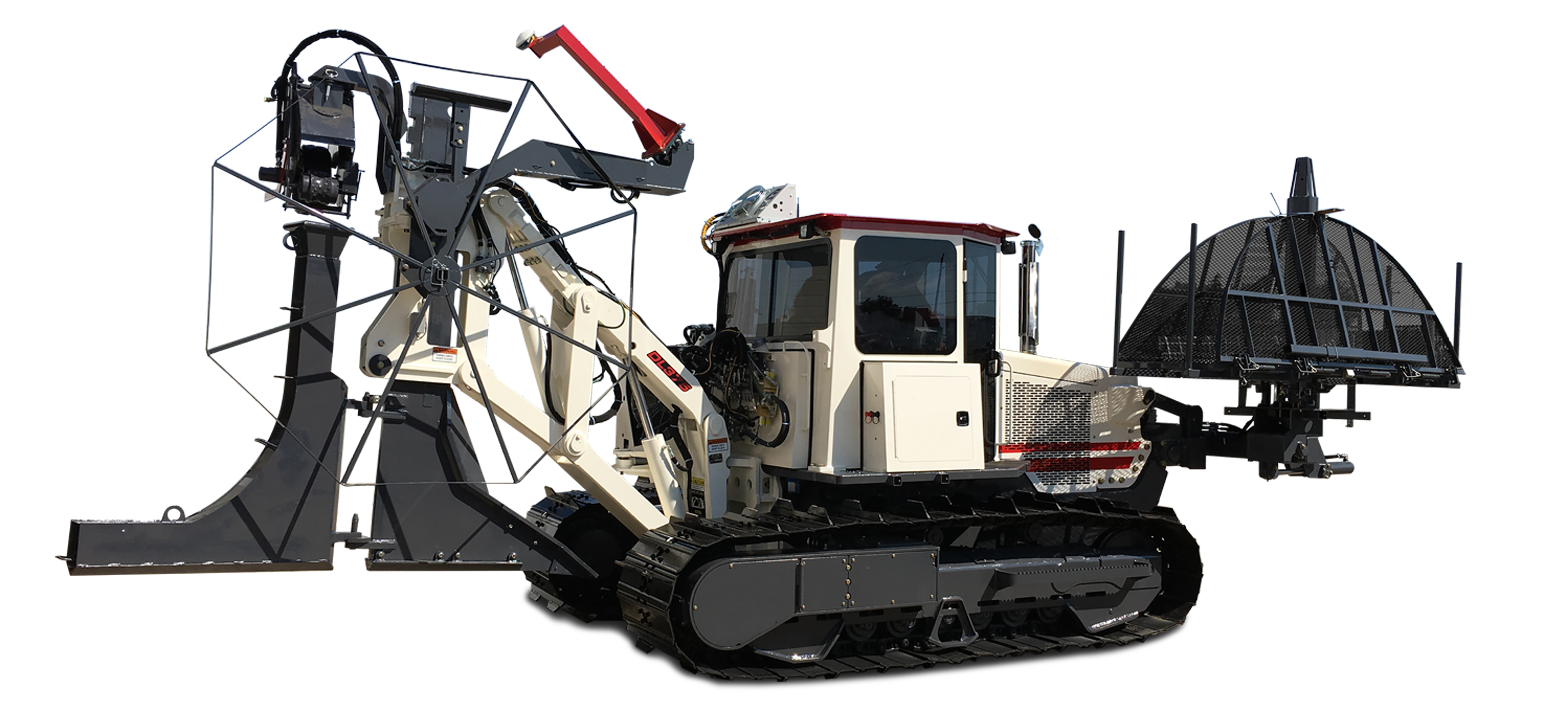

Installing farm drainage tile accurately with a BRON DL375 Add-on Drainage Plow, to a depth of 48”. The DL375 is used for shallow installations where space, weight, or footprint is limited.
6000 lbs
Weight48"
Depth275 hp
Quad-Track Tractor HP MinFeatures

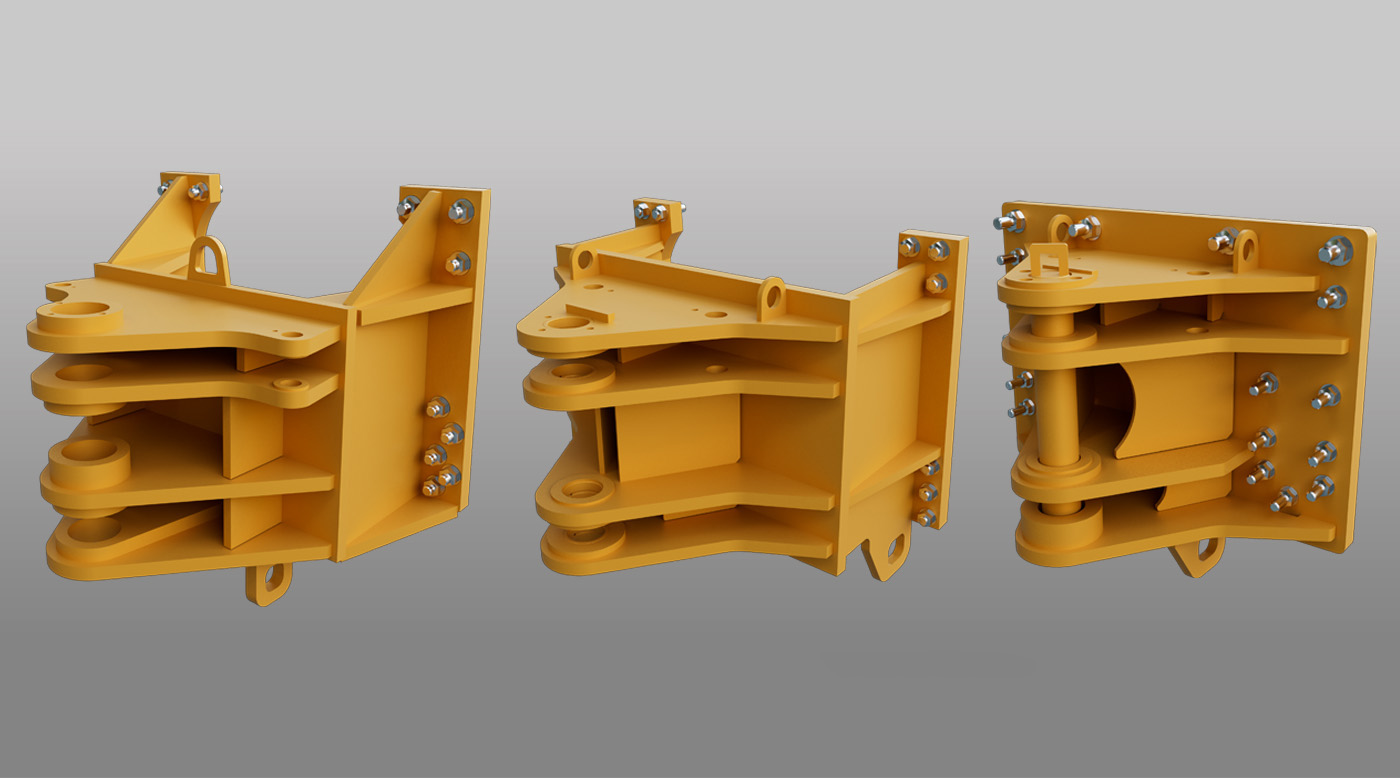

Tractor Specific Backplate
Backplates available to match each individual machine configuration.

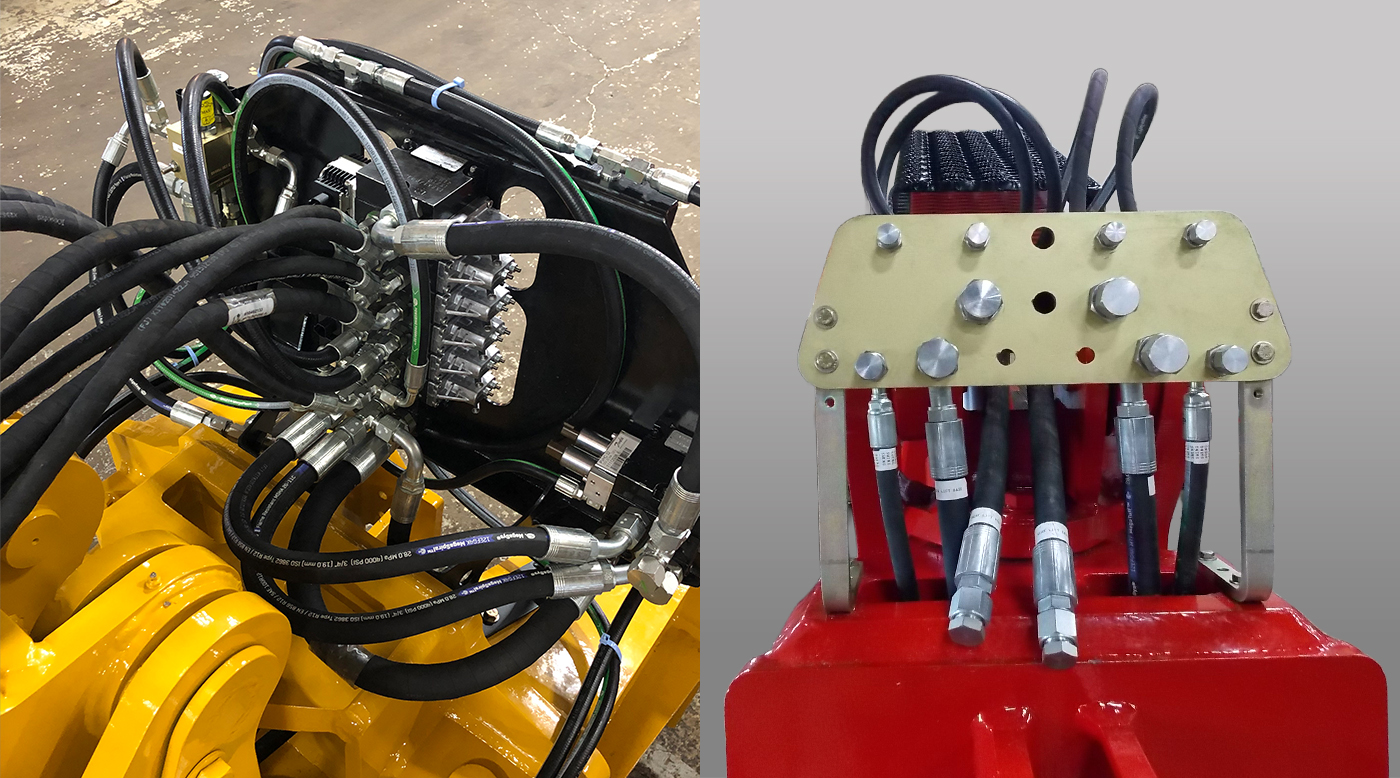

Bulkhead & Hydraulic Valve
Central bulkhead comes standard, with optional dedicated valves for controlling plow functions available.

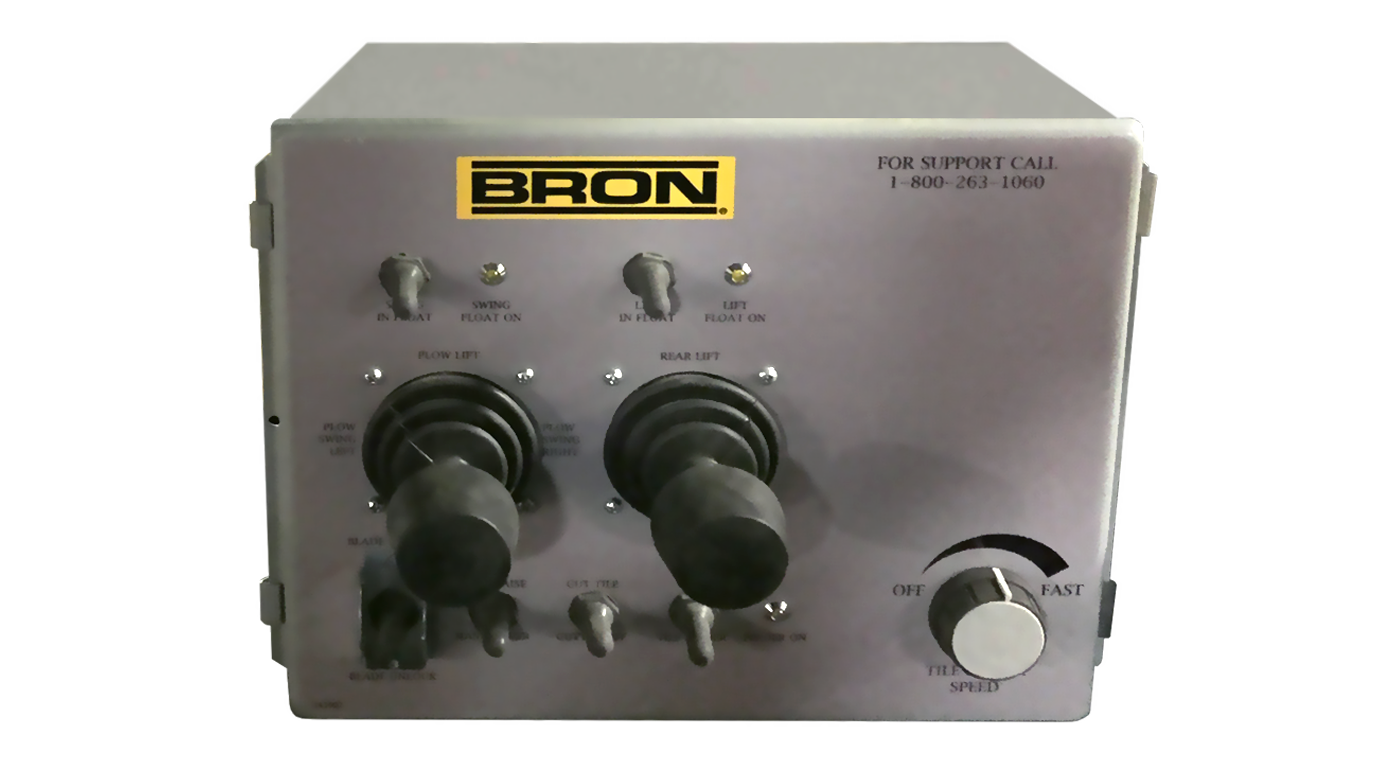

Plow Controls
Dedicated plow controls located in cab to be used with optional valves.

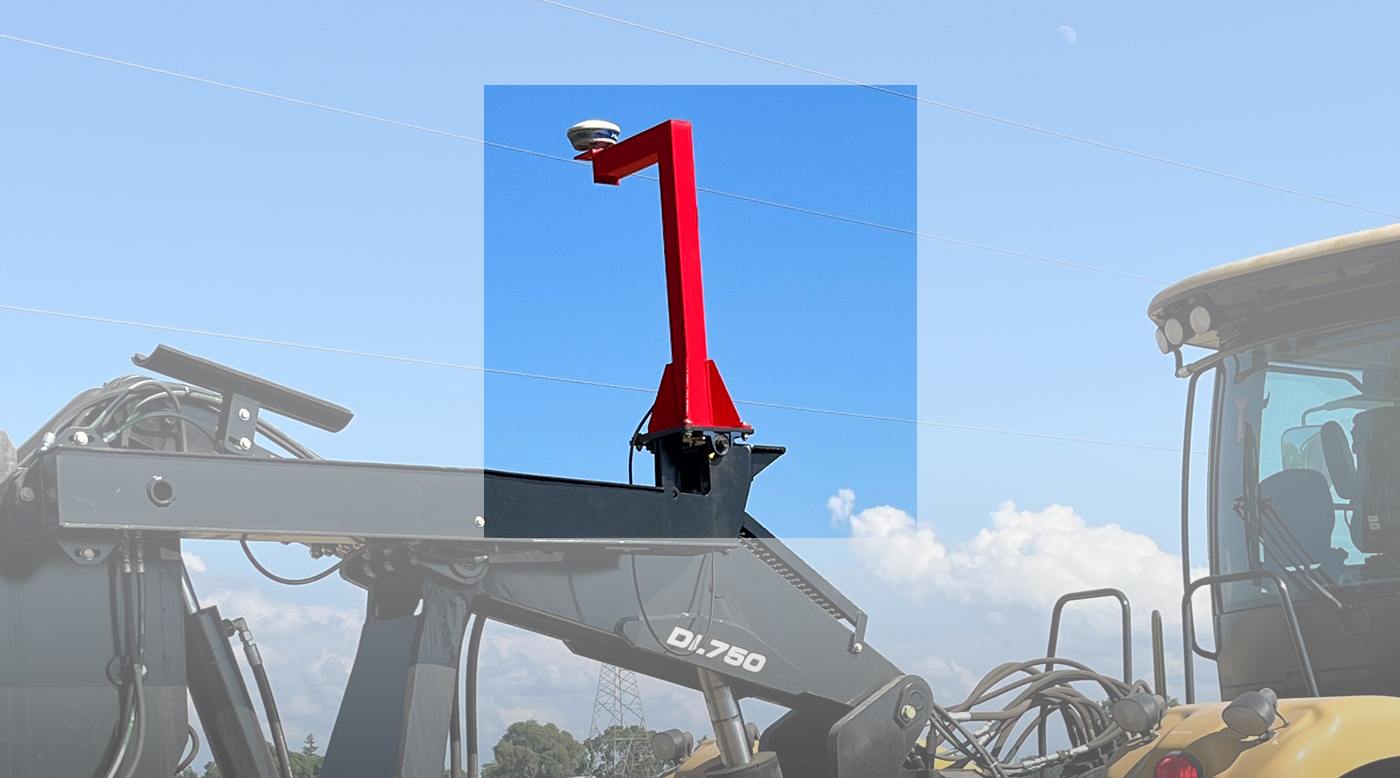

GPS Mount
Dedicated location for mounting GPS antenna. Laser laydown option available.

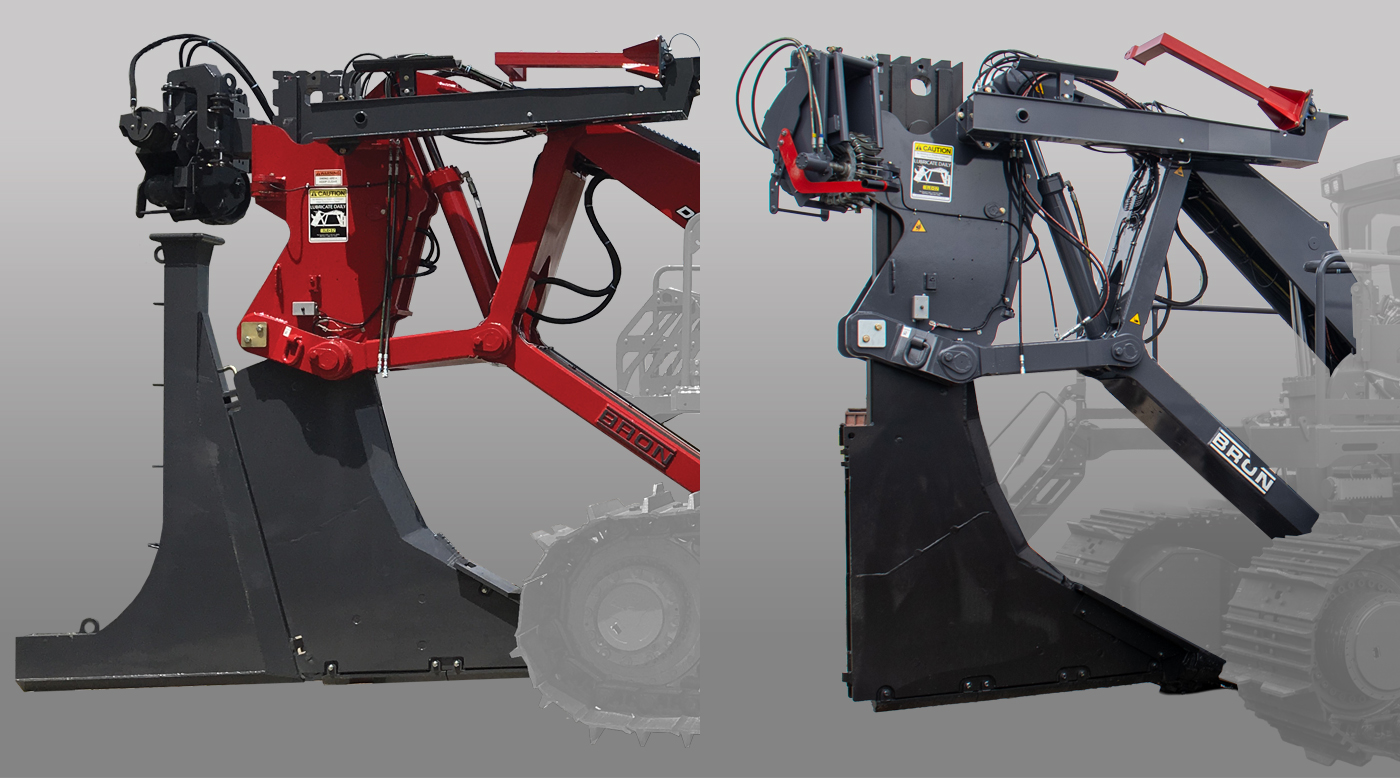

Blades & Points
Wide selection of blades available with a variety of replaceable points depending on soil types or preference.

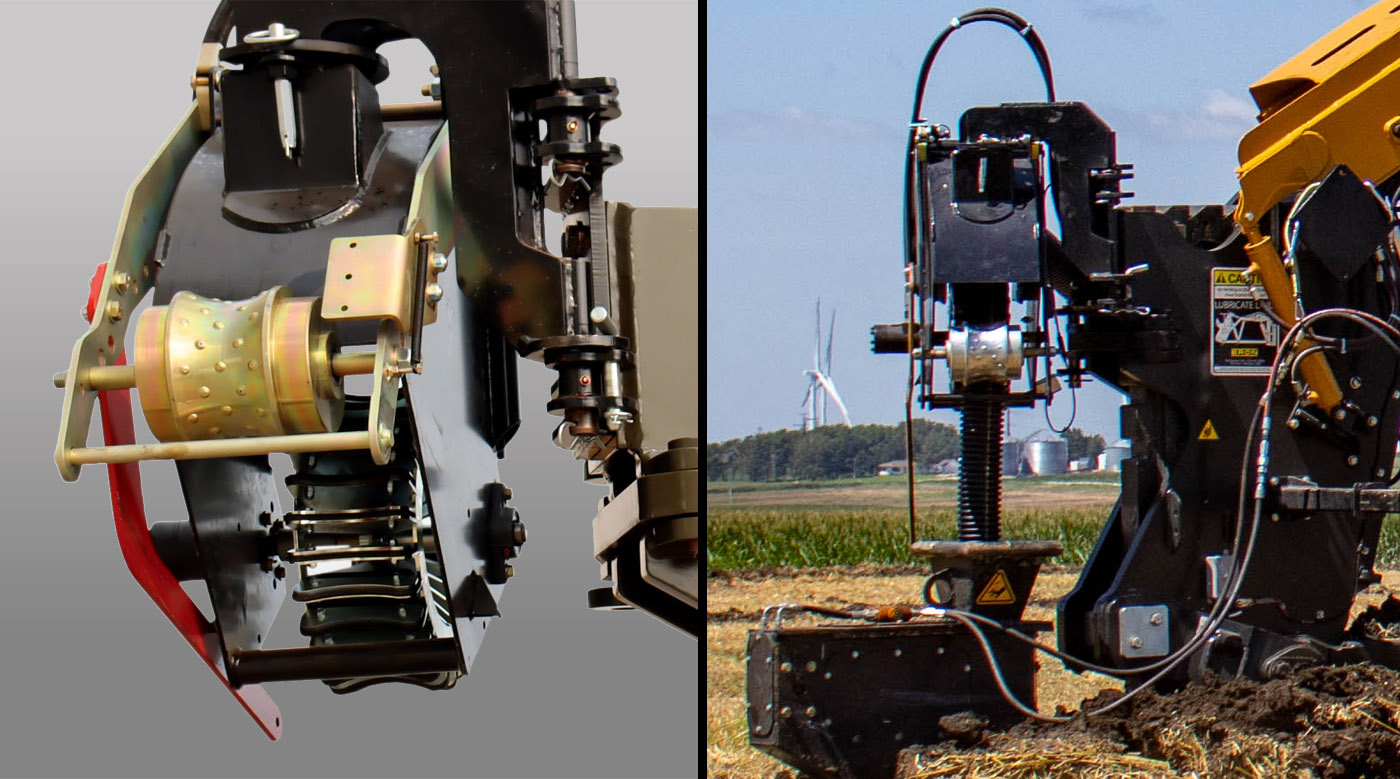

Power Feeder
Assists feeding tile into the chute.
Options

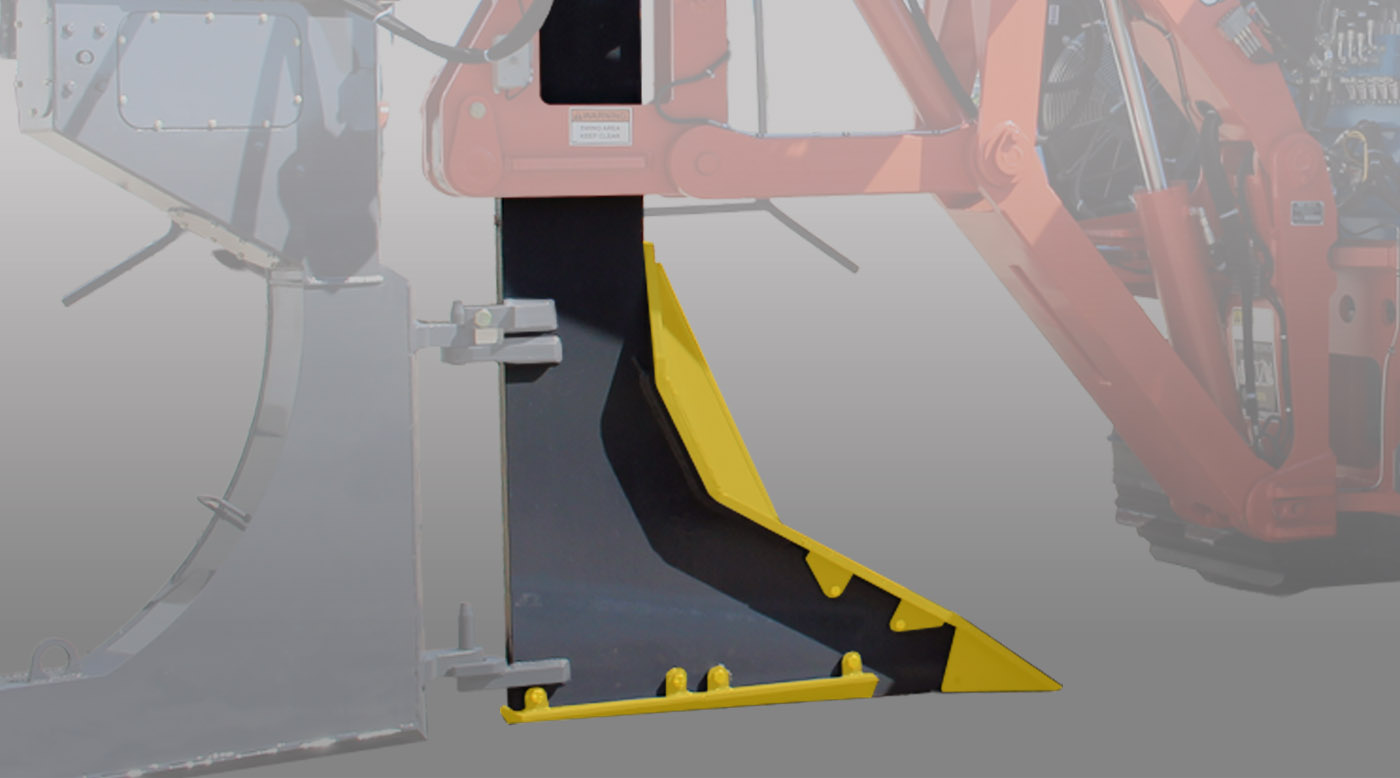

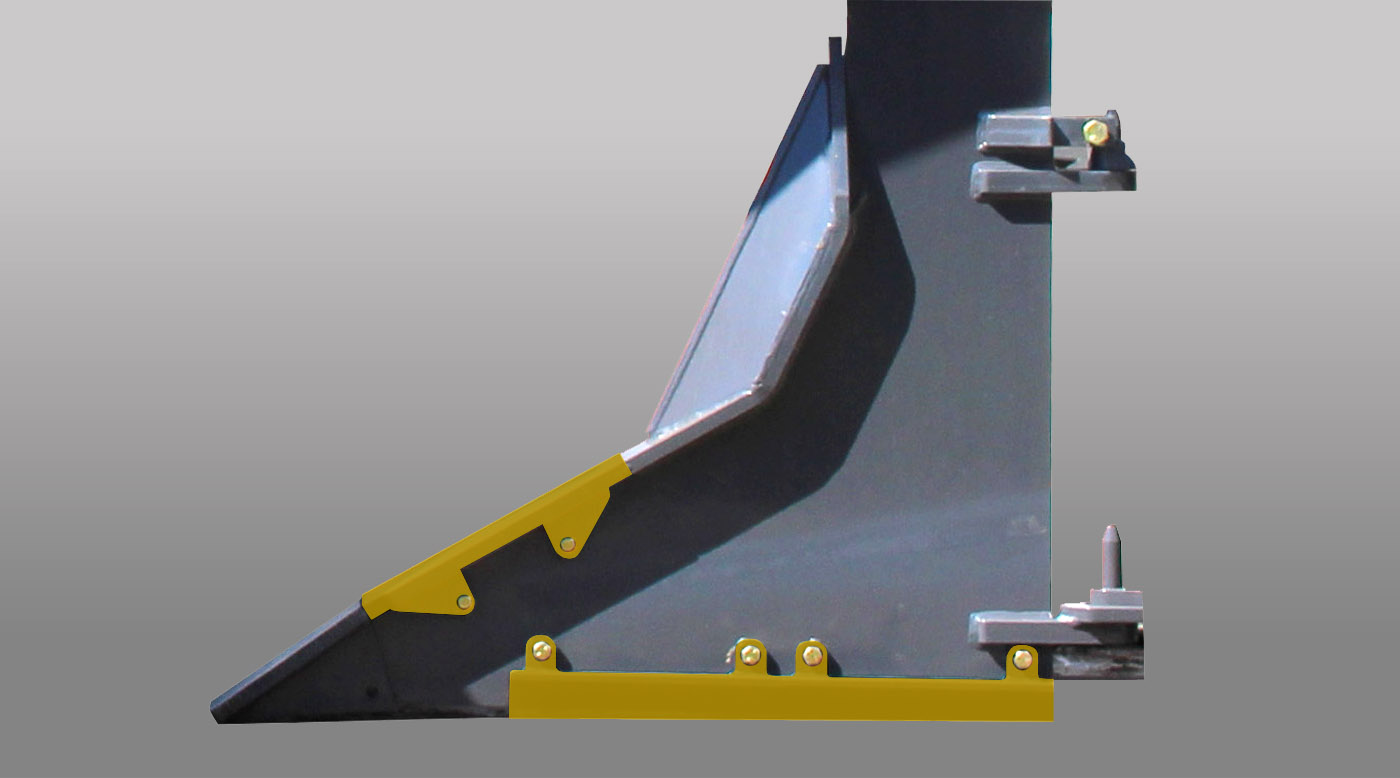

Mouldboards & Bottom Guards
Wide selection of replaceable mould boards to match chute widths.

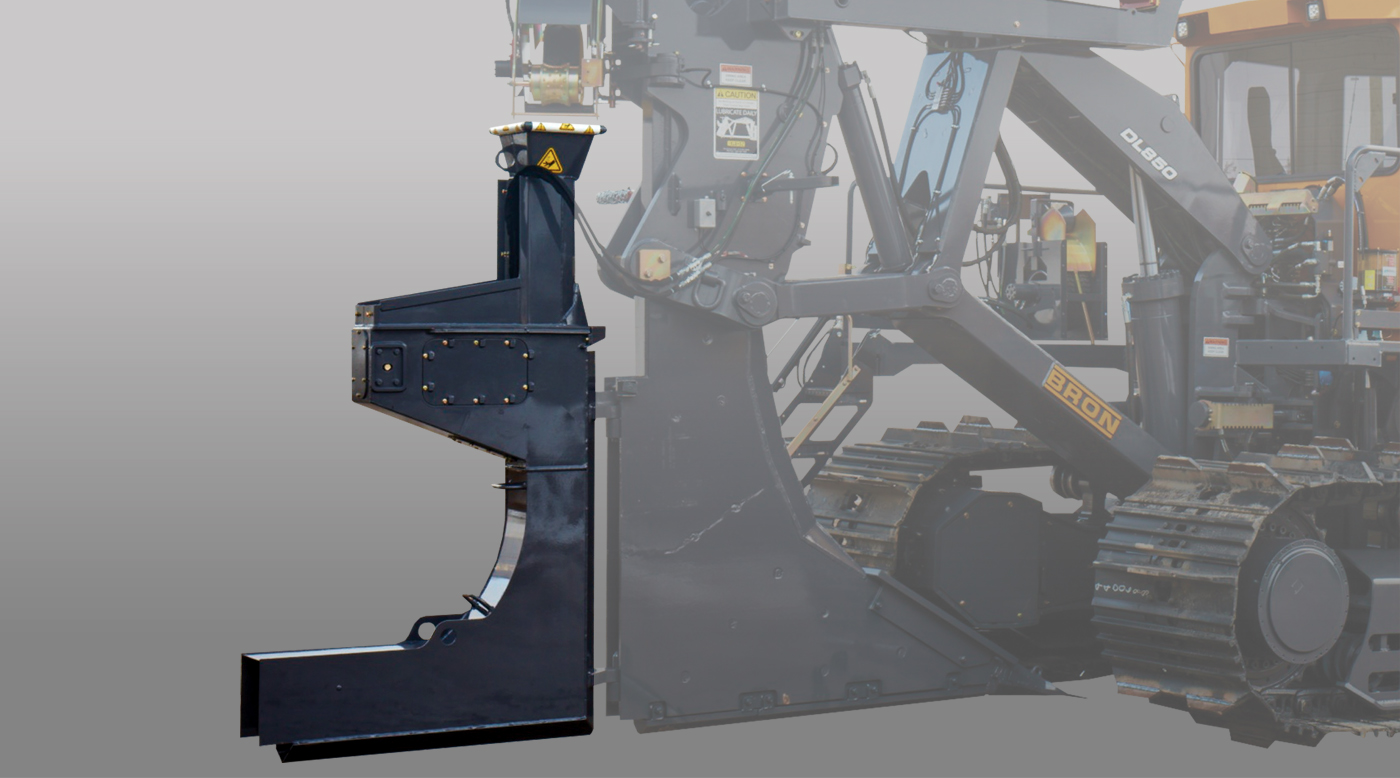

Custom Chutes
Available in sizes 3” to 15”. Available with stainless steel chute skins to protect the integrity of the chute when working in abrasive material.

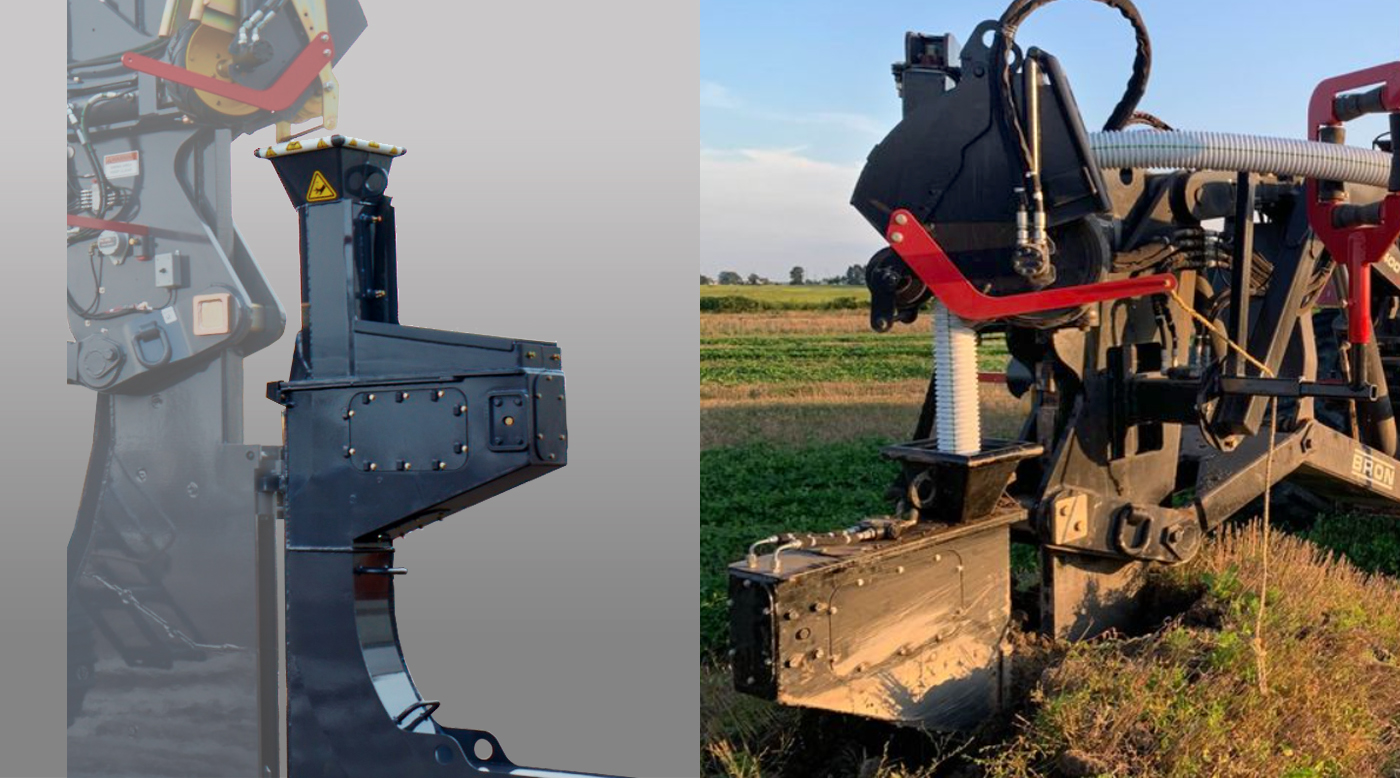

Cutter Crusher Chutes
Cut & crush the tile, saving time & money by eliminating the need for endcaps. Single and dual chutes available for 4” and 6” sizes.

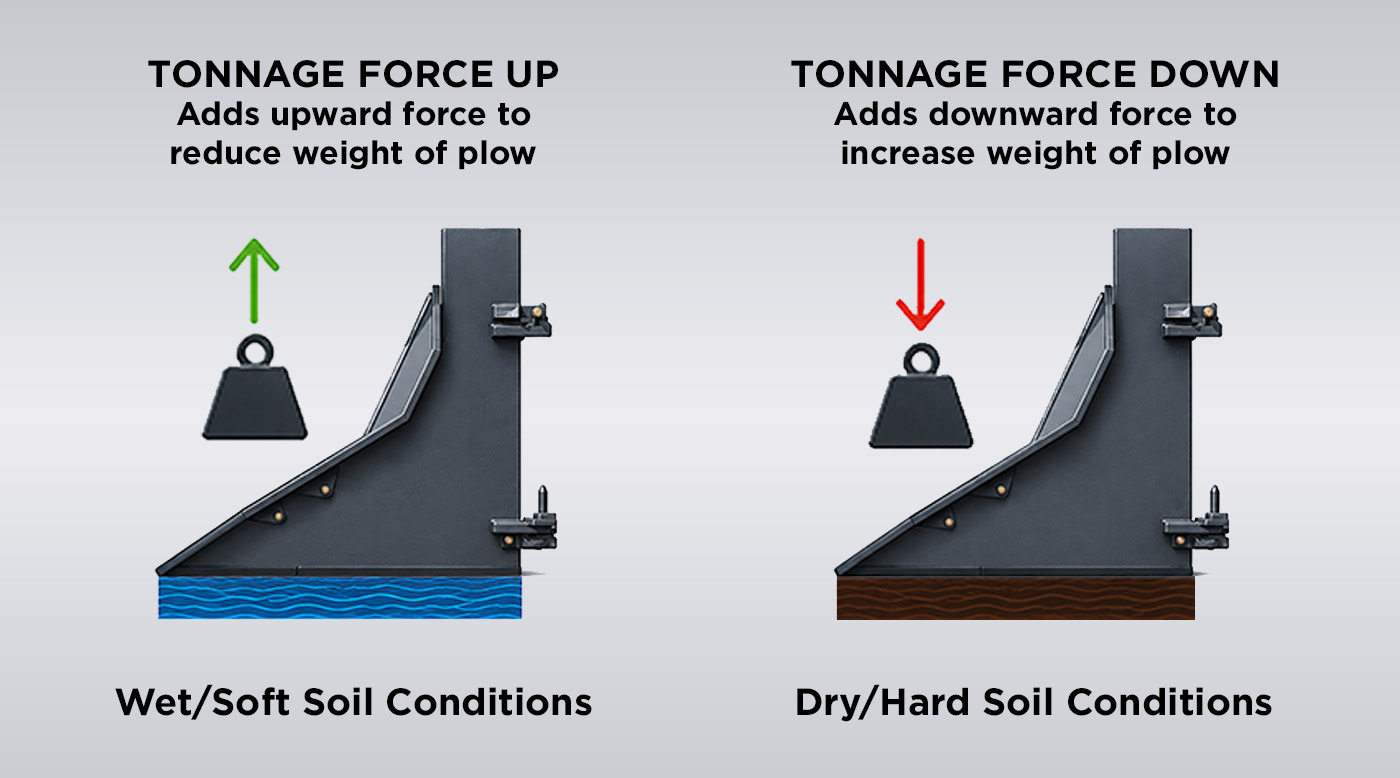

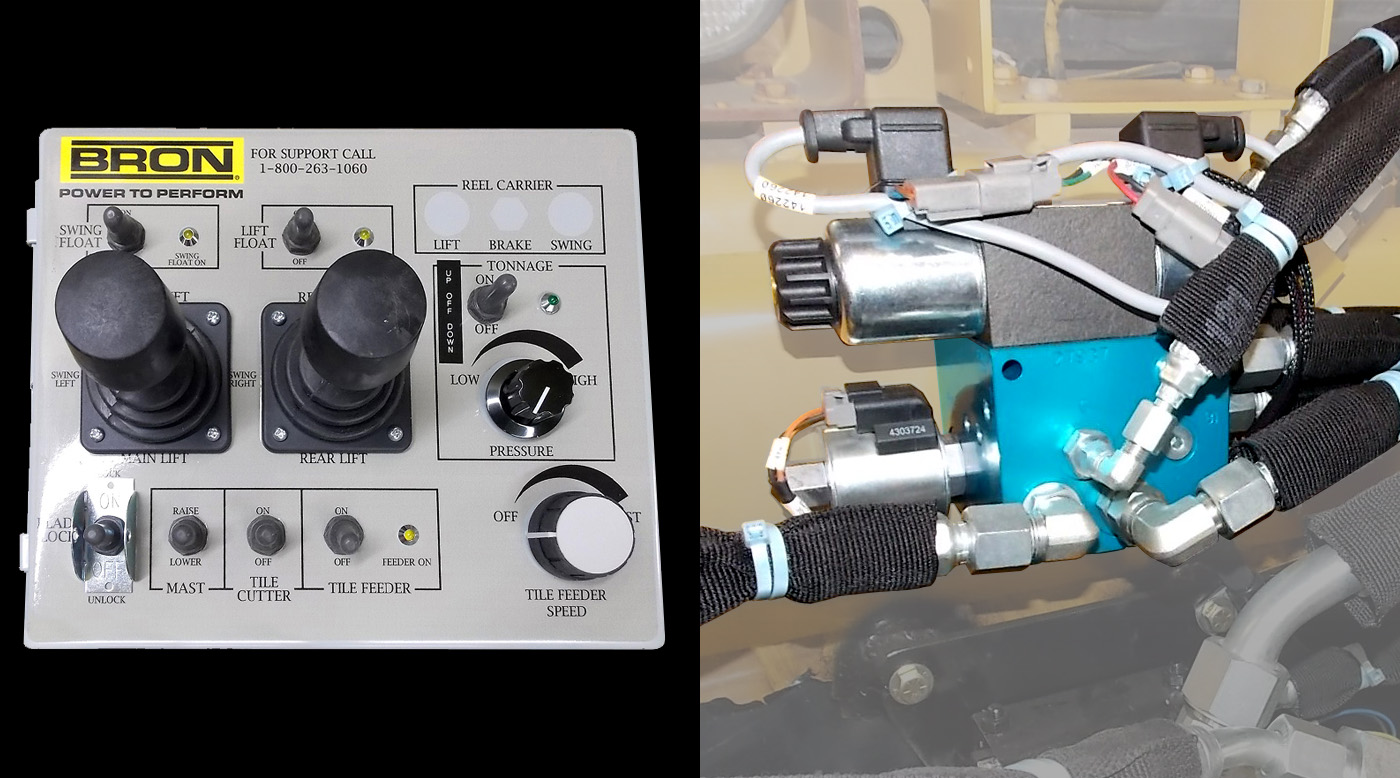

Tonnage Control
Additional tonnage available for working less ideal soil conditions.

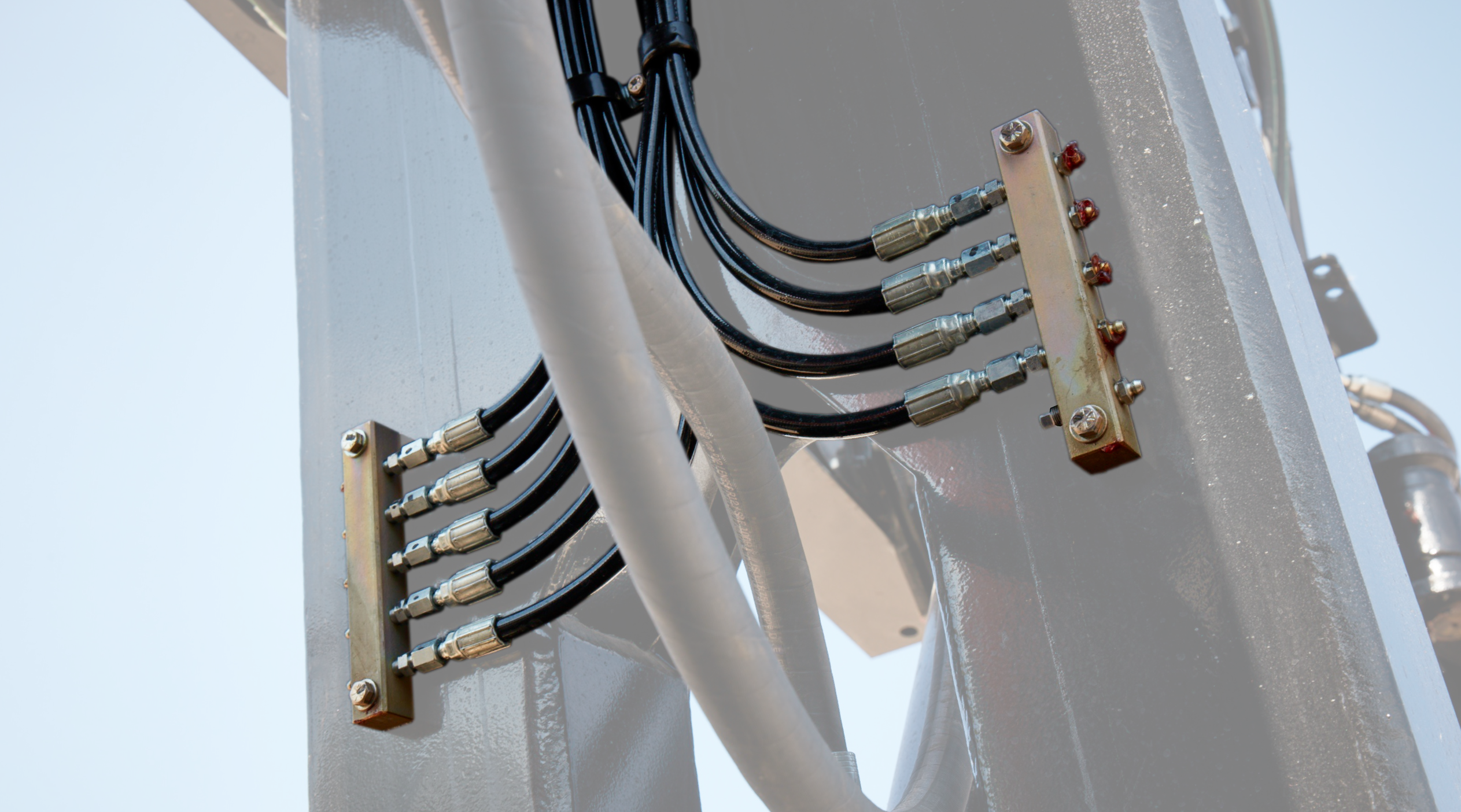

Grease Banks
Provides easy access to grease points from the ground in a central location.

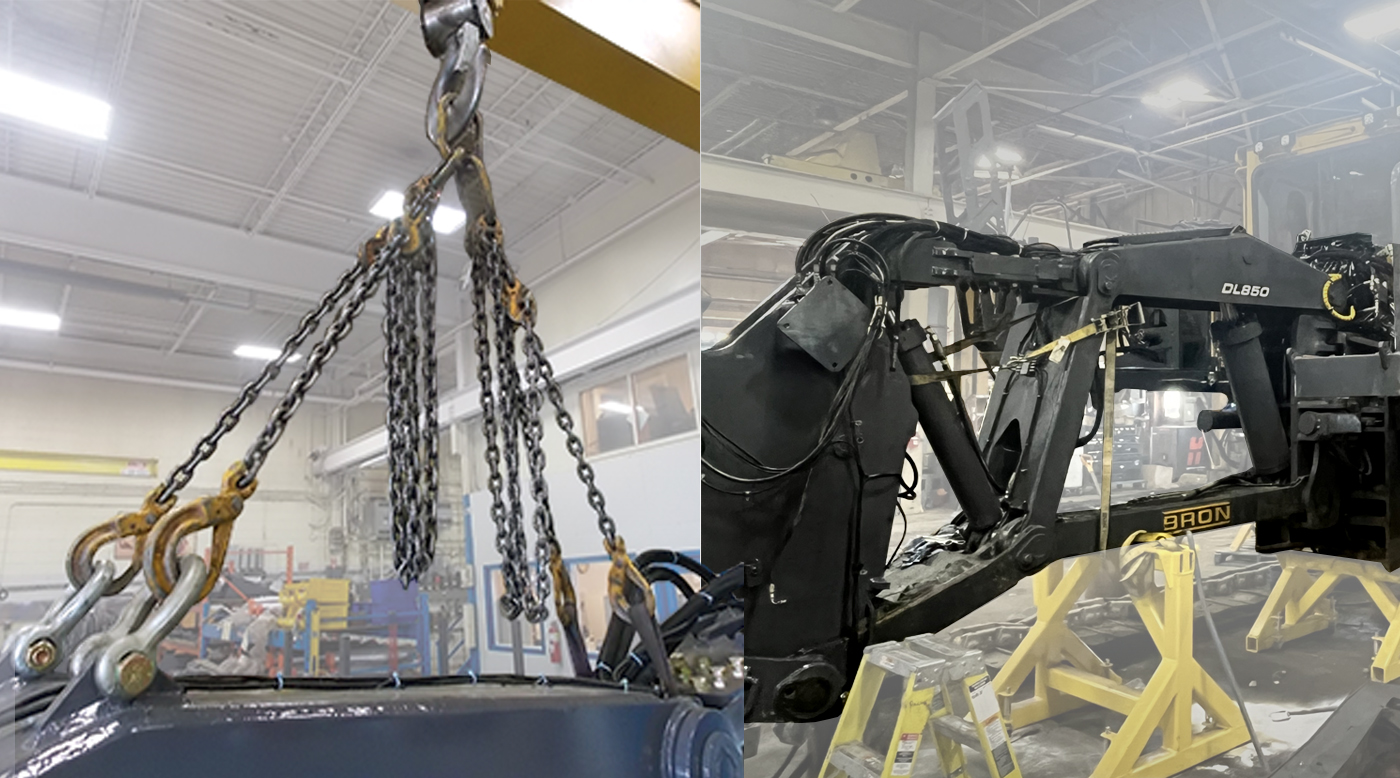

Factory Installation
Optional levels of factory assistance available for ease of installation ranging from over the phone help to a full factory installation.
Specifications
| Rubber-Tired Tractor (Min.) | 275 hp (205 kW) |
| Max Cutting Depth | 48" (1.2 m) |
| Blade Ground Clearance (Field) | 10" (25.4 cm) |
| Blade Ground Clearance (Transport) | 10" (25.4 cm) |
| Plow Height (Transport) | 96" (224 cm) |
| Plow Weight | 6000 lbs (2721 kg) |
| Installation Chute Sizes Available | 3-4" (7.62-10.2 cm) |
