Ground preparation

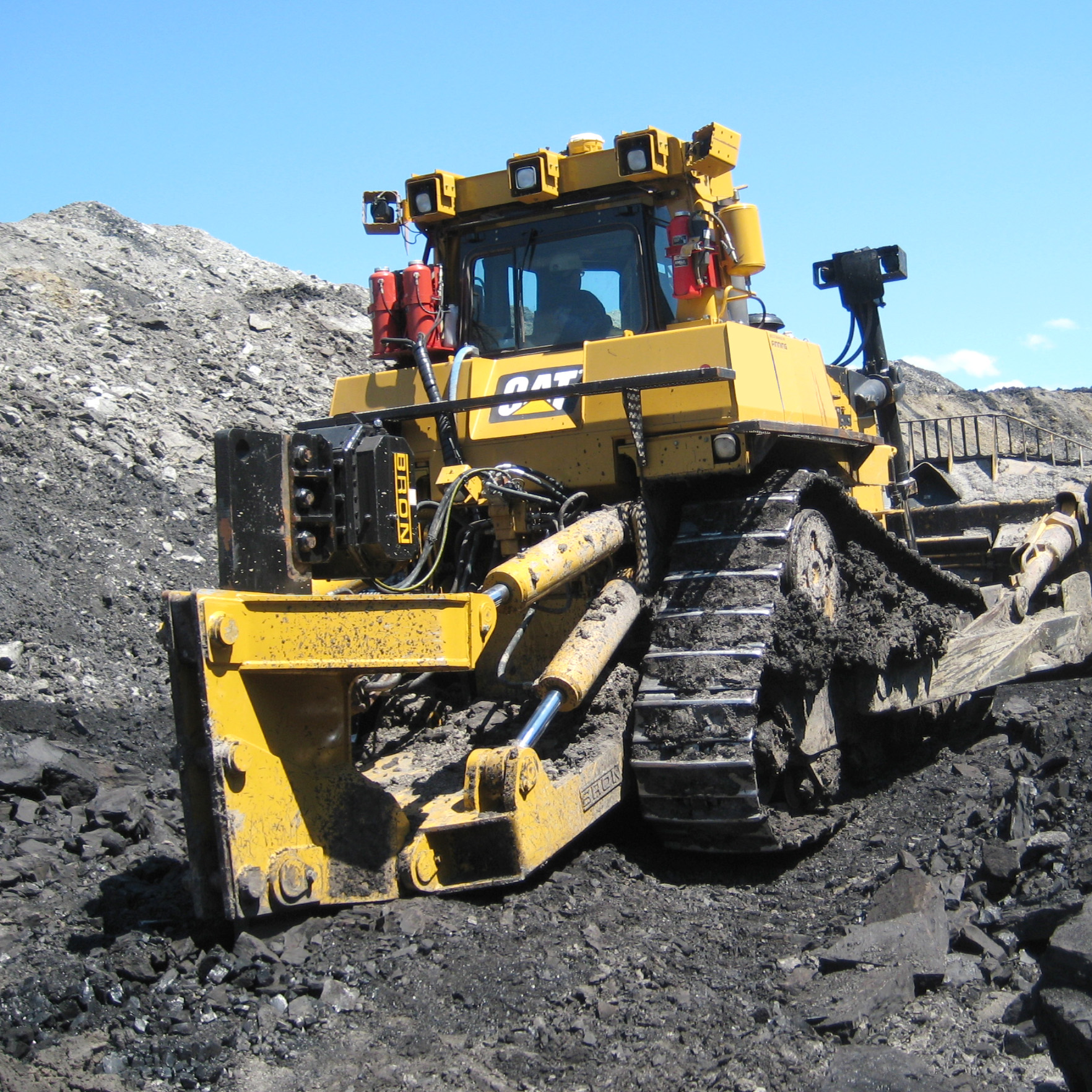

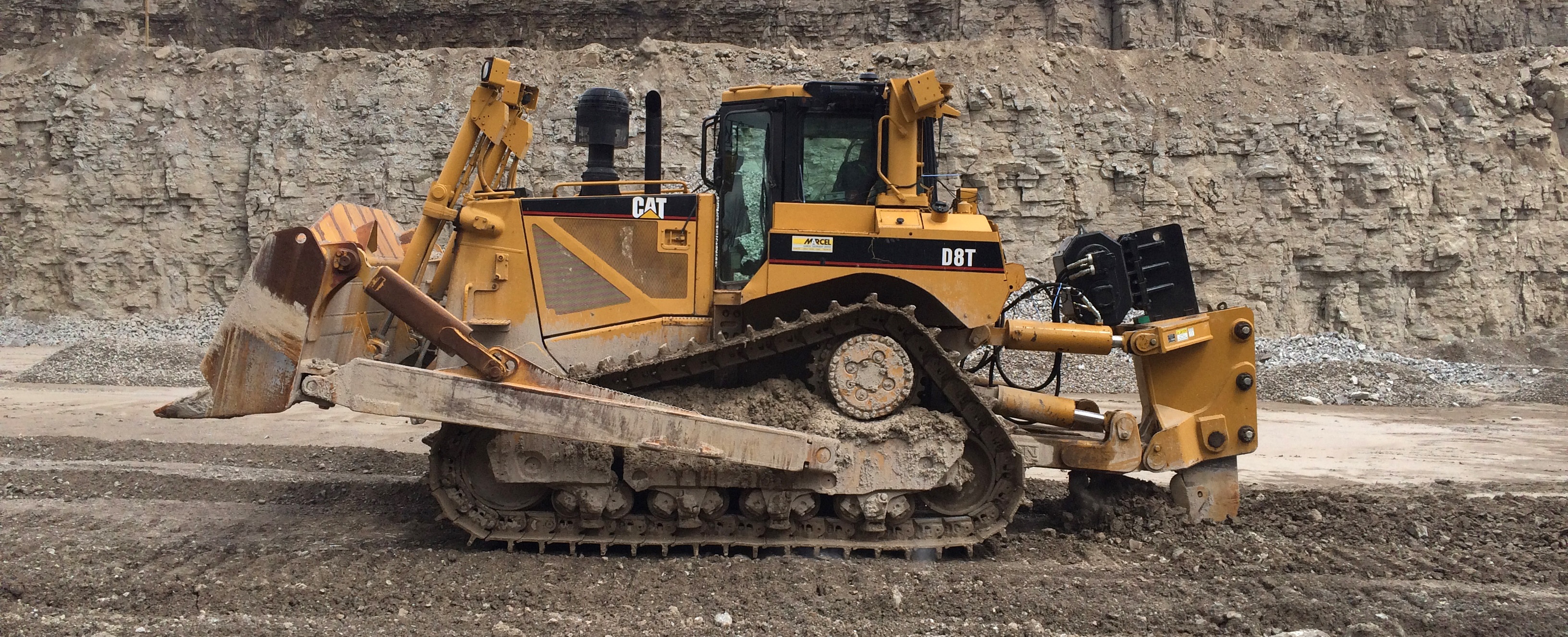

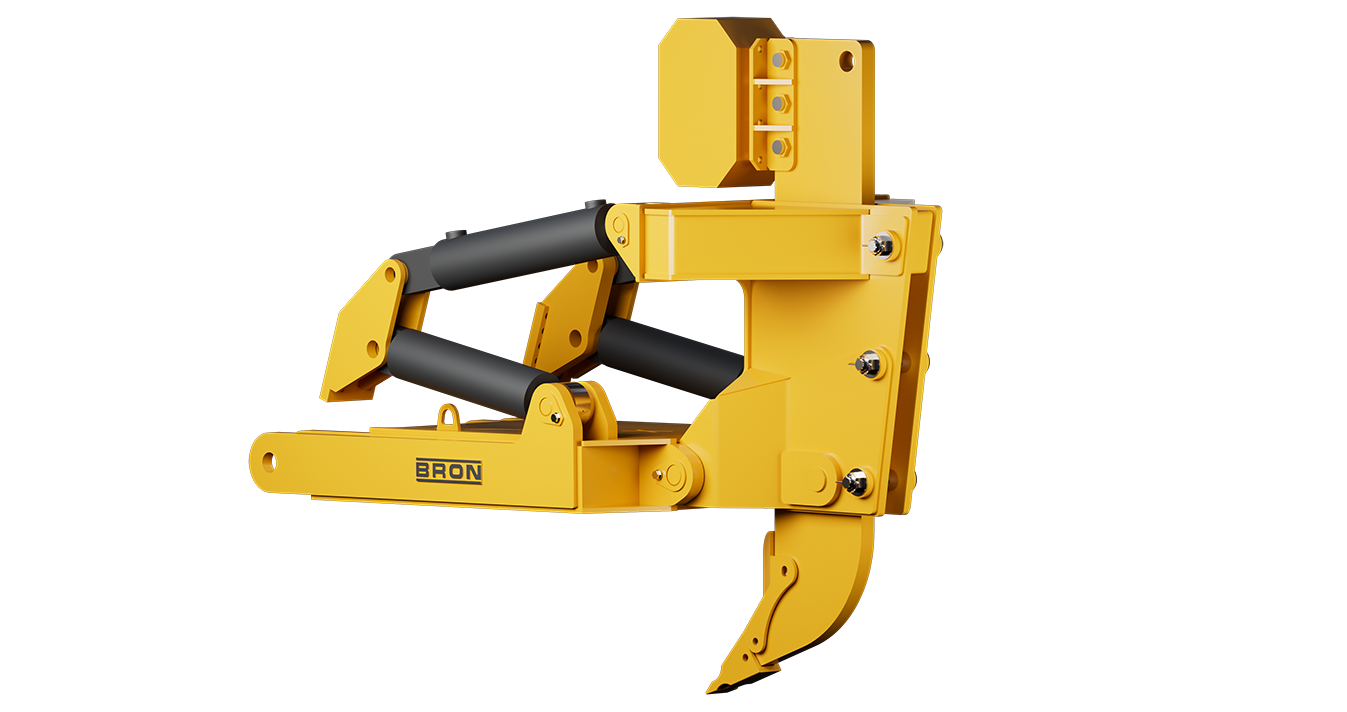

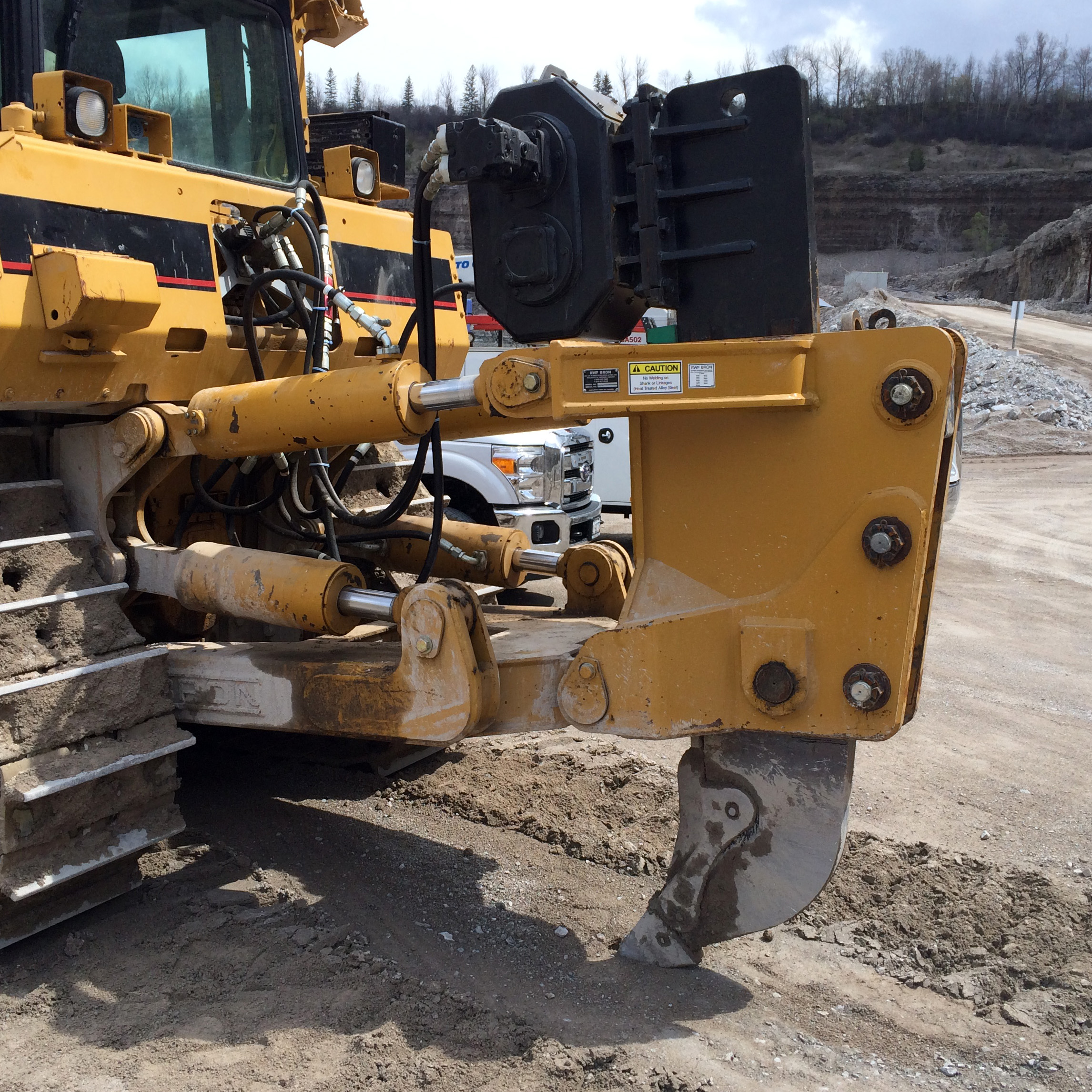

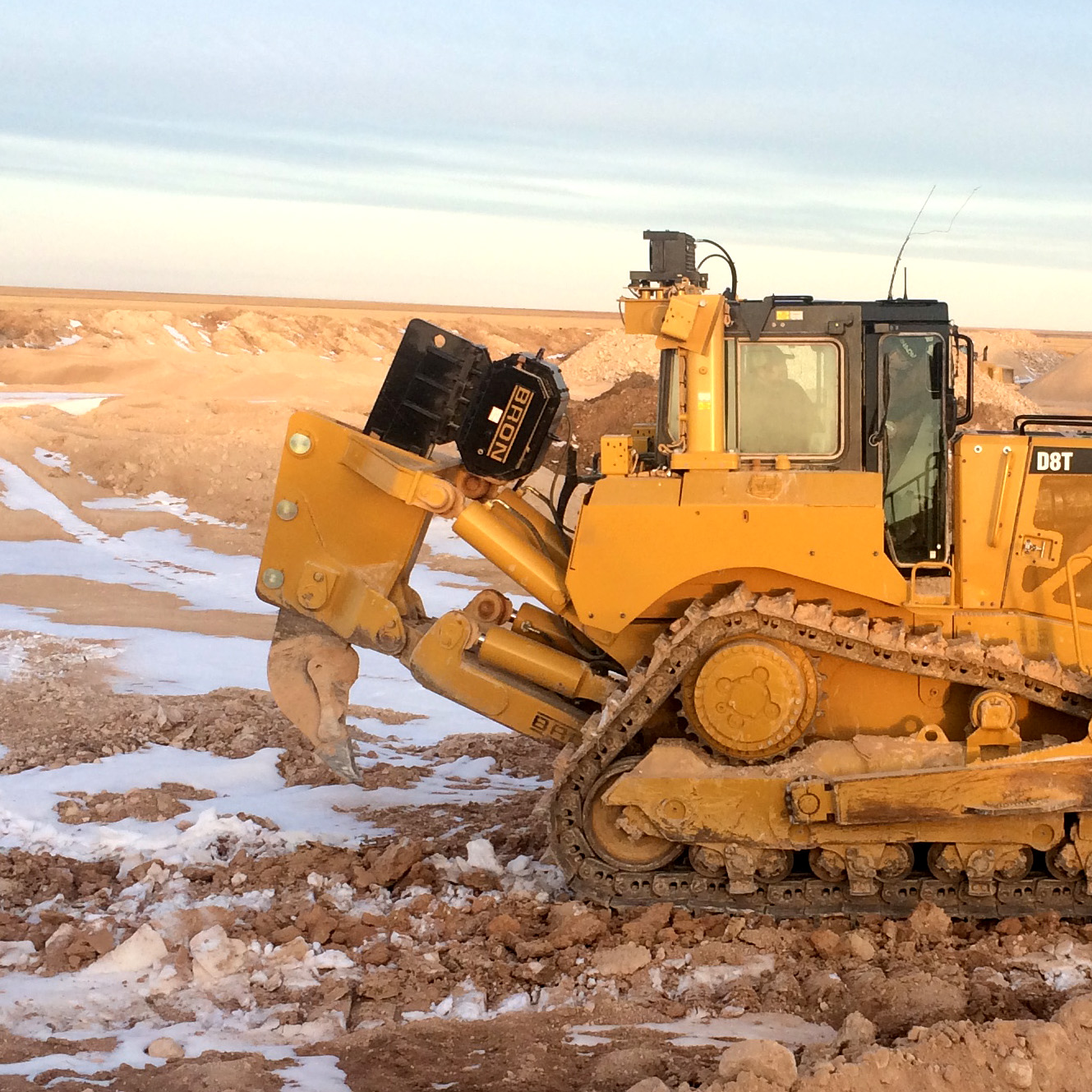

Built for dozers up to 750 HP, the BRON VR4000 Vibratory Ripper is designed to work in applications with compacted soil, shale, limestone rock and coal. The BRON VR4000 serves multiple industries, including mining, road construction and utility.
21,500 lbs
Weight48"
Working DepthUp to 750 hp
PowerFeatures

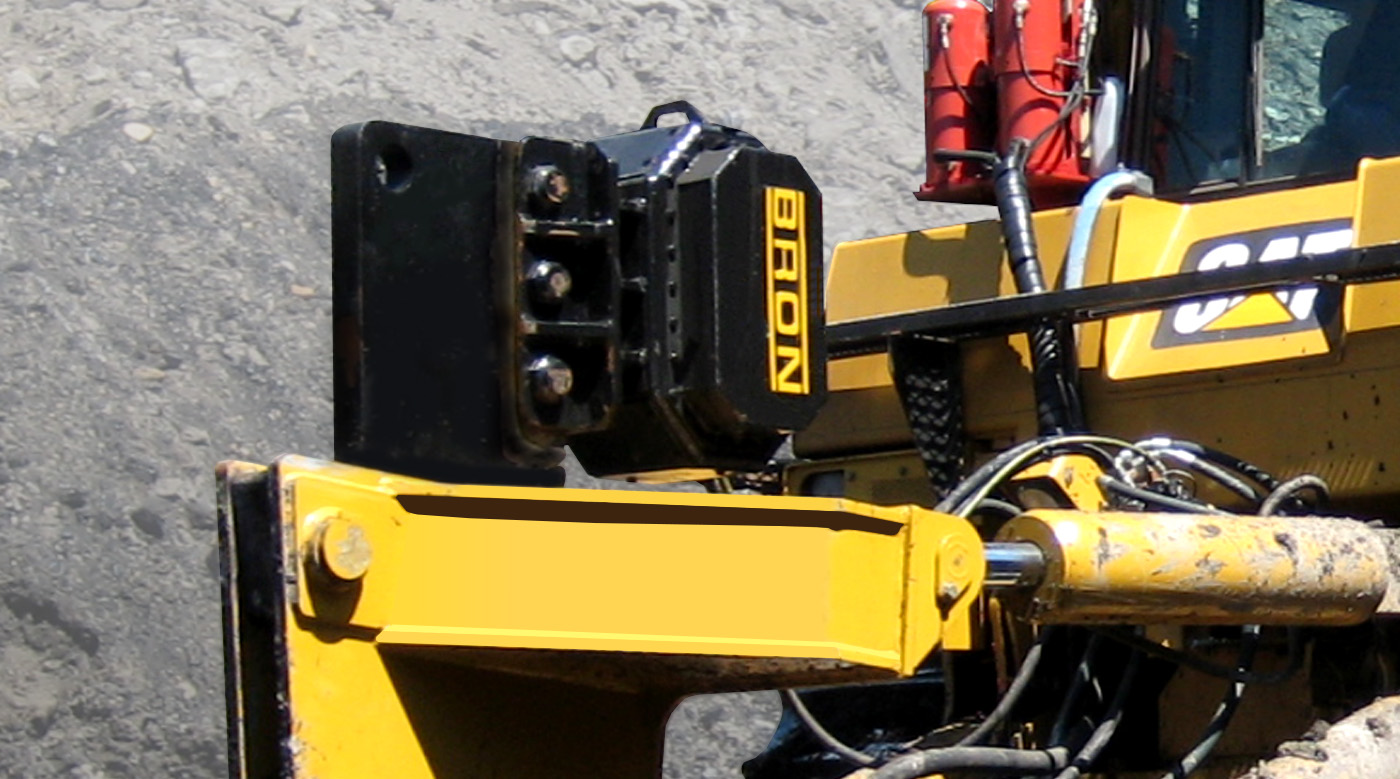

Shaker
The vertically mounted shaker creates a hammering chisel effect with the blade for breaking through hard ground conditions.

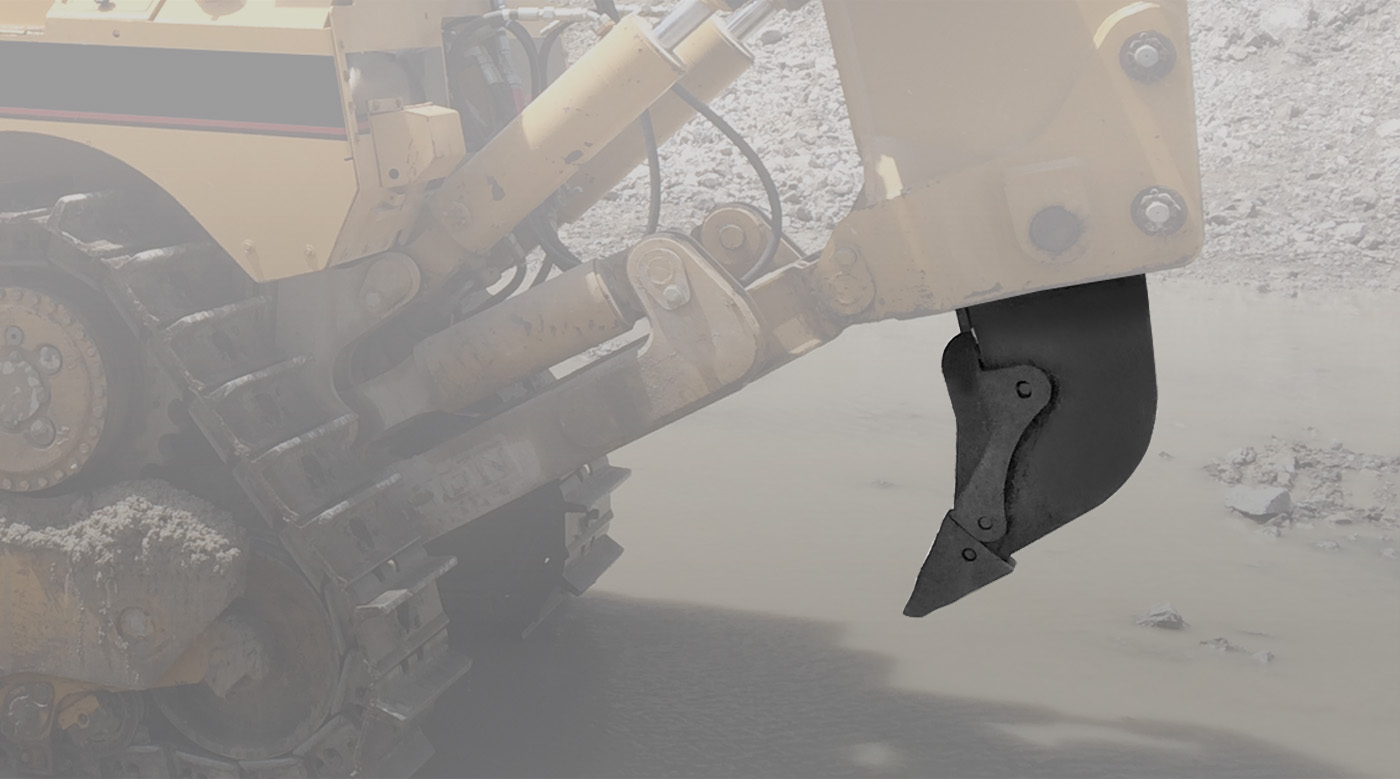

Blade
Designed to easily break through hard ground conditions while resisting wear.

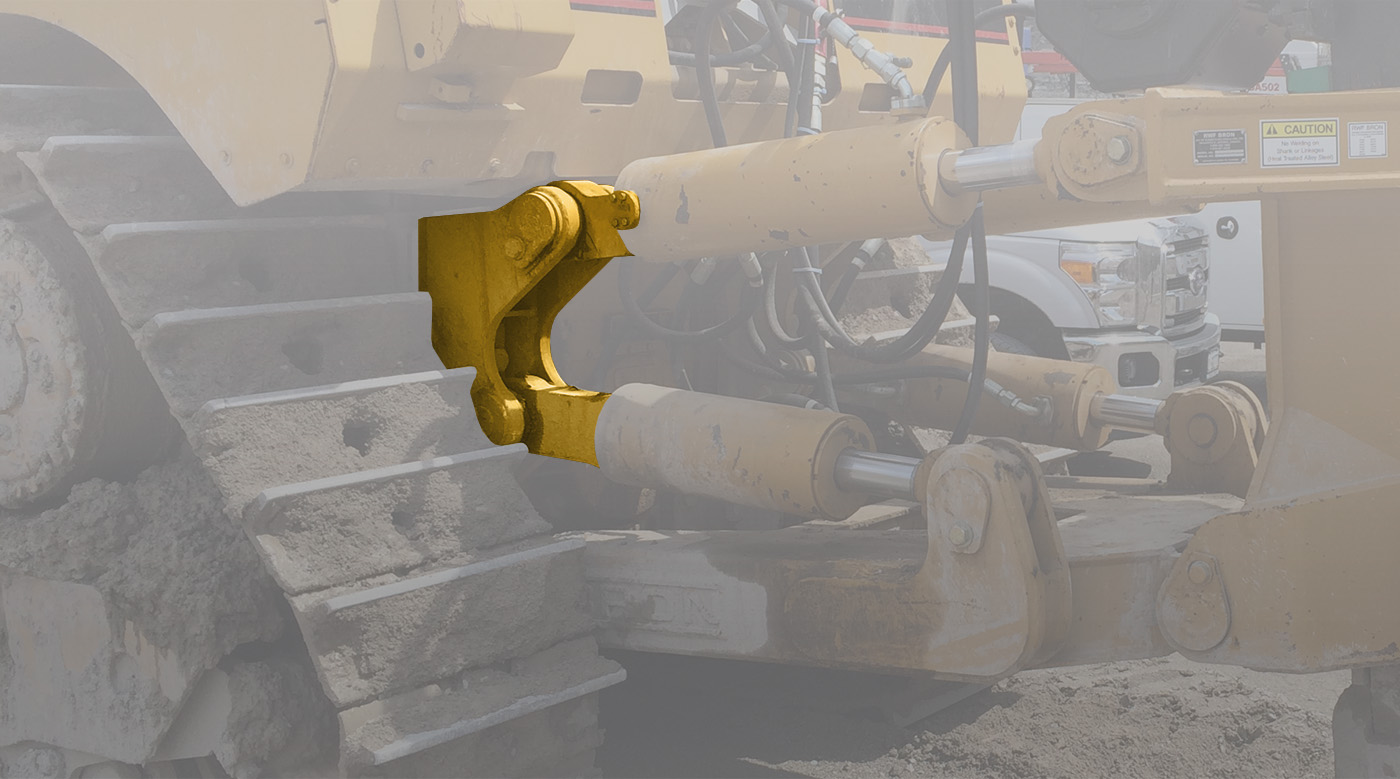

Engineered Mounts
Engineered to attach the vibratory ripper to most makes & models of dozer.

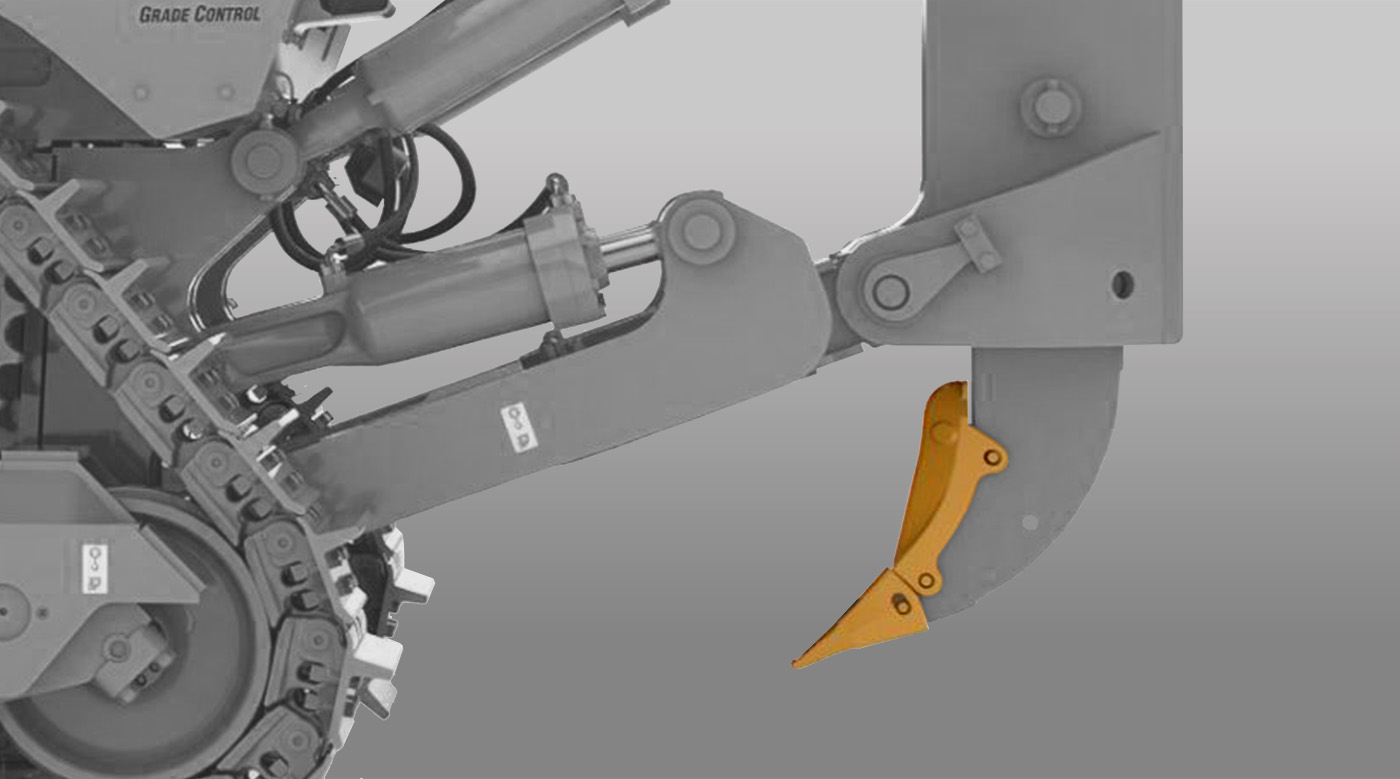

Replacement Wear Parts
The ground engaging teeth & cutting edges are easily replaced as they wear down.

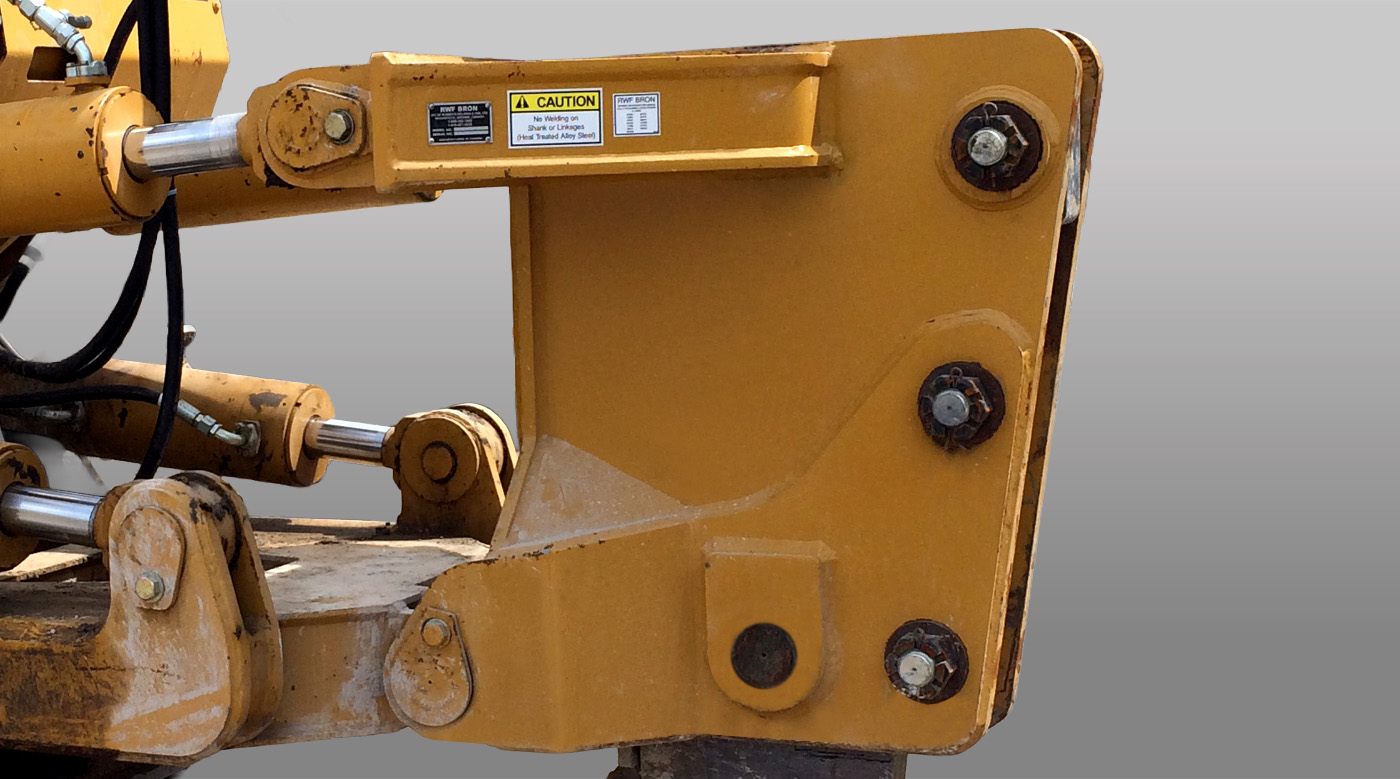

High-Strength Steel Construction
All components of the vibratory ripper are fabricated using High-Strength steel that stands up to demanding applications.
Specifications
| Approximate Weight | 21,500 lbs (9752 kg) |
| Maximum Working Depth | 48" (1288 mm) |
| Raised Tooth Ground Clearance | 20" (512 mm) |
| Height of Mounted Ripper From Top of Shank to Ground (Both Cylinders Fully Retracted) | 151" (3849 mm) |
| Width of Ripper Assembly | 70" (1778 mm) |
| Height of Ripper Assembly | 129" (3281 mm) |
| Length of Ripper Assembly | 151" (3845 mm) |
