Power and utility

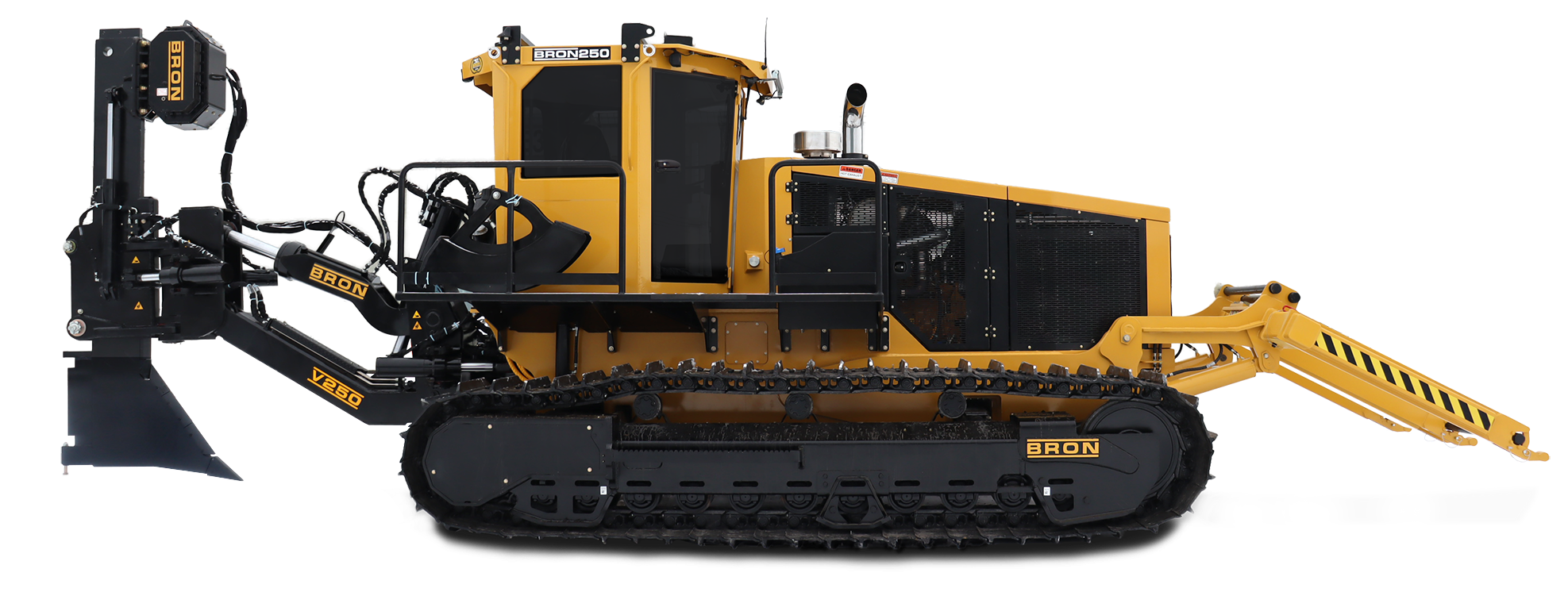

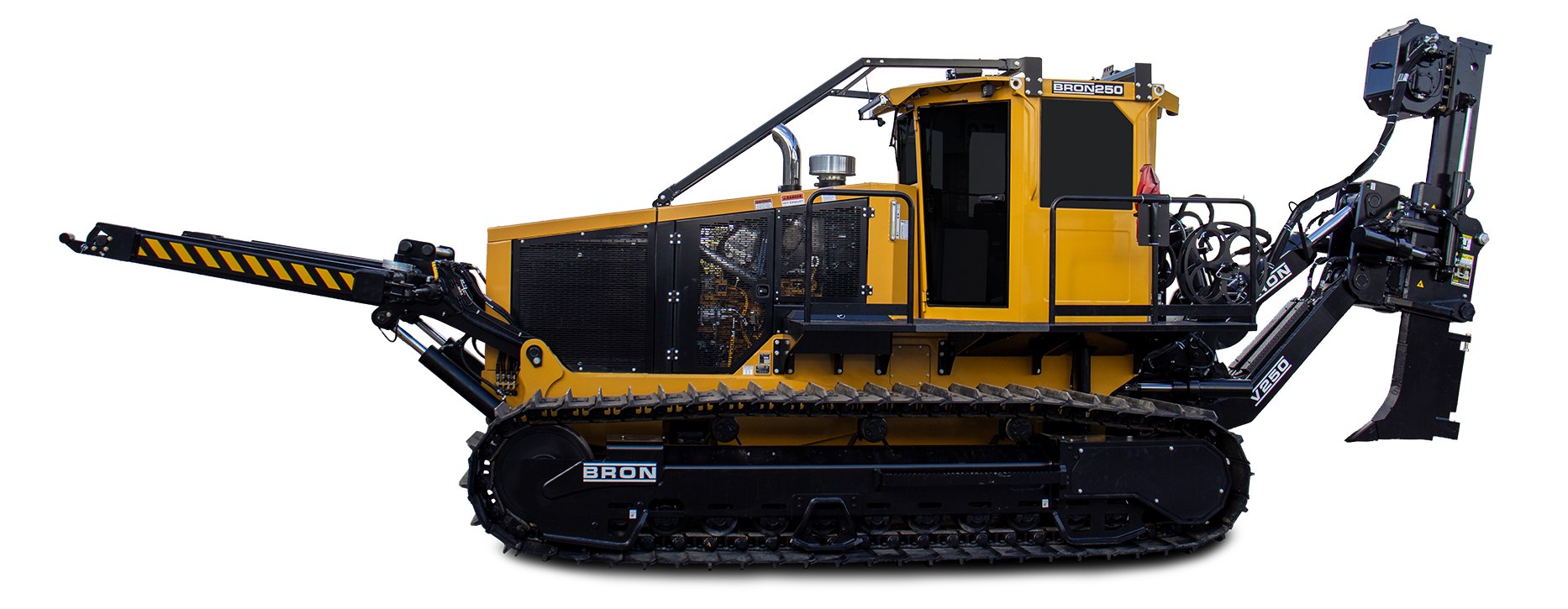

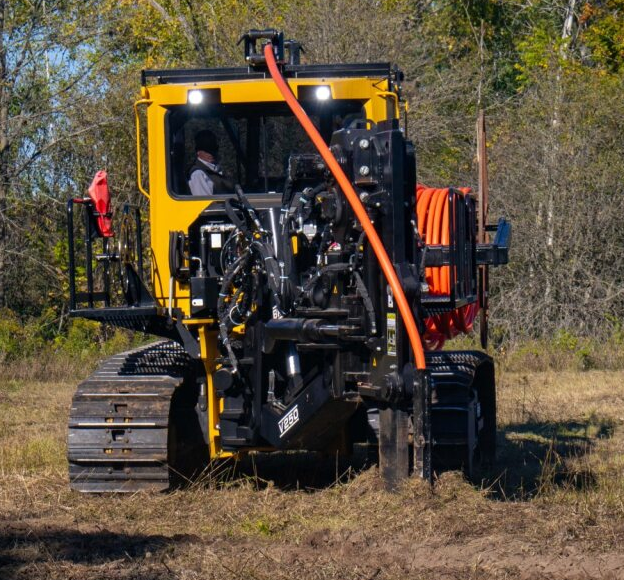

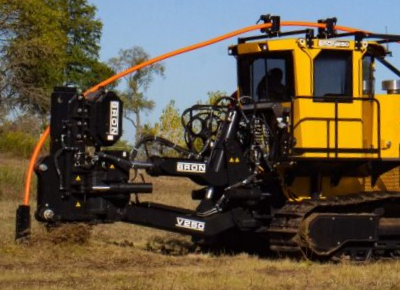

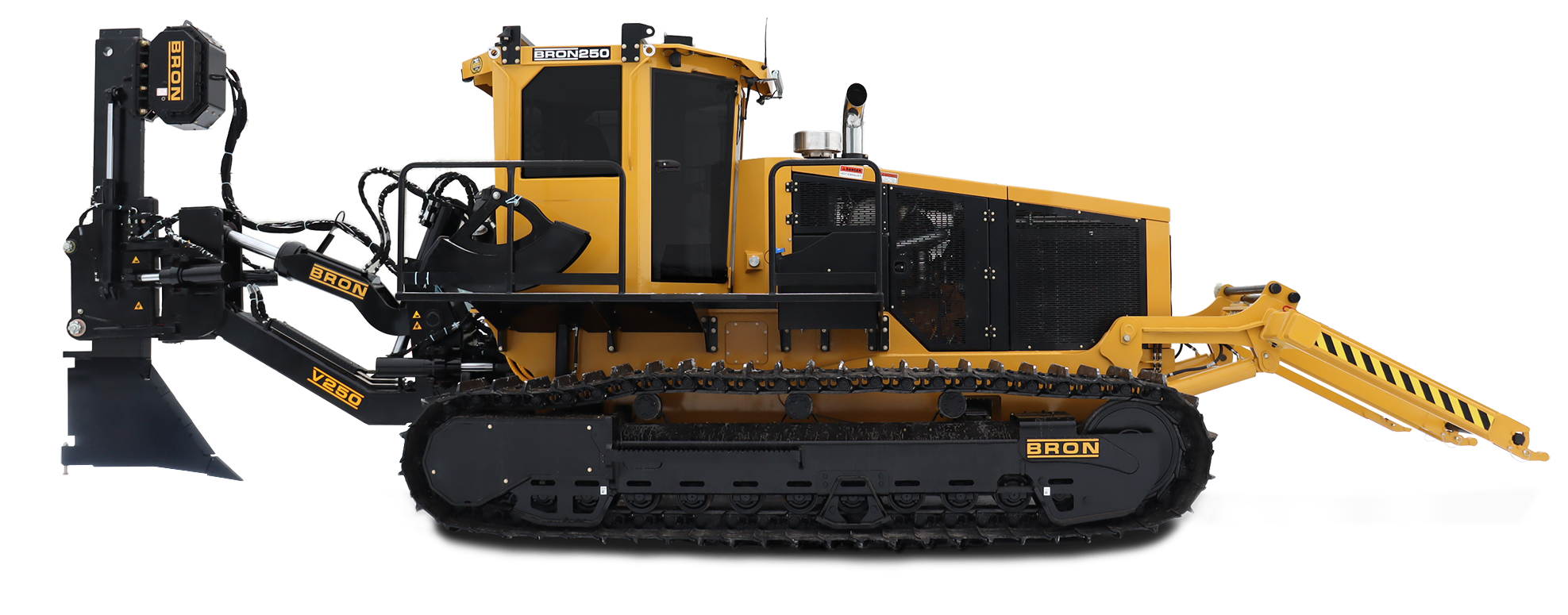

Installing 3-phase power has never been easier or quicker than with the BRON 250 Utility Tractor. The BRON 250UT is available with a patented installation chute that consists of multi-duct openings with a hopper to install your preferred aggregate around cables or ducts.
66,000 lbs
Weight72"
Depth335 HP
PowerD6
UndercarriageApplications
TELECOMMUNICATIONS
BRON connects your customers to the world by installing conduit, fibre optics, and power cable for communication networks.
Renewable Energy
Laying power and communication cables for various utilities like solar farms and wind turbines.

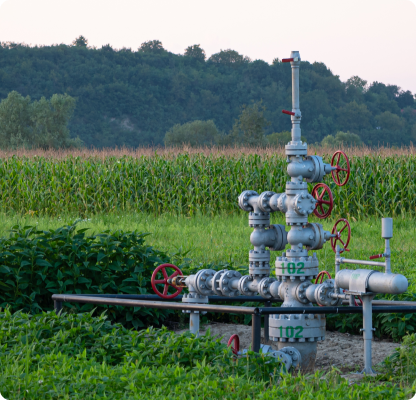

WATER & GAS
Extending rural water and natural gas lines.
Features

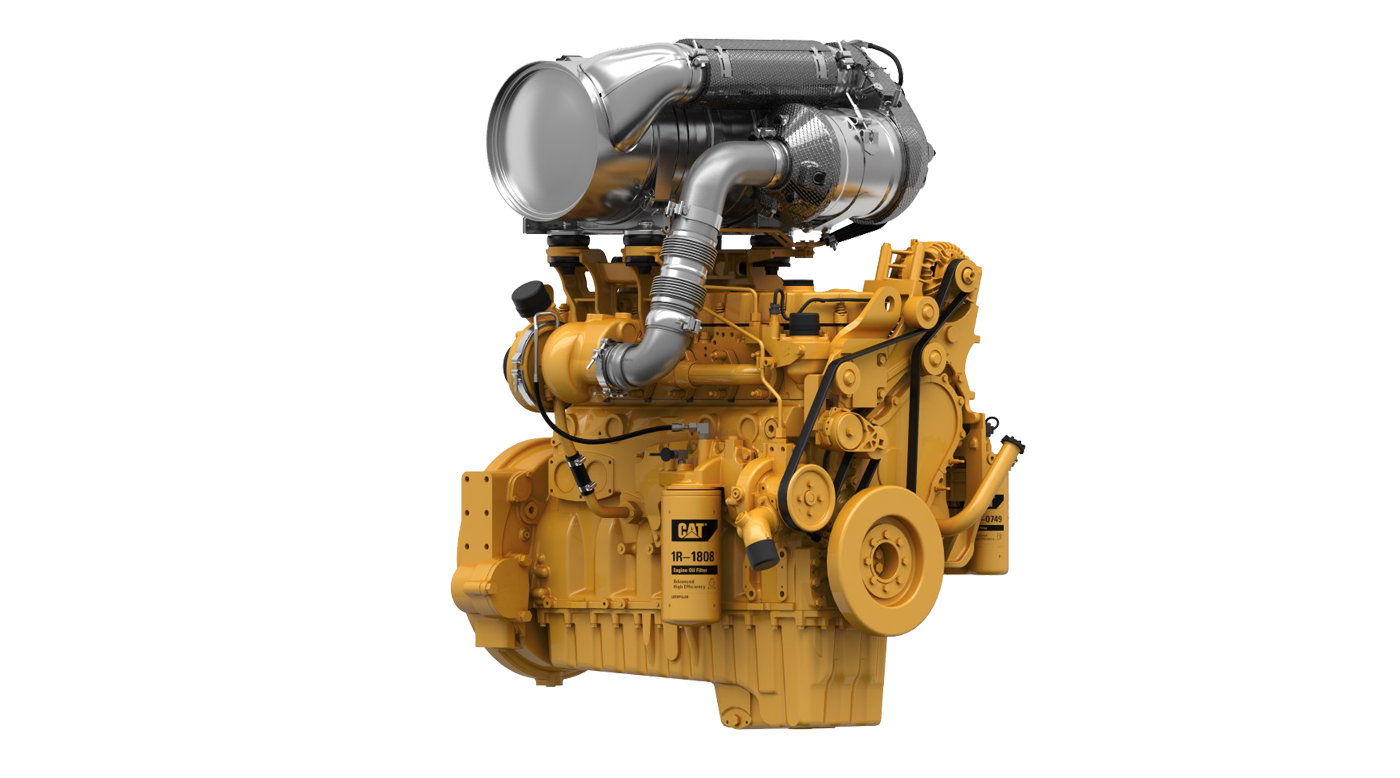

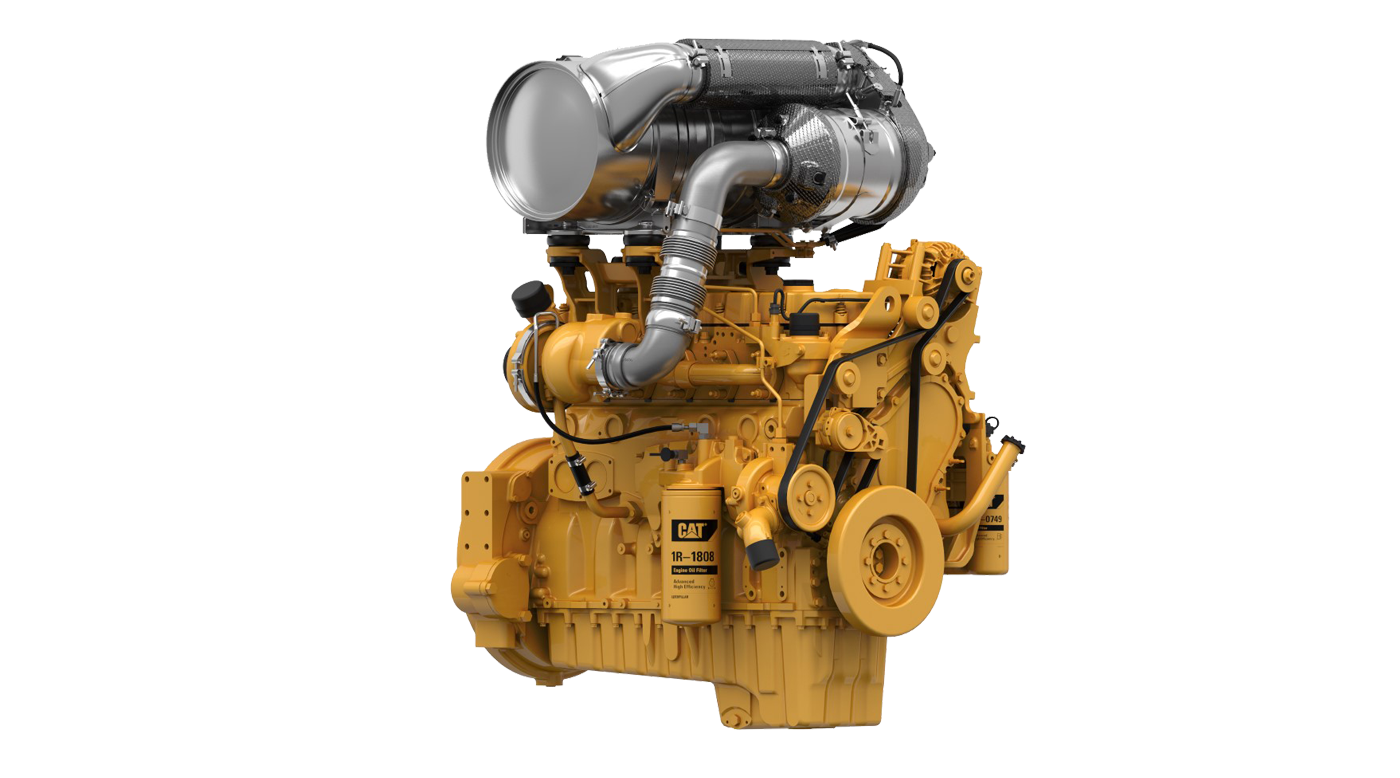

9.3 L CAT® 335HP Diesel Engine
The 250UT comes equipped with 9.3 L CAT® diesel engine delivering 335 HP, engineered for dependable performance in demanding environments. This robust turbocharged powerplant provides high torque at low RPM, ensuring strong pulling capability, smooth operation under load, and efficient fuel use across a wide range of applications. Built on proven CAT® technology, the engine offers durability, long service intervals, and supportability through a global service network.

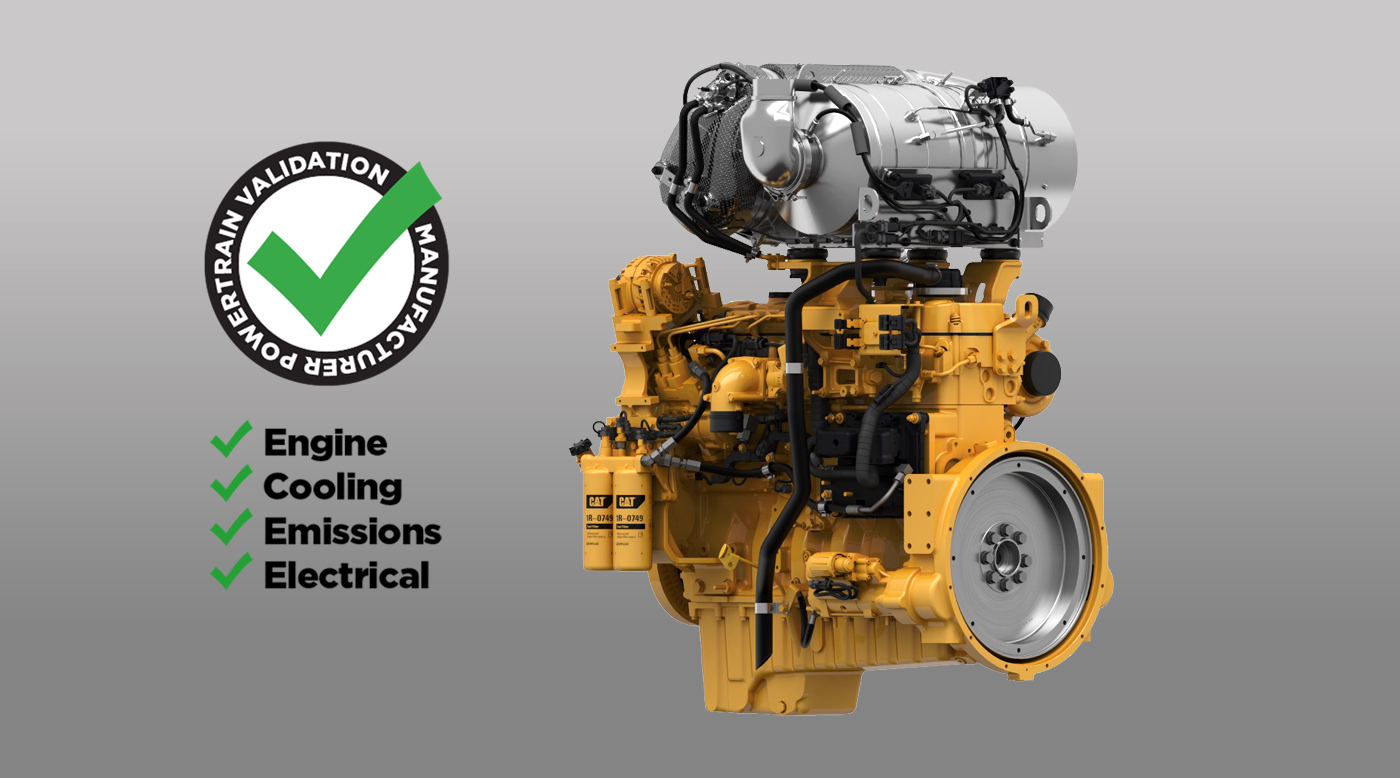

Manufacturer Validation
Every BRON powertrain is developed in collaboration with leading engine manufacturers like Cummins, Caterpillar, and John Deere. Each installation is reviewed to ensure the engine, cooling, emissions, and electrical systems work seamlessly together—so your machine is fully supported for long-term performance in the field.

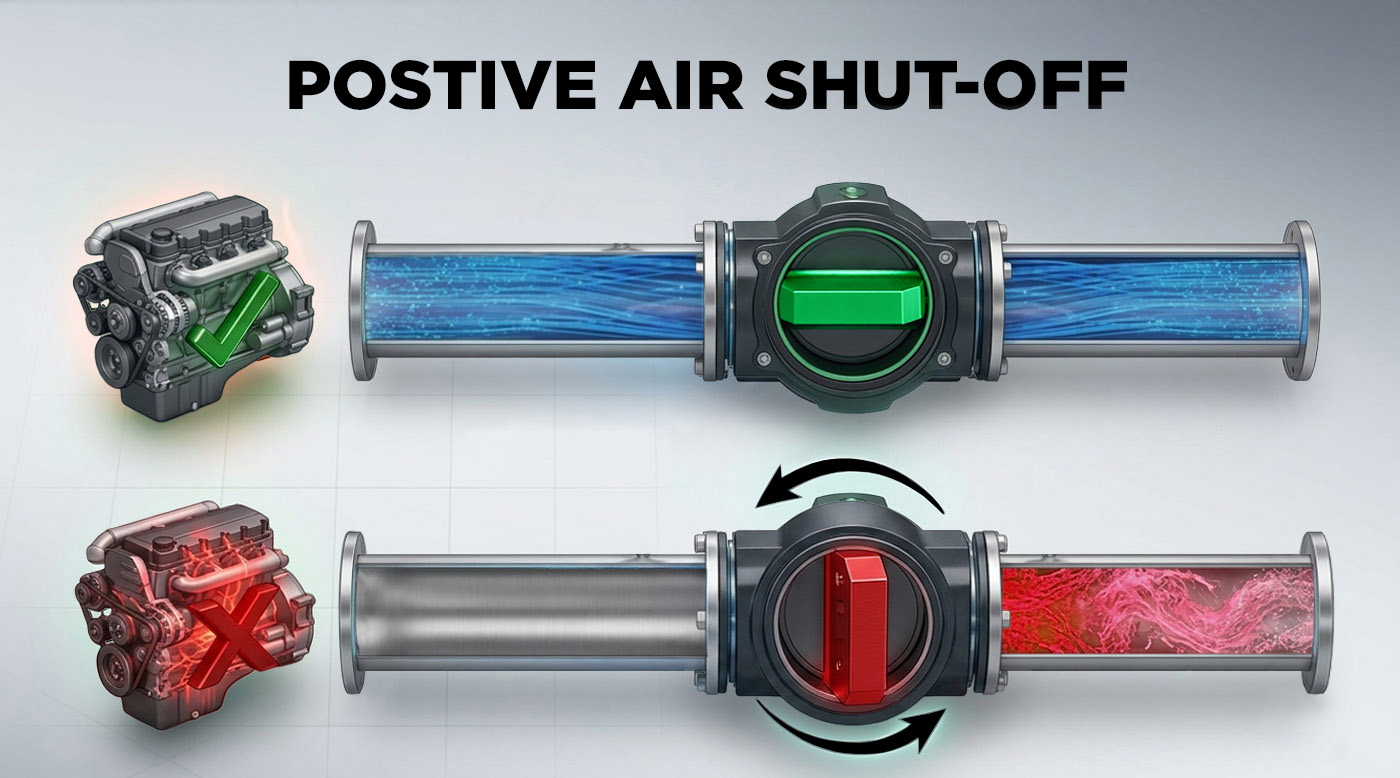

Positive Air Shut-Off
Positive Air Shut-Off provides an added layer of engine protection by immediately shutting down the engine through the interruption of air intake. This system enables the engine to be safely stopped in emergency situations or in the event of uncontrolled fueling, thereby preventing severe engine damage and enhancing safety.

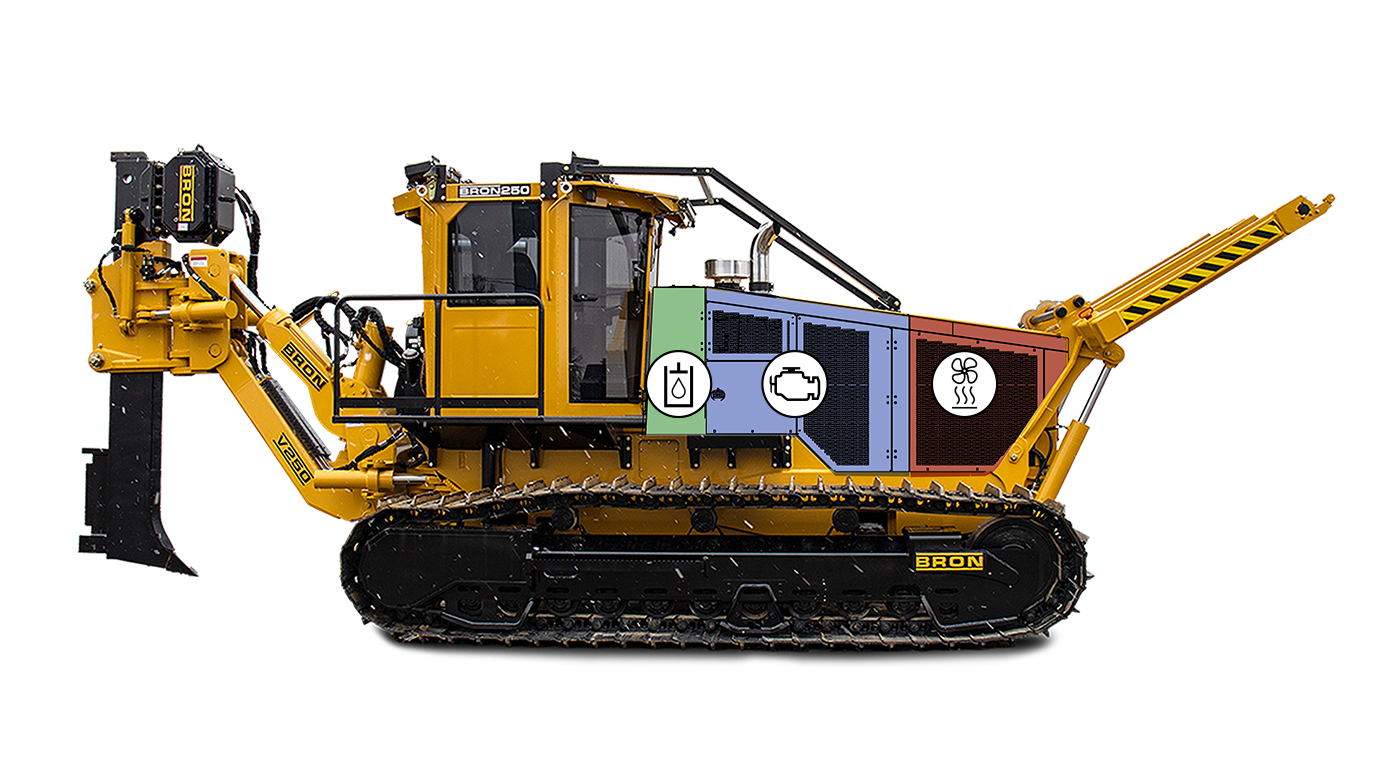

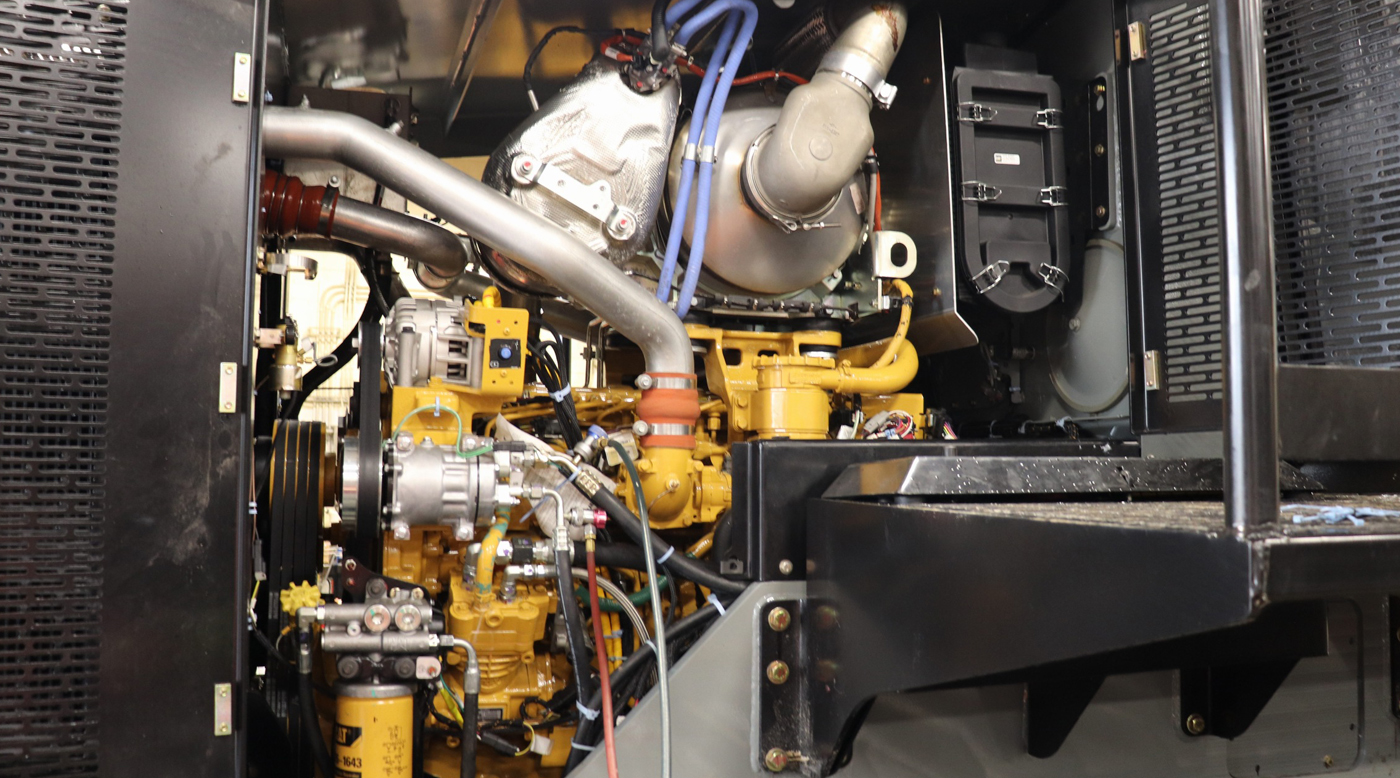

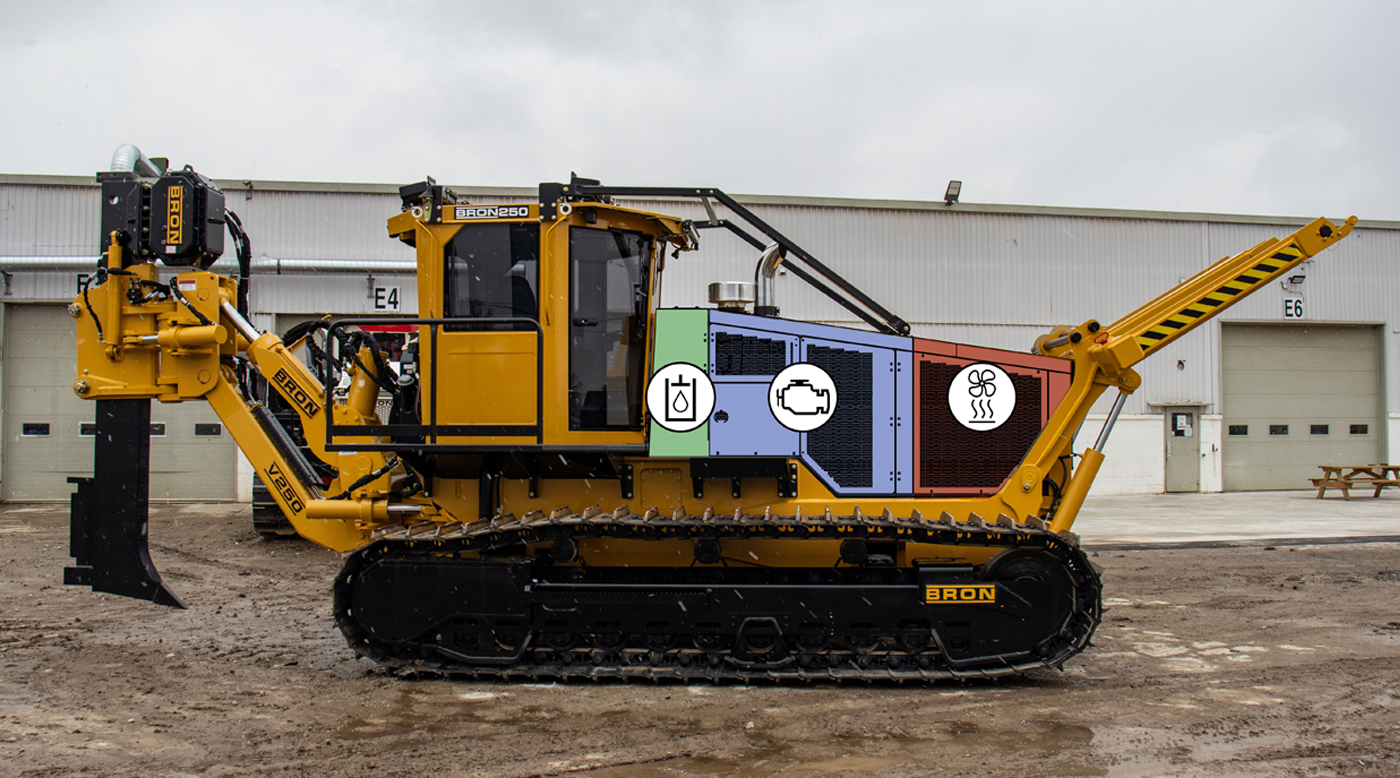

Separated Engine & Hydraulic Compartments
To enhance overall safety, reliability, and peace of mind in demanding operating conditions, BRON Utility Tractors are built with a separated engine and hydraulic compartments. Engineered with a skirted firewall design to isolate hydraulic components from the engine bay, this separation prevents hydraulic oil from spraying onto hot engine surfaces or the turbocharger in the event of a leak, significantly reducing fire risk.

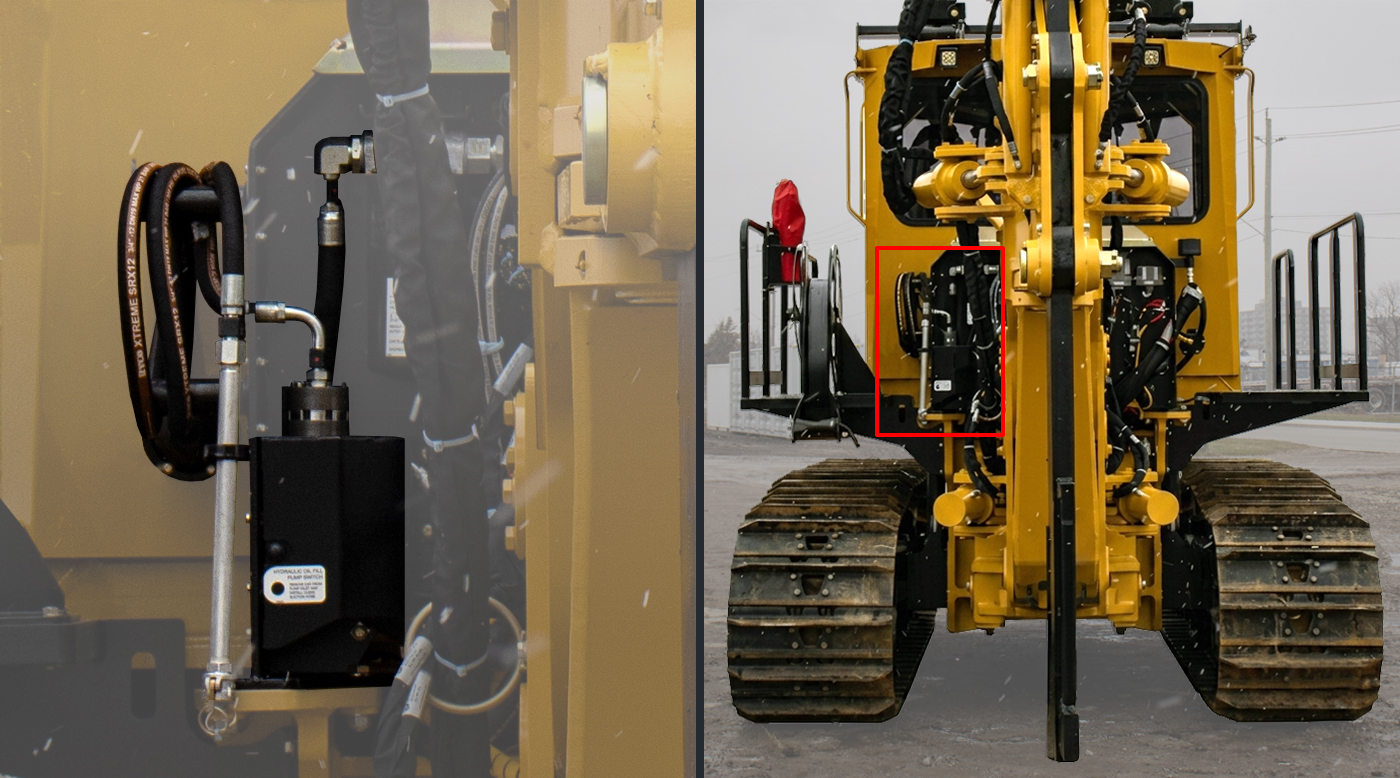

Electric Hydraulic Oil Fill Pump System
The Electric Hydraulic Oil Fill Pump System provides a clean, efficient way to add hydraulic oil without manual lifting or risk of contamination. Using an electric pump, oil is transferred directly into the hydraulic system, reducing service time and minimizing the chance of introducing dirt or debris. This system improves maintenance safety, accuracy, and consistency while keeping equipment ready for reliable operation in the field.

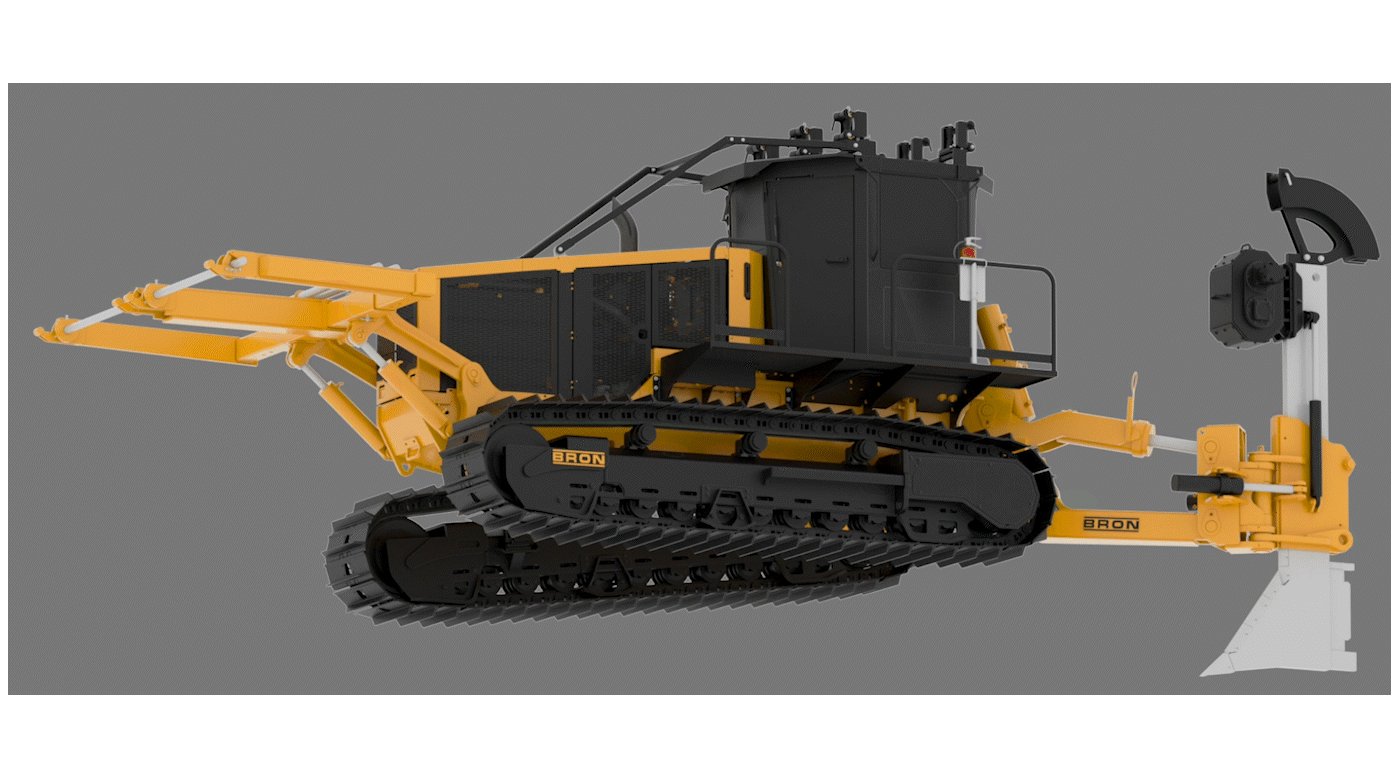

Oscillating Tracks
Helping to maintain ground contact and traction across uneven terrain, oscillating tracks can increase installation accuracy, reduce operator fatigue, and minimize ground disturbance. Tracks pivot independently for maximum traction while hydraulic cylinders keep the machine level for perfect grading across sloped surfaces.

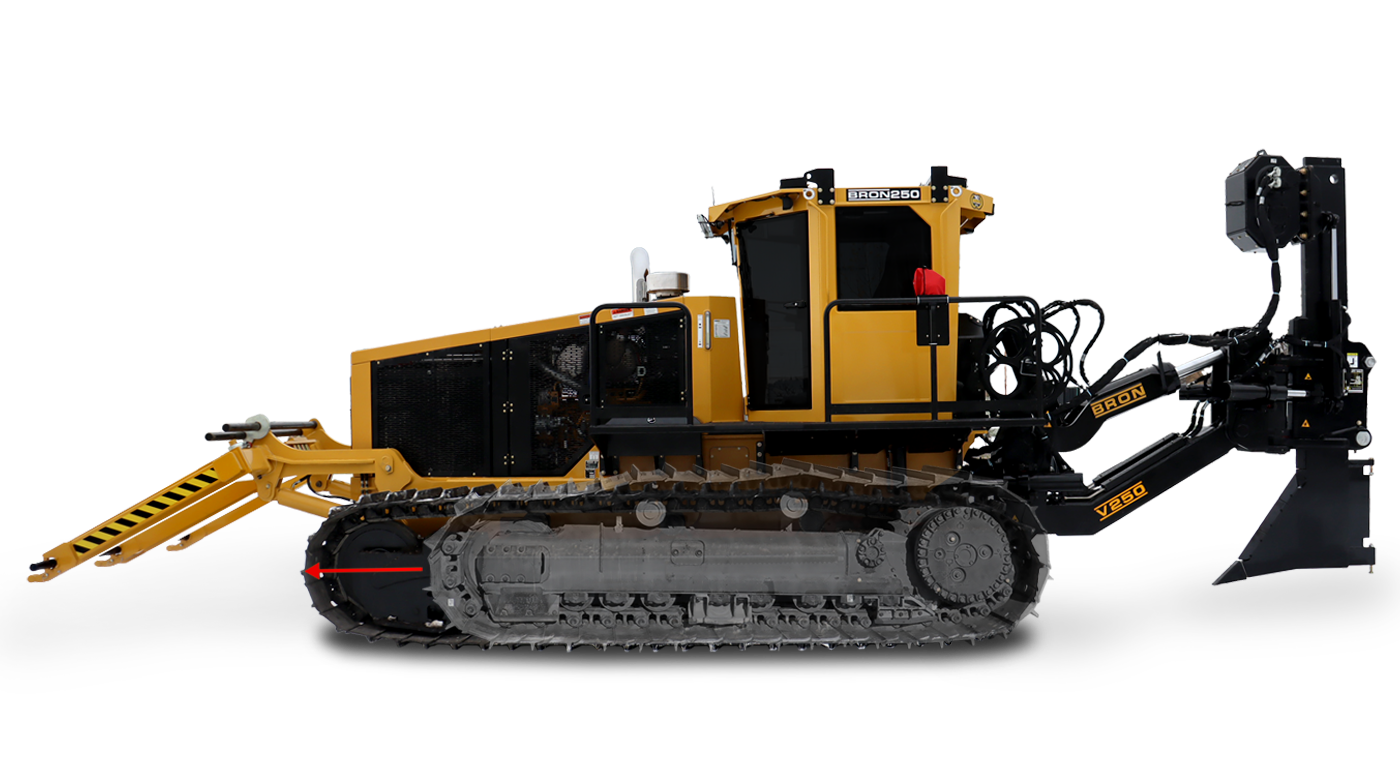

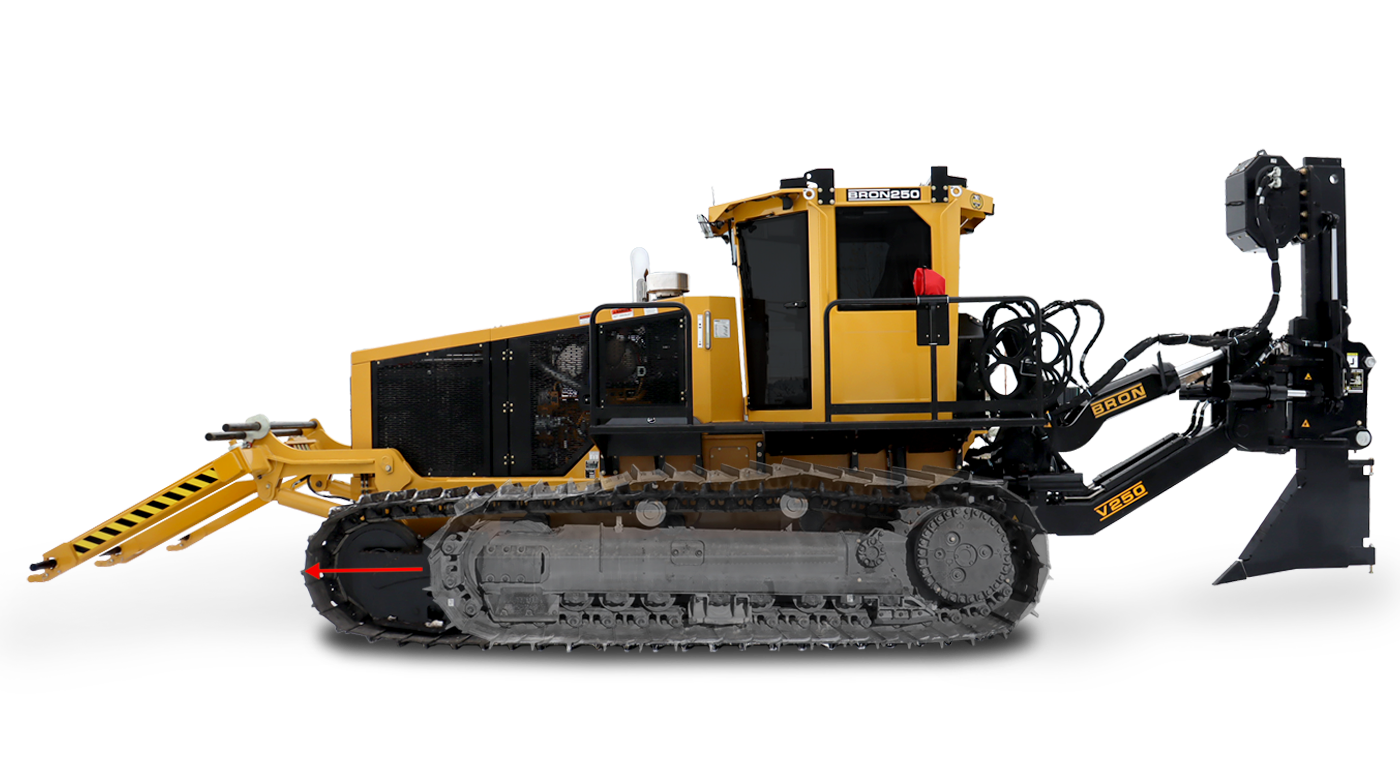

Long Track Frame
The BRON 250UT and 585UT are engineered with longer track frames than comparable OEM dozers in their class. Keeping the operation in mind, longer track frames provides a larger ground contact area, improves traction, flotation, and overall stability, especially when pulling heavy loads or working in soft or uneven terrain.

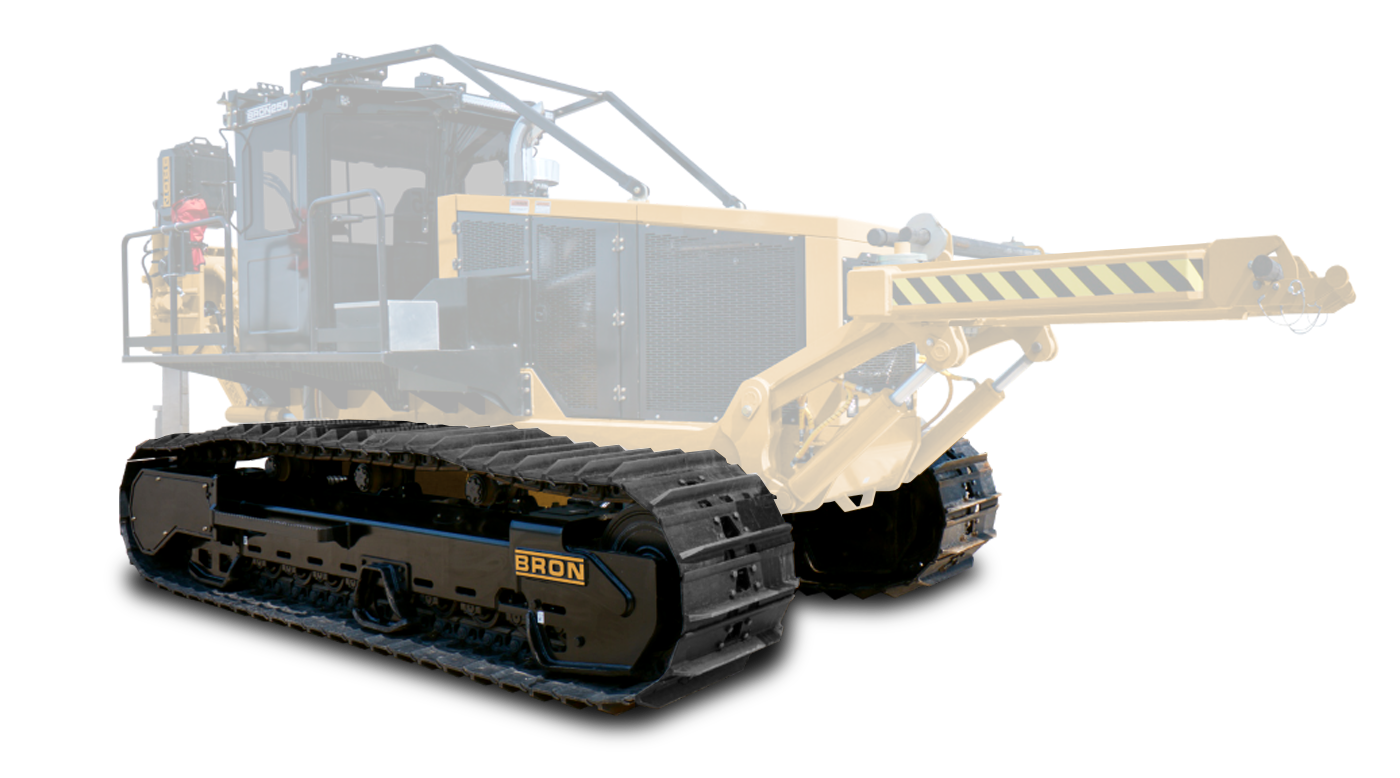

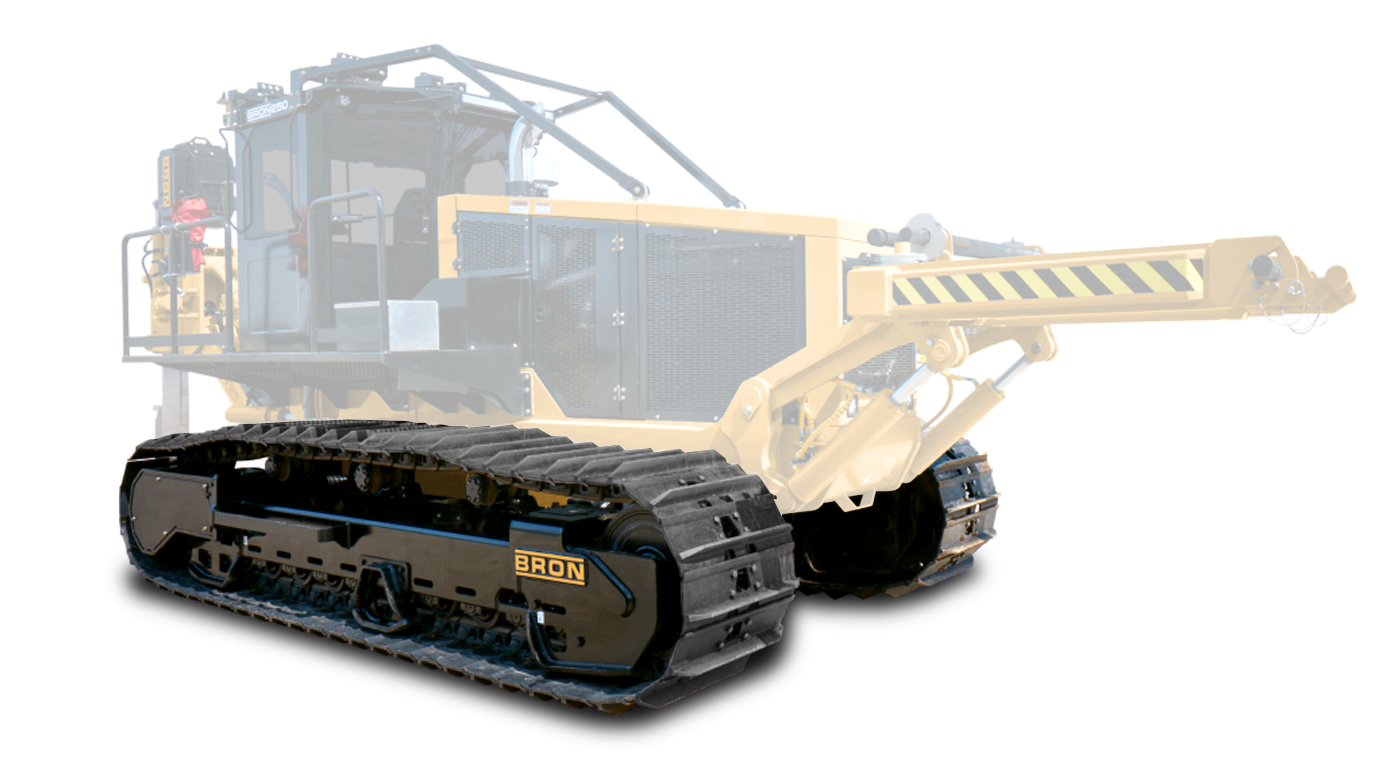

D6 Undercarriage
The BRON 250UT comes standard with a durable D6 Undercarriage. Providing the perfect balance of power and ground pressure, the D6 Undercarriage offers exceptional flotation and drawbar pull while maintaining a low ground pressure of just over 6 psi.

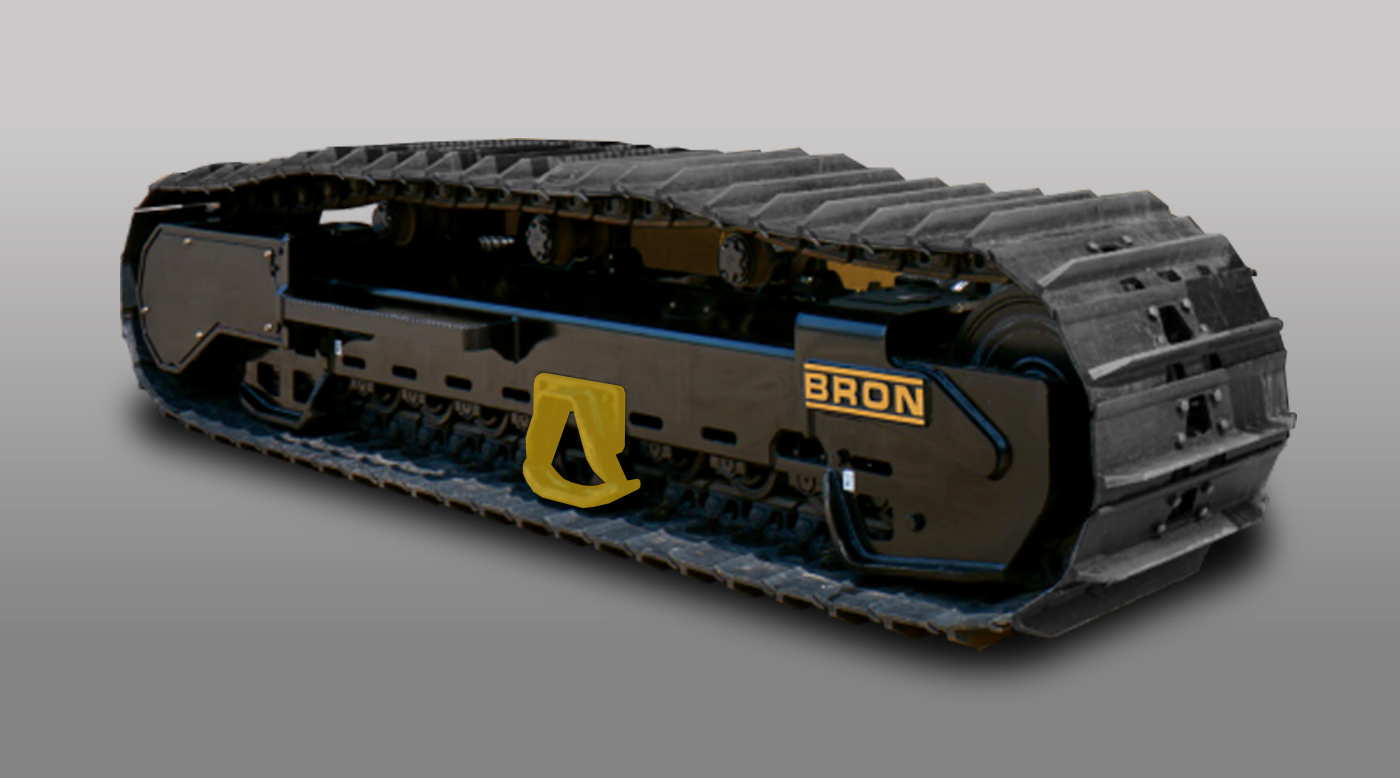

Track Guides
The BRON 175HD, 250UT, and 585UT feature mid-guides designed to support the track pads during oscillation, ensuring smoother operation, improved stability, and longer track life. These mid-guides help maintain proper track alignment as the tracks pivot over uneven terrain

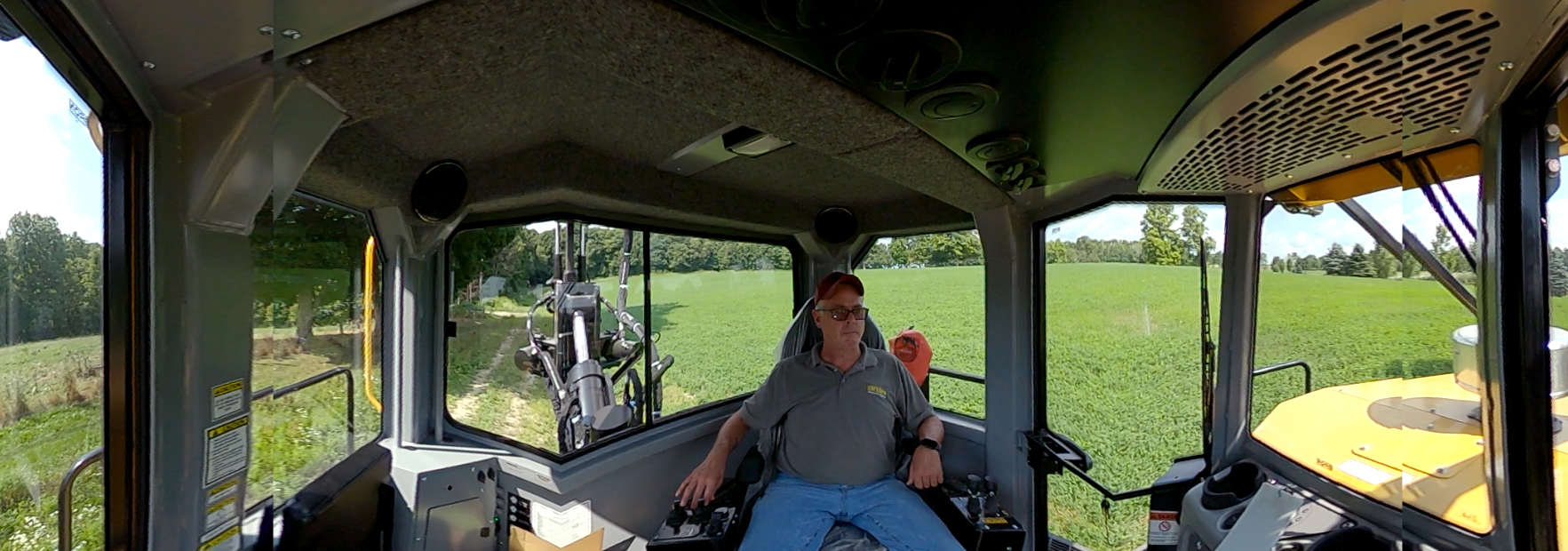

Visibility
Windows all around provide the operator with a commanding view of the jobsite. Includes front and rear overhangs to keep these windows clean while minimizing glare from the overhead sun. The front and rear windows are also sloped inward to reduce collection of rain drops, and the front windows and doors can also be cleaned with the standard wipers.

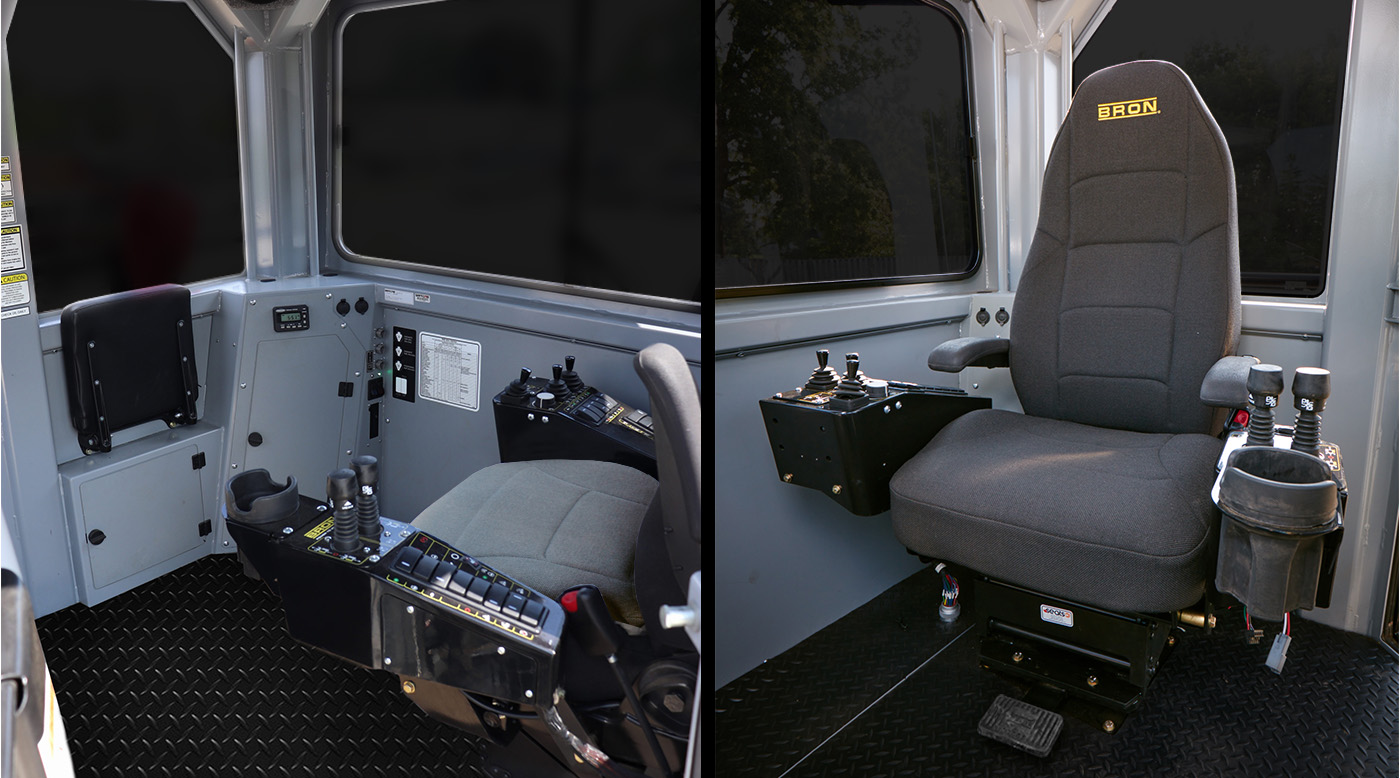

Spacious Interior
Large enough to be your office in the field, holding all the necessary GPS equipment/displays while still giving room for a visitor to ride-along, such as the field owner or the tile Sales Rep, allowing you to conduct meetings while working in the field.

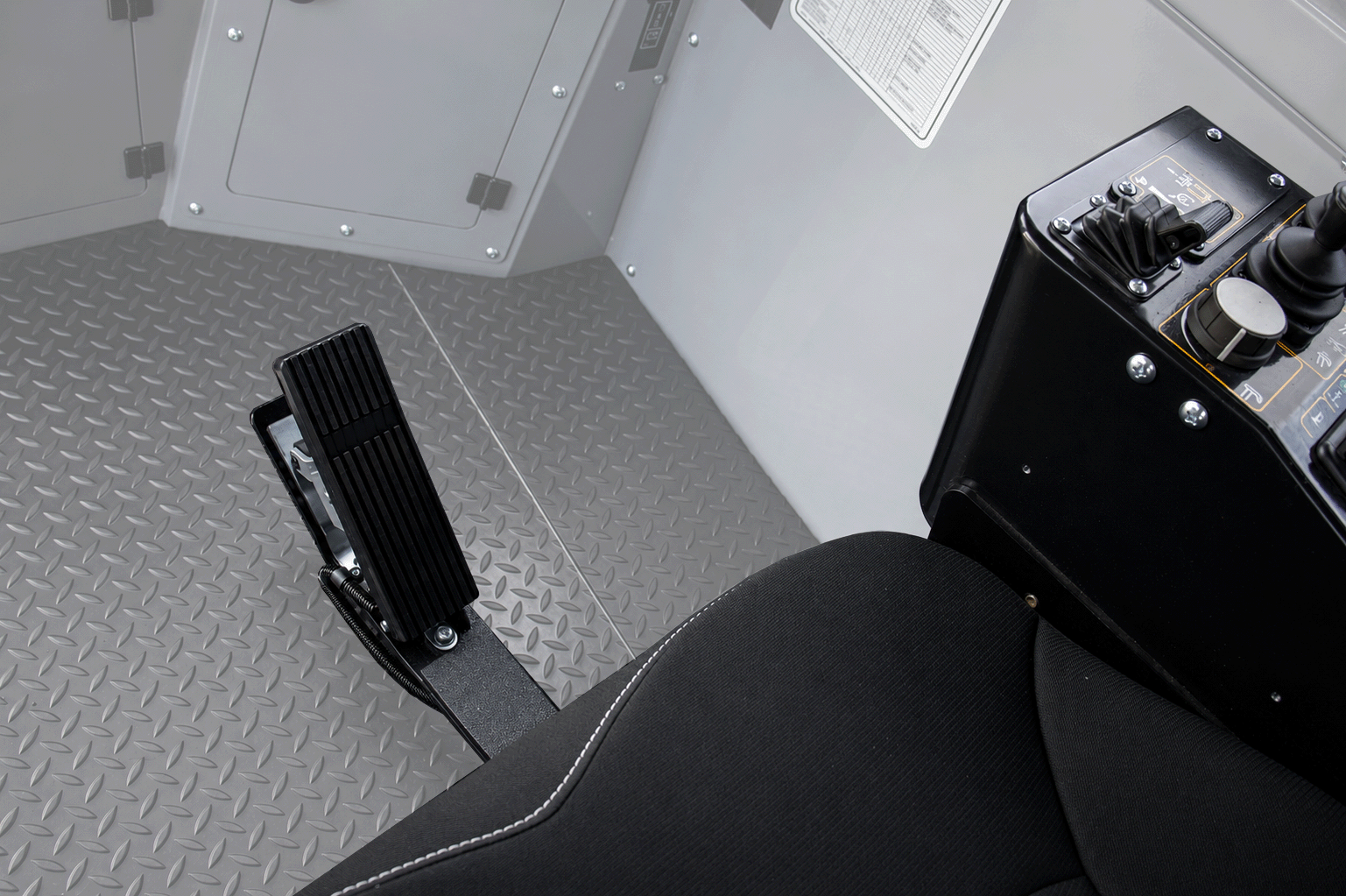

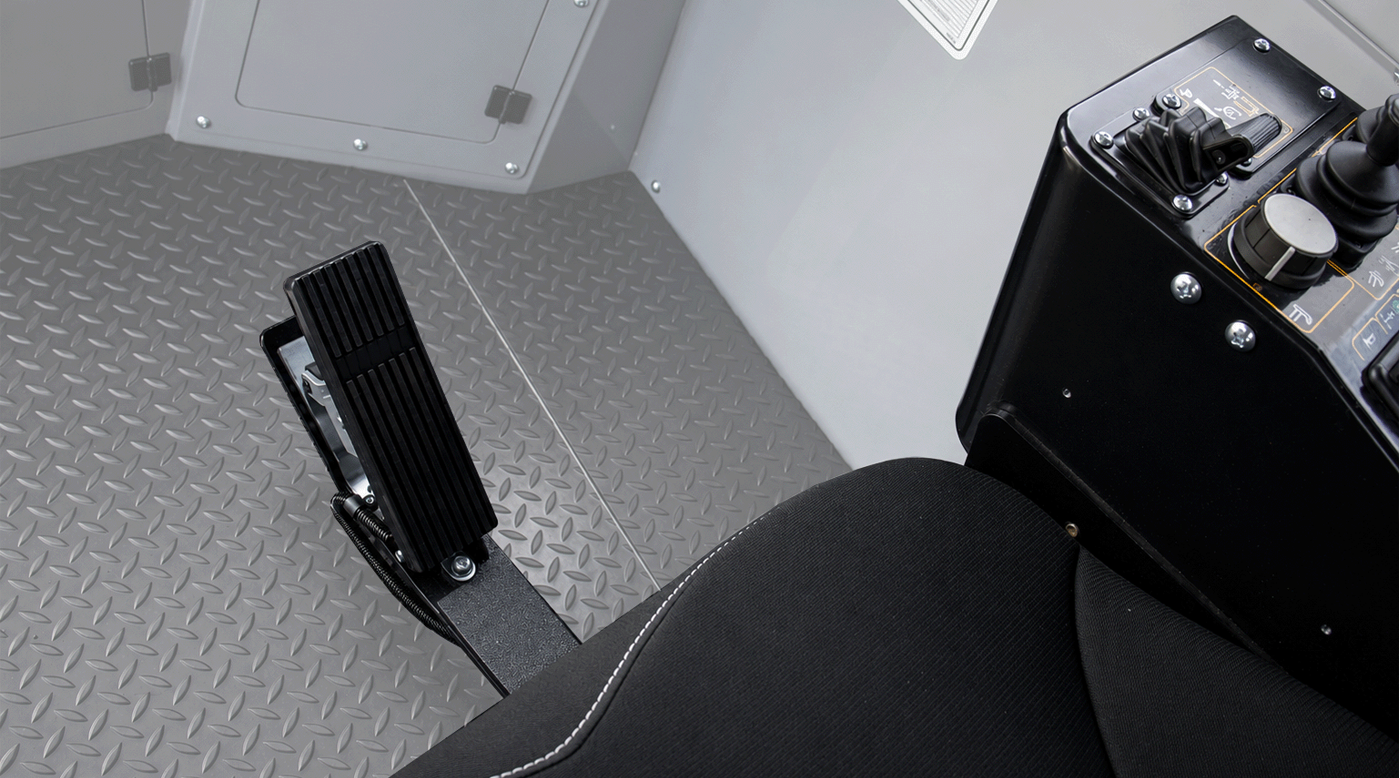

Decelerator Pedal
The Decelerator Pedal allows the operator to slow ground speed without reducing engine RPM or hydraulic output. This feature provides precise control for specific applications by maintaining full hydraulic flow to the plow while operating at slower travel speeds. The result is improved control, smoother operation, and consistent performance during demanding installation work.

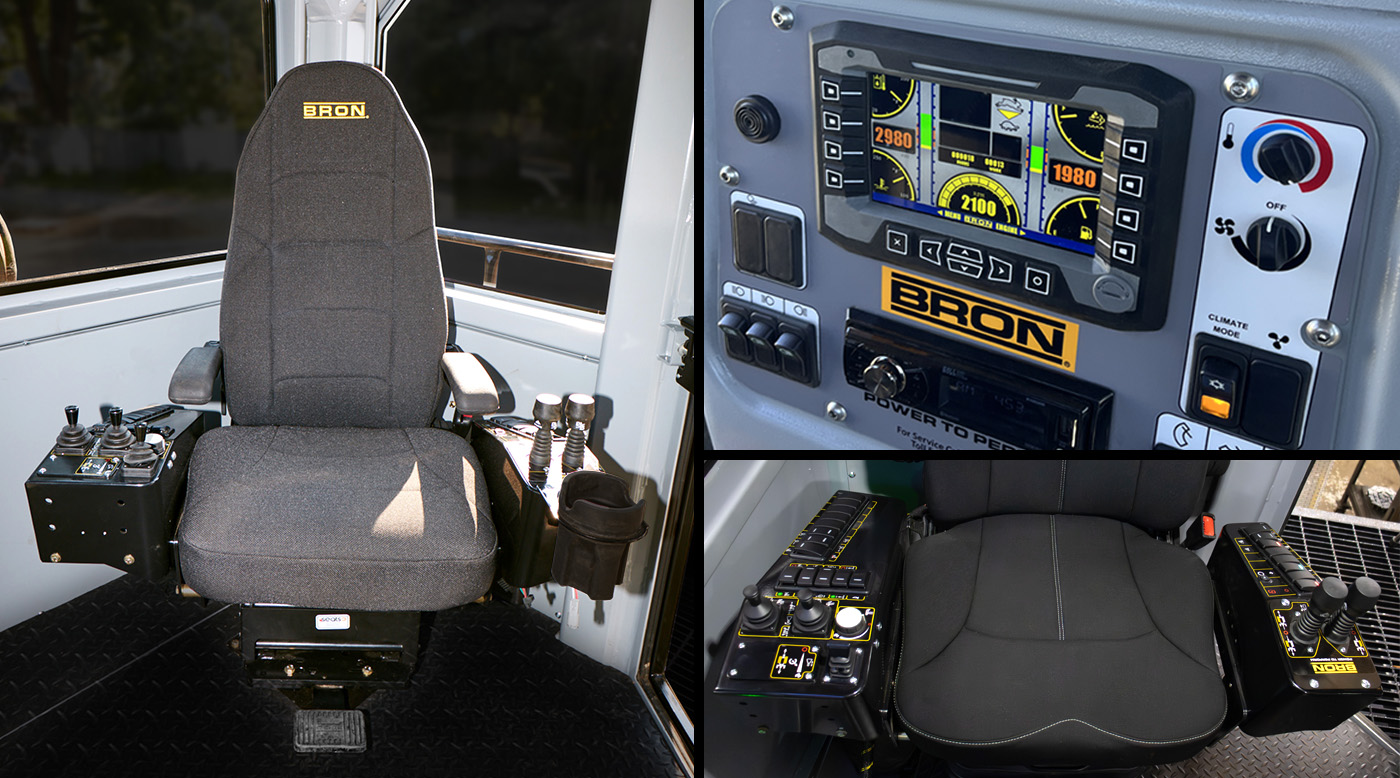

Swivel Seat With Mounted Controls
The swivel seat has joystick steering & seating designed for operator comfort with height, headrest & seat tilt adjustments & air-ride suspension to eliminate operator fatigue.

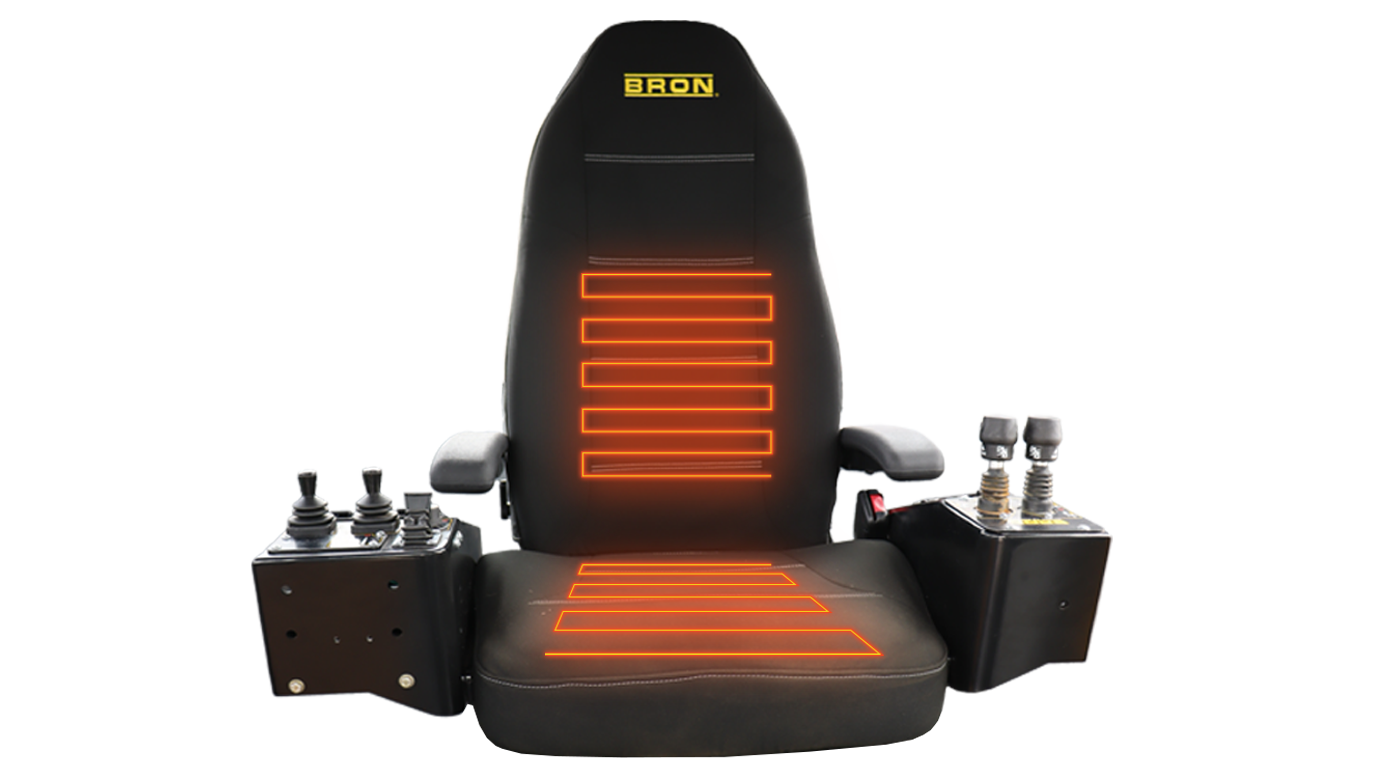

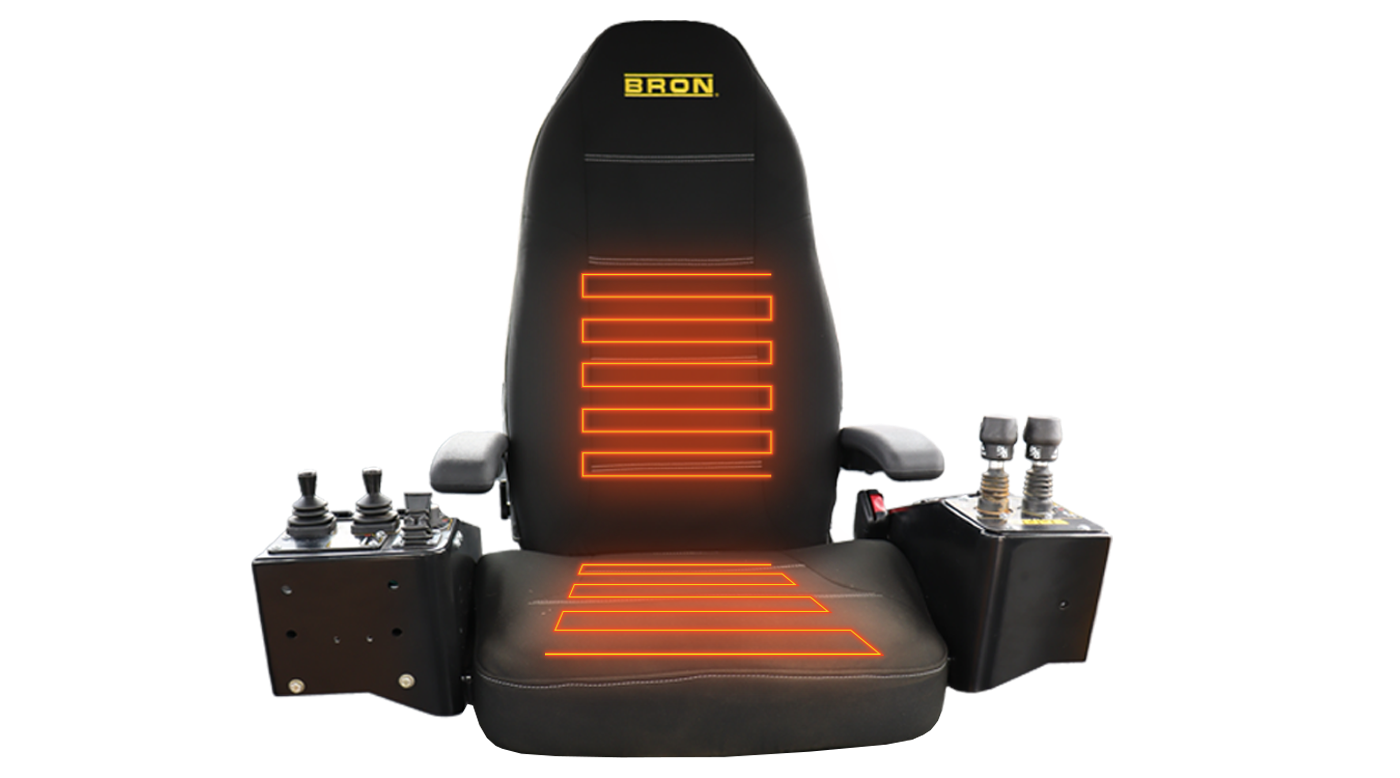

Heated Operator Seat
The operator seat is heated in the lower cushion and back-rest, with two heat settings for LOW and HIGH.

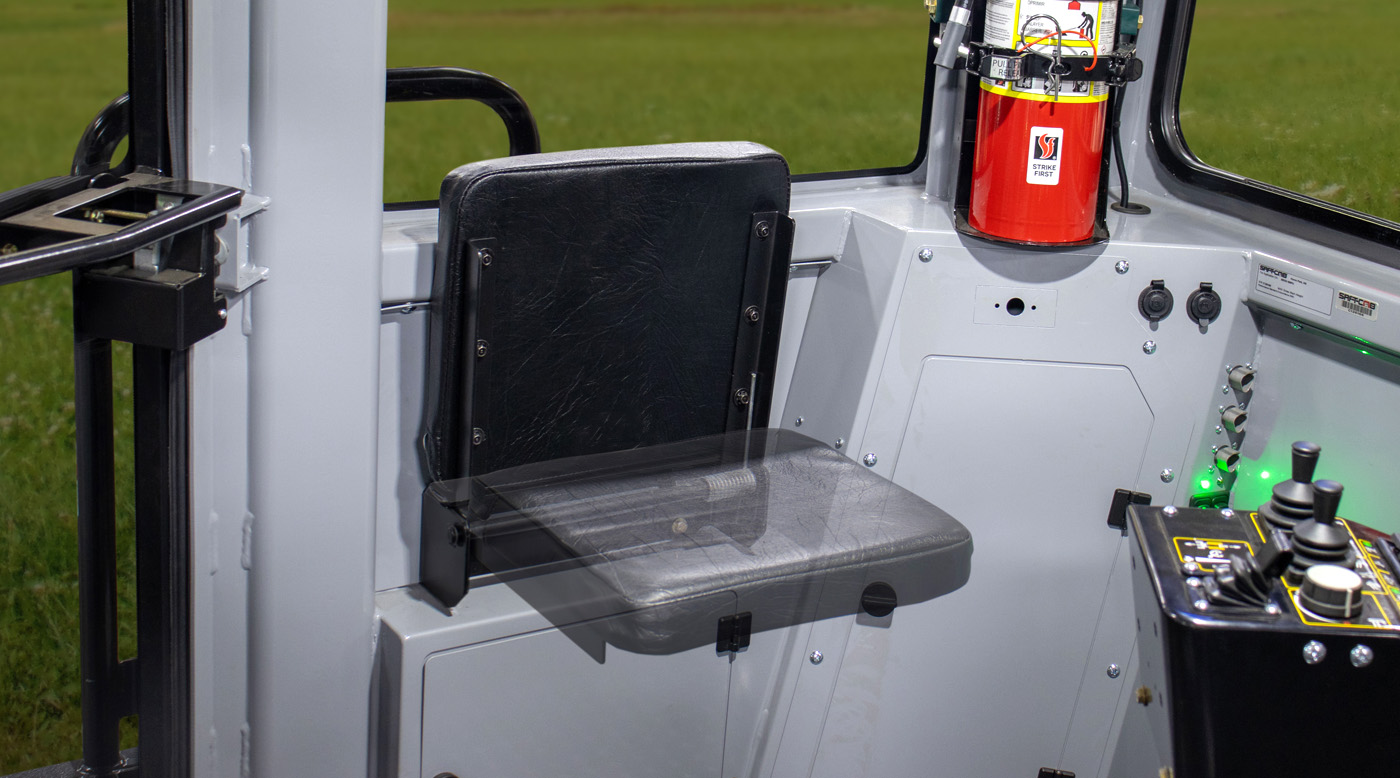

Buddy Seat
A fold-down jumper seat for visitors to conduct in-field meetings or simply demonstrate to your customer the installation process and operation. Also valuable for training new operators.

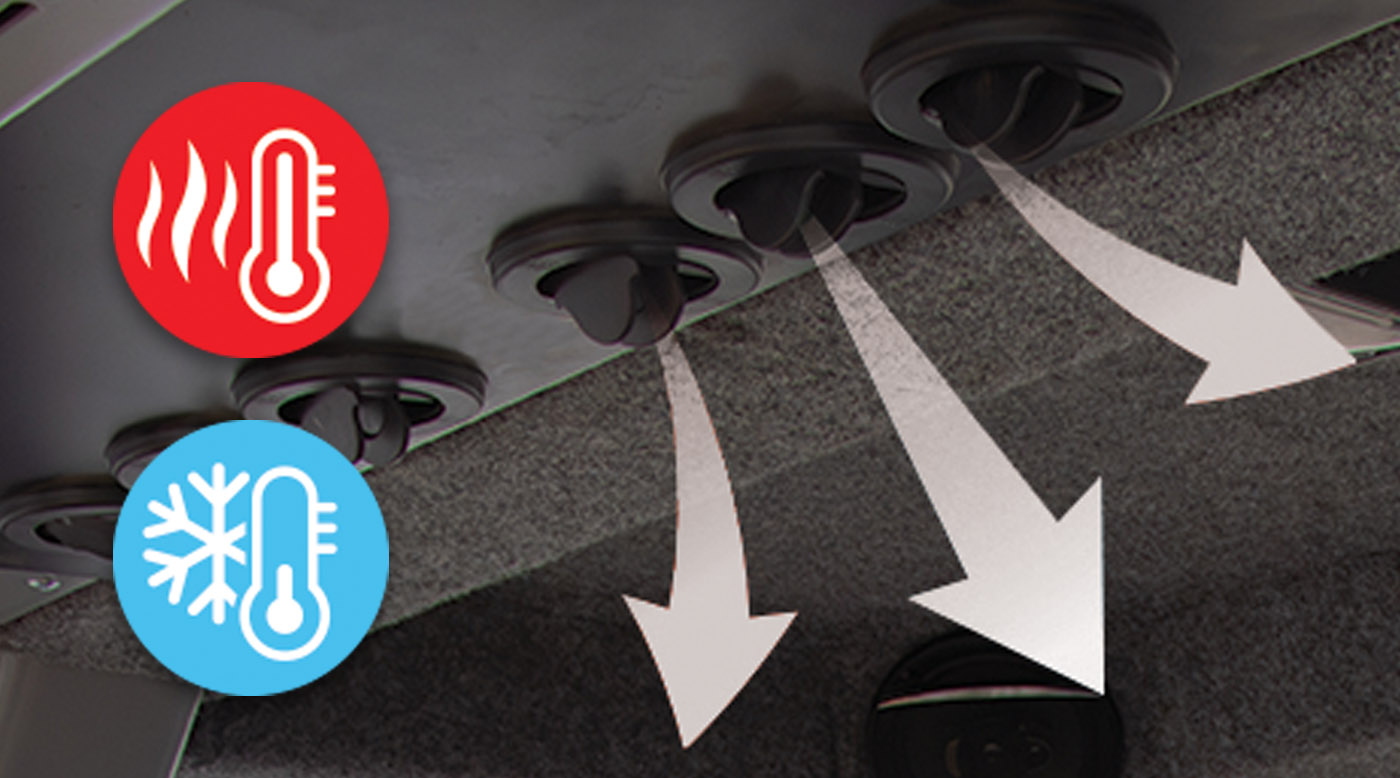

Climate Control A/C & Heated
The climate-controlled cab features integrated air conditioning and heating to maintain a comfortable operating environment in all weather conditions, helping reduce fatigue and keep operators productive year-round.

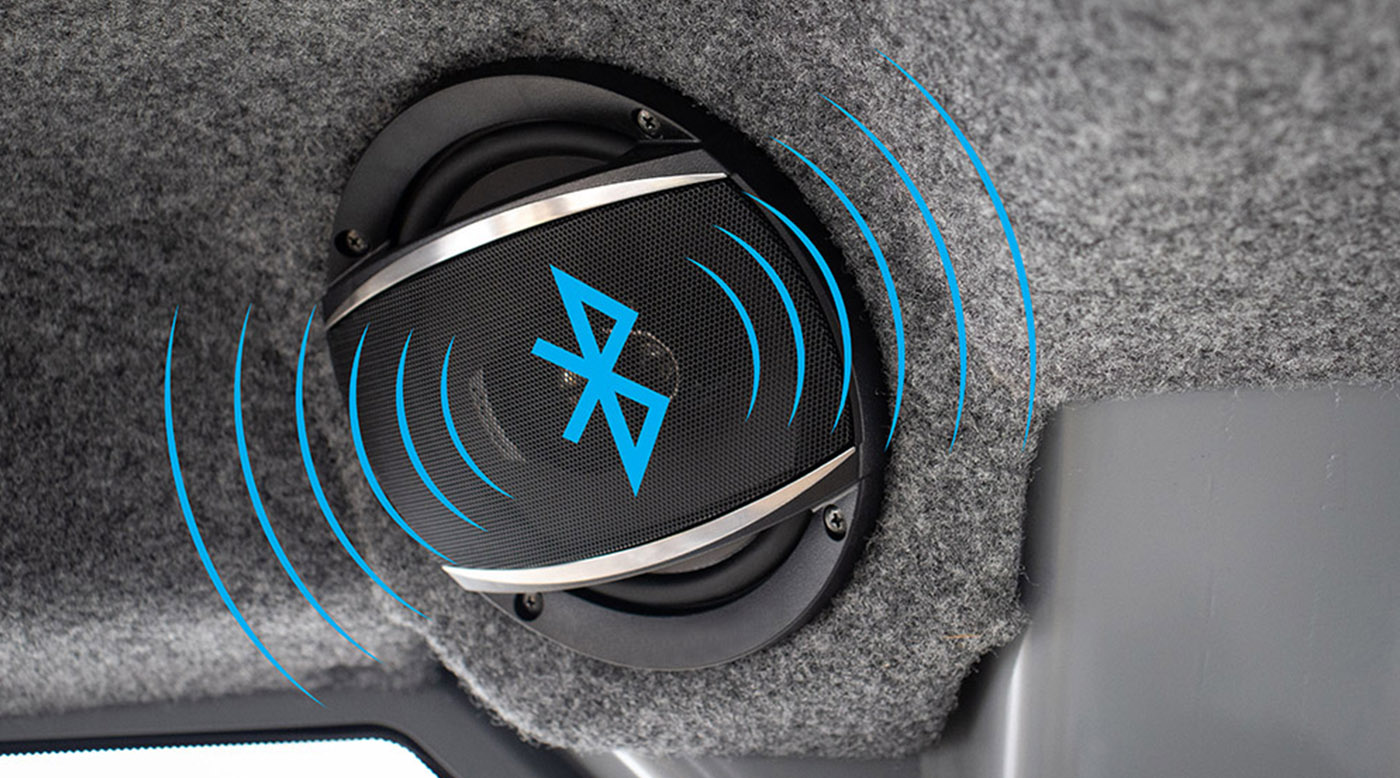

Bluetooth & Radio Speakers
Whether listening to the radio, personal music lists, or podcasts via Bluetooth connectivity, the stereo system delivers rich, clear audio through high-quality speakers. When connected to a mobile device via Bluetooth, incoming phone calls are transmitted through the audio system, enhancing call clarity and helping ensure you don’t miss important calls.

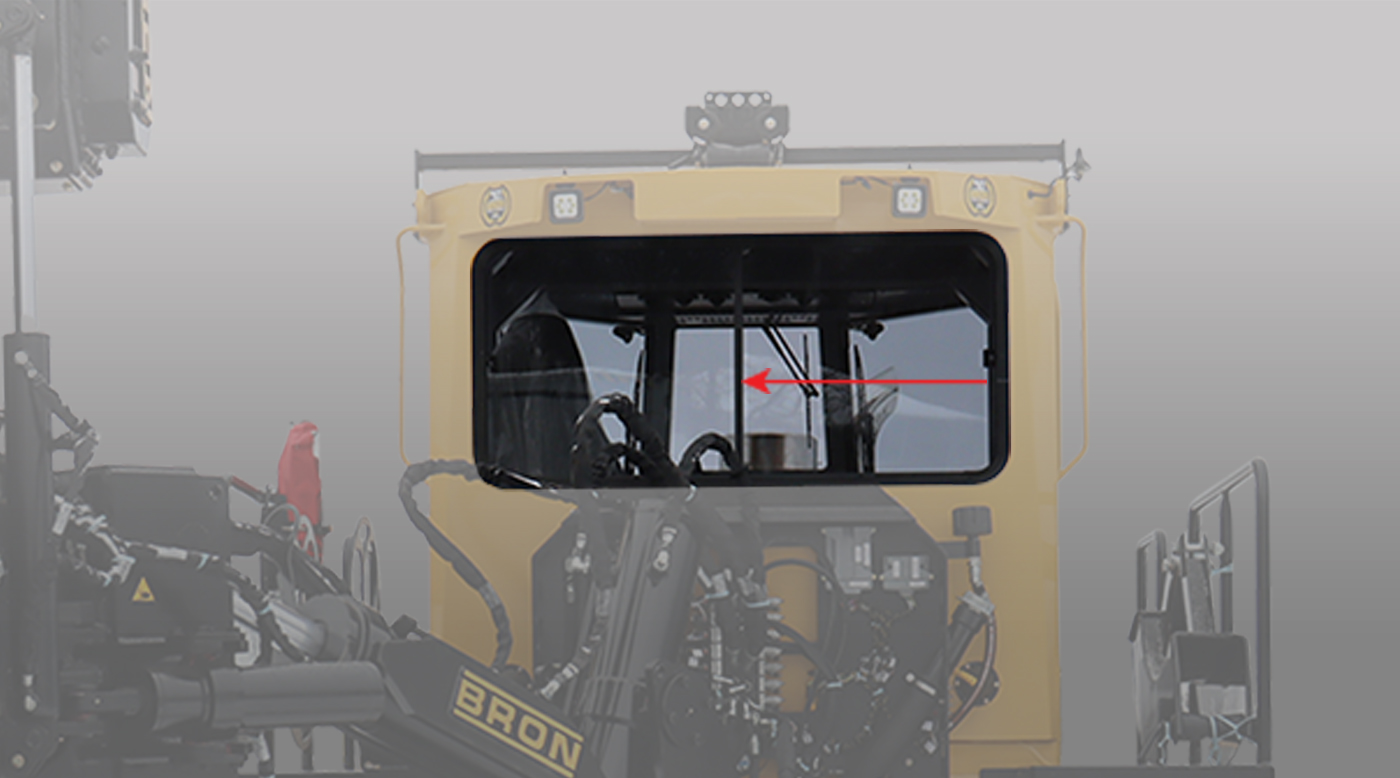

Sliding Rear Window
Large opening rear window that slides to simplify communications with your ground support crew; the rear cab peak helps keep the outside elements off the rear window and out of the cab when the window is open.

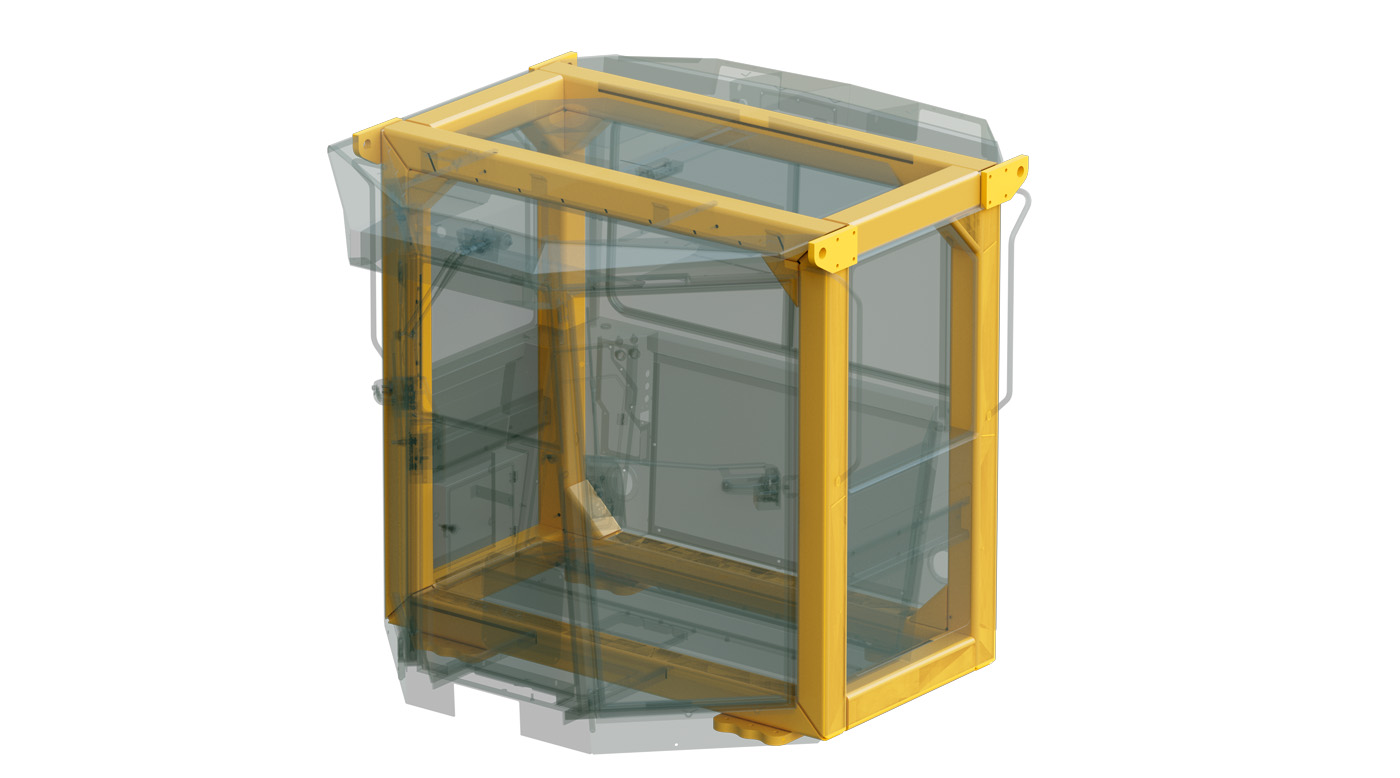

ROPS Certified
The ROPS certified structure is designed to protect the operator in the event of a rollover. Provides essential safety without compromising visibility or access during utility operations.

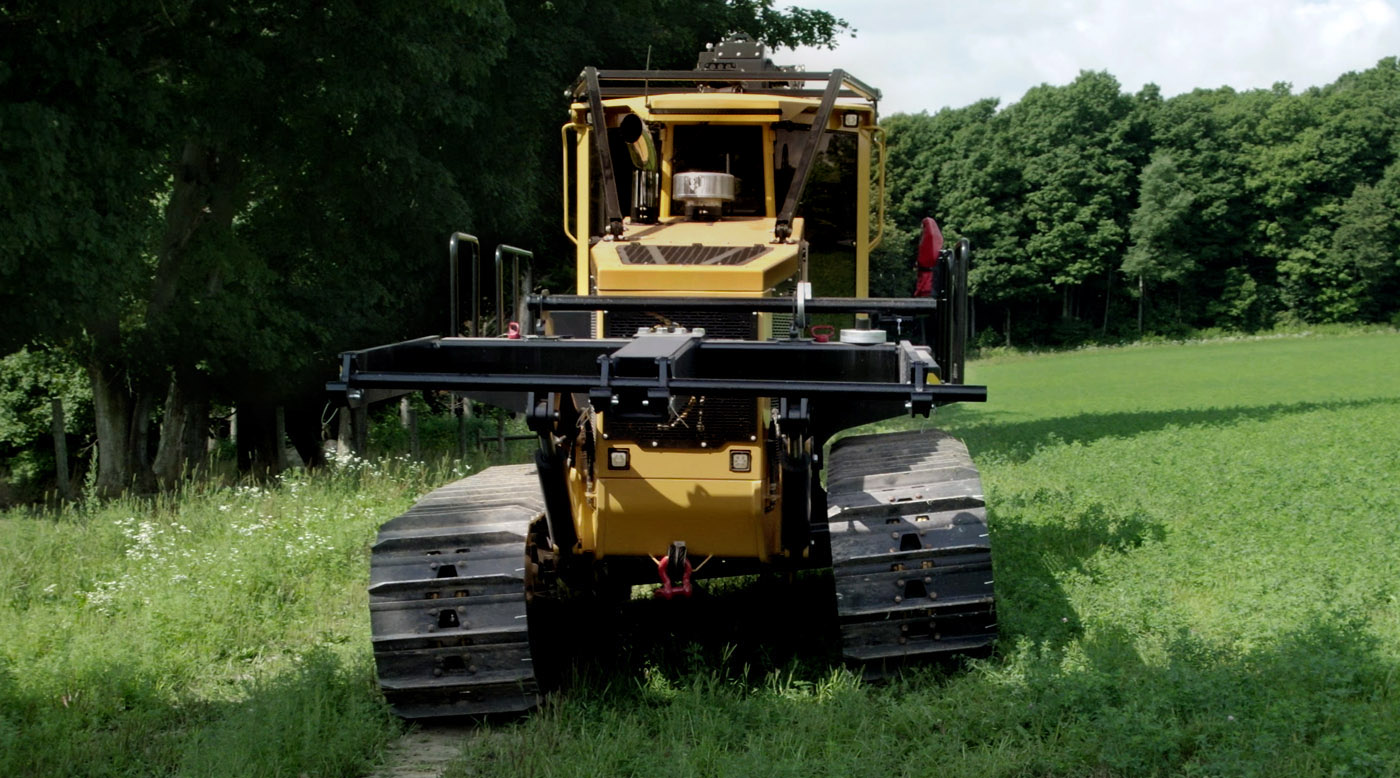

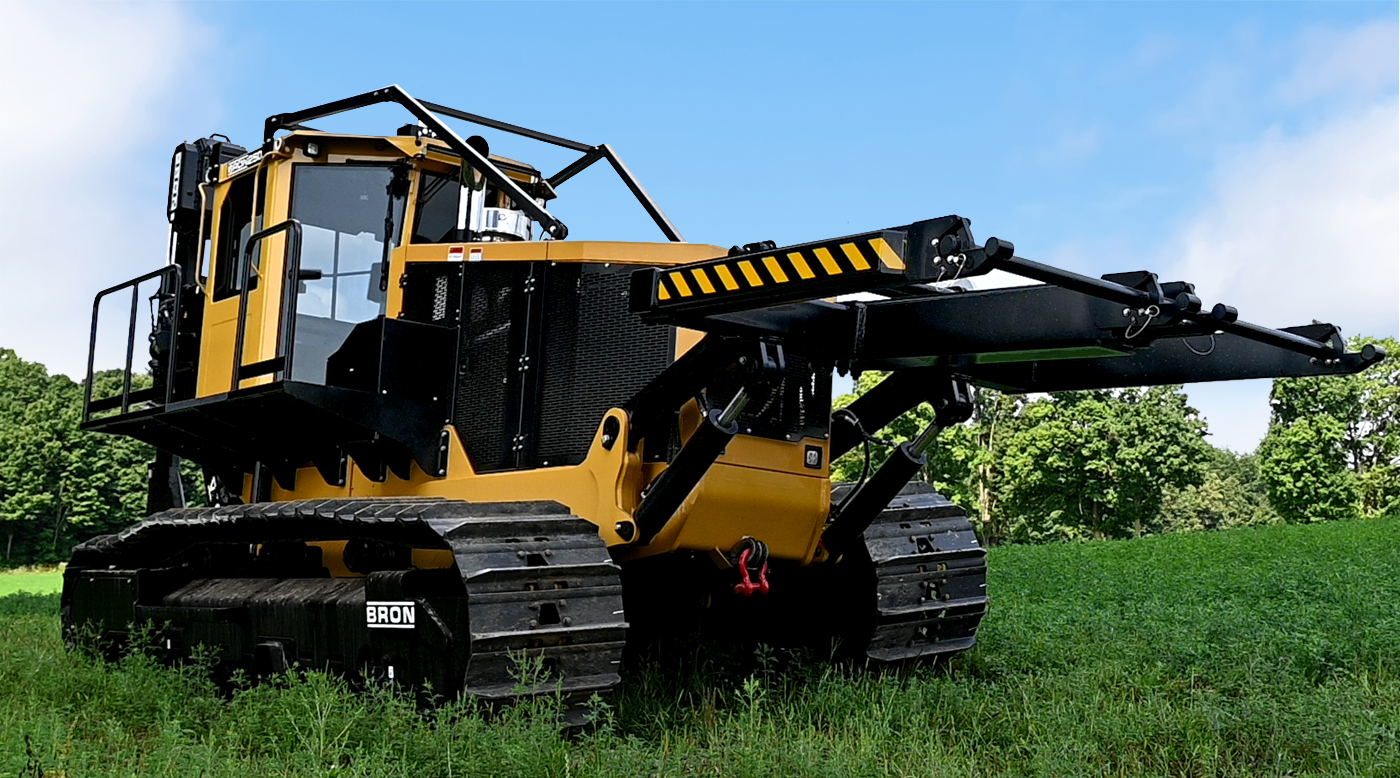

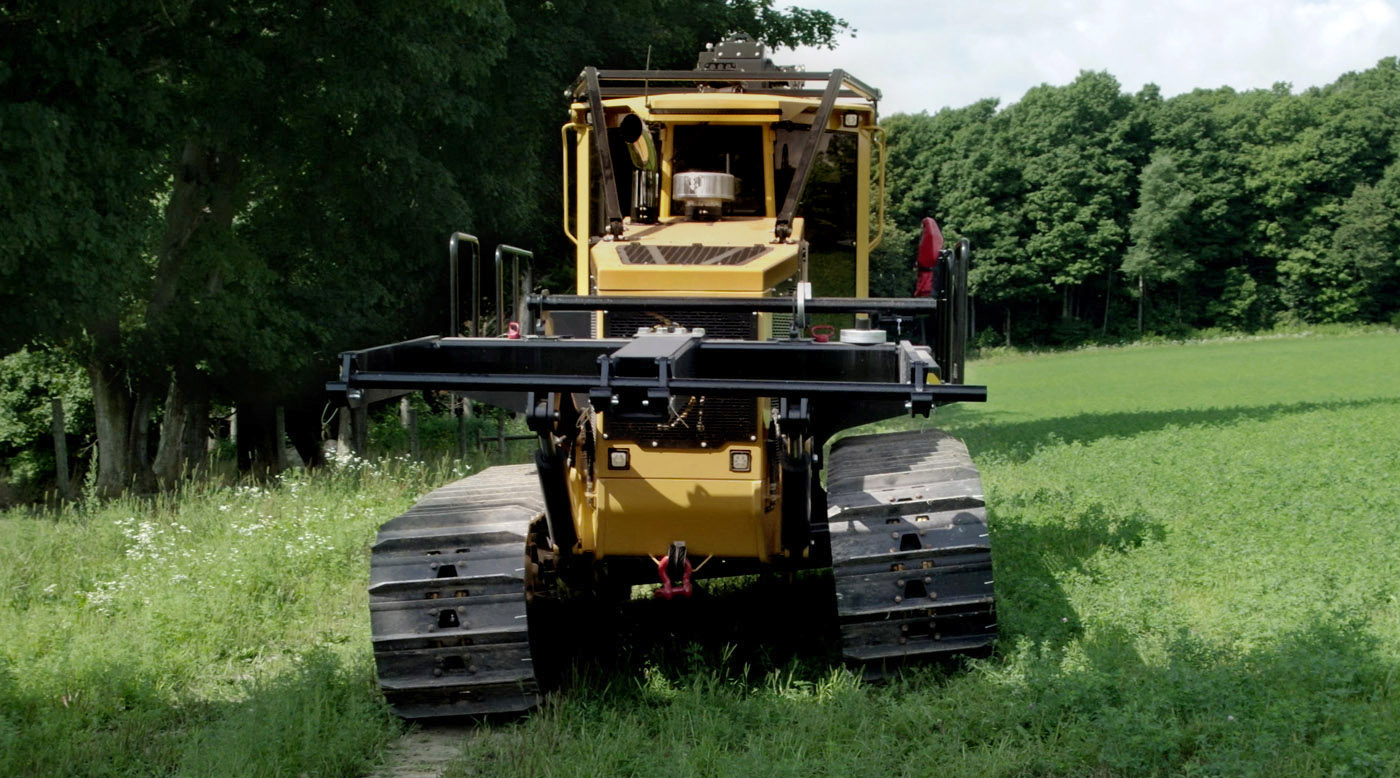

Self-Levelling
To ensure precise plow installations, consistent grading, and improved traction, we utilize a self-levelling track system that automatically adjusts hydraulic cylinders to keep the machine level when working on slopes or uneven ground.

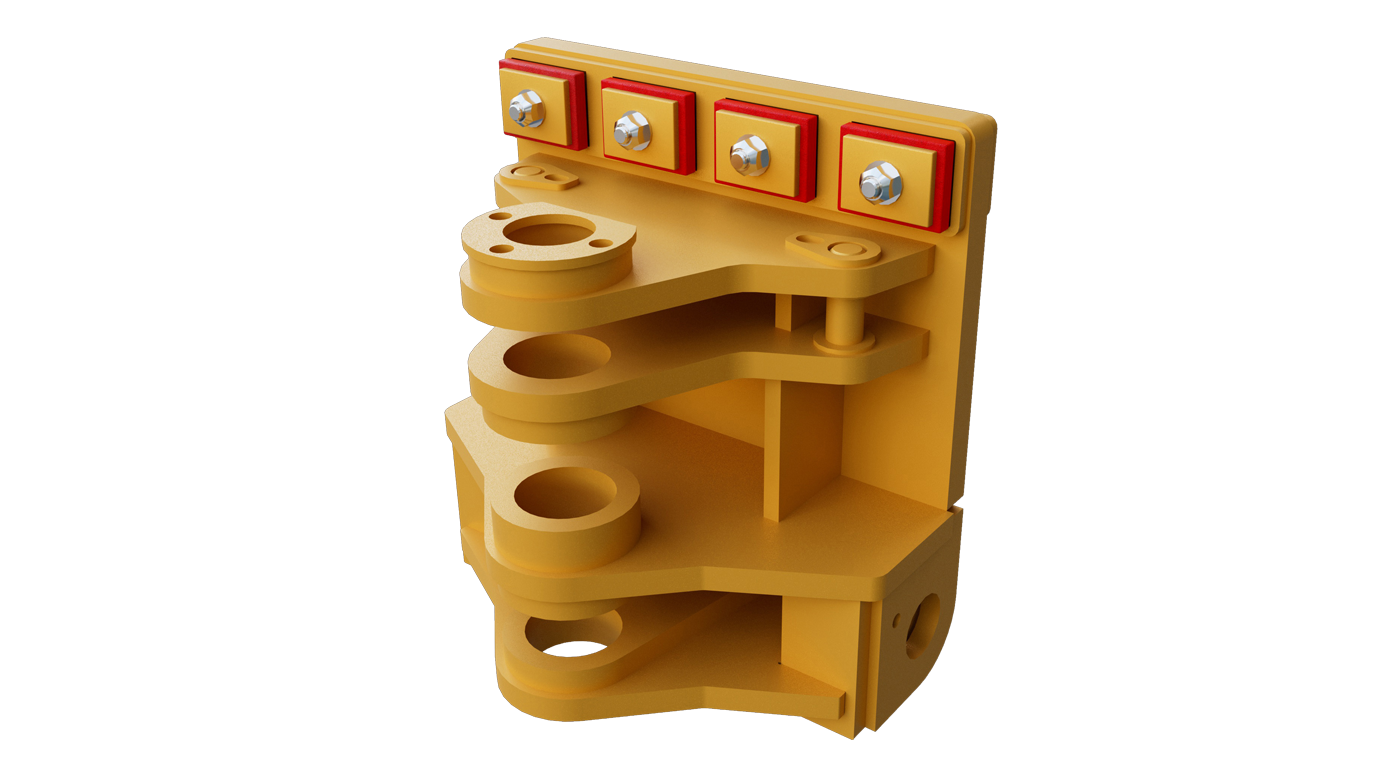

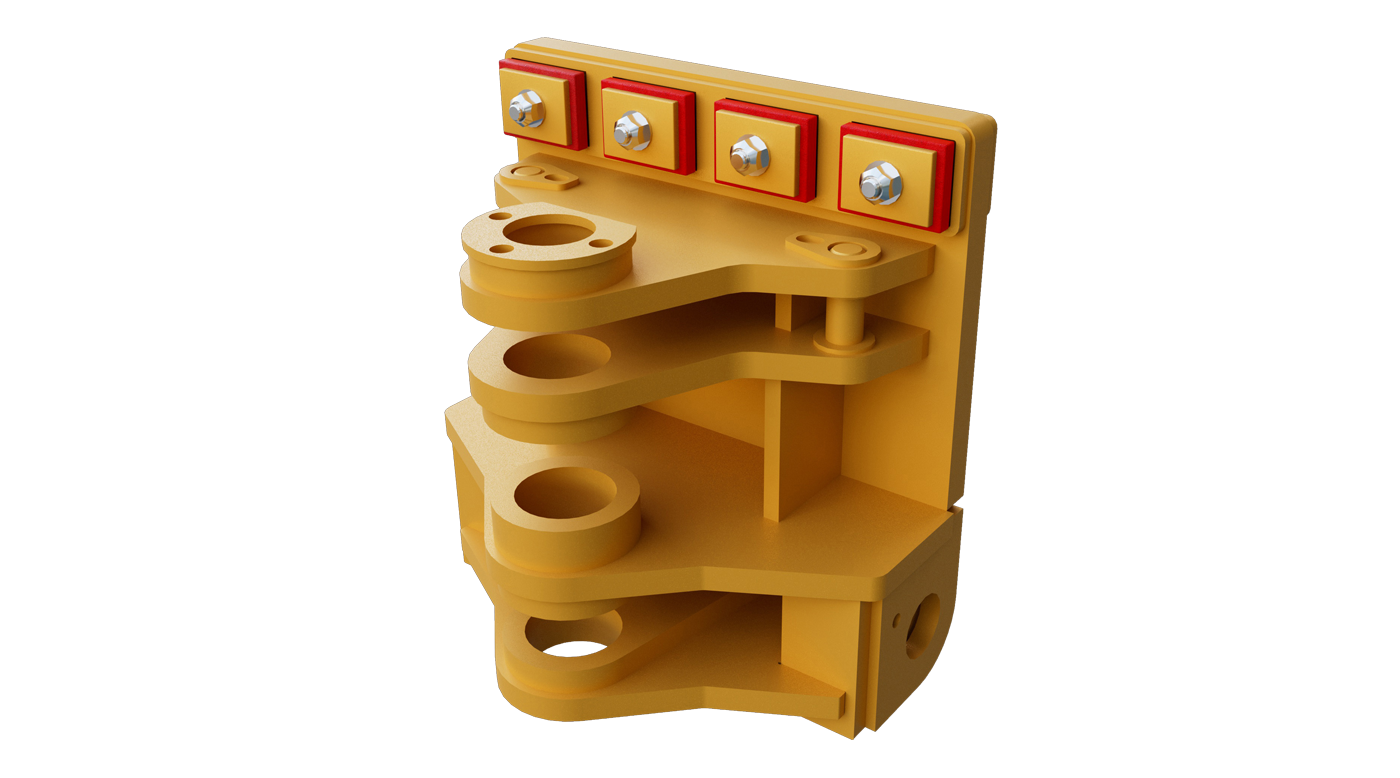

Isolated Backplate
BRON Utility Tractors are equipped with heavy-duty backplate isolators designed to minimize vibration transfer between the plow and the power unit. Differing in durometer, these isolators absorb shock and reduce stress on both the machine and operator, enhancing comfort and extending component life.

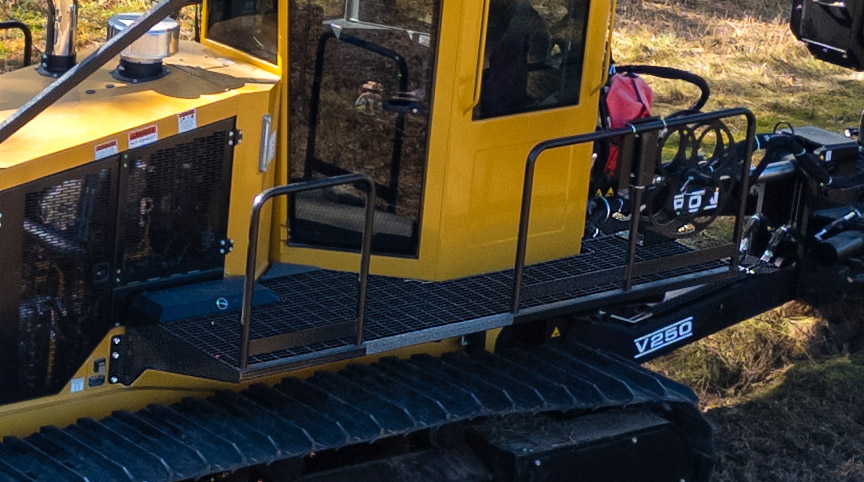

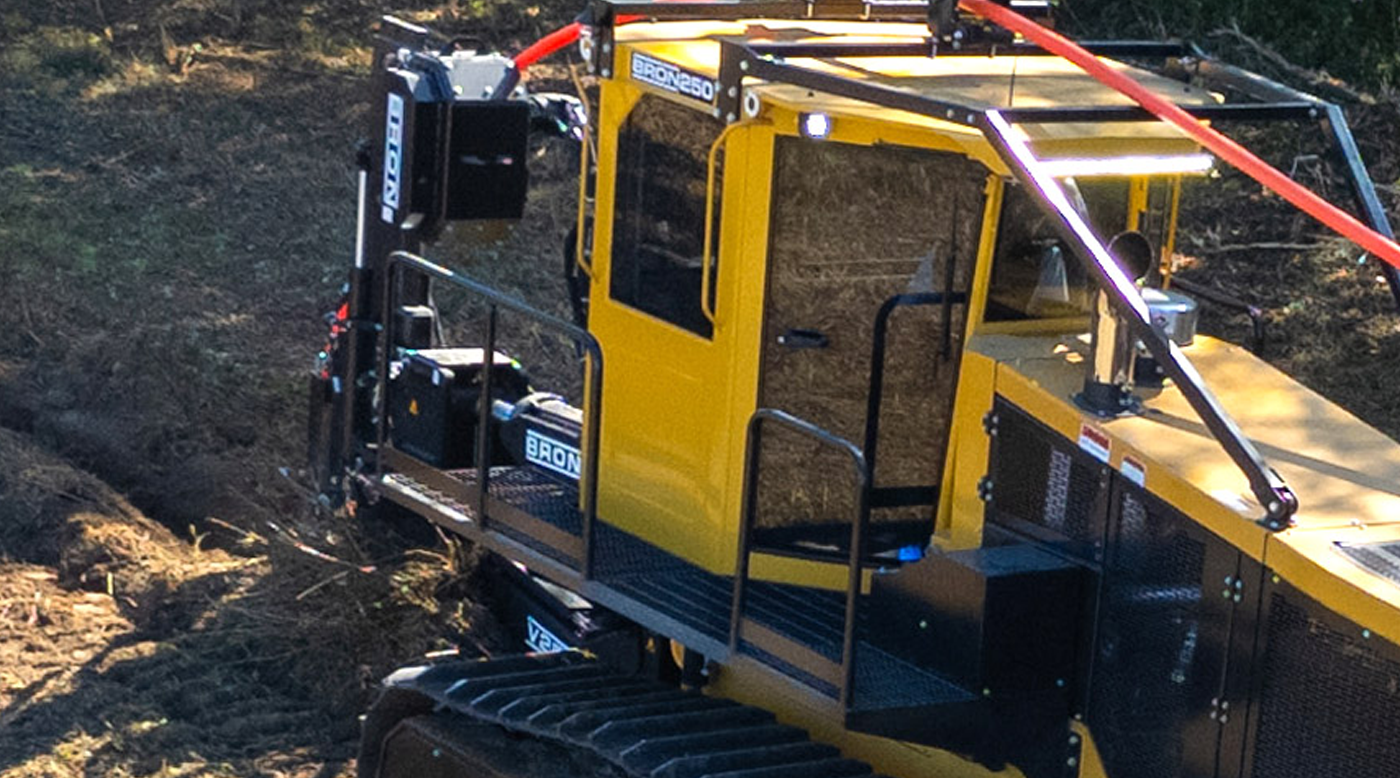

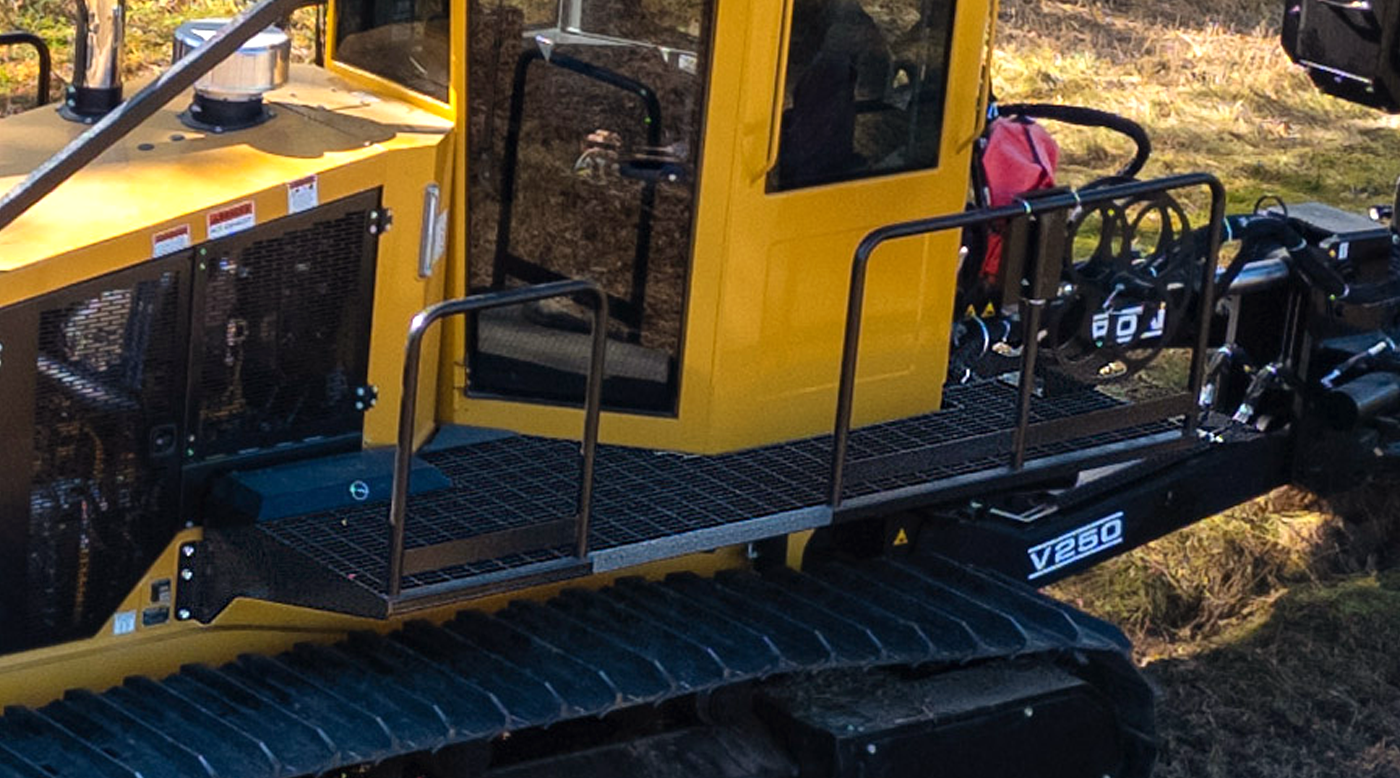

Catwalks
The BRON 250UT and 585UT come equipped with heavy duty catwalks, intended to provide safe and convenient access to key service points and operator areas.

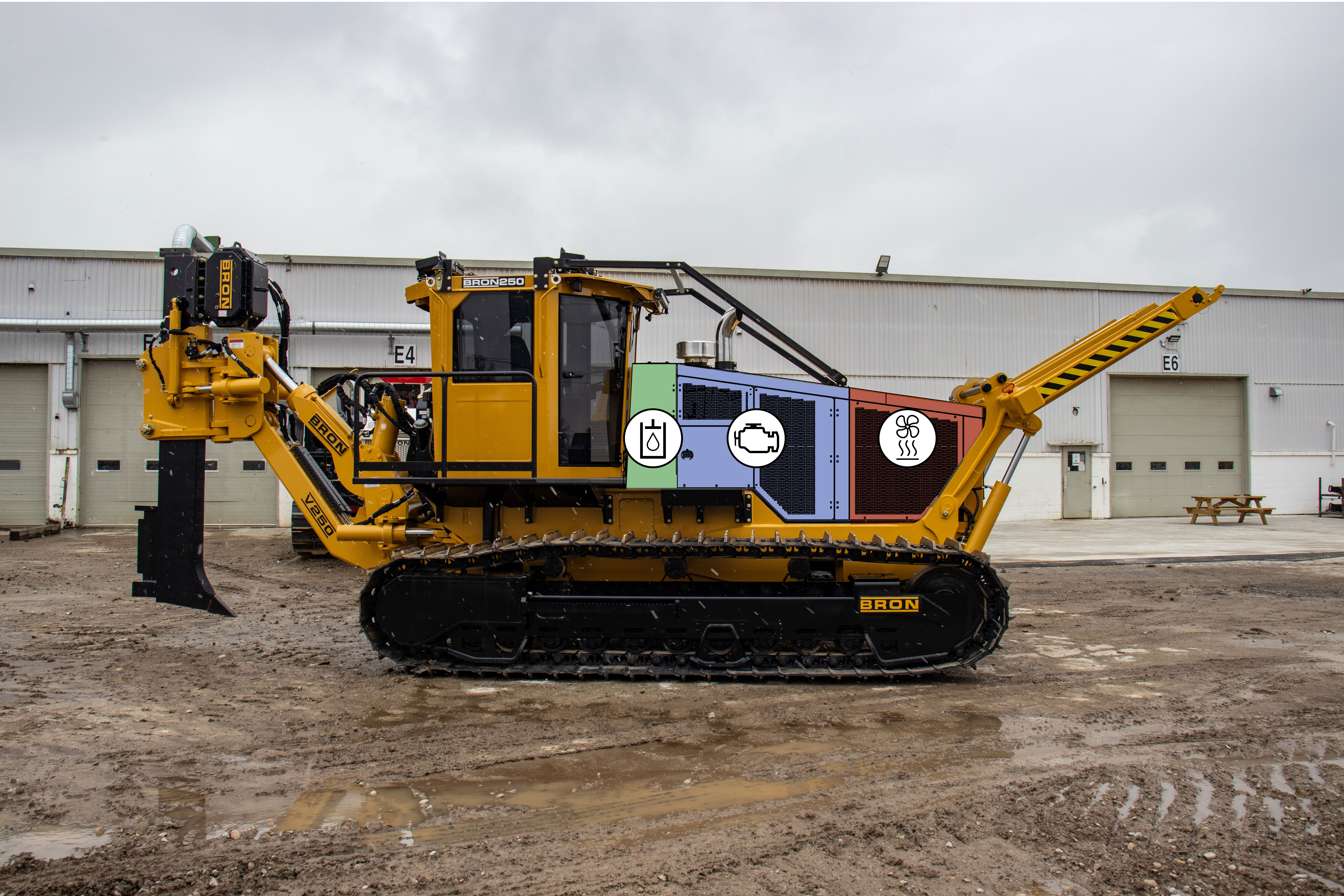

Separate Compartments
Divided into separate compartments for engine, hydraulics, and heat rejection, thereby separating hot ignition points from potential fuel sources. Keeps each compartment cleaner, making it easier to service and maintain for the duration of your ownership.

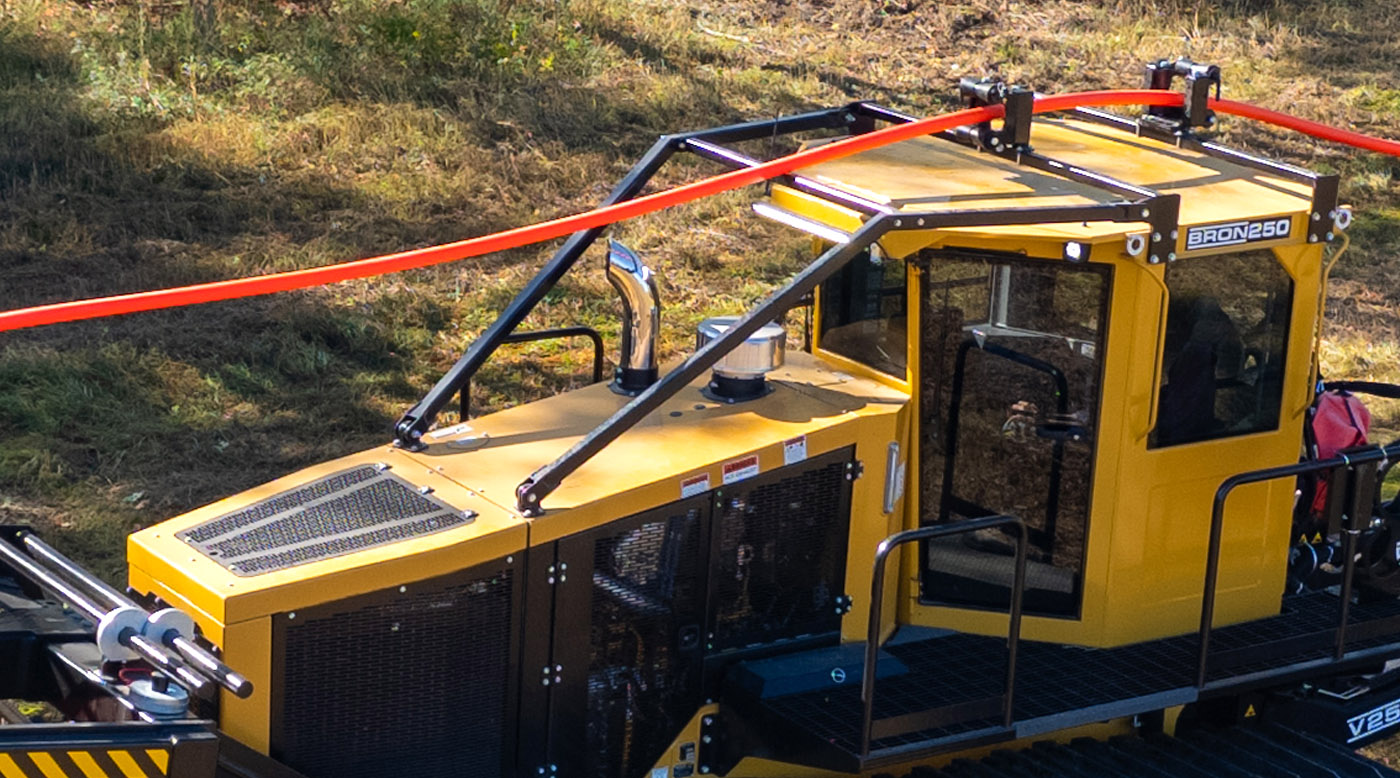

Sweeps
Sweeps help protect the operator station while providing additional protection to the engine compartment. Designed to prevent damage from overhead hazards, these guards deflect branches, cables, and obstructions while maintaining a clear line of sight for the operator.

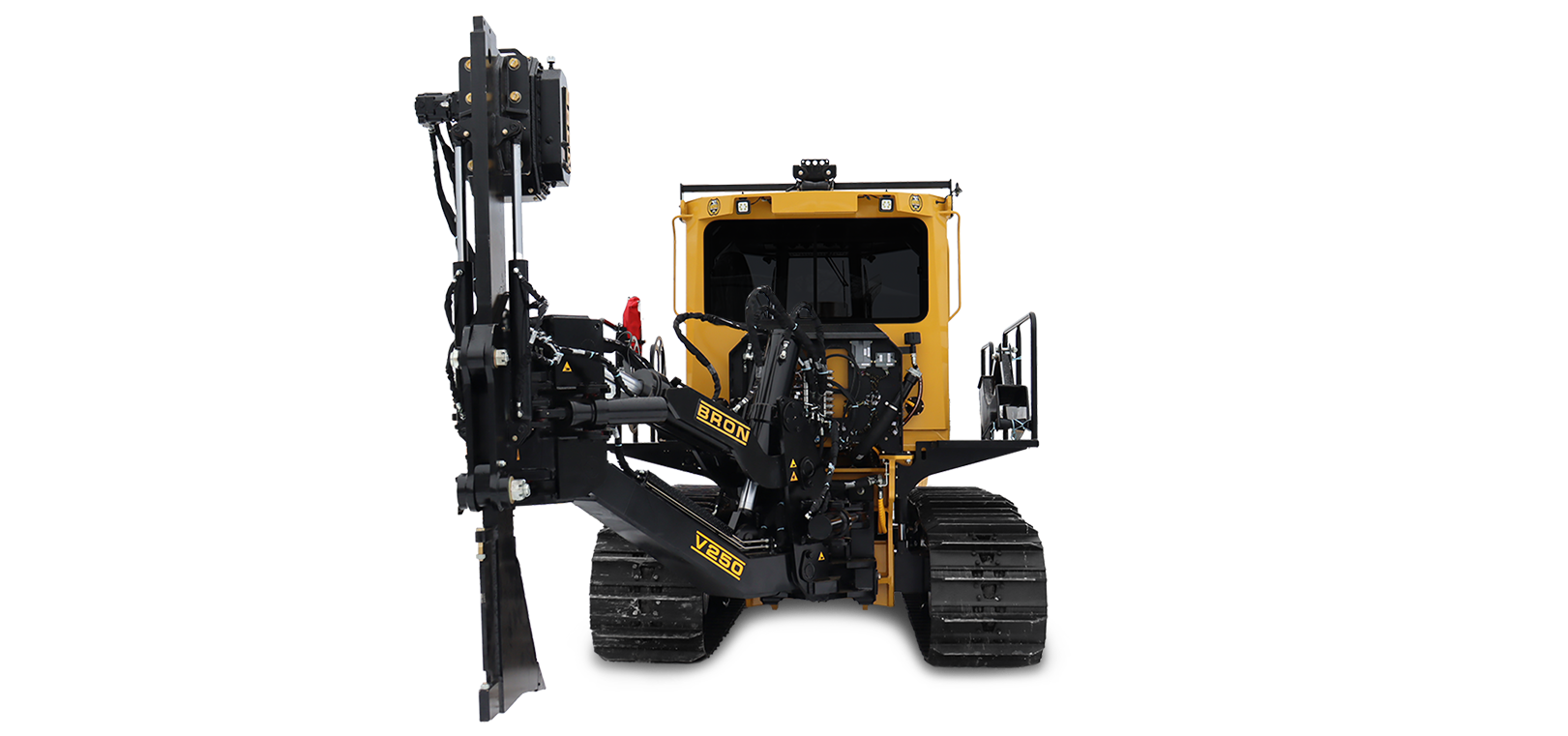

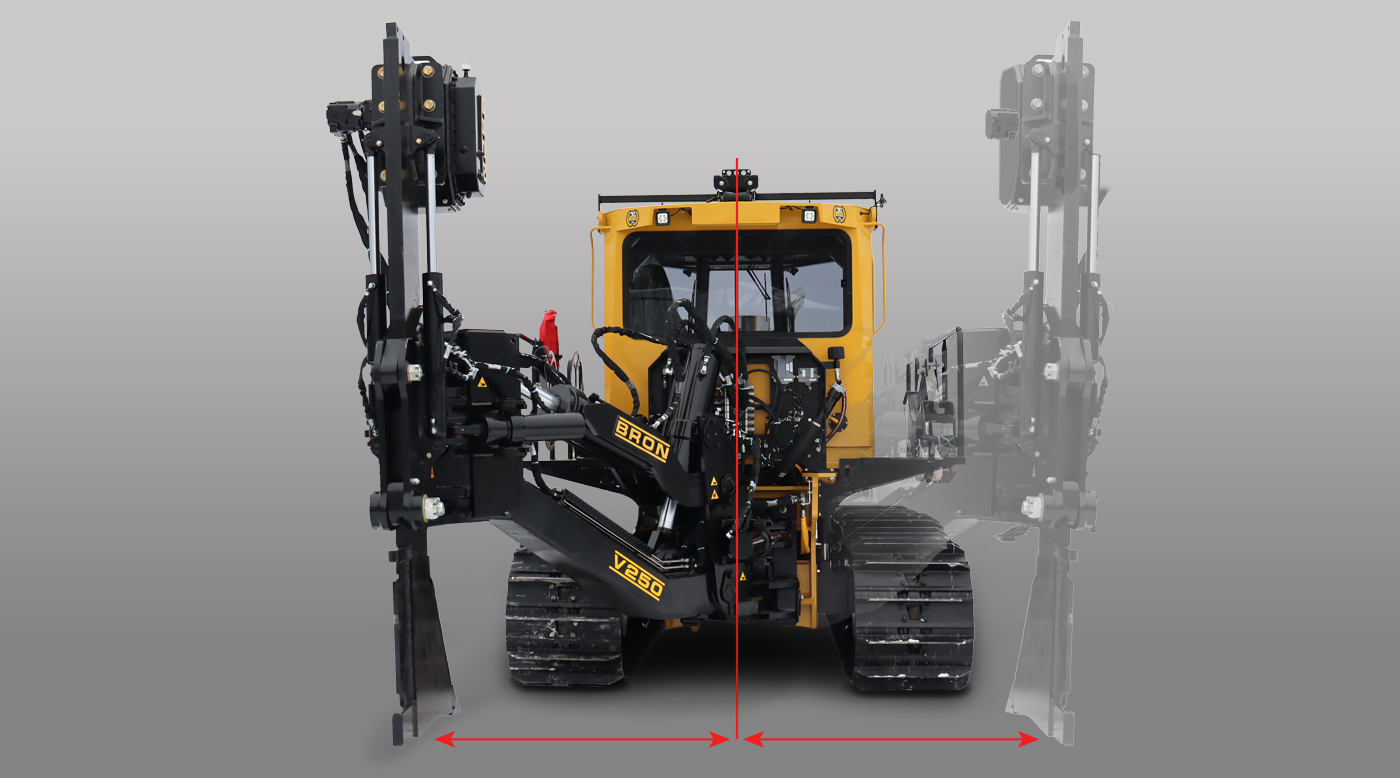

Offsetting Plow
The fully offsetting plow allows the blade to swing left or right of center, providing precise utility placement around obstacles and along existing infrastructure. This design improves accuracy, reduces rework, and gives operators greater control when working in tight or congested areas.

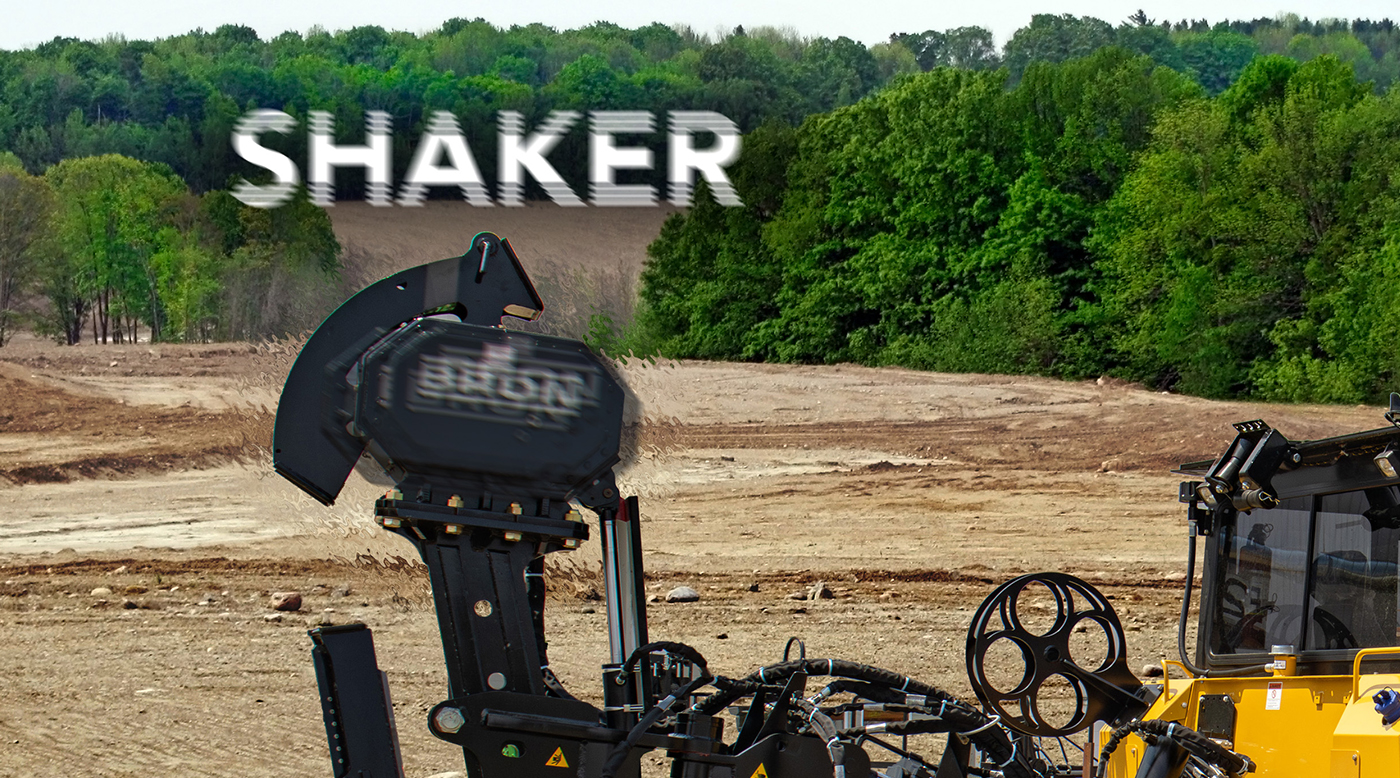

Vibratory - Blade Mounted
The blade-mounted vibratory system delivers vibration directly to the blade for maximum effectiveness. By applying energy at the point of soil engagement, it reduces required pull force, improves penetration in tough ground conditions, and increases overall installation efficiency. Designed for demanding utility applications, this system enhances performance while minimizing stress on the power unit.

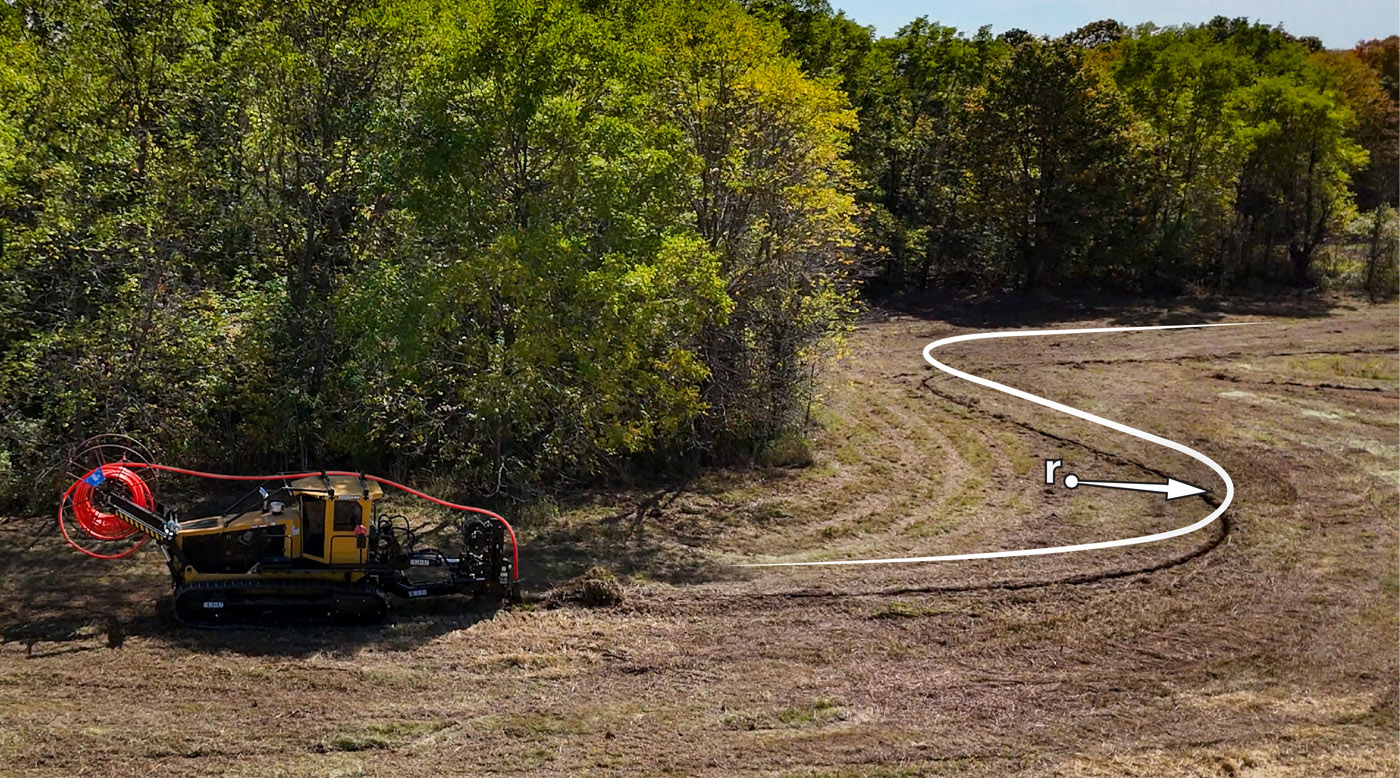

Tight Turning Radius
The tight turning radius allows BRON Utility Tractors to maneuver easily in confined spaces and tight job sites. This design improves control around obstacles, reduces repositioning time, and increases overall productivity during utility installations.
Hydraulic Blade Height Adjustment
Hydraulic blade height adjustment allows operators to precisely control blade height from the cab. This feature ensures accurate depth control, smooth transitions, and consistent installation performance across varying ground conditions.

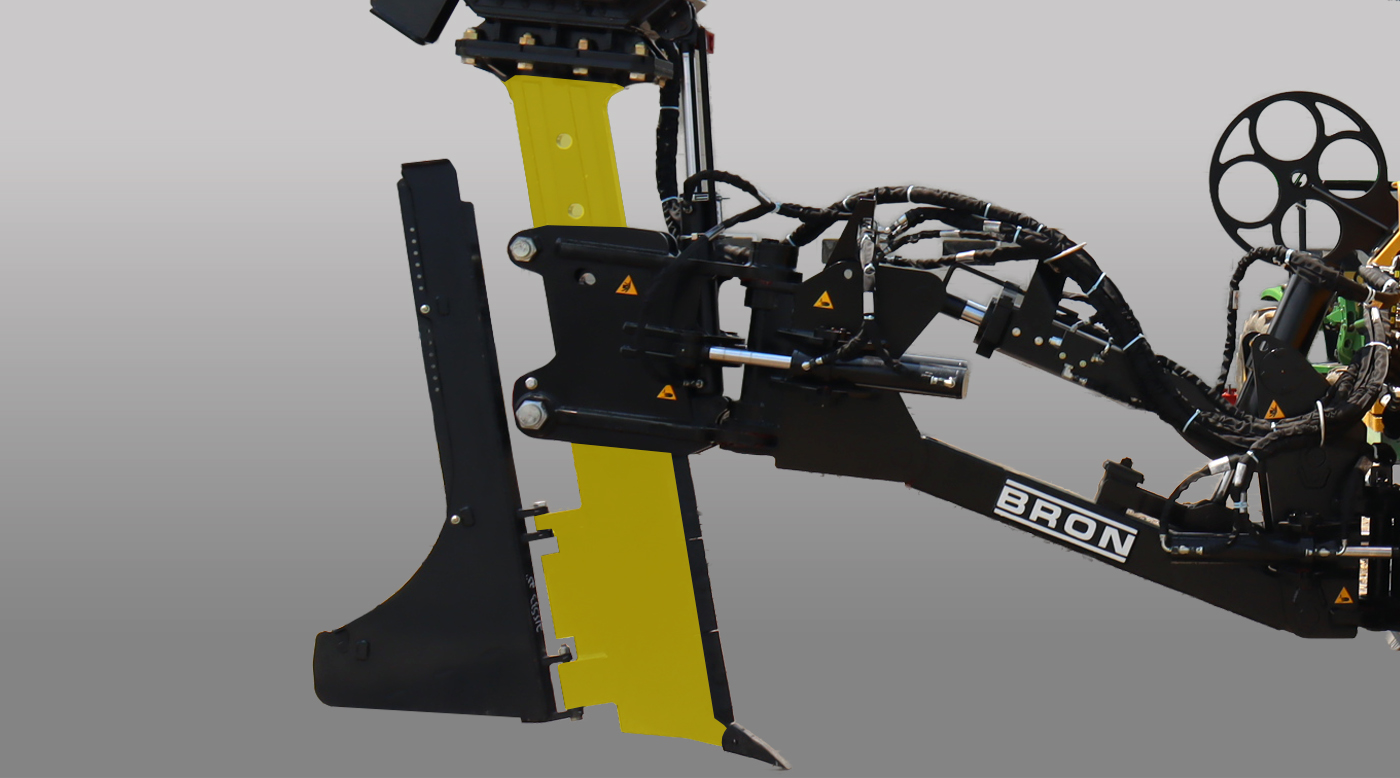

Abrasion Resistant Shank
Manufactured from high wear steel, the shank is designed to withstand abrasive soil conditions and high operating loads. This durable construction maintains consistent cutting performance while extending service life and reducing downtime.

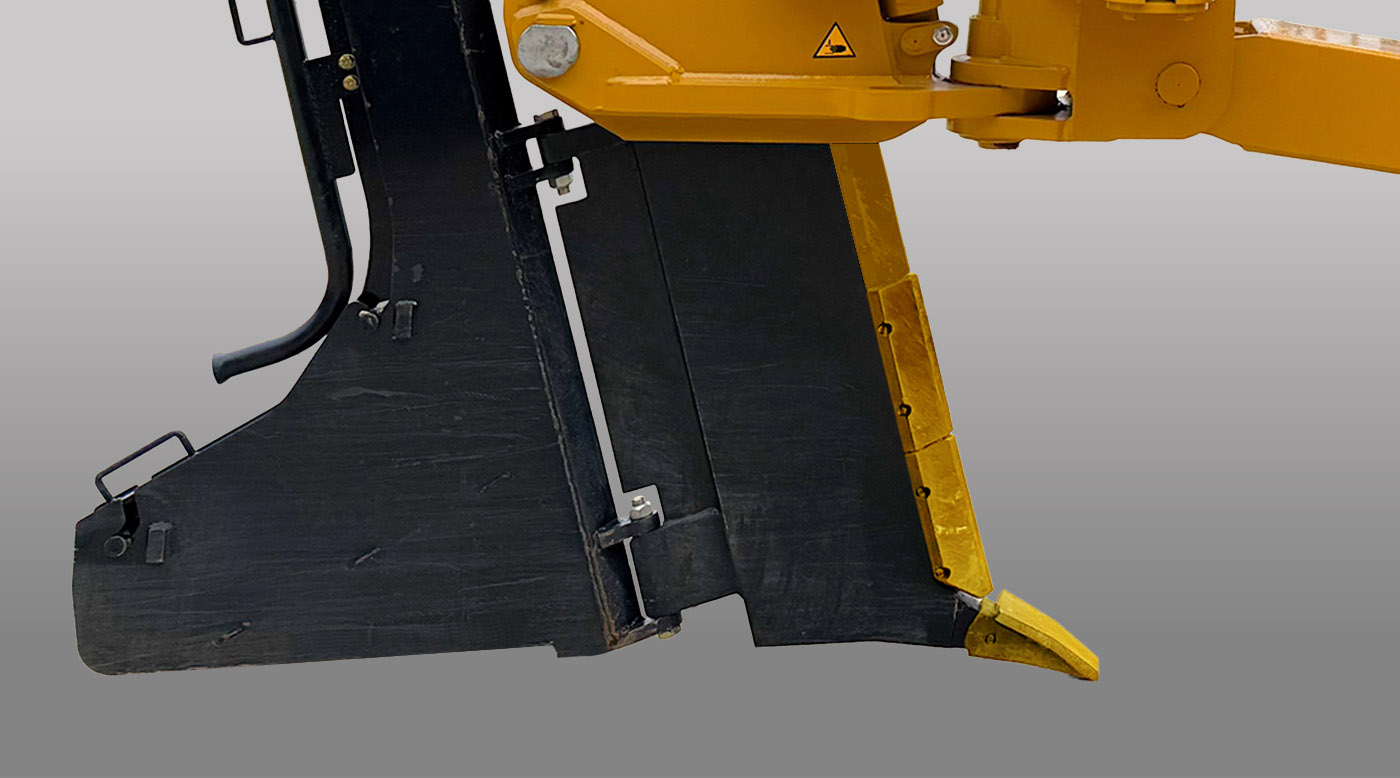

Replaceable Cutting Edge & Tip
Replaceable cutting edges and tips are designed to handle abrasive soil conditions while maintaining consistent cutting performance. Easily serviceable components reduce downtime and operating costs by allowing worn edges and tips to be replaced without removing the blade, ensuring long-term durability and field-proven reliability.

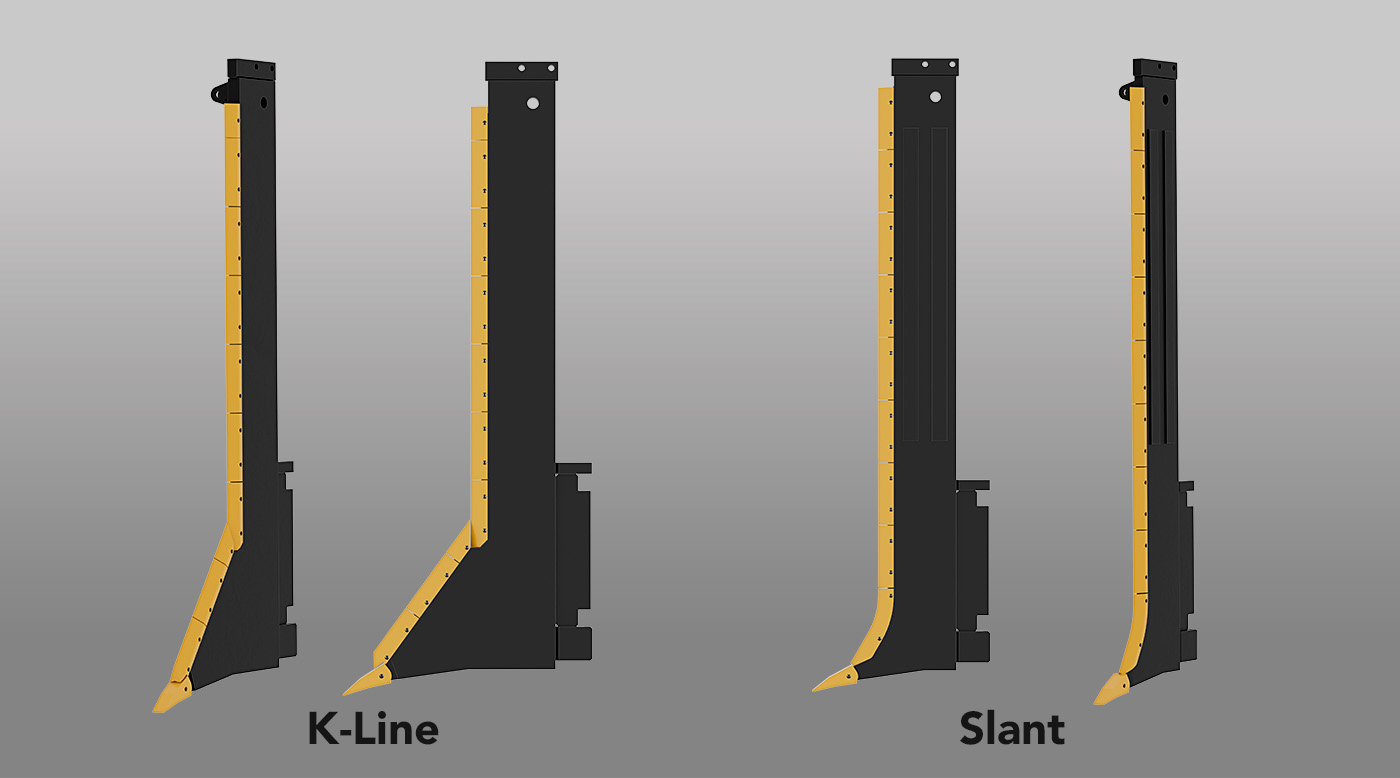

K-Line & Slant - Various Shank Profiles
BRON offers both K-Line and Slant shank profiles to suit varying soil conditions and installation requirements. K-Line shanks provide a more aggressive cutting profile for tougher ground, while Slant shanks reduce spoil and ground disturbance. Both designs are engineered to optimize pull force, maintain consistent depth, and deliver field-proven performance.

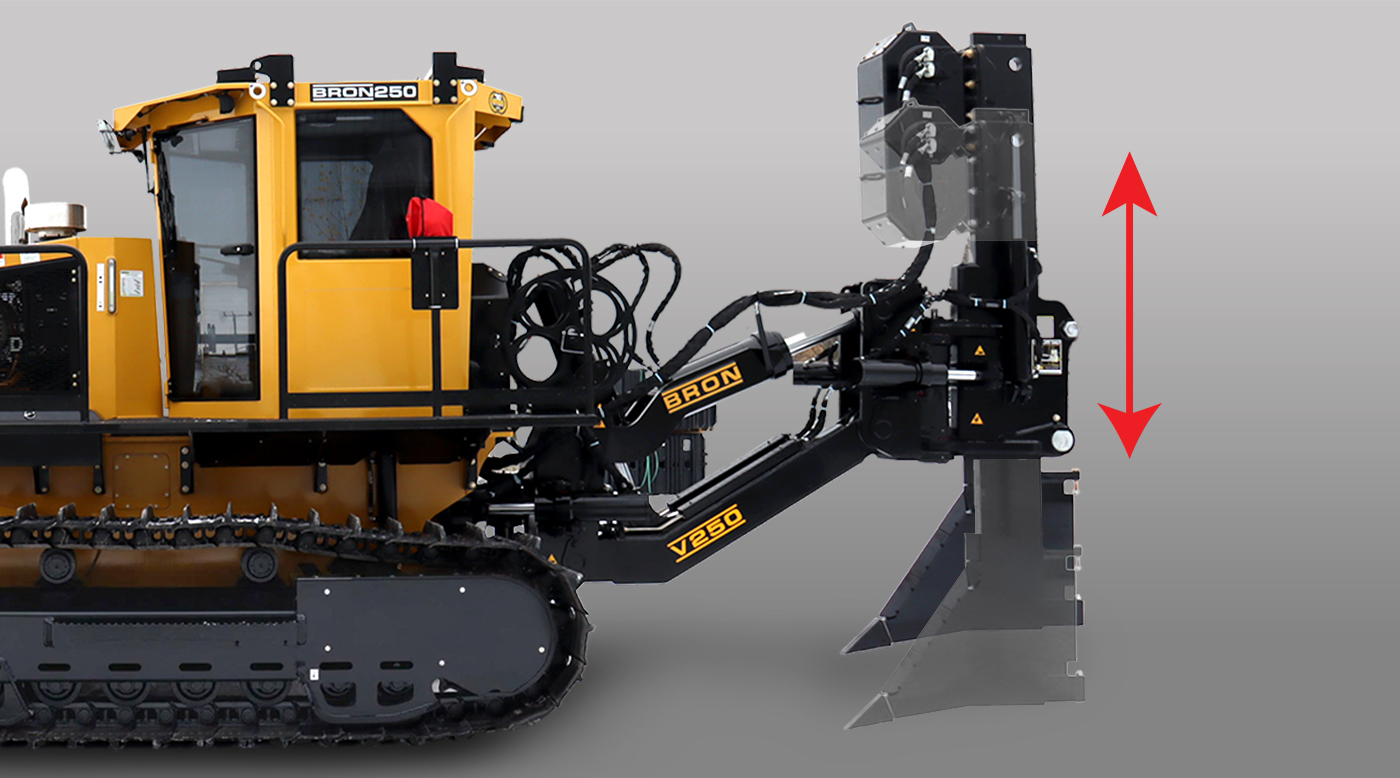

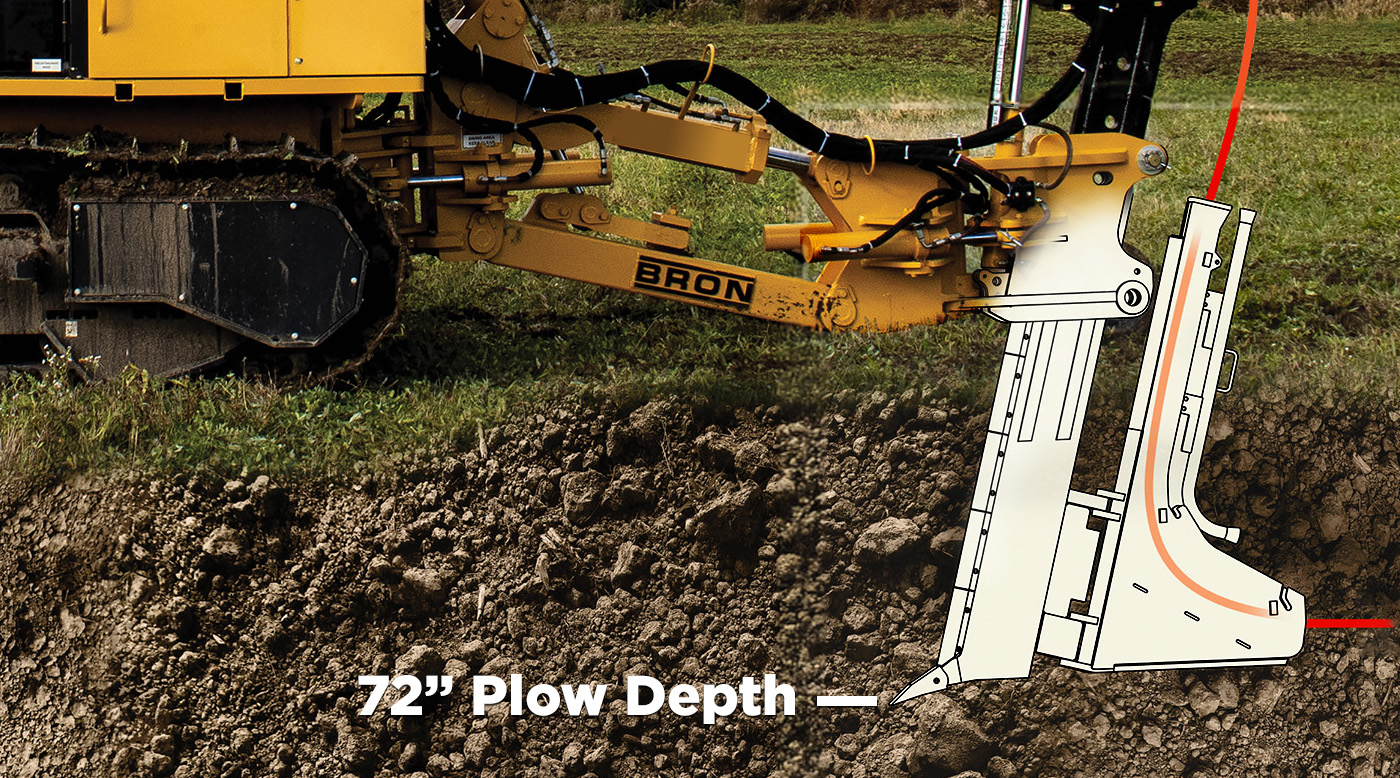

72" Max Plow Depth
The V250 Utility Plow offers a maximum plowing depth of 72 inches, enabling deeper utility installations for demanding applications. This added depth capacity supports larger infrastructure projects while maintaining consistent grade control and field-proven performance.

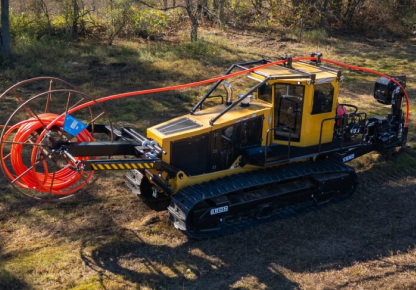

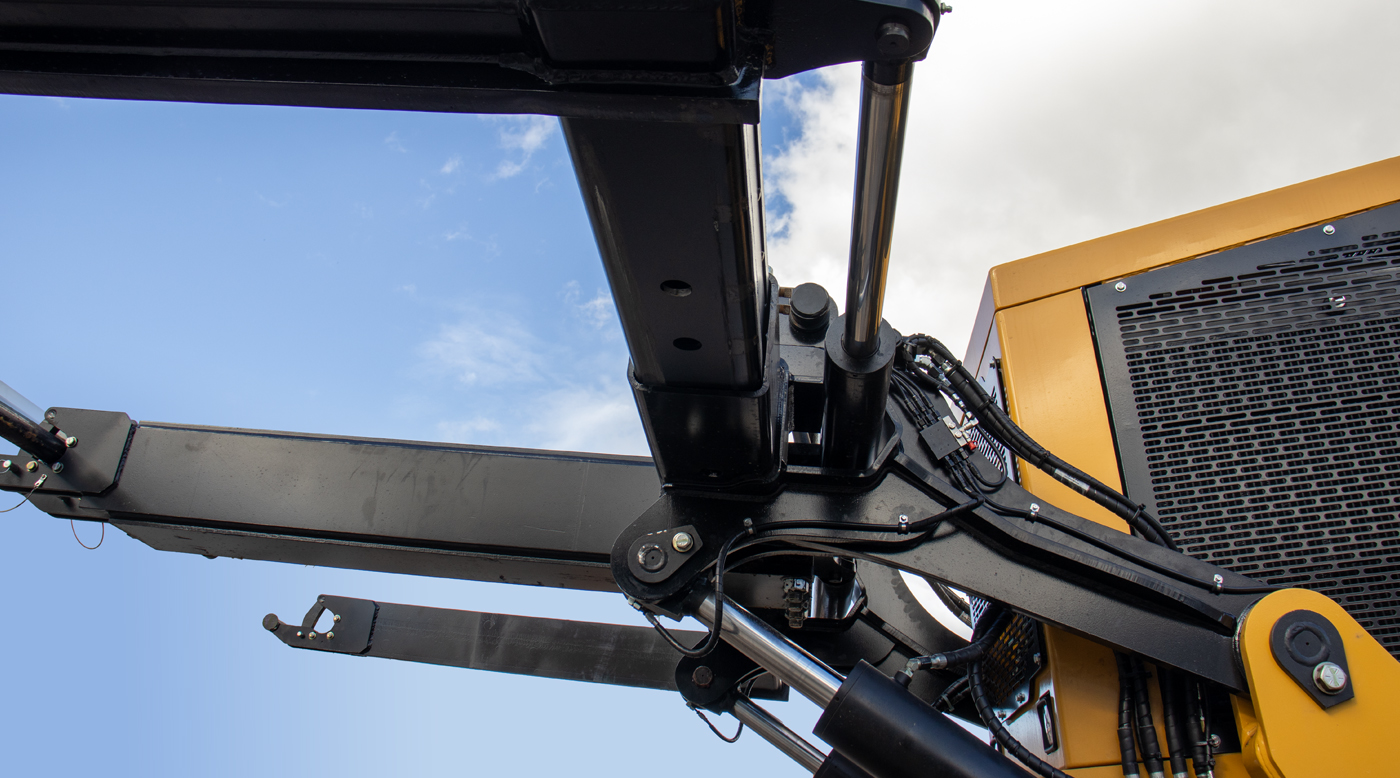

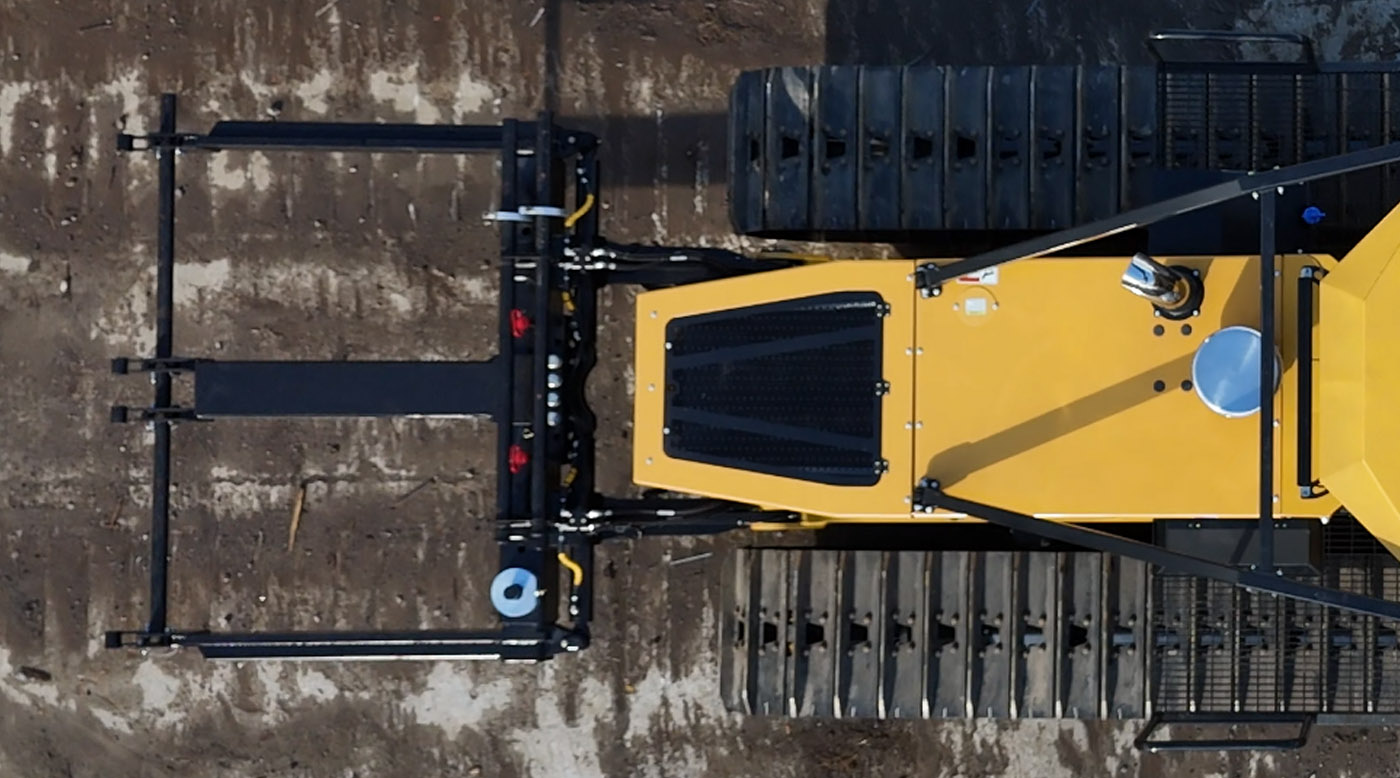

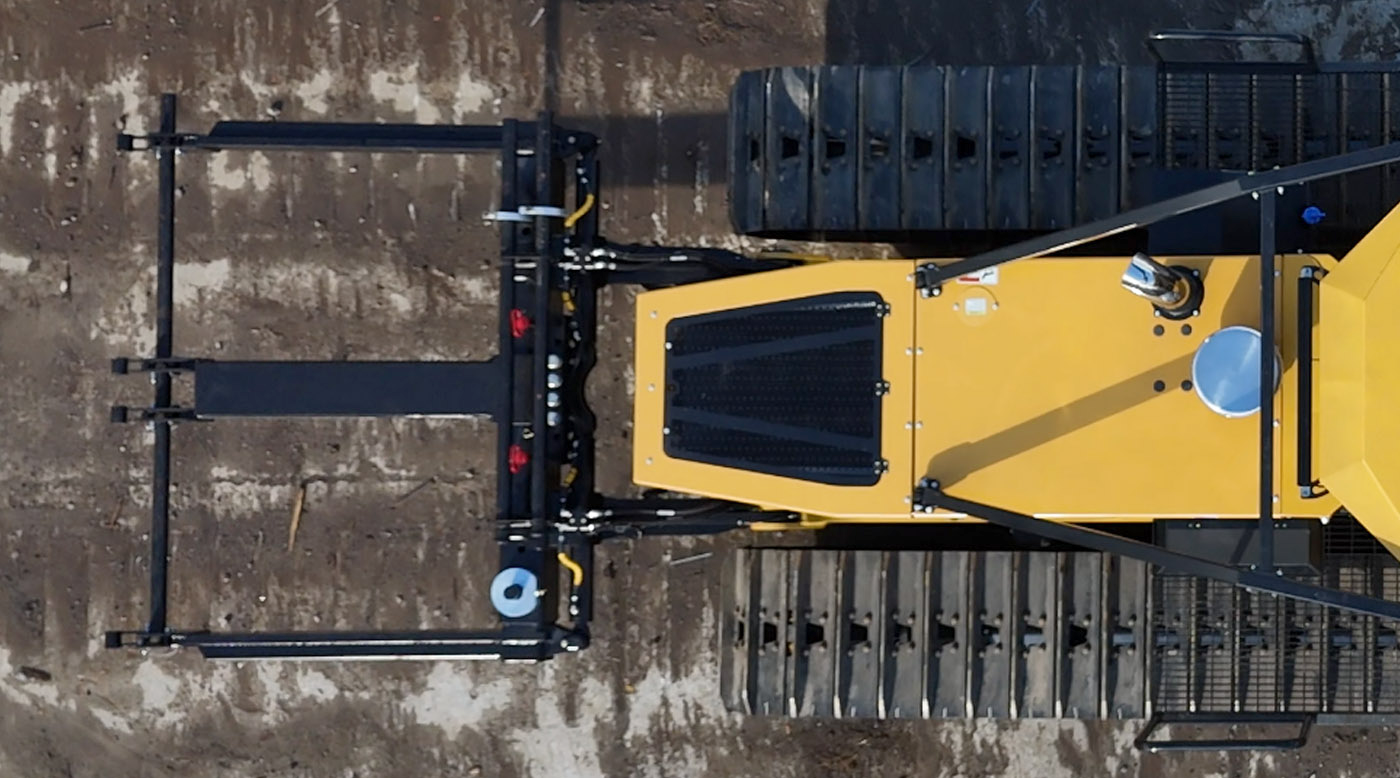

Adjustable Dual Reel Carrier
The 8,000 lb reel carrier can handle two spools of product for ease of dual installation. This reel carrier setup reduces downtime and improves jobsite productivity while keeping cables, conduit, or pipe organized and ready for continuous operation. Optional hydraulic triple reel carrier available.

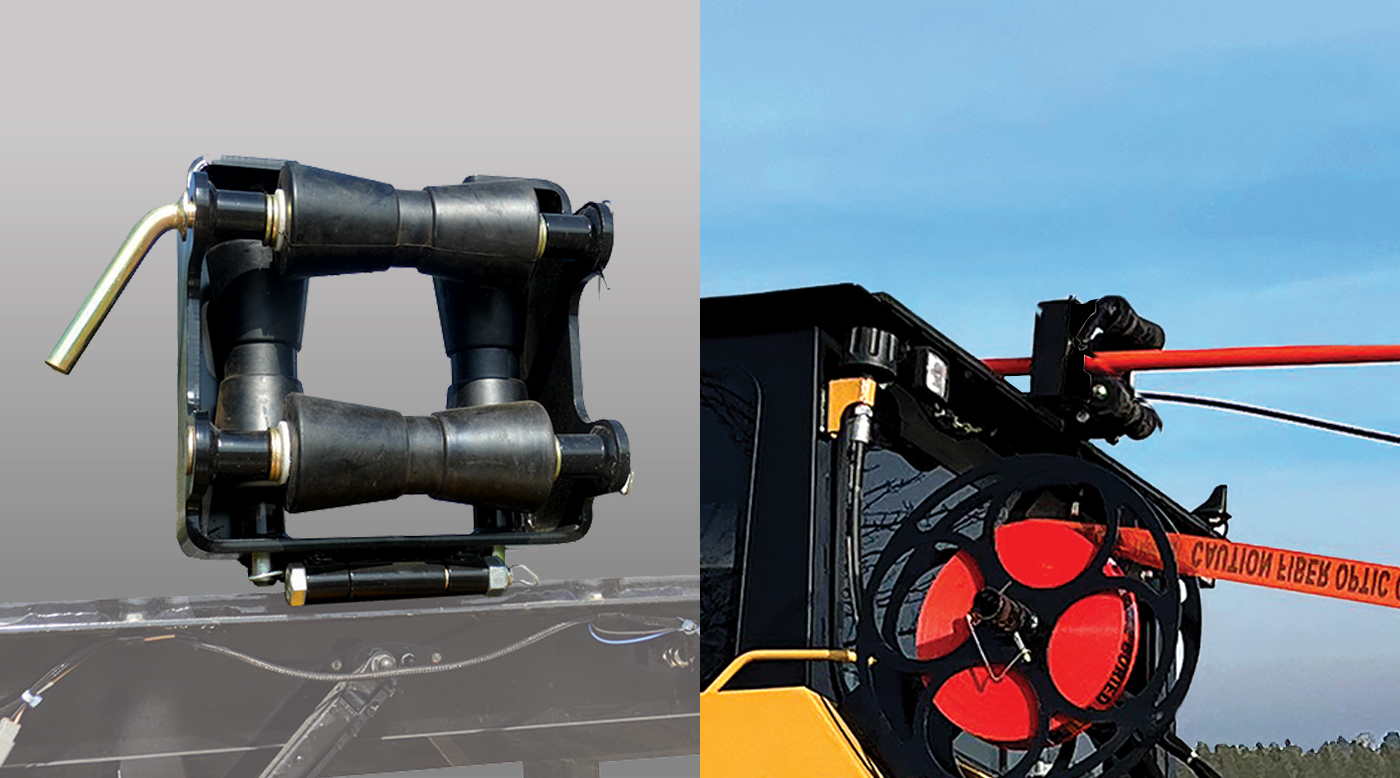

Fairleads
Fairleads on the cab-roof and a slider chute on the plow keep the cables in line, organized and ready for installation. Custom slider chutes, additional fairleads, and 40" fairleads are available as options.

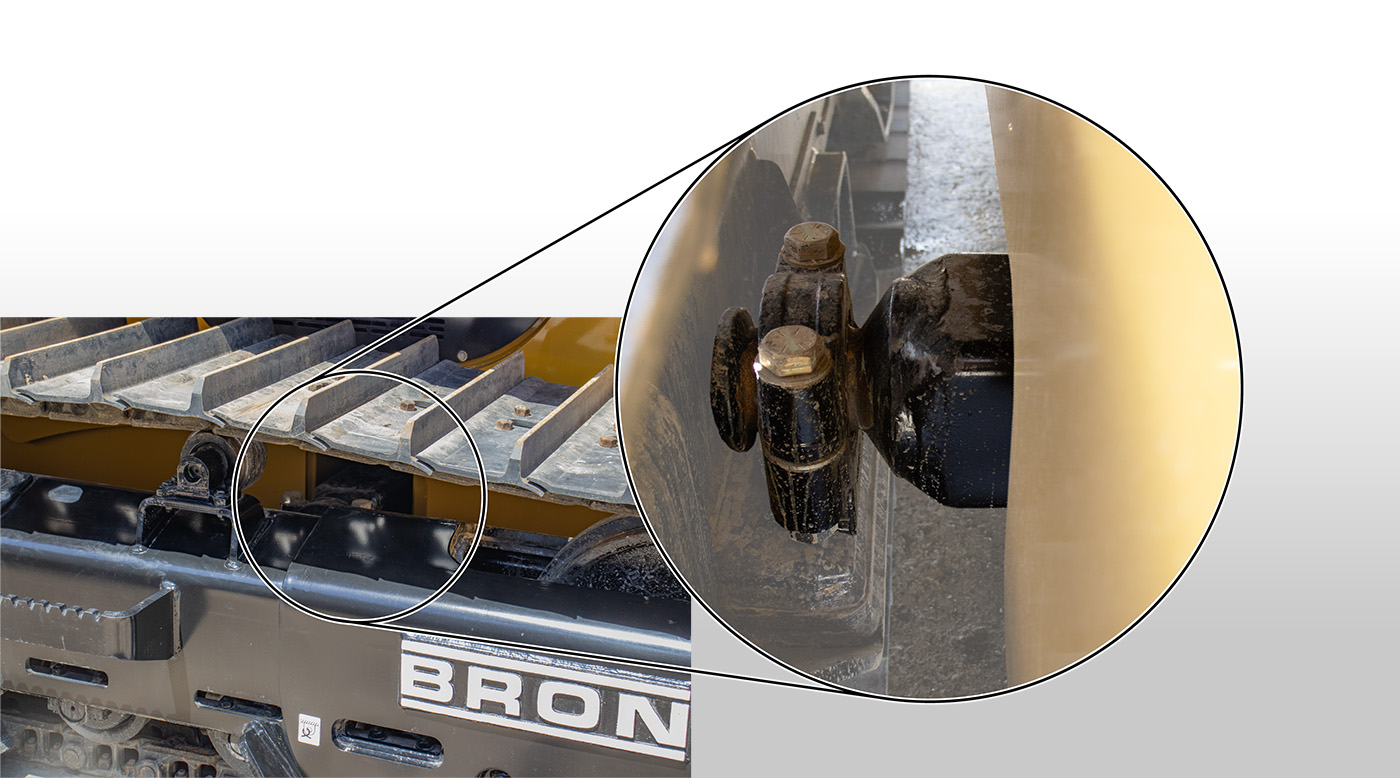

Trunnion Ball - No Maintenance Required
The Trunnion ball is a dry, maintenance-free spherical connection, used on the front axle and reel carrier frame mount connection. Designed to handle machine movement in demanding ground conditions, it allows pivotal motion while providing clearance for misalignment as the undercarriage oscillates. With no grease points required, this connection reduces daily service time and wear compared to traditional pinned joints.
9.3 L CAT® 335HP Diesel Engine
The 250UT comes equipped with 9.3 L CAT® diesel engine delivering 335 HP, engineered for dependable performance in demanding environments. This robust turbocharged powerplant provides high torque at low RPM, ensuring strong pulling capability, smooth operation under load, and efficient fuel use across a wide range of applications. Built on proven CAT® technology, the engine offers durability, long service intervals, and supportability through a global service network.
Manufacturer Validation
Every BRON powertrain is developed in collaboration with leading engine manufacturers like Cummins, Caterpillar, and John Deere. Each installation is reviewed to ensure the engine, cooling, emissions, and electrical systems work seamlessly together—so your machine is fully supported for long-term performance in the field.
Positive Air Shut-Off
Positive Air Shut-Off provides an added layer of engine protection by immediately shutting down the engine through the interruption of air intake. This system enables the engine to be safely stopped in emergency situations or in the event of uncontrolled fueling, thereby preventing severe engine damage and enhancing safety.
Separated Engine & Hydraulic Compartments
To enhance overall safety, reliability, and peace of mind in demanding operating conditions, BRON Utility Tractors are built with a separated engine and hydraulic compartments. Engineered with a skirted firewall design to isolate hydraulic components from the engine bay, this separation prevents hydraulic oil from spraying onto hot engine surfaces or the turbocharger in the event of a leak, significantly reducing fire risk.
Electric Hydraulic Oil Fill Pump System
The Electric Hydraulic Oil Fill Pump System provides a clean, efficient way to add hydraulic oil without manual lifting or risk of contamination. Using an electric pump, oil is transferred directly into the hydraulic system, reducing service time and minimizing the chance of introducing dirt or debris. This system improves maintenance safety, accuracy, and consistency while keeping equipment ready for reliable operation in the field.
Oscillating Tracks
Helping to maintain ground contact and traction across uneven terrain, oscillating tracks can increase installation accuracy, reduce operator fatigue, and minimize ground disturbance. Tracks pivot independently for maximum traction while hydraulic cylinders keep the machine level for perfect grading across sloped surfaces.
Long Track Frame
The BRON 250UT and 585UT are engineered with longer track frames than comparable OEM dozers in their class. Keeping the operation in mind, longer track frames provides a larger ground contact area, improves traction, flotation, and overall stability, especially when pulling heavy loads or working in soft or uneven terrain.
D6 Undercarriage
The BRON 250UT comes standard with a durable D6 Undercarriage. Providing the perfect balance of power and ground pressure, the D6 Undercarriage offers exceptional flotation and drawbar pull while maintaining a low ground pressure of just over 6 psi.
Track Guides
The BRON 175HD, 250UT, and 585UT feature mid-guides designed to support the track pads during oscillation, ensuring smoother operation, improved stability, and longer track life. These mid-guides help maintain proper track alignment as the tracks pivot over uneven terrain
Visibility
Windows all around provide the operator with a commanding view of the jobsite. Includes front and rear overhangs to keep these windows clean while minimizing glare from the overhead sun. The front and rear windows are also sloped inward to reduce collection of rain drops, and the front windows and doors can also be cleaned with the standard wipers.
Spacious Interior
Large enough to be your office in the field, holding all the necessary GPS equipment/displays while still giving room for a visitor to ride-along, such as the field owner or the tile Sales Rep, allowing you to conduct meetings while working in the field.
Decelerator Pedal
The Decelerator Pedal allows the operator to slow ground speed without reducing engine RPM or hydraulic output. This feature provides precise control for specific applications by maintaining full hydraulic flow to the plow while operating at slower travel speeds. The result is improved control, smoother operation, and consistent performance during demanding installation work.
Swivel Seat With Mounted Controls
The swivel seat has joystick steering & seating designed for operator comfort with height, headrest & seat tilt adjustments & air-ride suspension to eliminate operator fatigue.
Heated Operator Seat
The operator seat is heated in the lower cushion and back-rest, with two heat settings for LOW and HIGH.
Buddy Seat
A fold-down jumper seat for visitors to conduct in-field meetings or simply demonstrate to your customer the installation process and operation. Also valuable for training new operators.
Climate Control A/C & Heated
The climate-controlled cab features integrated air conditioning and heating to maintain a comfortable operating environment in all weather conditions, helping reduce fatigue and keep operators productive year-round.
Bluetooth & Radio Speakers
Whether listening to the radio, personal music lists, or podcasts via Bluetooth connectivity, the stereo system delivers rich, clear audio through high-quality speakers. When connected to a mobile device via Bluetooth, incoming phone calls are transmitted through the audio system, enhancing call clarity and helping ensure you don’t miss important calls.
Sliding Rear Window
Large opening rear window that slides to simplify communications with your ground support crew; the rear cab peak helps keep the outside elements off the rear window and out of the cab when the window is open.
ROPS Certified
The ROPS certified structure is designed to protect the operator in the event of a rollover. Provides essential safety without compromising visibility or access during utility operations.
Self-Levelling
To ensure precise plow installations, consistent grading, and improved traction, we utilize a self-levelling track system that automatically adjusts hydraulic cylinders to keep the machine level when working on slopes or uneven ground.
Isolated Backplate
BRON Utility Tractors are equipped with heavy-duty backplate isolators designed to minimize vibration transfer between the plow and the power unit. Differing in durometer, these isolators absorb shock and reduce stress on both the machine and operator, enhancing comfort and extending component life.
Catwalks
The BRON 250UT and 585UT come equipped with heavy duty catwalks, intended to provide safe and convenient access to key service points and operator areas.
Separate Compartments
Divided into separate compartments for engine, hydraulics, and heat rejection, thereby separating hot ignition points from potential fuel sources. Keeps each compartment cleaner, making it easier to service and maintain for the duration of your ownership.
Sweeps
Sweeps help protect the operator station while providing additional protection to the engine compartment. Designed to prevent damage from overhead hazards, these guards deflect branches, cables, and obstructions while maintaining a clear line of sight for the operator.
Offsetting Plow
The fully offsetting plow allows the blade to swing left or right of center, providing precise utility placement around obstacles and along existing infrastructure. This design improves accuracy, reduces rework, and gives operators greater control when working in tight or congested areas.
Vibratory - Blade Mounted
The blade-mounted vibratory system delivers vibration directly to the blade for maximum effectiveness. By applying energy at the point of soil engagement, it reduces required pull force, improves penetration in tough ground conditions, and increases overall installation efficiency. Designed for demanding utility applications, this system enhances performance while minimizing stress on the power unit.
Tight Turning Radius
The tight turning radius allows BRON Utility Tractors to maneuver easily in confined spaces and tight job sites. This design improves control around obstacles, reduces repositioning time, and increases overall productivity during utility installations.
Hydraulic Blade Height Adjustment
Hydraulic blade height adjustment allows operators to precisely control blade height from the cab. This feature ensures accurate depth control, smooth transitions, and consistent installation performance across varying ground conditions.
Abrasion Resistant Shank
Manufactured from high wear steel, the shank is designed to withstand abrasive soil conditions and high operating loads. This durable construction maintains consistent cutting performance while extending service life and reducing downtime.
Replaceable Cutting Edge & Tip
Replaceable cutting edges and tips are designed to handle abrasive soil conditions while maintaining consistent cutting performance. Easily serviceable components reduce downtime and operating costs by allowing worn edges and tips to be replaced without removing the blade, ensuring long-term durability and field-proven reliability.
K-Line & Slant - Various Shank Profiles
BRON offers both K-Line and Slant shank profiles to suit varying soil conditions and installation requirements. K-Line shanks provide a more aggressive cutting profile for tougher ground, while Slant shanks reduce spoil and ground disturbance. Both designs are engineered to optimize pull force, maintain consistent depth, and deliver field-proven performance.
72" Max Plow Depth
The V250 Utility Plow offers a maximum plowing depth of 72 inches, enabling deeper utility installations for demanding applications. This added depth capacity supports larger infrastructure projects while maintaining consistent grade control and field-proven performance.
Adjustable Dual Reel Carrier
The 8,000 lb reel carrier can handle two spools of product for ease of dual installation. This reel carrier setup reduces downtime and improves jobsite productivity while keeping cables, conduit, or pipe organized and ready for continuous operation. Optional hydraulic triple reel carrier available.
Fairleads
Fairleads on the cab-roof and a slider chute on the plow keep the cables in line, organized and ready for installation. Custom slider chutes, additional fairleads, and 40" fairleads are available as options.
Trunnion Ball - No Maintenance Required
The Trunnion ball is a dry, maintenance-free spherical connection, used on the front axle and reel carrier frame mount connection. Designed to handle machine movement in demanding ground conditions, it allows pivotal motion while providing clearance for misalignment as the undercarriage oscillates. With no grease points required, this connection reduces daily service time and wear compared to traditional pinned joints.
Options
Blade & Guards
Slant Blades & K-Line Blades are available on the BRON V250. Various size guards are available based on the size of product being installed.

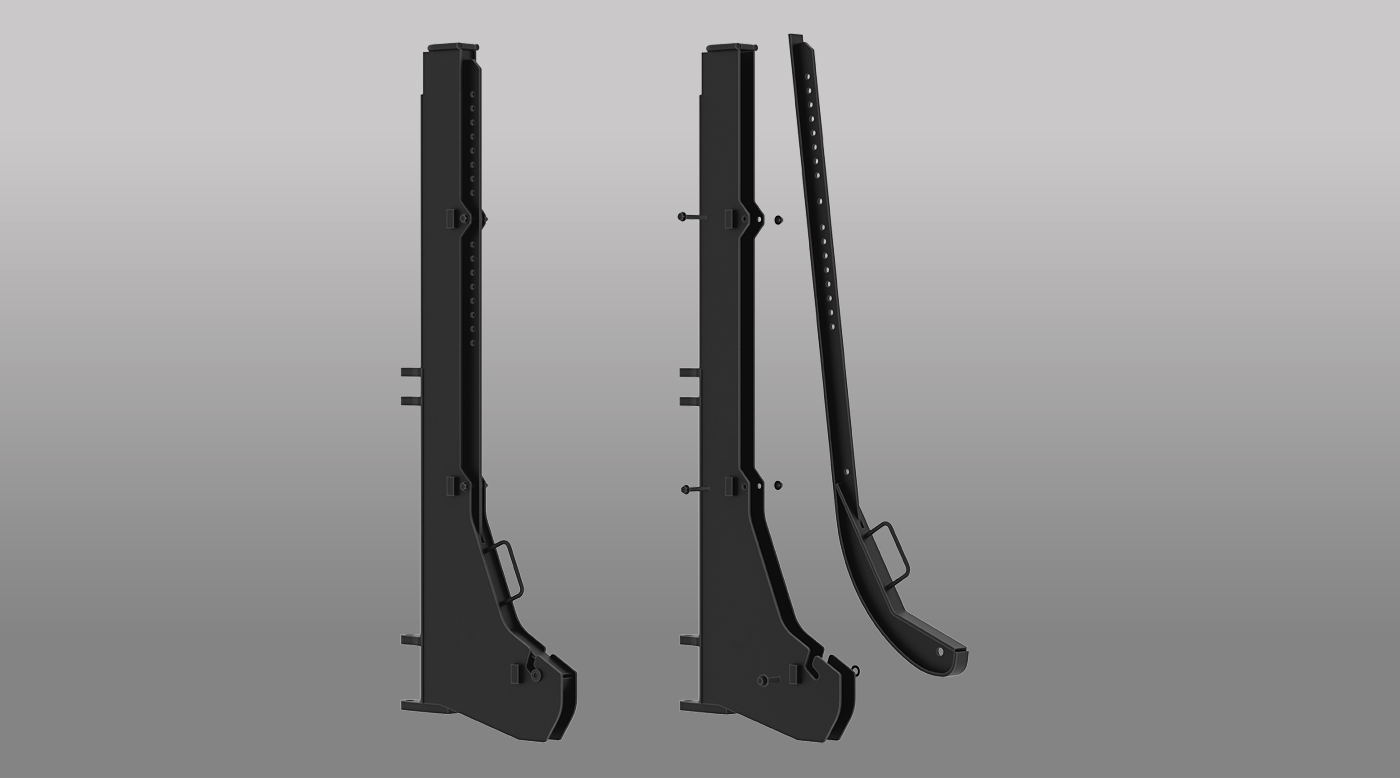

Chute & Hopper
A variety of chutes are available to accommodate your installation requirements, including sand hopper and custom solutions.

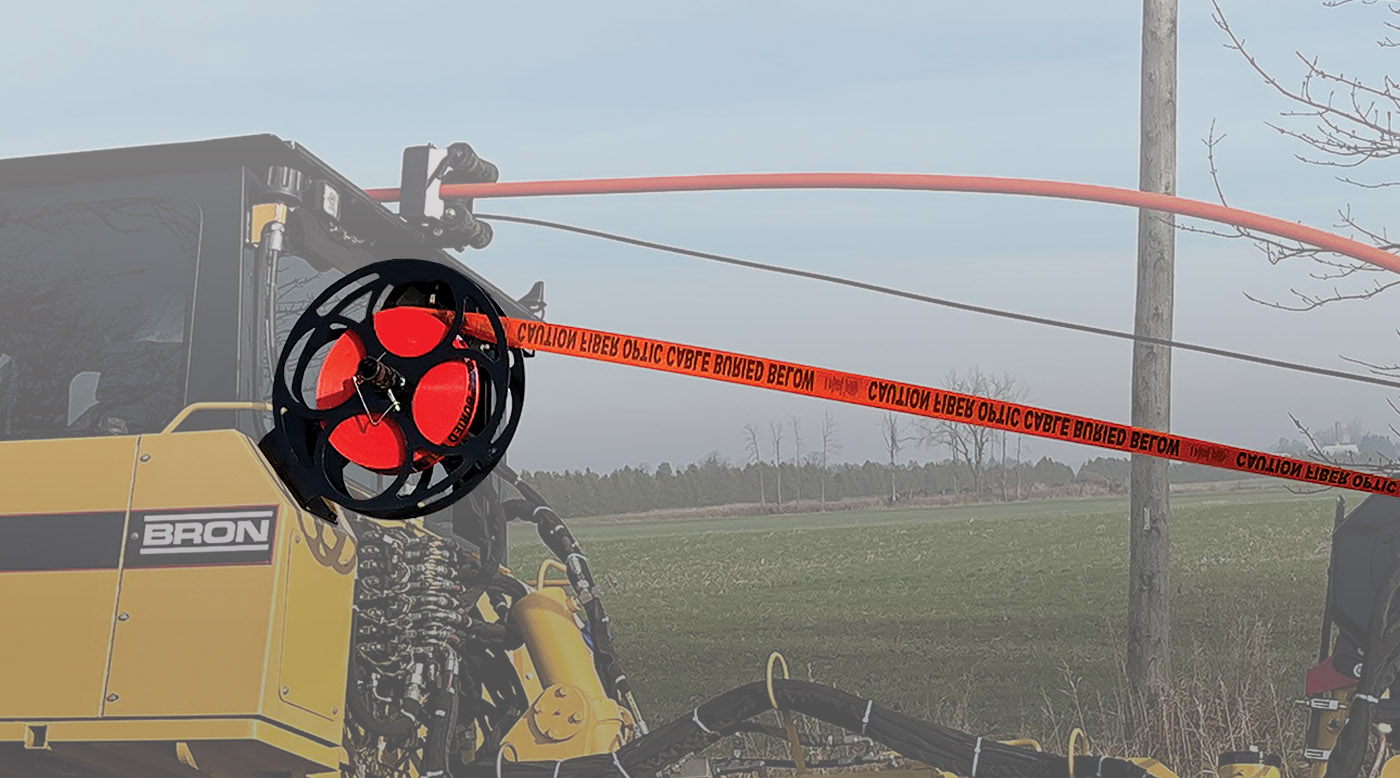

Adjustable Warning Tape Reel
The adjustable width warning tape reel allows various warning tapes to be mounted onboard for feeding into the tape feed tube during installations.

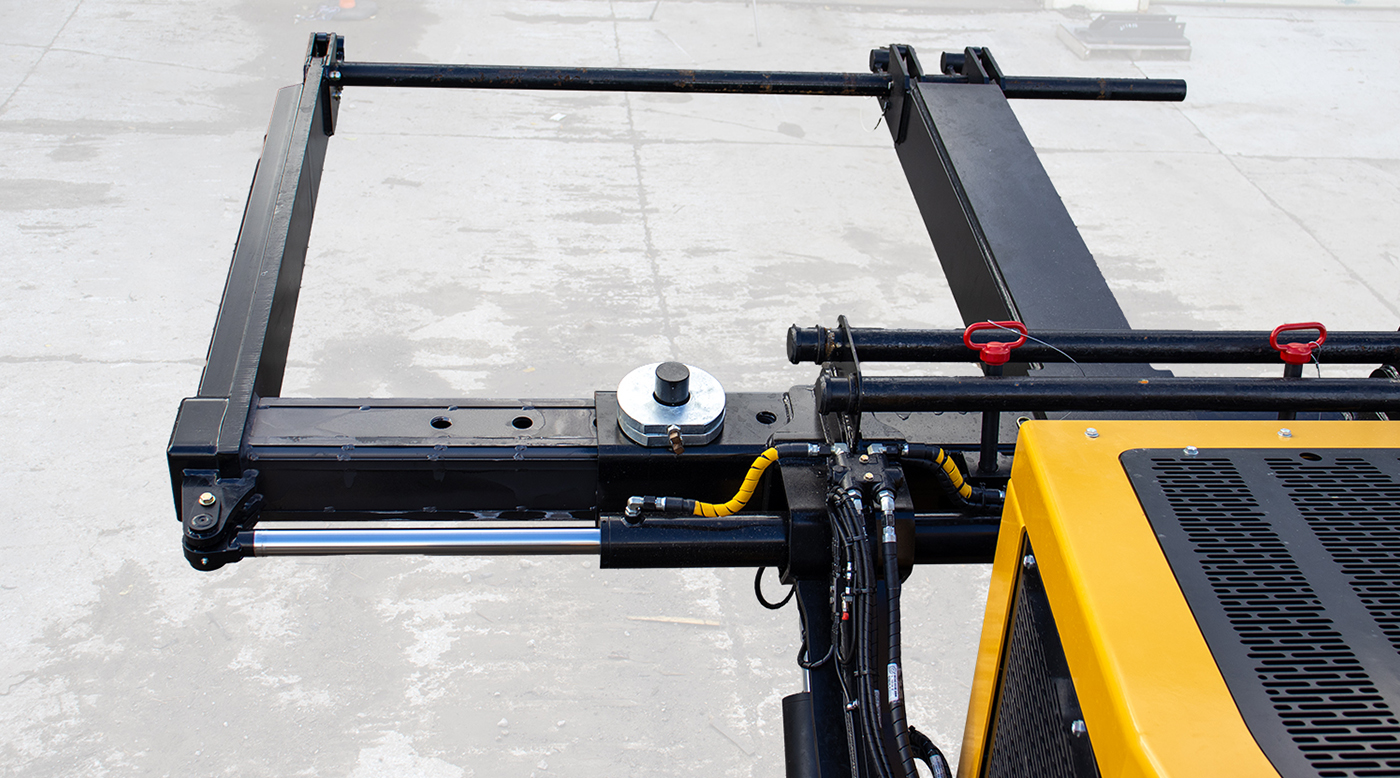

Hydraulic Adjustable Reel
Hydraulic adjustable reel carrier arms enable the outboard arms to adjust with fingertip controls from the operator’s station. This permits quick and easy adjustment of the reel arms to accommodate different width spools or combinations of spools, while making it easier to retract to meet narrow shipping requirements.

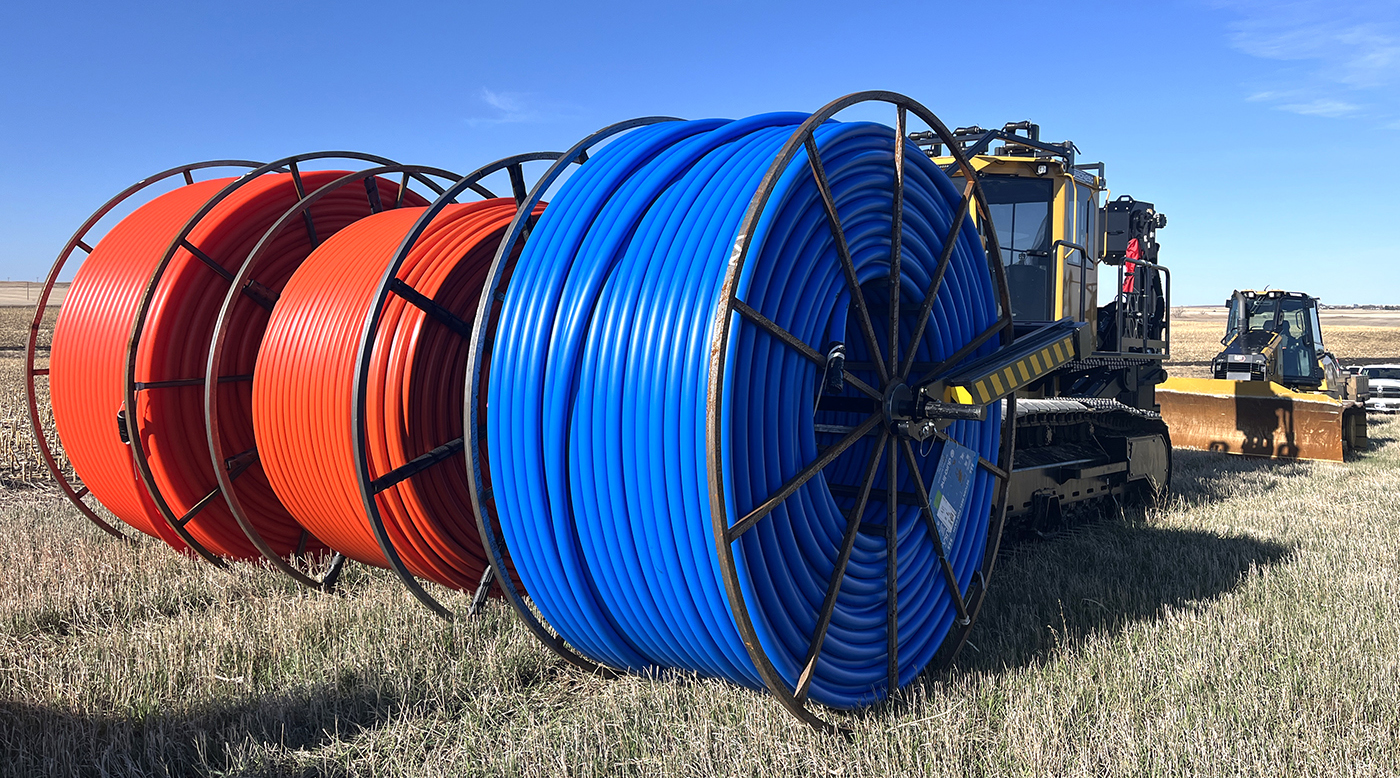

Triple Reel Carrier
Higher capacity Triple Reel Carriers versions are available.

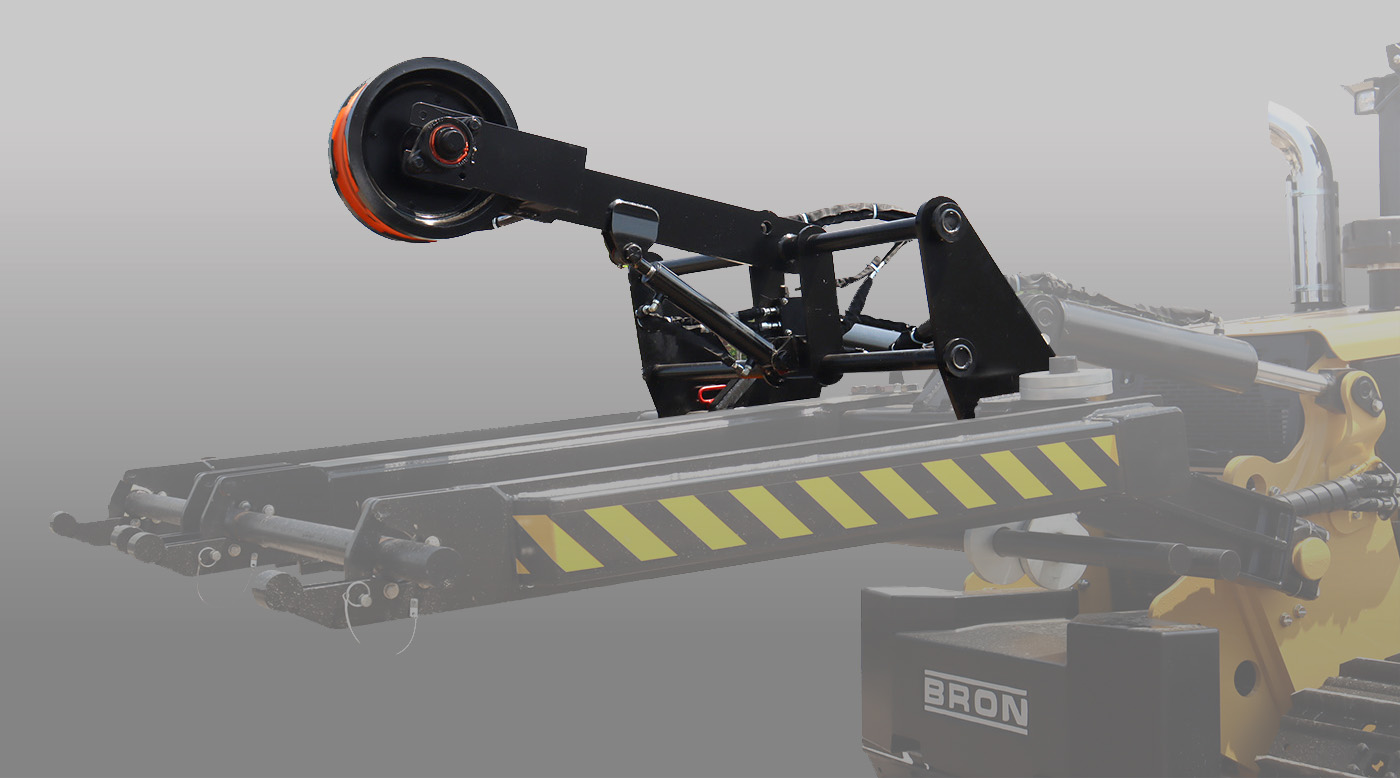

Power Rewind
Power Rewind actively controls reel rotation to manage how cable and conduit are laid out and retrieved. By guiding the product, it minimizes twisting, kinking, and internal stress that can occur during handling. This controlled rewind reduces the risk of damage.
Specifications
| Engine Make & Model | Cat® C9 |
| Emissions Certified | Stage V |
| Net Power | 335 hp (250 kW) |
| Fuel Tank Capacity | 107 U.S. Gal (405 L) |
| Hydraulic Tank Capacity | 78 U.S. Gal (295 L) |
| Operating Weight | 66,000 lbs (30,000 kg) |
| Overall Width (Footprint) | 120" (3048 mm) |
| Overall Height | 143" (3632 mm) |
| Length With Attachment | 430" (10,822 mm) |
| Ground Pressure | 6.2 psi (42.7 kPa) |
| Ground Clearance | 18" (457 mm) |
| Compatible Plow Styles | V250 |
| Maximum Cutting Depth | 72" (1829 mm) |
| Undercarriage | D6 |
| Travel Speed | 3.8 mph (6.0 kph) |
| Track Drive | Hydrostatic 2-Speed Automatic (Variable Speed) |
| Shoe Width | 30" (762 mm) |
| Rollers Per Side | 11 |
| Operator Station | ROPS Enclosure (Optional Open Canopy) |
| Steering | Joystick |
