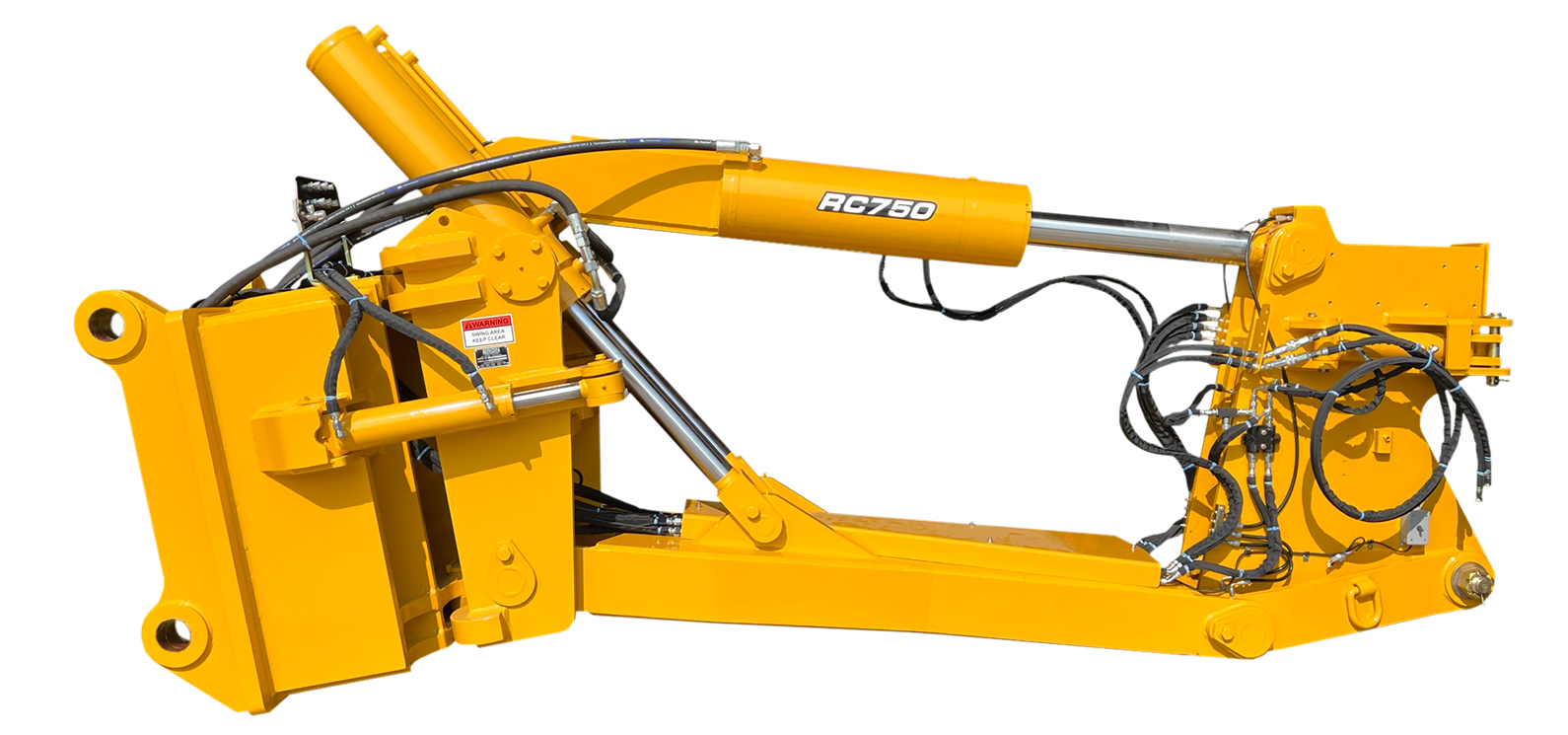

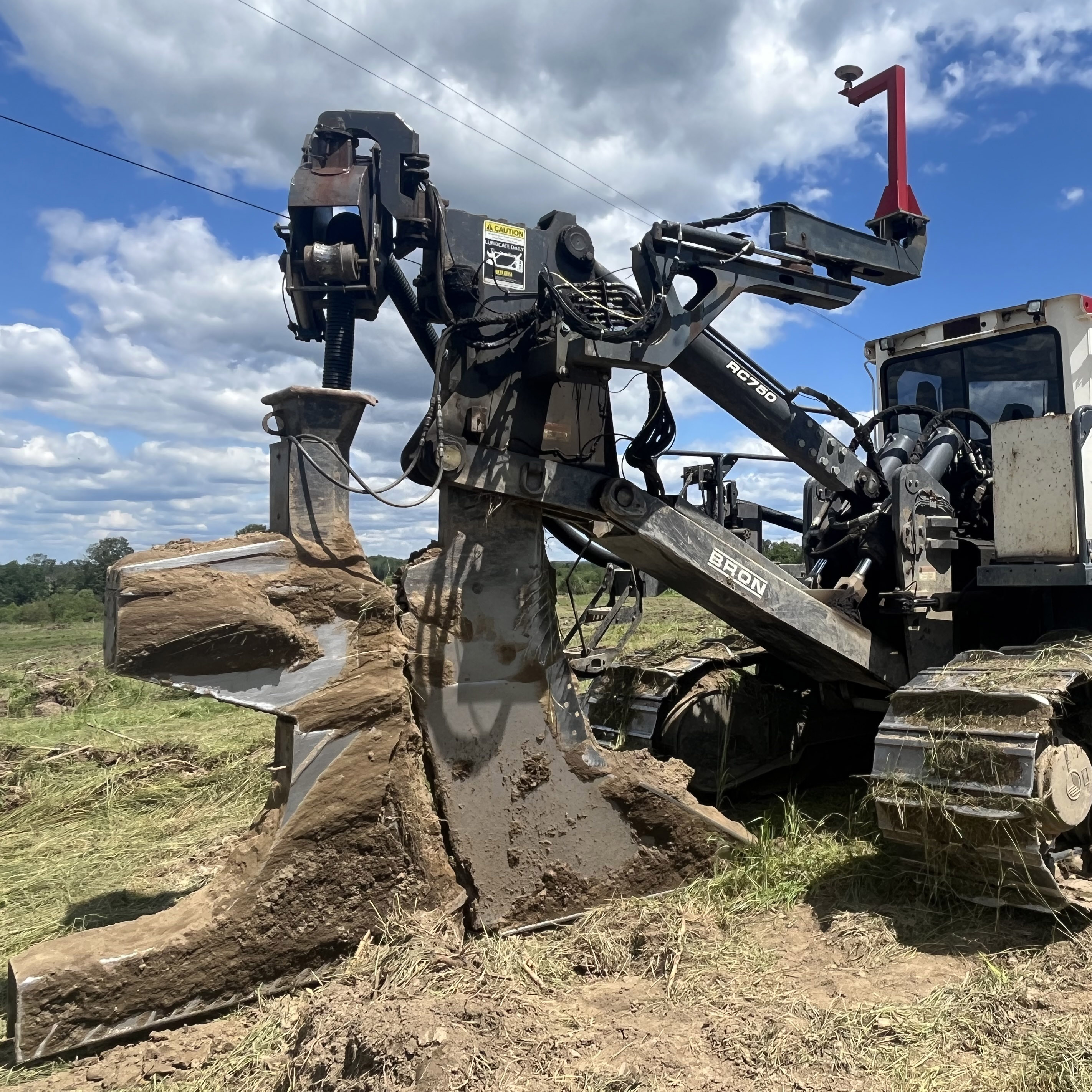

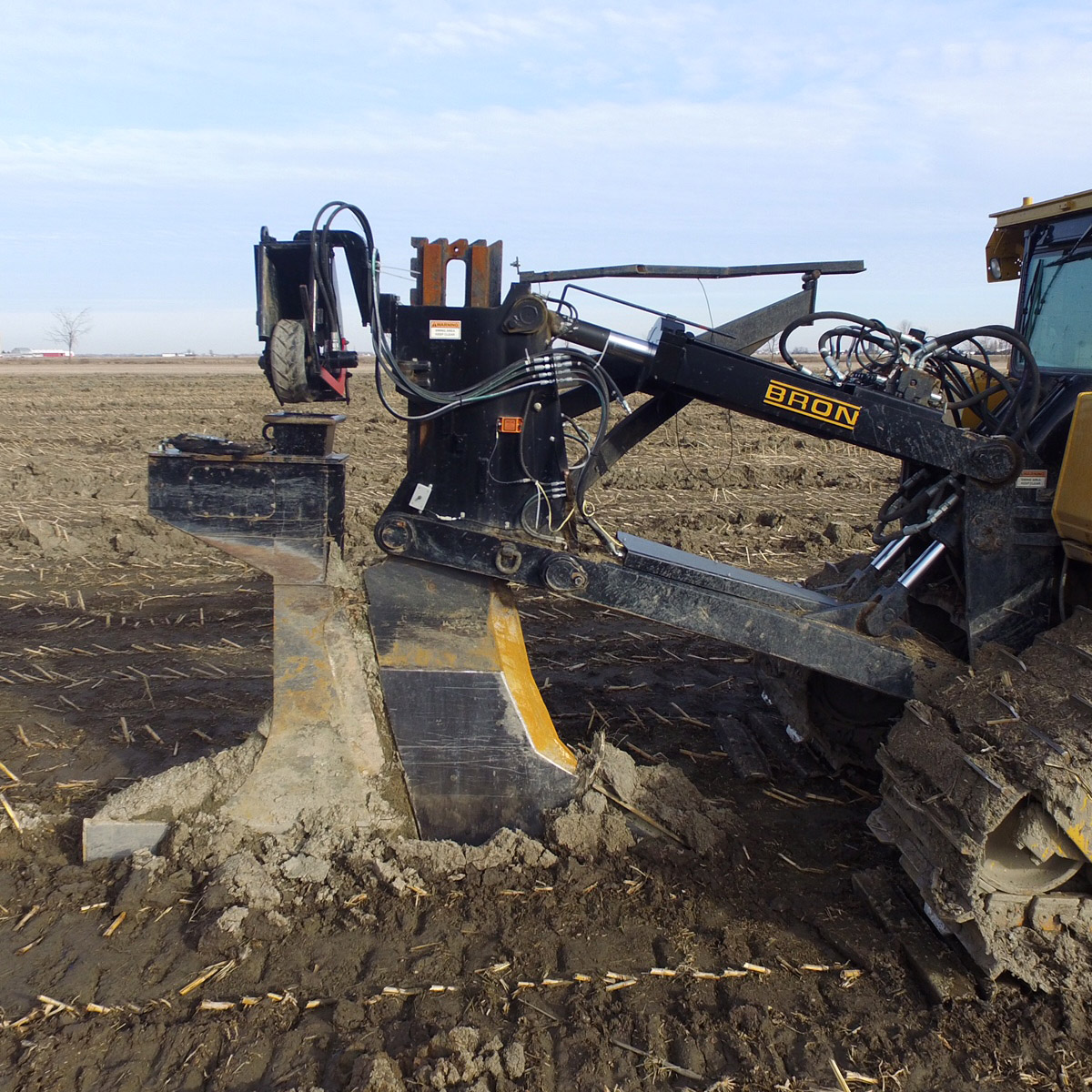

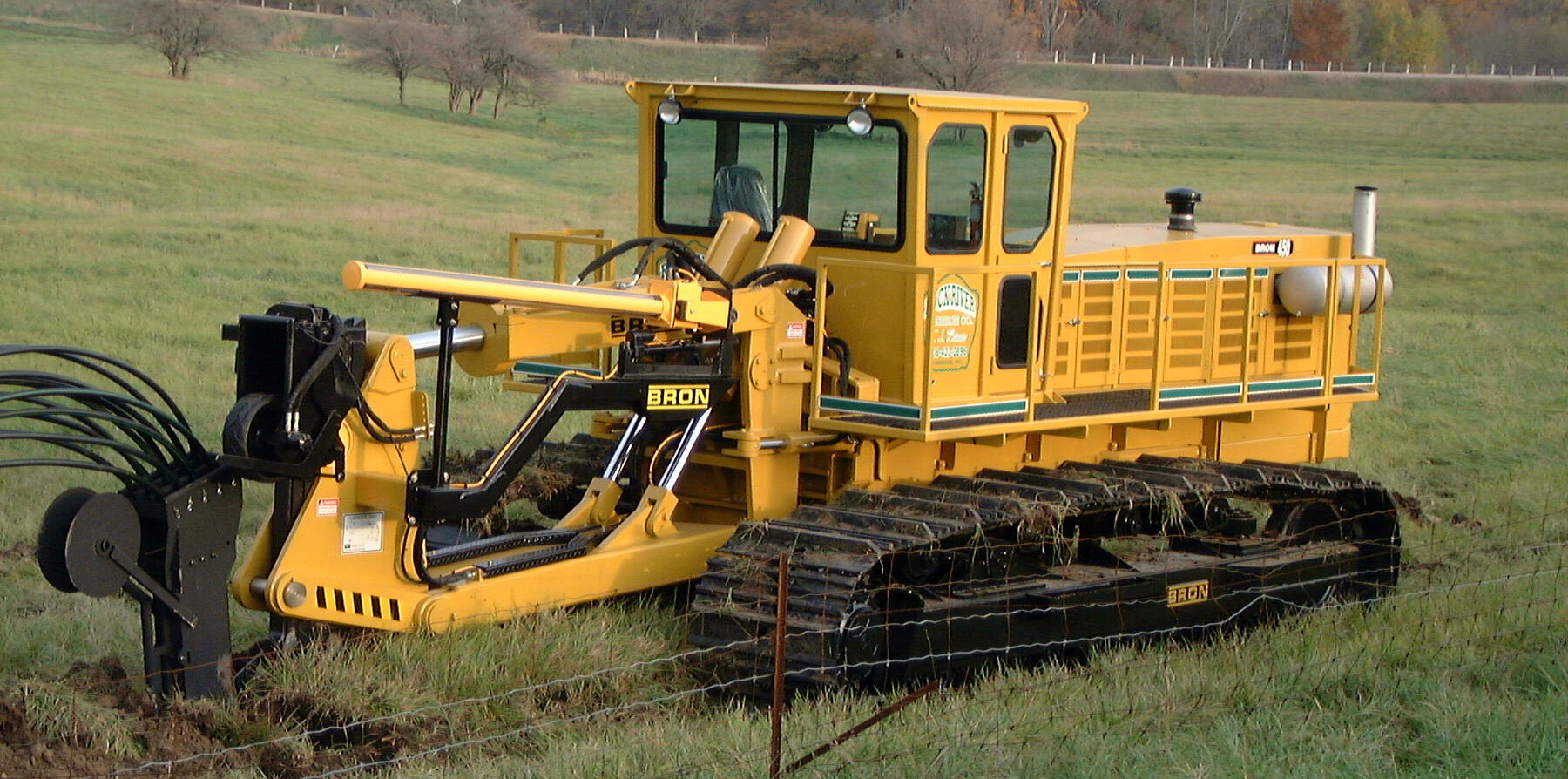

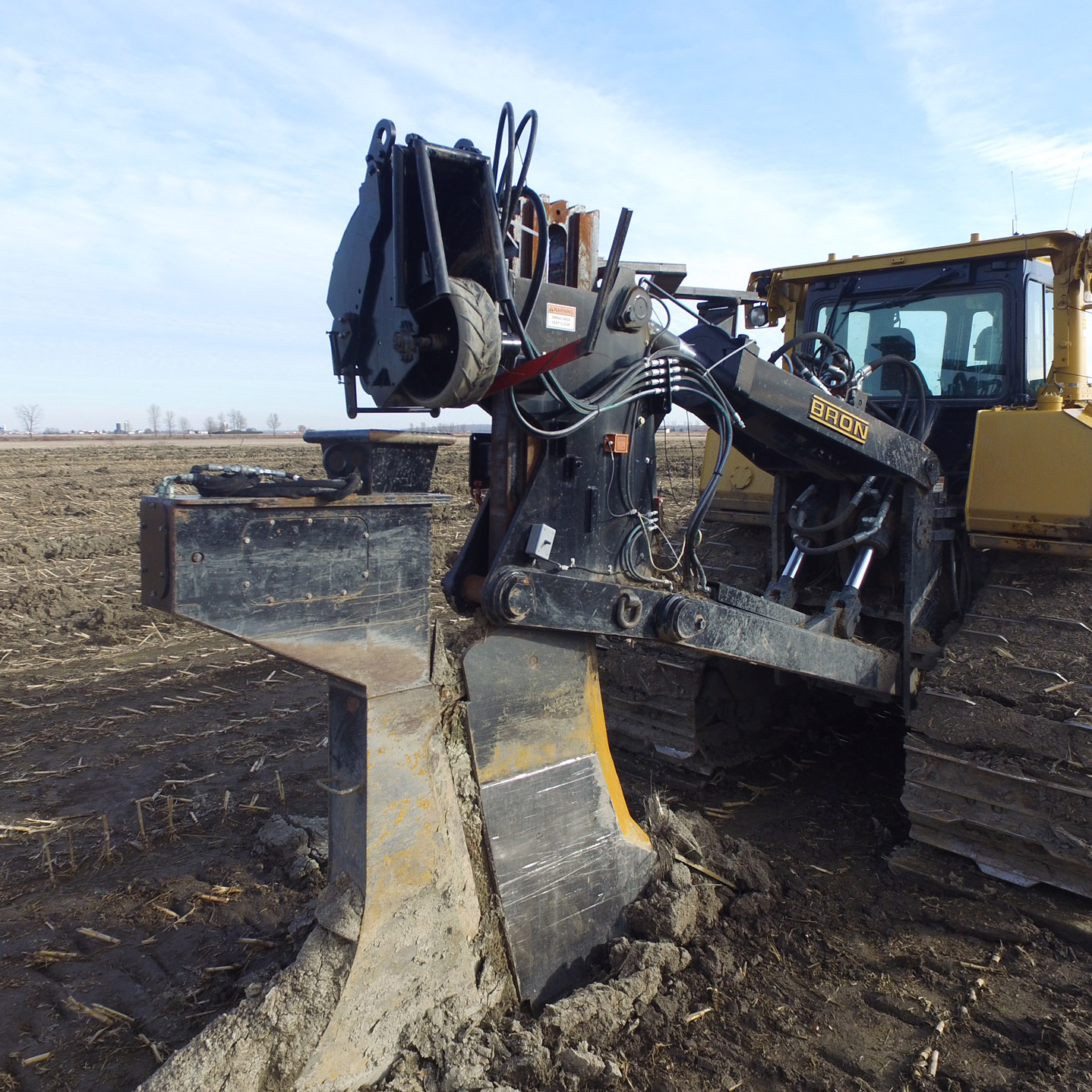

RC750
Complementing BRON Double-Link Drainage Plow models, a parallel link design is available for tractors ranging from 350 to 500 horsepower. The RC750 is purpose-built for tougher environments, excelling in rocky conditions.
15,000 lbs
Weight90"
Depth450 hp
Quad-Track Tractor HP Min270 hp
Crawler HP MinSee It In Action
Features

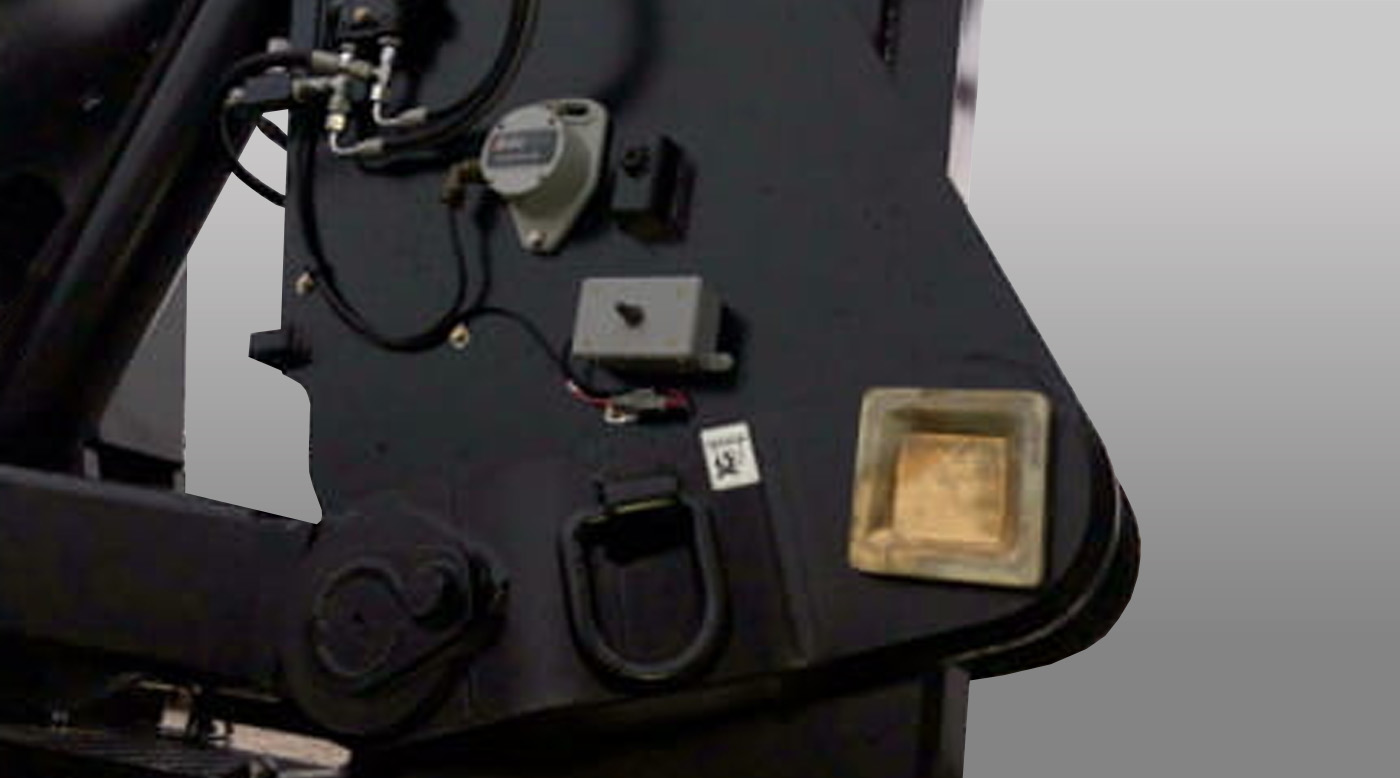

Hydraulic Blade Lock
A combination of an internal hydraulic cylinder and an external hydraulic cylinder that fixes the blade in place at the required digging depth. The operator can also remove the blade without any additional equipment.

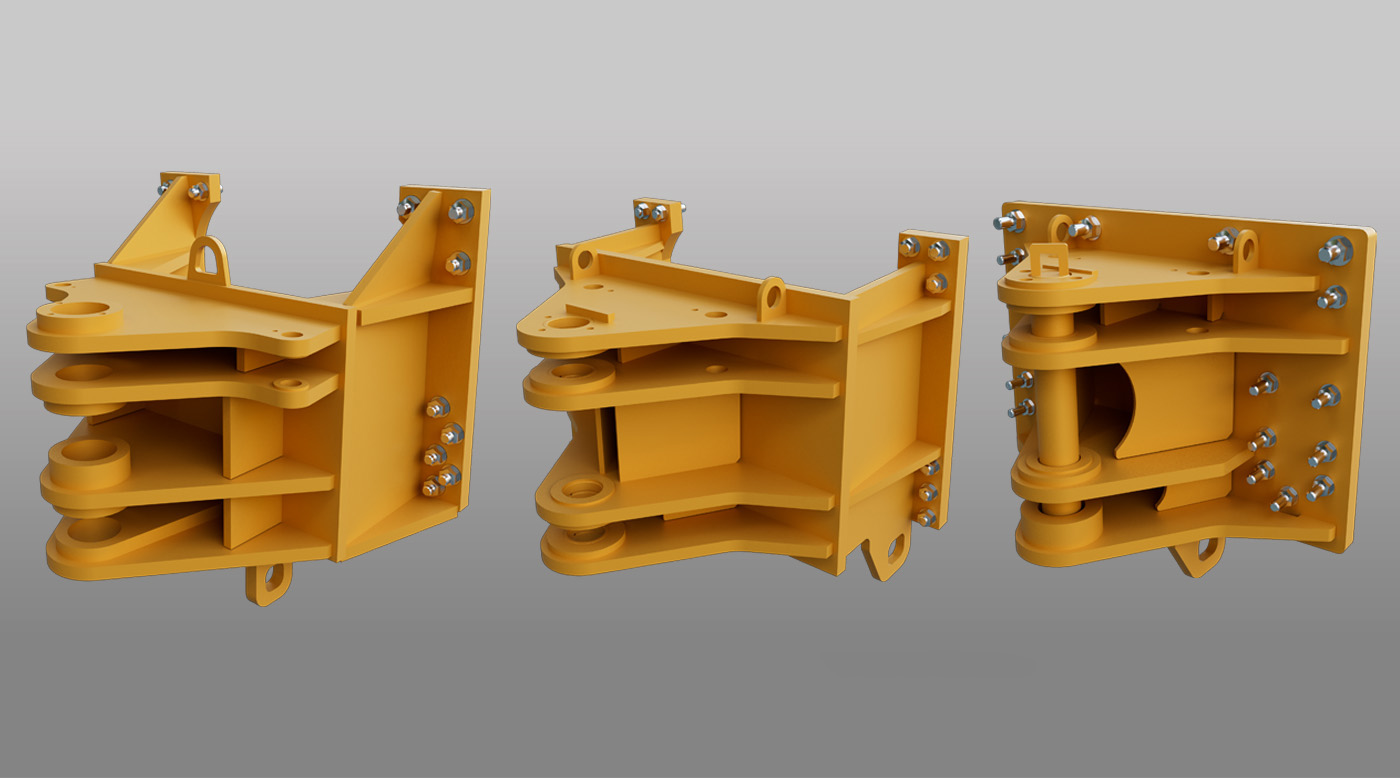

Tractor Specific Backplate
Each plow comes with a custom backplate or mounting plate based on the machine the plow will be mounted to. Bulldozers, tractors, and even 3 point hitch mounting is available.

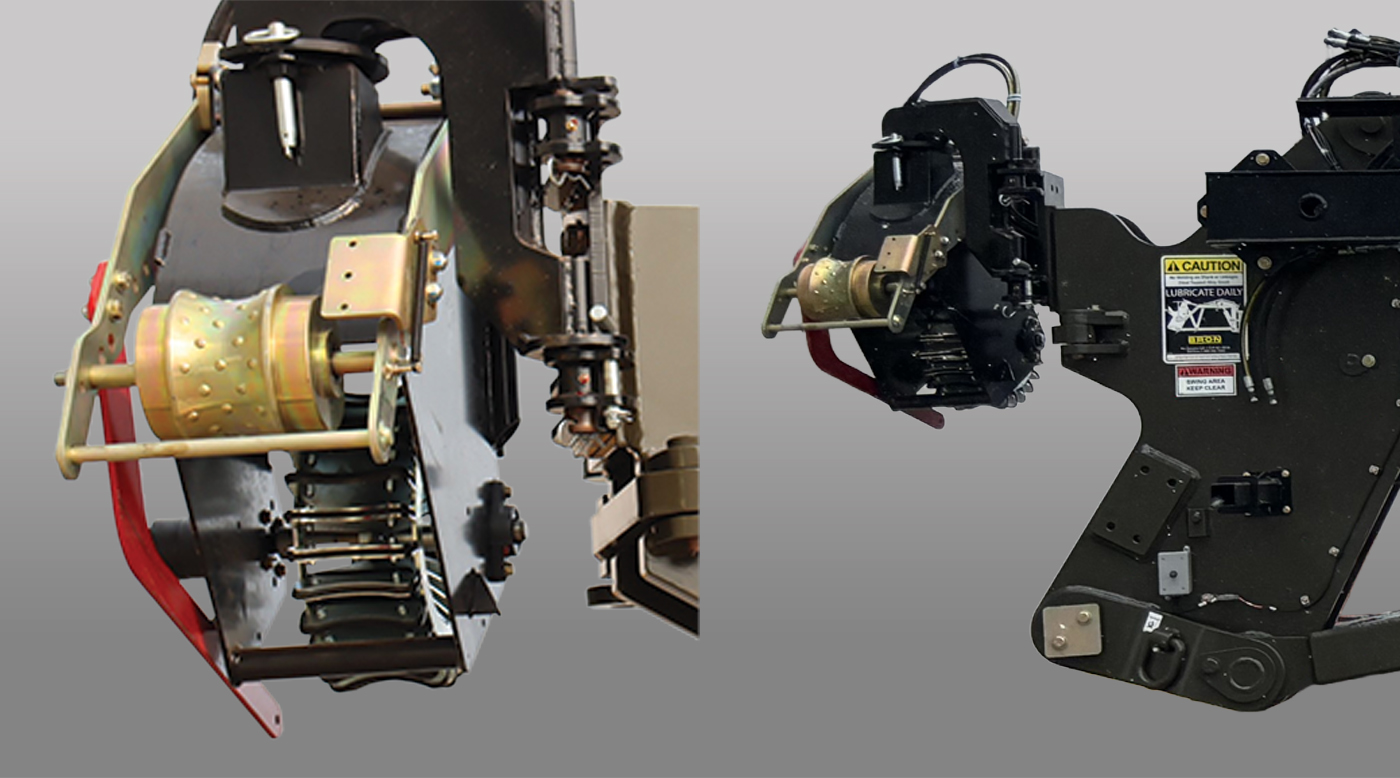

Power Feeder
Positions the tile between a hydraulically adjustable drive wheel and a weight wheel which guides the tile into the installation chute preventing stretching. Available in 6" & 8" sizes, blade holder or chute mount configurations.

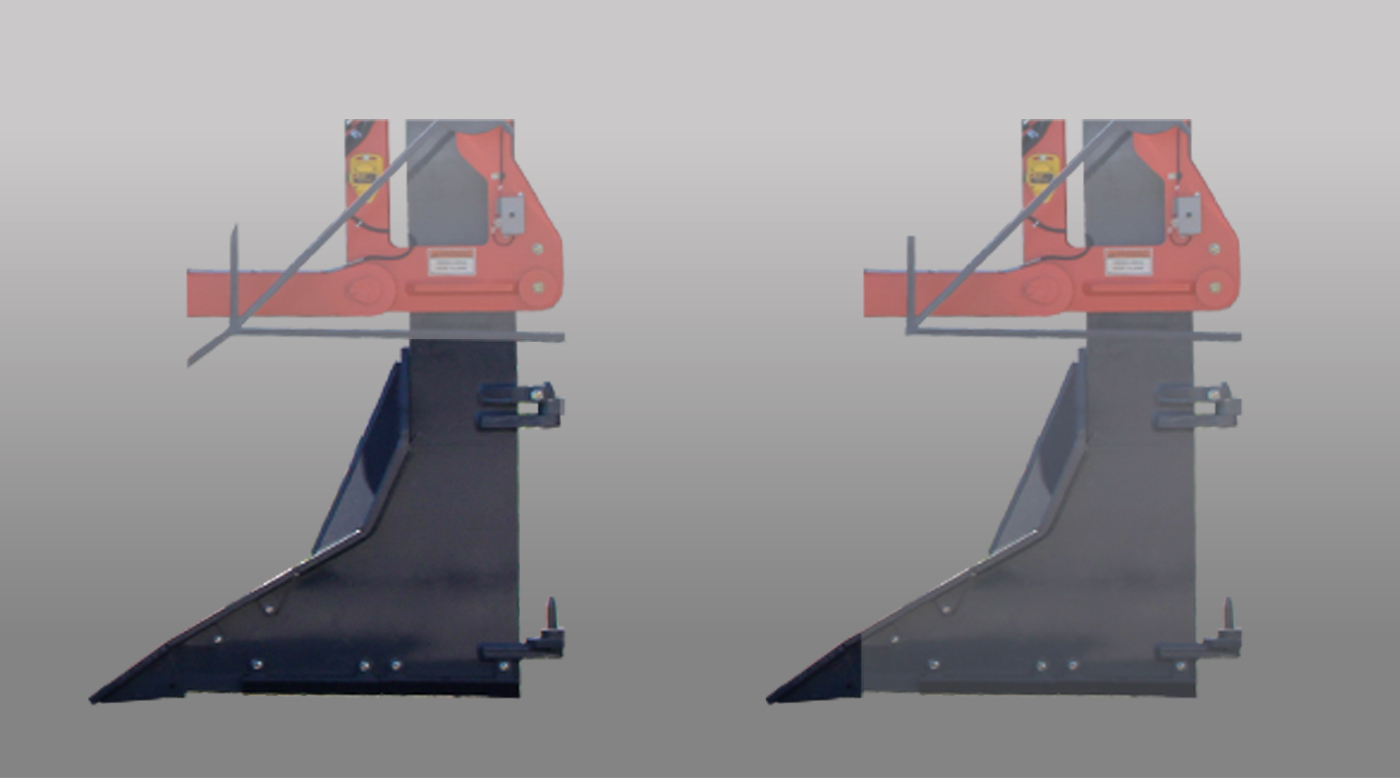

Blades
Straight back or slant back blades available on all our Add-On Drainage Plows.

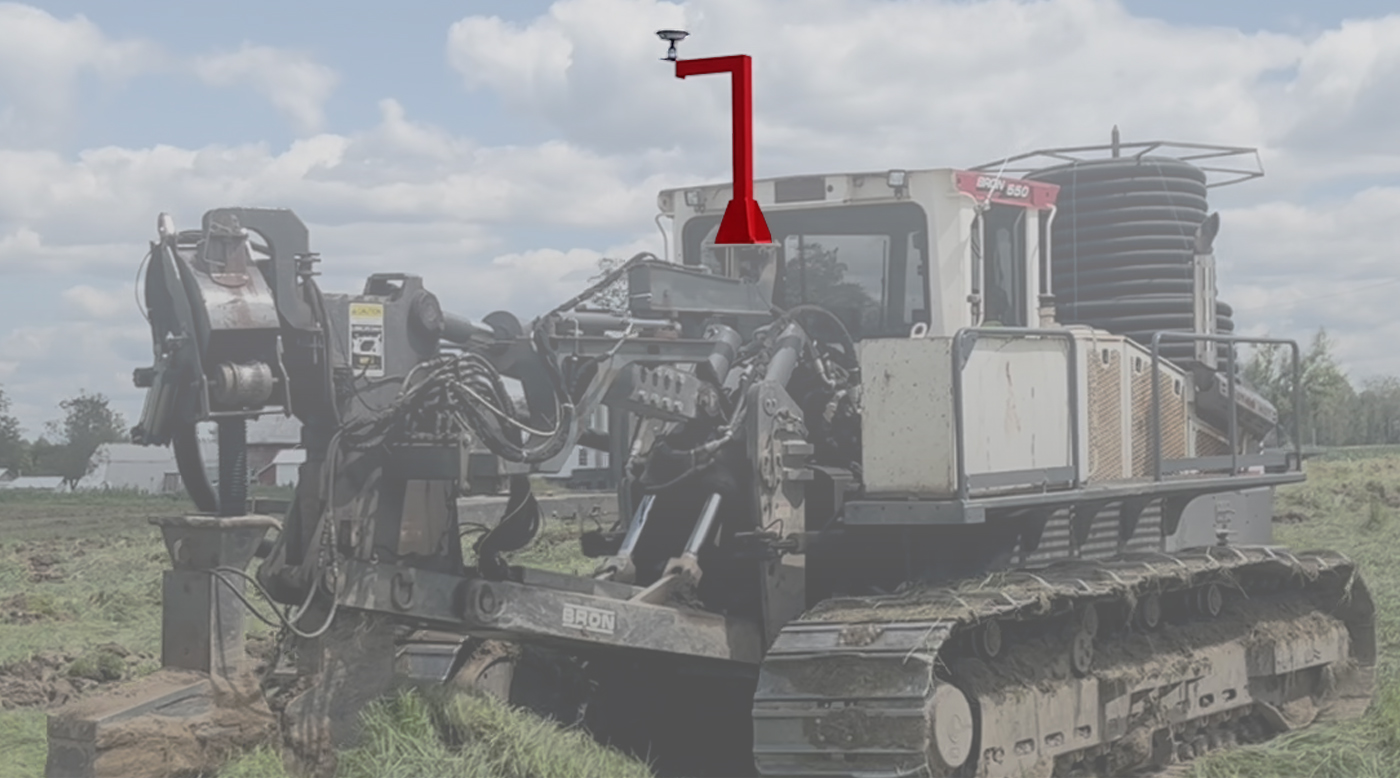

GPS/Laser Arm
GPS or Laser can be mounted on this arm that is attached to the blade holder. This arm hydraulically raises for work mode and hydraulically lowers for transport mode.
Options

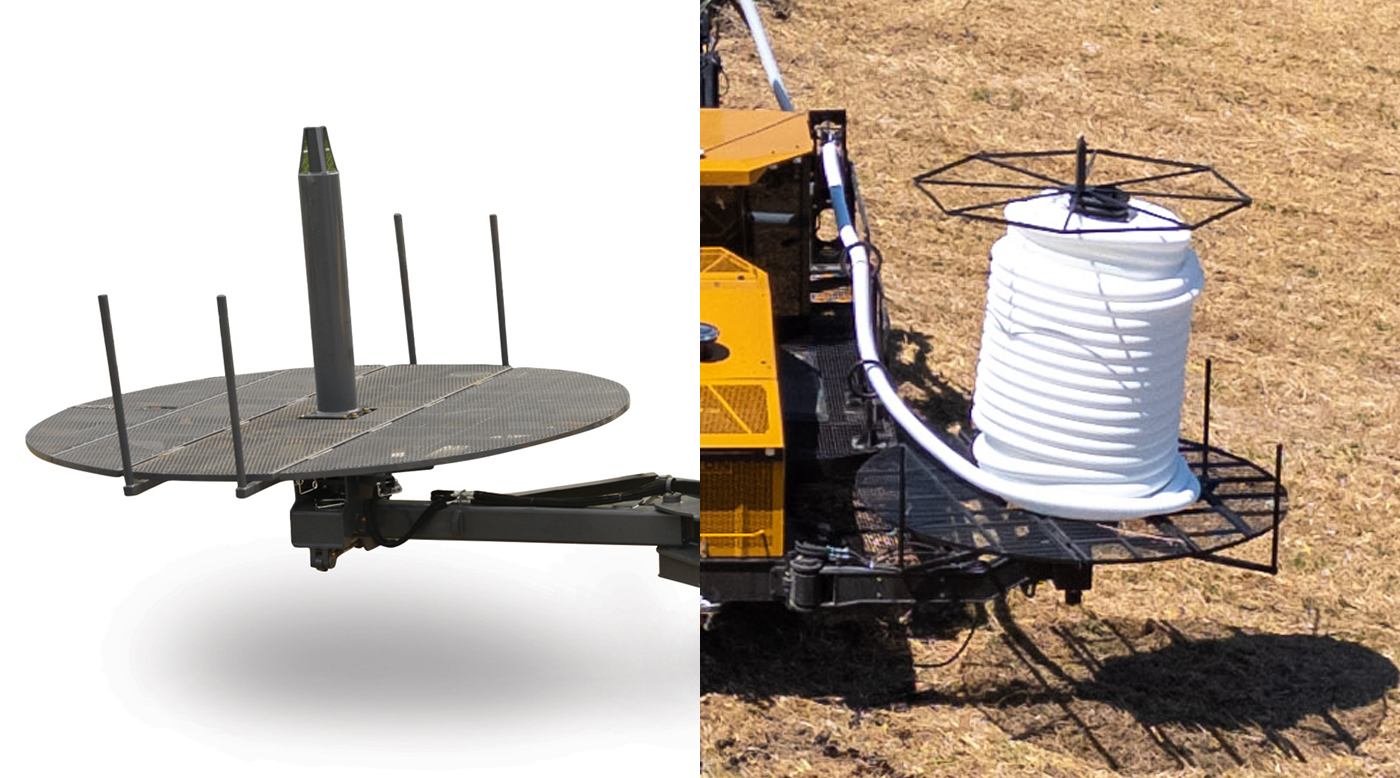

On-Board Reel
The On-Board Reel carries a roll of tile on the machine. This is beneficial when travelling and plowing in the wet and muddy conditions. This option eliminates the use of a stringer tractor or trailer.

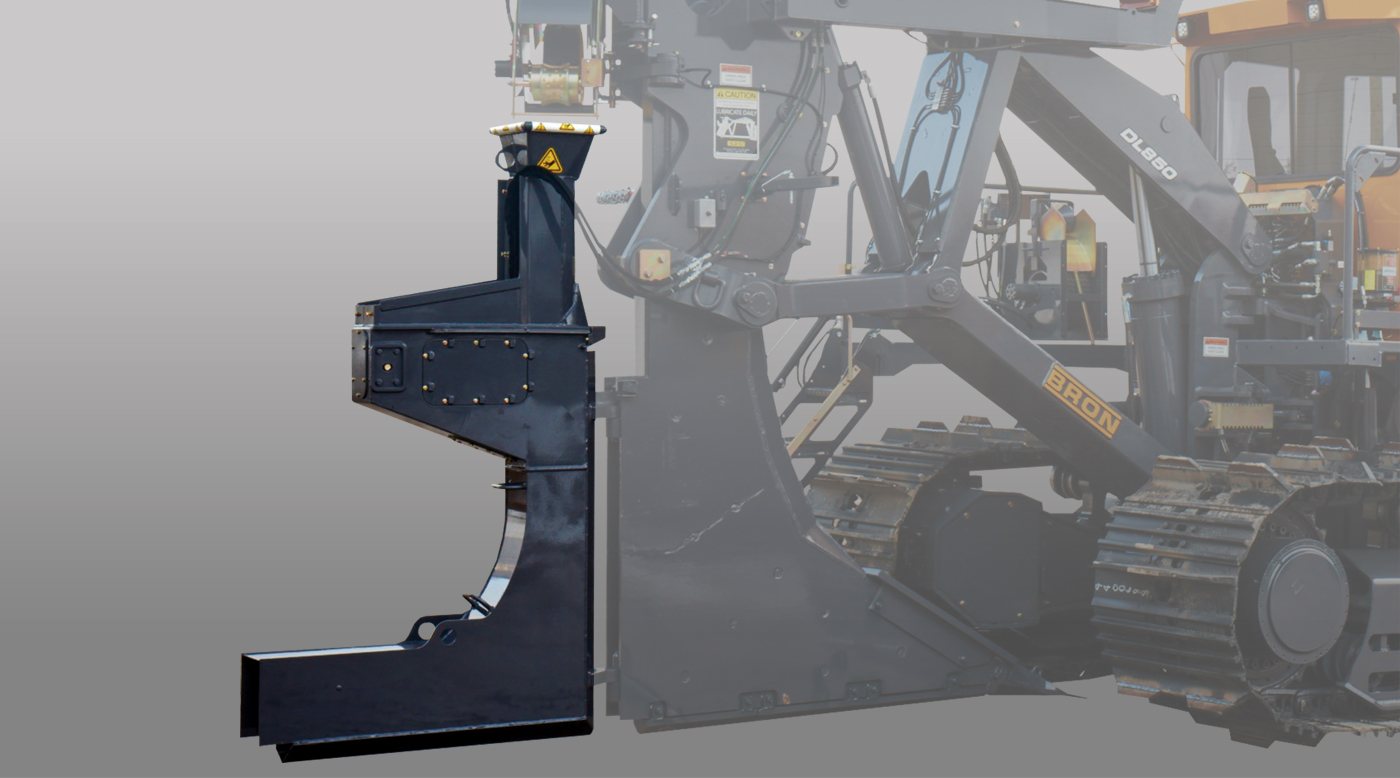

Custom Chute
Chute offerings from 3" to 15" based on plow size. Stainless or Teflon side wear guards available. Specialty chute available on request.

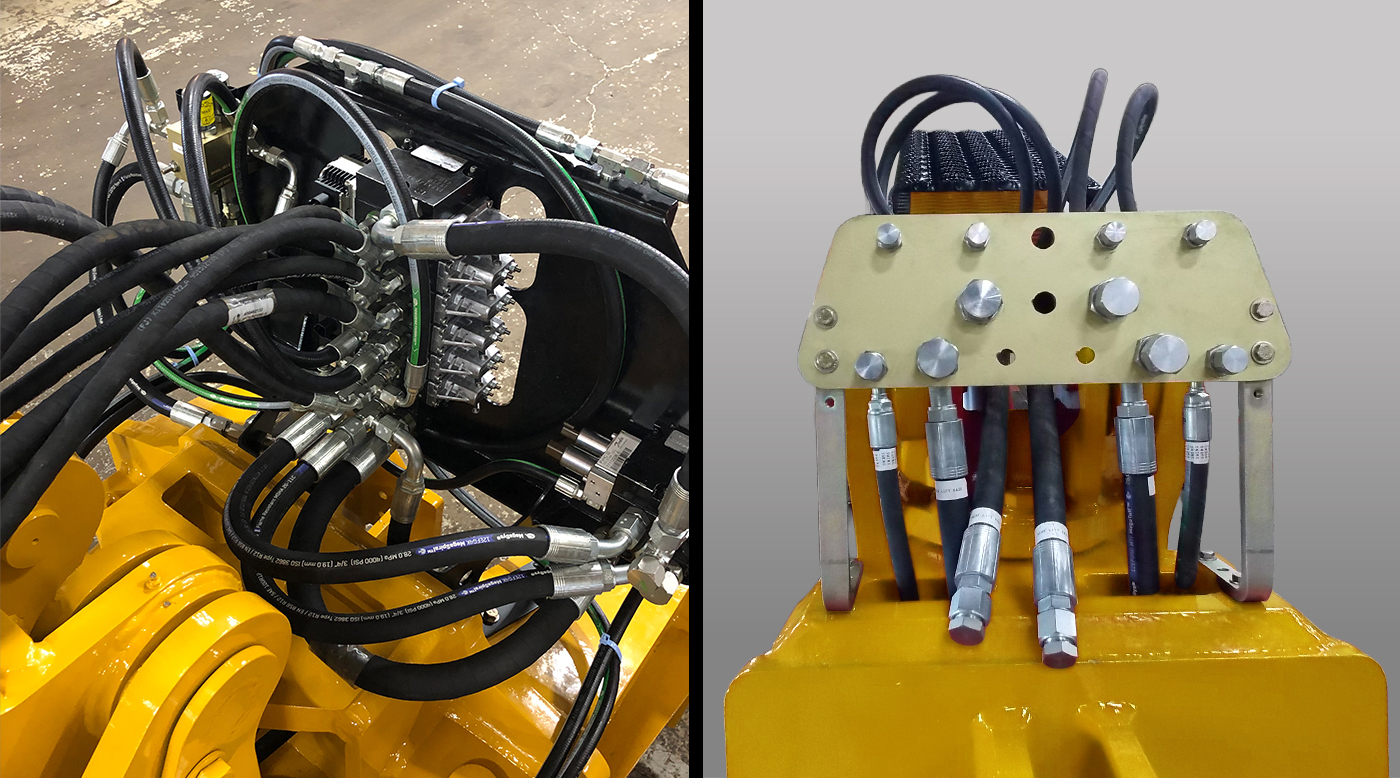

Hydraulic Valves To Fit All Make
BRON Add-On Drainage Plows are attached to many different brands of equipment. We have valves and hydraulic schematics available for most equipment manufactures models suited for our plows.

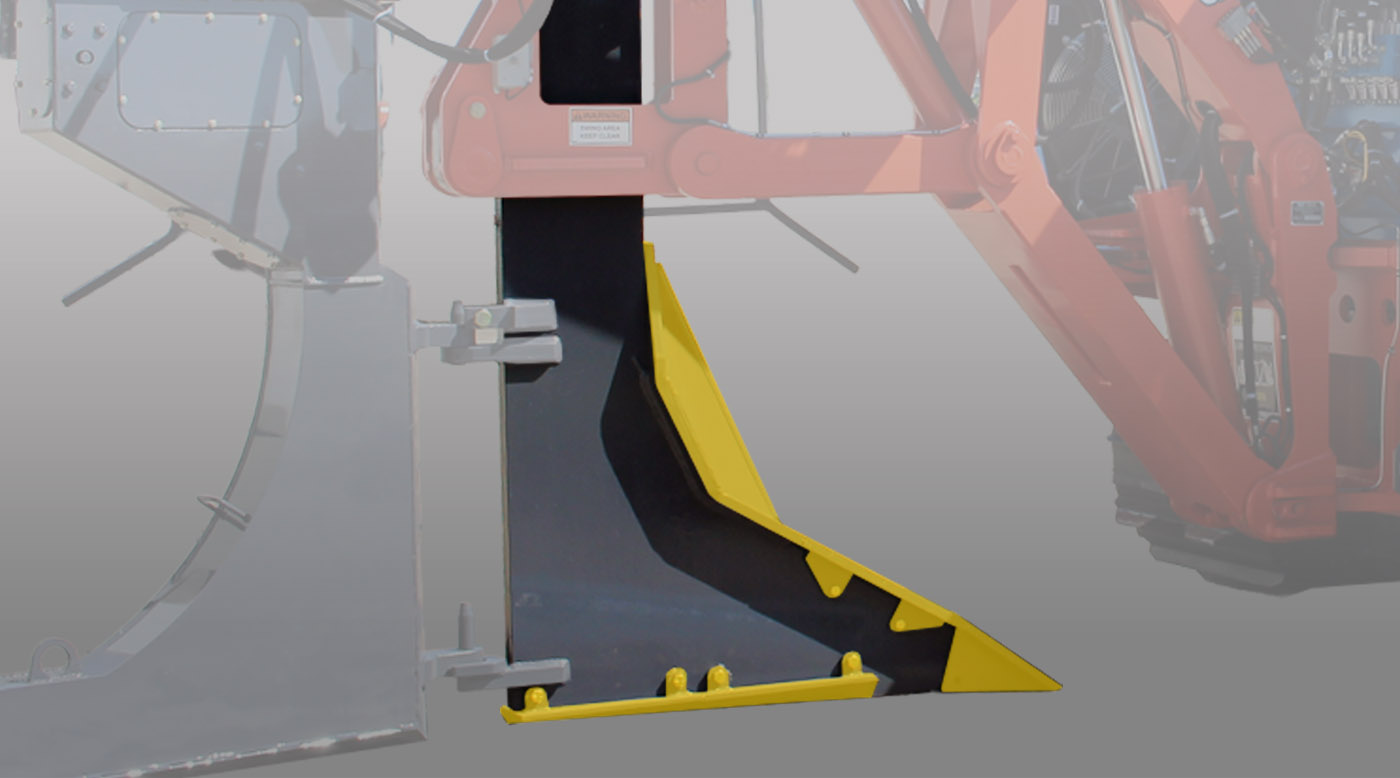

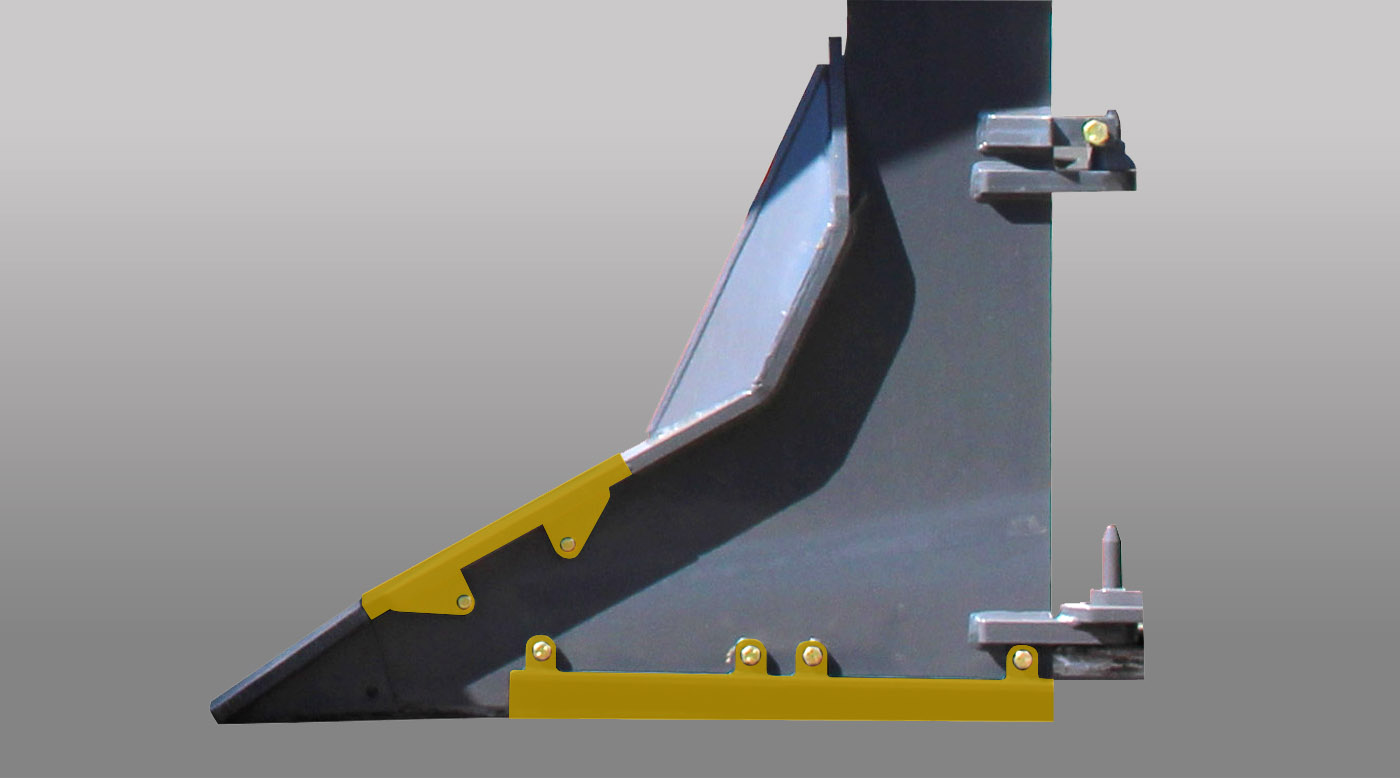

Mouldboard & Teeth
Various size mouldboards & teeth available depending on the size of pipe installation required.

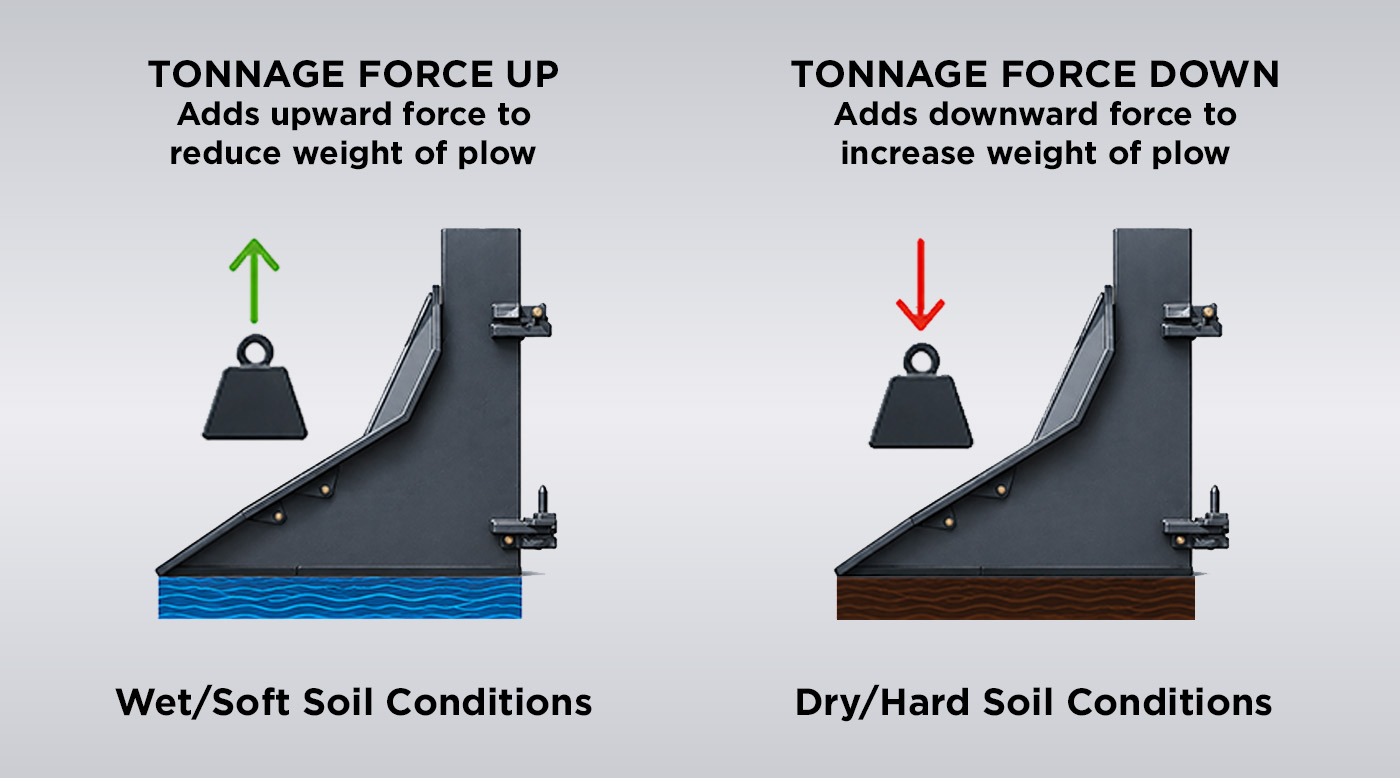

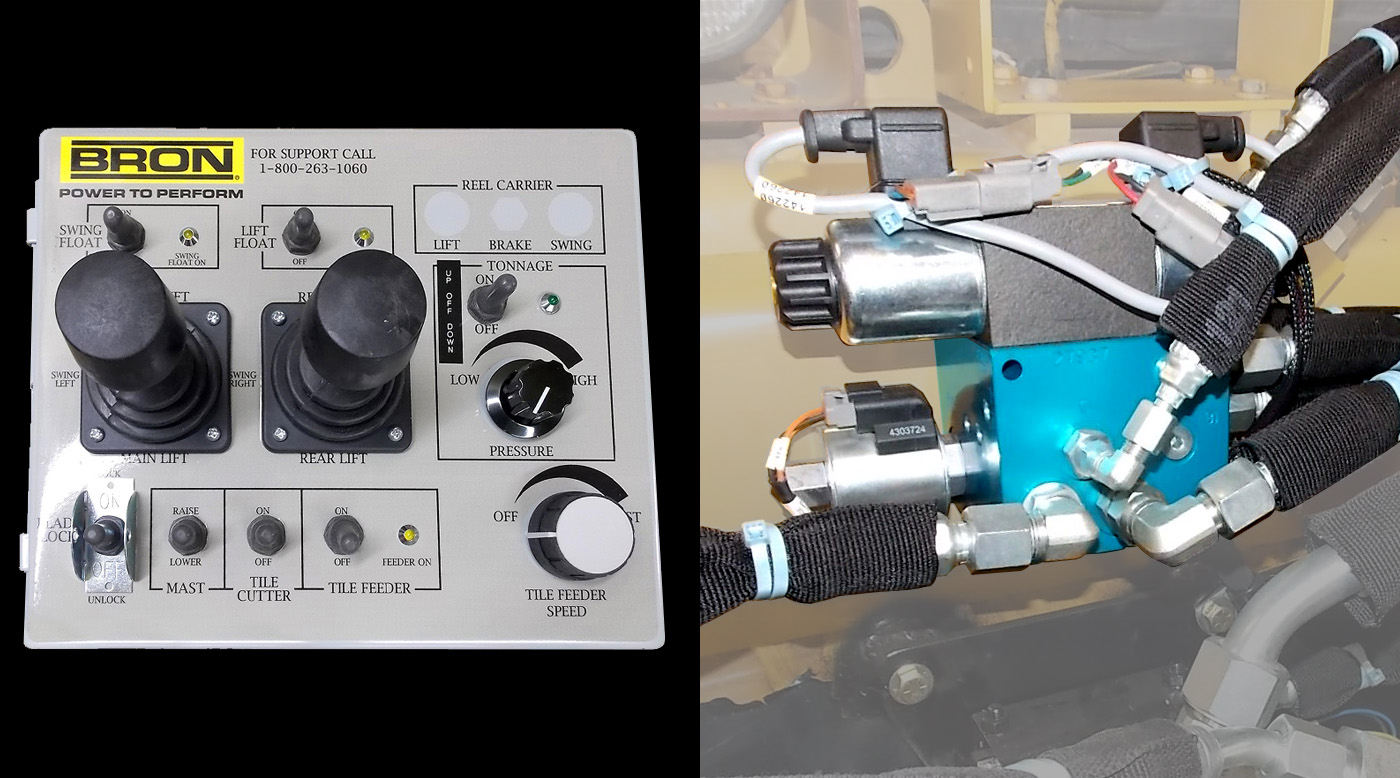

Tonnage
Additional tonnage available for working in less ideal soil conditions.

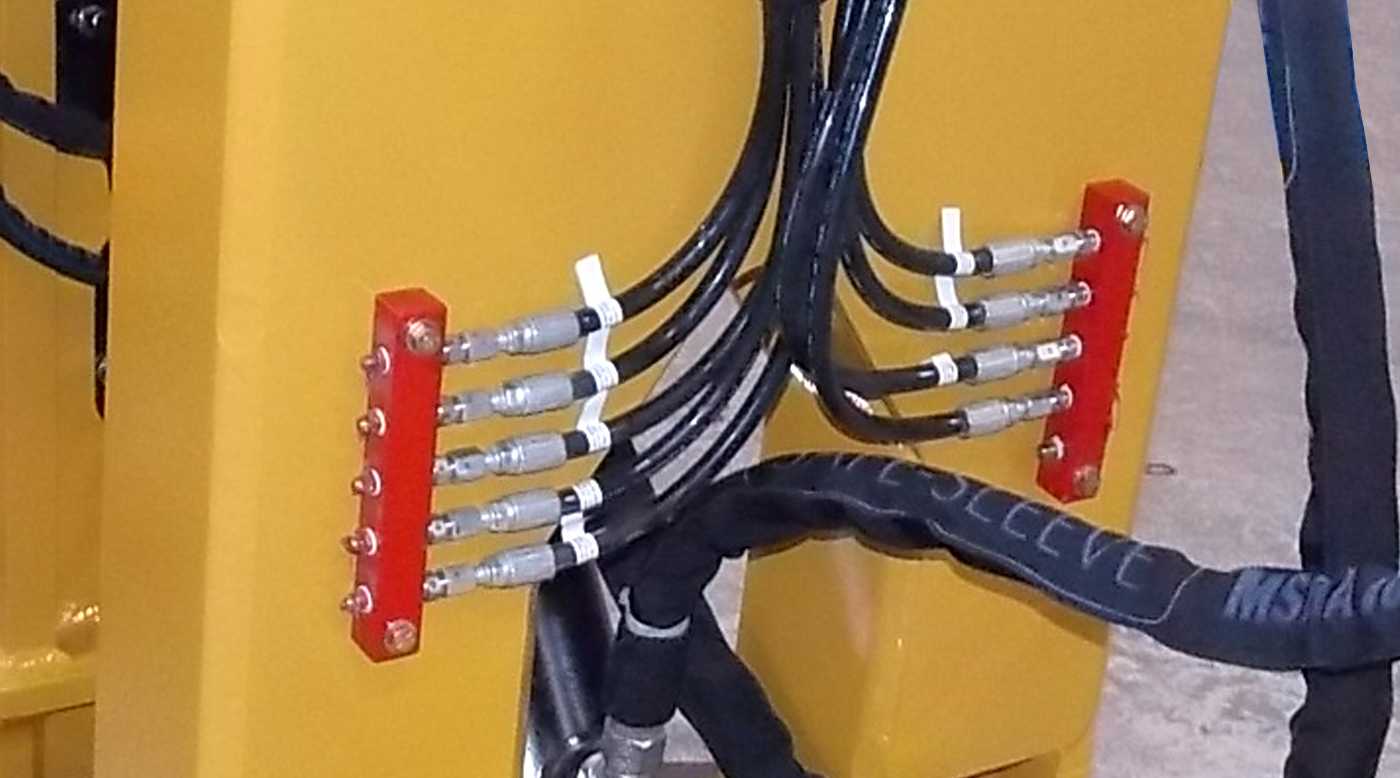

Centralized Grease Banks
Provides easy access to grease points from the ground in a central location.
Specifications
| Rubber-Tired Tractor (Min.) | 450 hp (336 kW) |
| Crawler Tractor (Min.) | 270 hp (201 kW) |
| Max Cutting Depth | 90" (2.2 m) |
| Blade Ground Clearance (Field) | 18" (46 cm) |
| Blade Ground Clearance (Transport) | 18" (46 cm) |
| Plow Height (Transport) | 144" (365 cm) |
| Plow Weight | 15,000 lbs (6802 kg) |
| Installation Chute Sizes Available | 3 15" (7.62-38.1 cm) |
