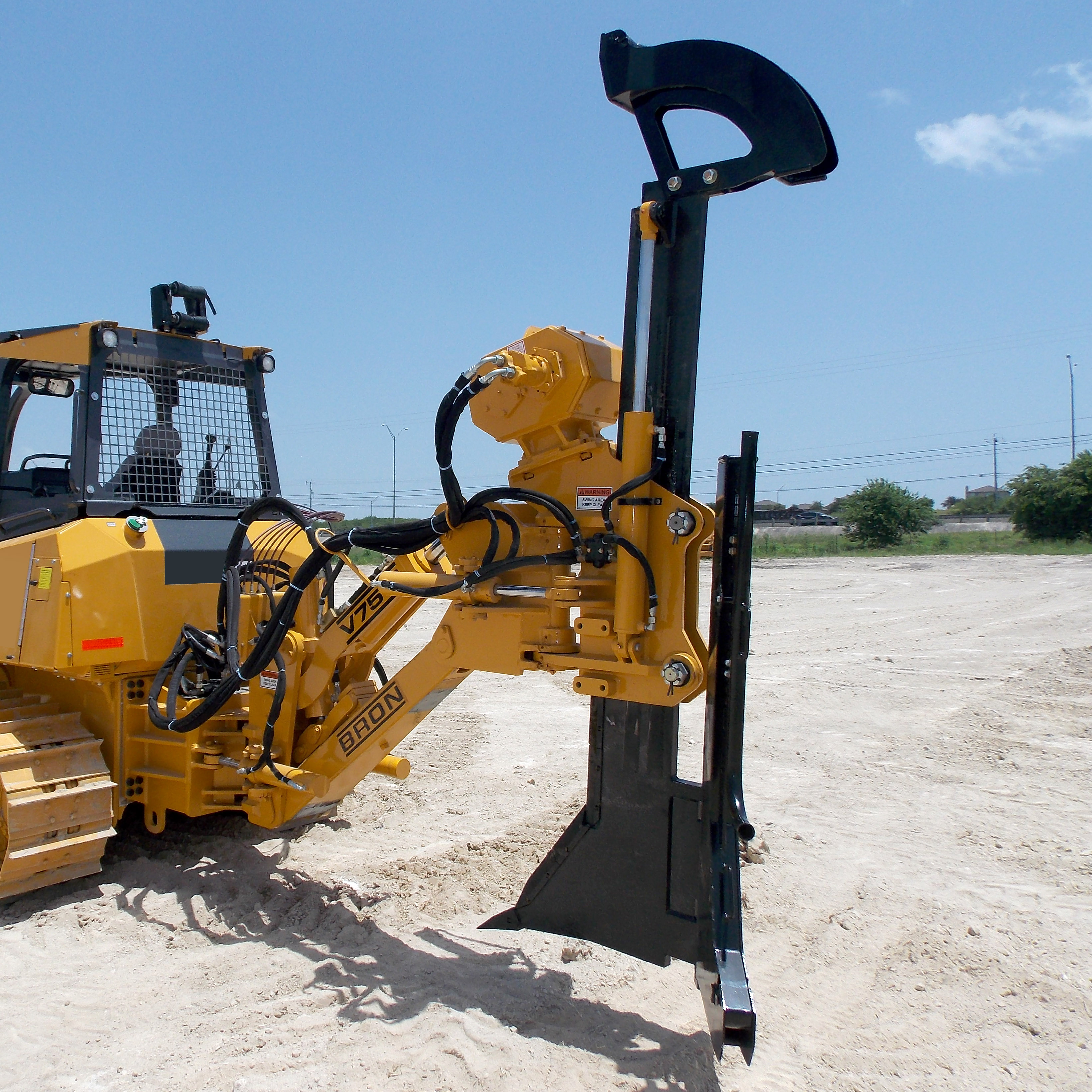

BRON V75-3 HD
Vibratory Utility Plow
4200 lbs
Weight54"
Depth115-150 hp
Tractor Horse Power51"
OffsetApplications
Telecommunications
BRON connects your customers to the world by Installing conduit, fibre optics, and power cable for communication networks.
RENEWABLE ENERGY
Laying flexible pipe and conduit for various utility services like solar farms and wind turbines.
Water & Gas
Extending rural water and natural gas lines.
Features

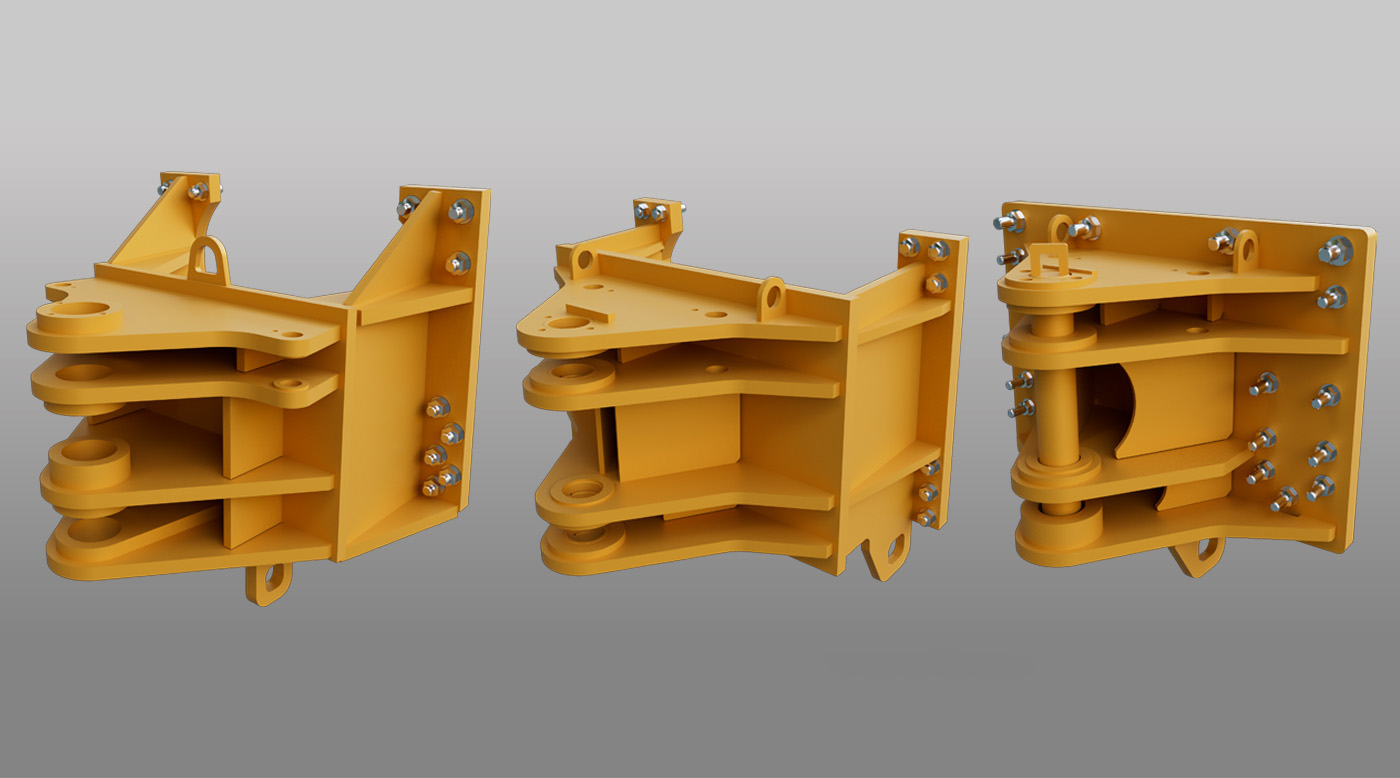

Tractor Specific Backplates
Each plow comes with a custom backplate or mounting plate based on the machine. The plow can be mounted to Bulldozers, tractors, and even 3 point hitch mounting is available.

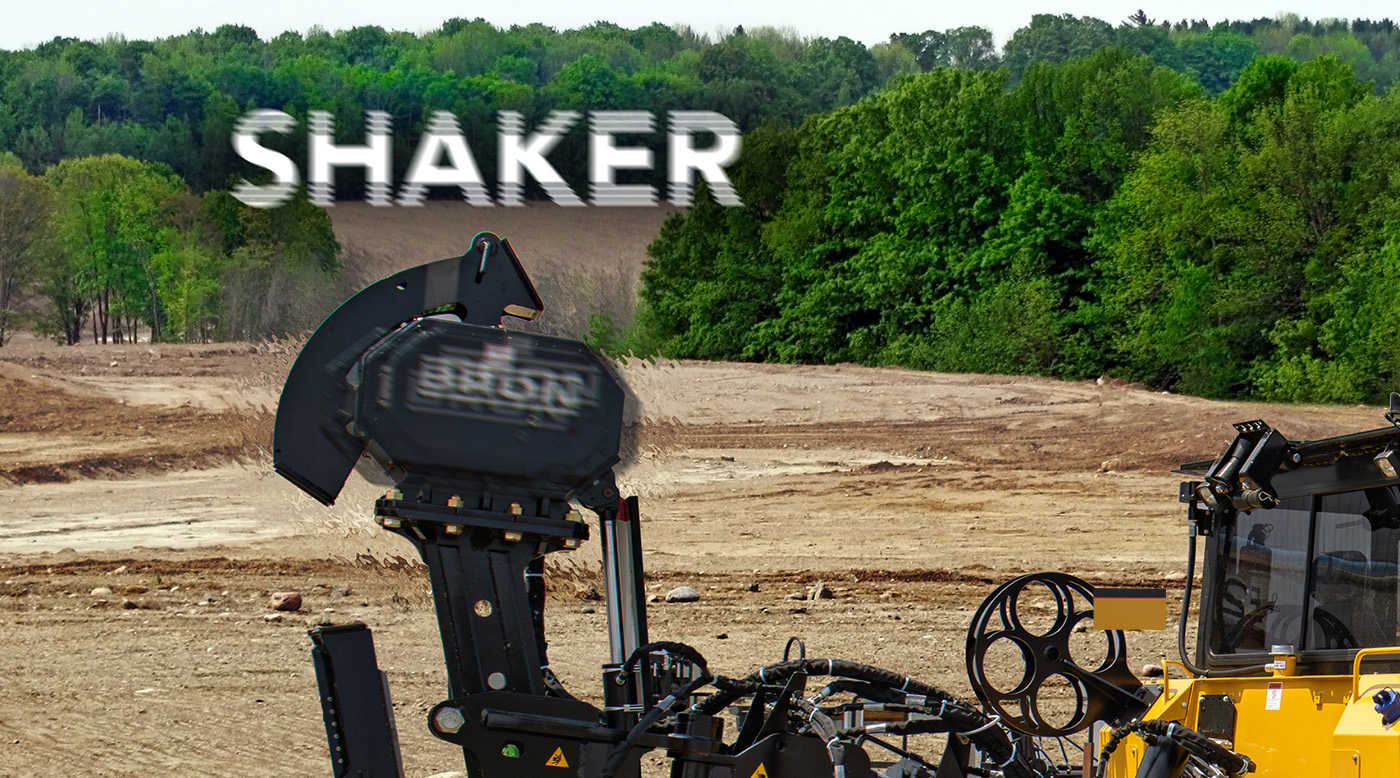

Hydraulic Shaker Box
Vibration for these plows is created through the upgraded HD Hydraulic Shaker Box with a more pronounced amplitude from a lower frequency. The plow can be operated statically as the vibration is used as required and is also adjustable.
Attitude (Pitch) Adjustment
The Attitude Cylinder allows the operator to adjust the pitch of the blade fore and aft while plowing. This allows the operator to adjust to different soil conditions and the different topography.

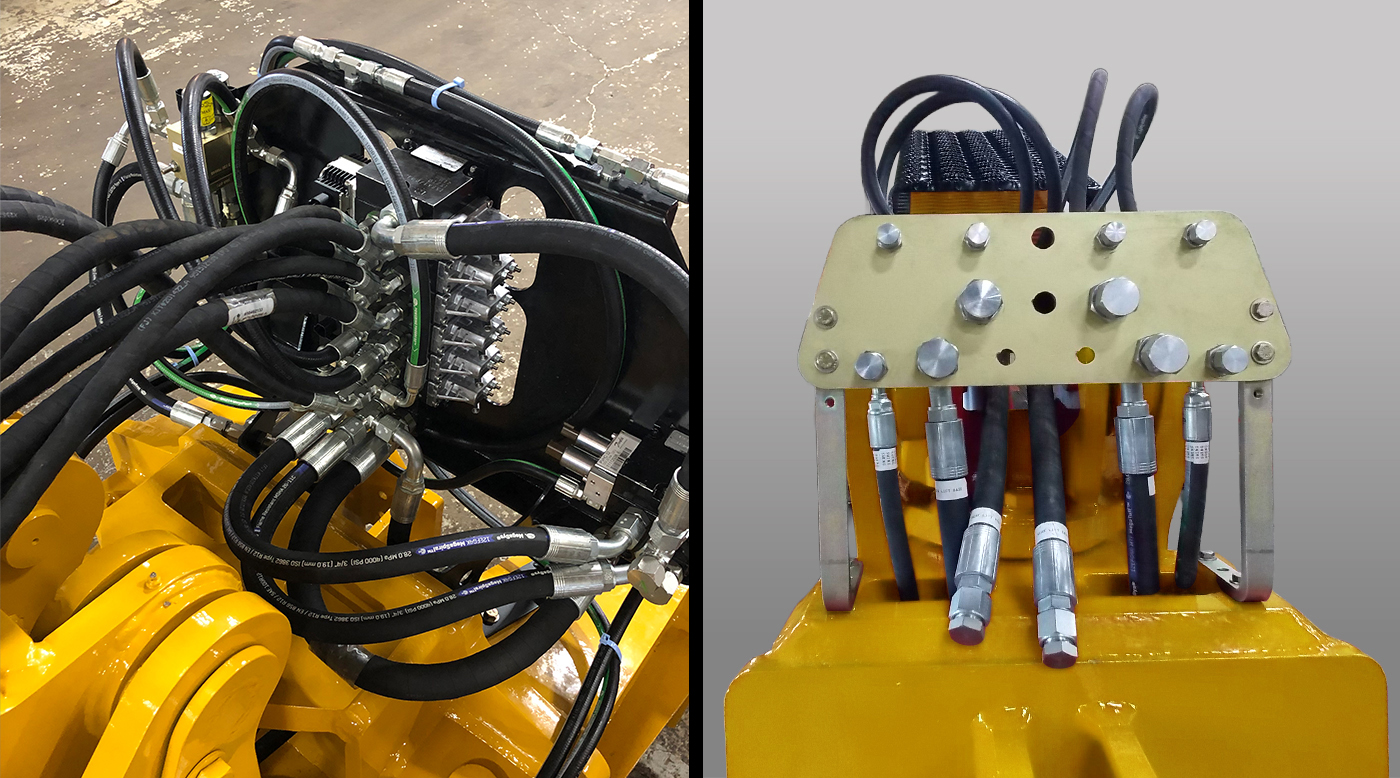

Hydraulic Valves to Fit all Makes
BRON Vibratory Plows are attached to many different brands of equipment. We have valves and schematics available for most equipment manufacturers models suited for our plows.

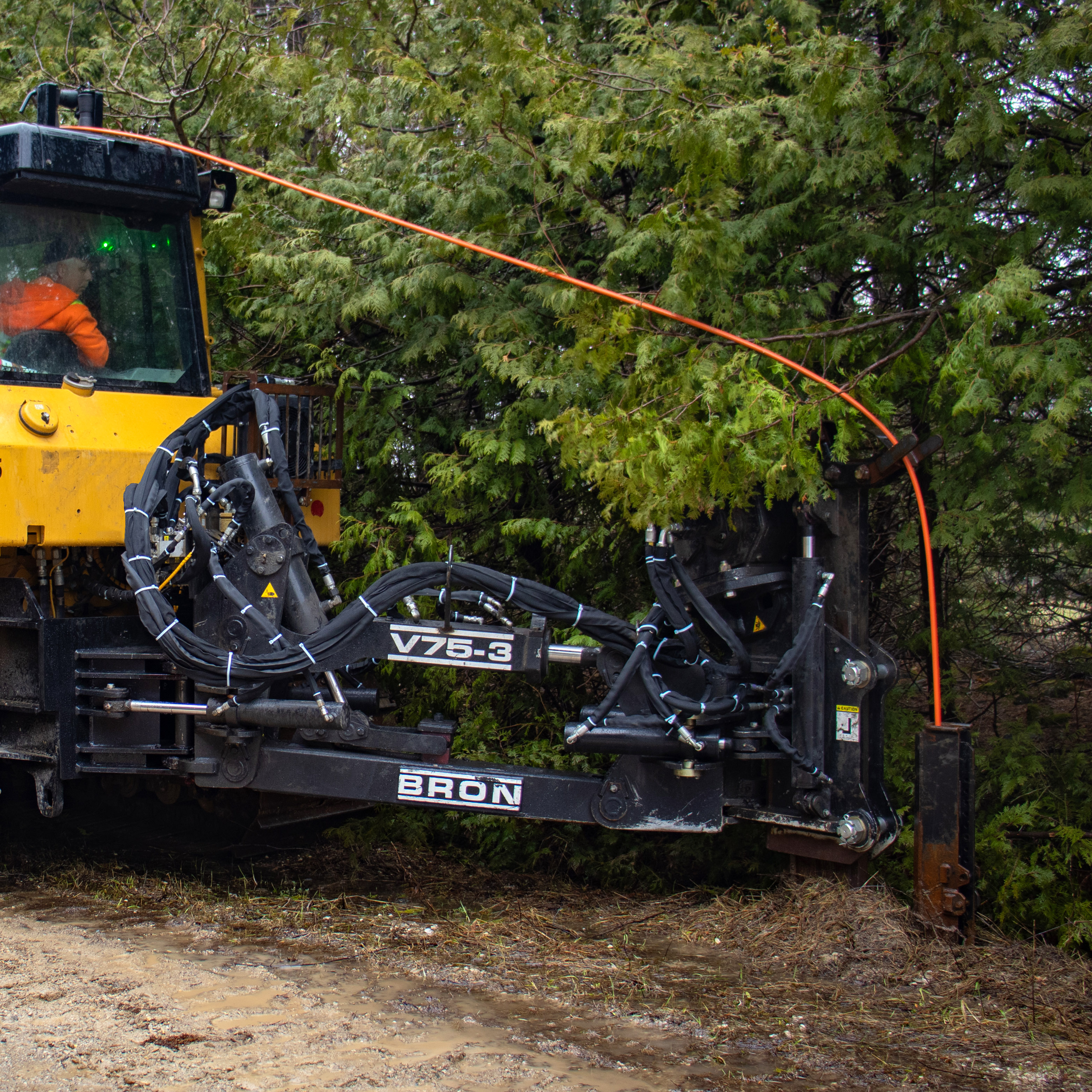

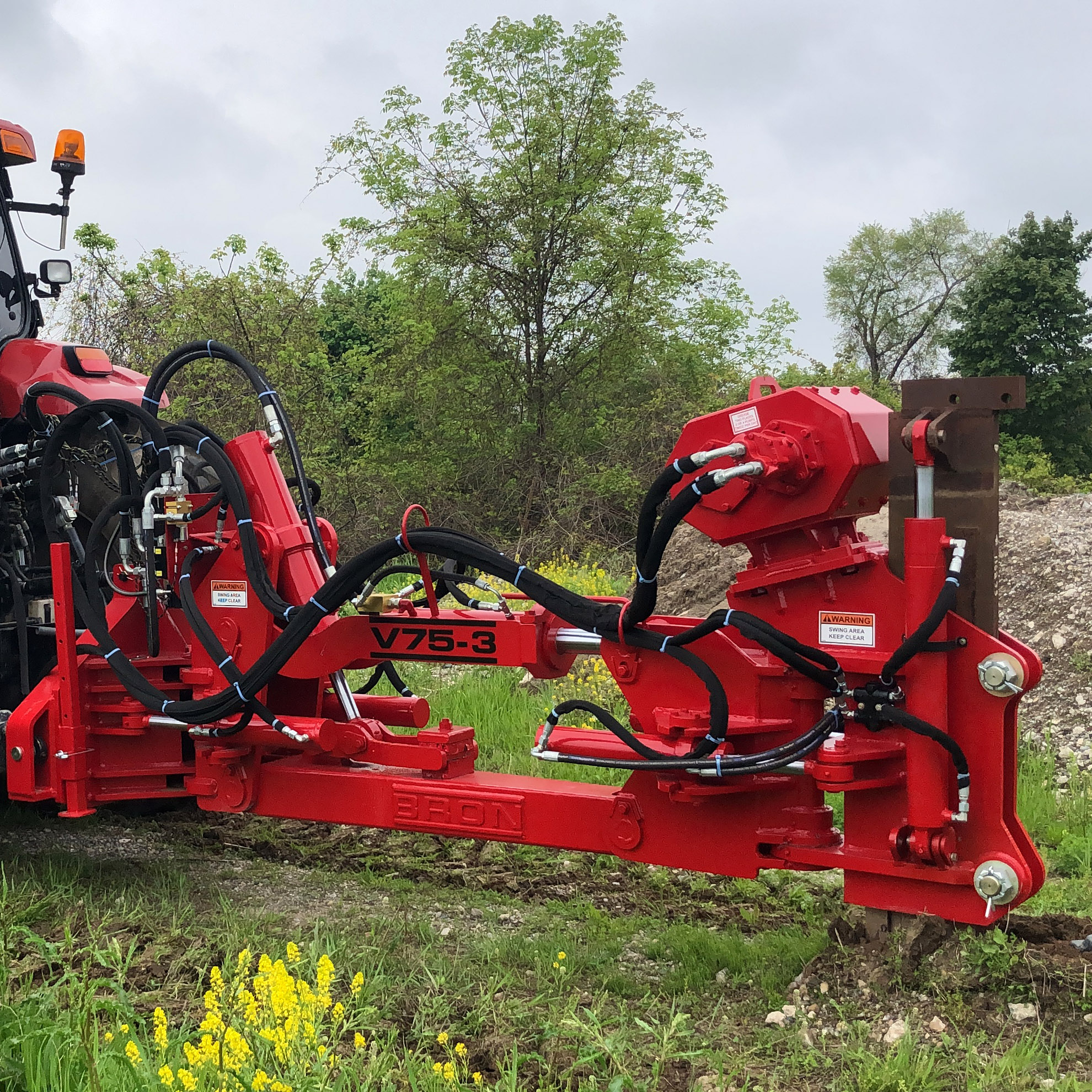

Offsetting Plow
The fully offsetting plow allows the blade to shift left or right of center, providing precise utility placement around obstacles and along existing infrastructure. This design improves accuracy, reduces rework, and gives operators greater control when working in tight or congested areas.

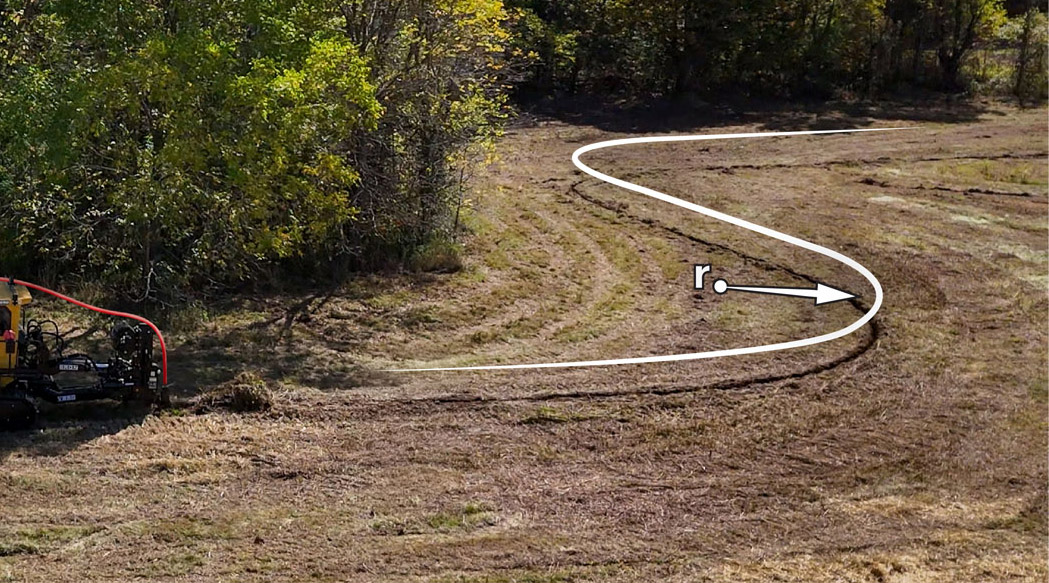

Tight Turning Radius
The tight turning radius allows BRON Utility Tractors to maneuver easily in confined spaces and tight job sites. This design improves control around obstacles, reduces repositioning time, and increases overall productivity during utility installations.

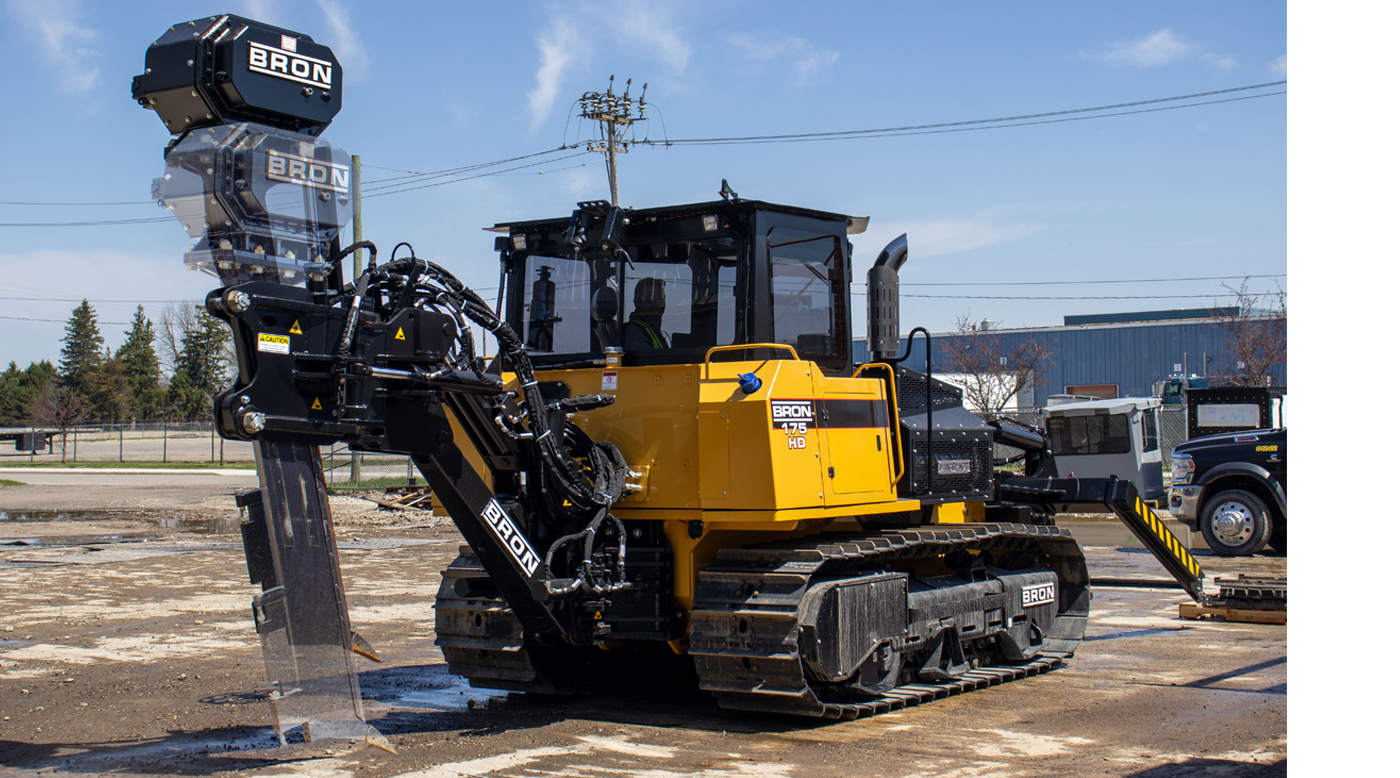

Hydraulic Blade Height Adjustment
Hydraulic blade height adjustment allows operators to precisely control blade height from the cab. This feature ensures accurate depth control, smooth transitions, and consistent installation performance across varying ground conditions.

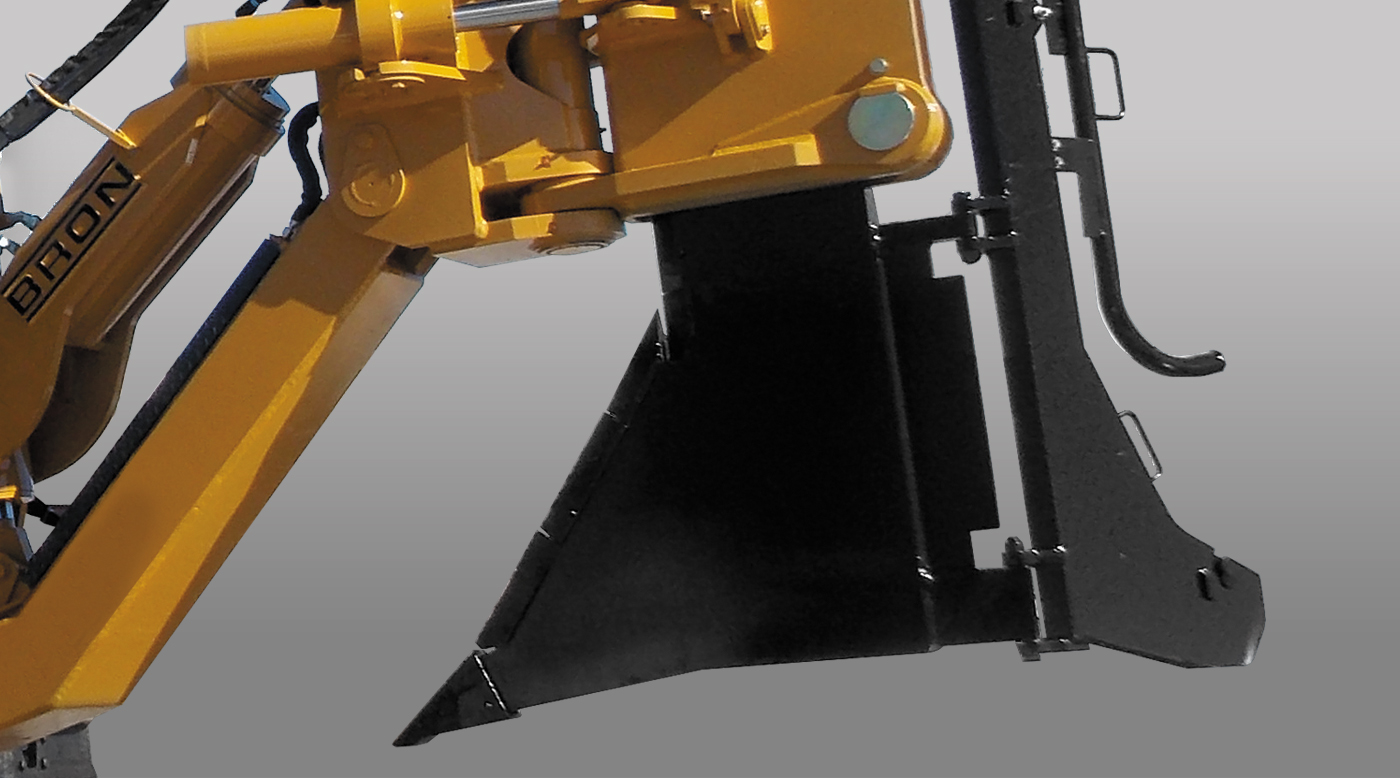

High Wear Steel Shank
Manufactured from high wear steel, the shank is designed to withstand abrasive soil conditions and high operating loads. This durable construction maintains consistent cutting performance while extending service life and reducing downtime.

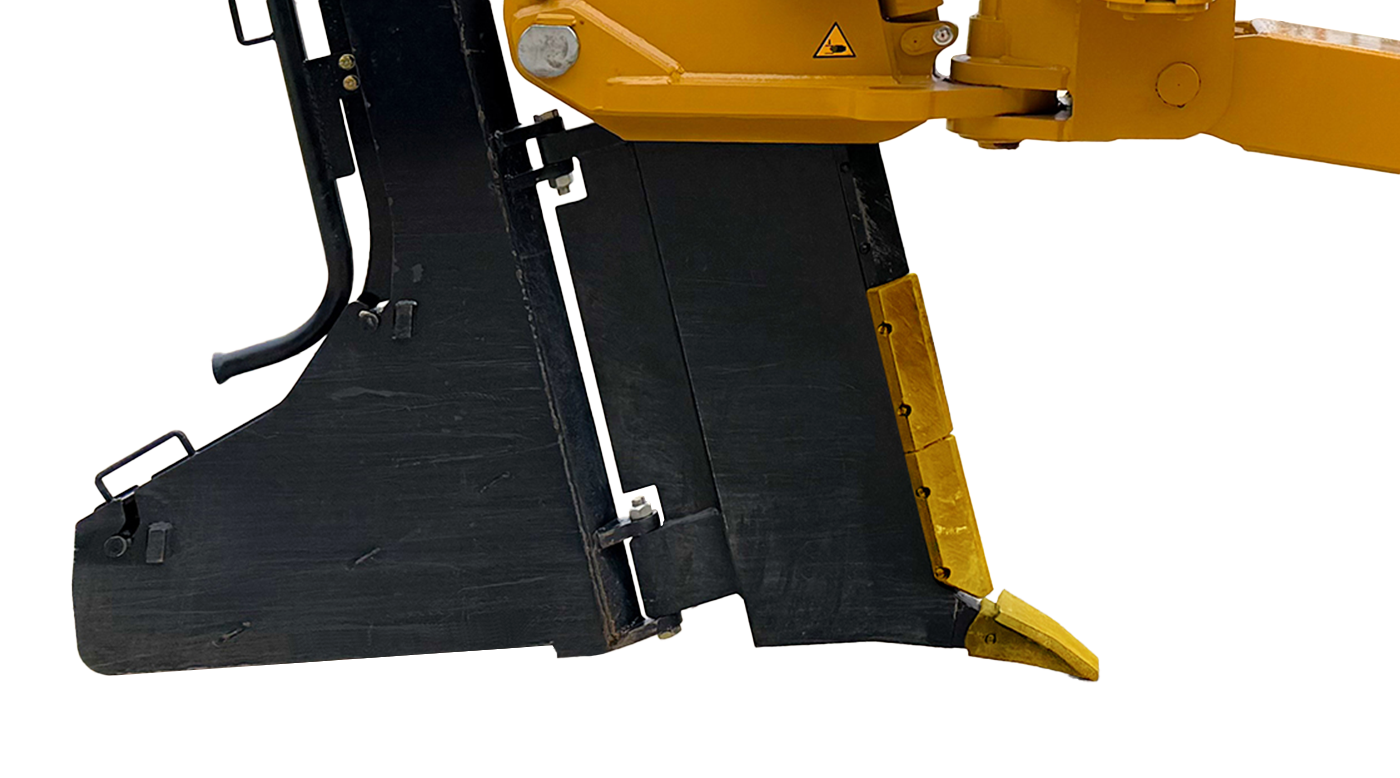

Replaceable Cutting Edge & Tip
Replaceable cutting edges and tips are designed to handle abrasive soil conditions while maintaining consistent cutting performance. Easily serviceable components reduce downtime and operating costs by allowing worn edges and tips to be replaced without removing the blade, ensuring long-term durability and field-proven reliability.
Options

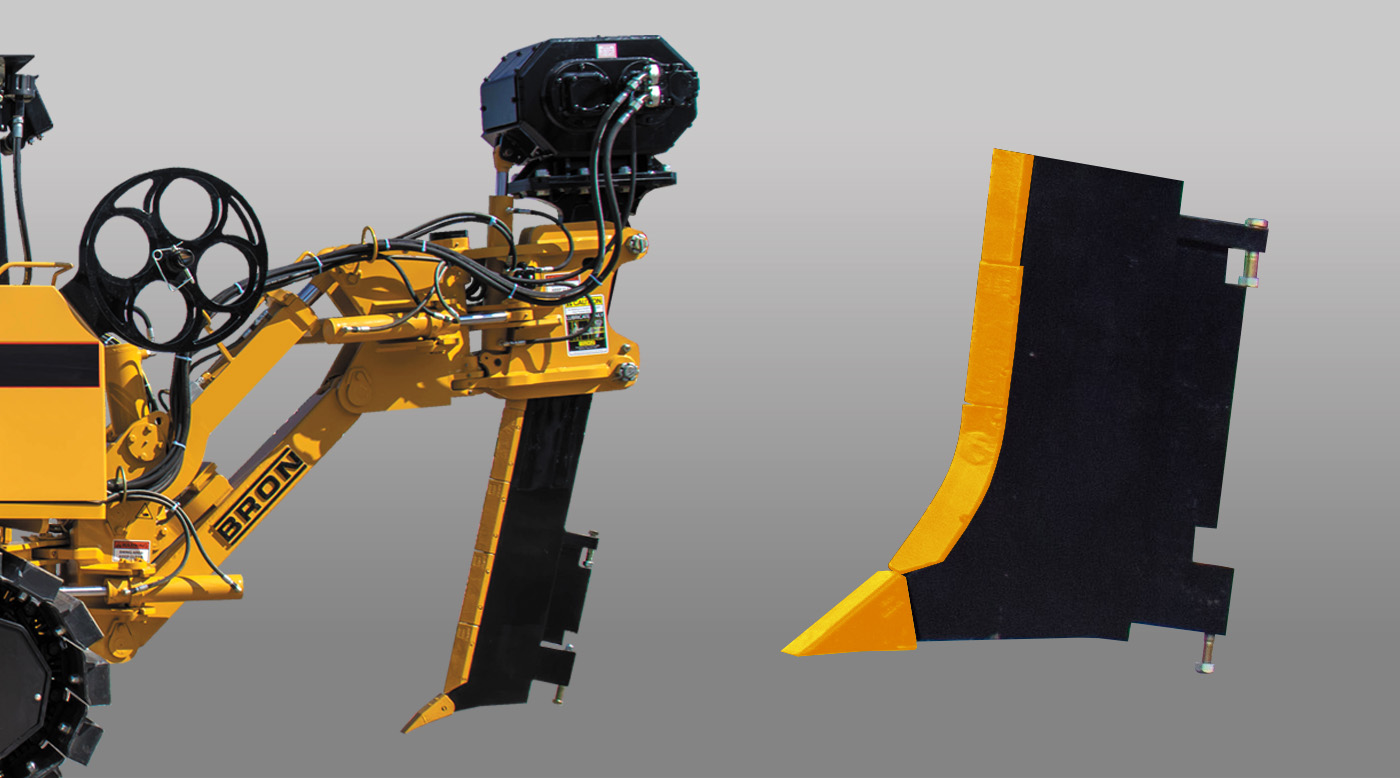

Pin-On Cutting Edges & Points
Various size replaceable cutting edges & points.

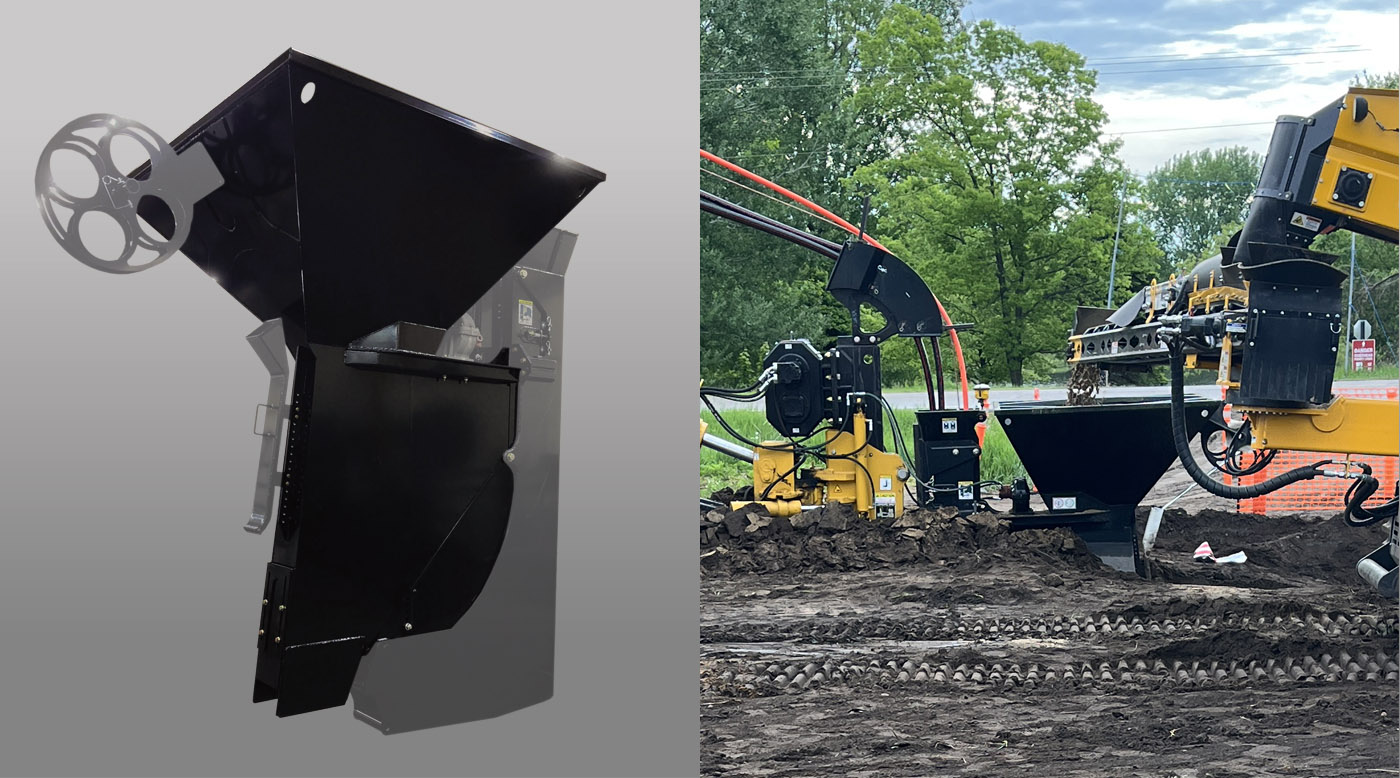

Hopper Chute
Allows for the cable or conduit to be encased or bedded by sand or gravel in the trench.

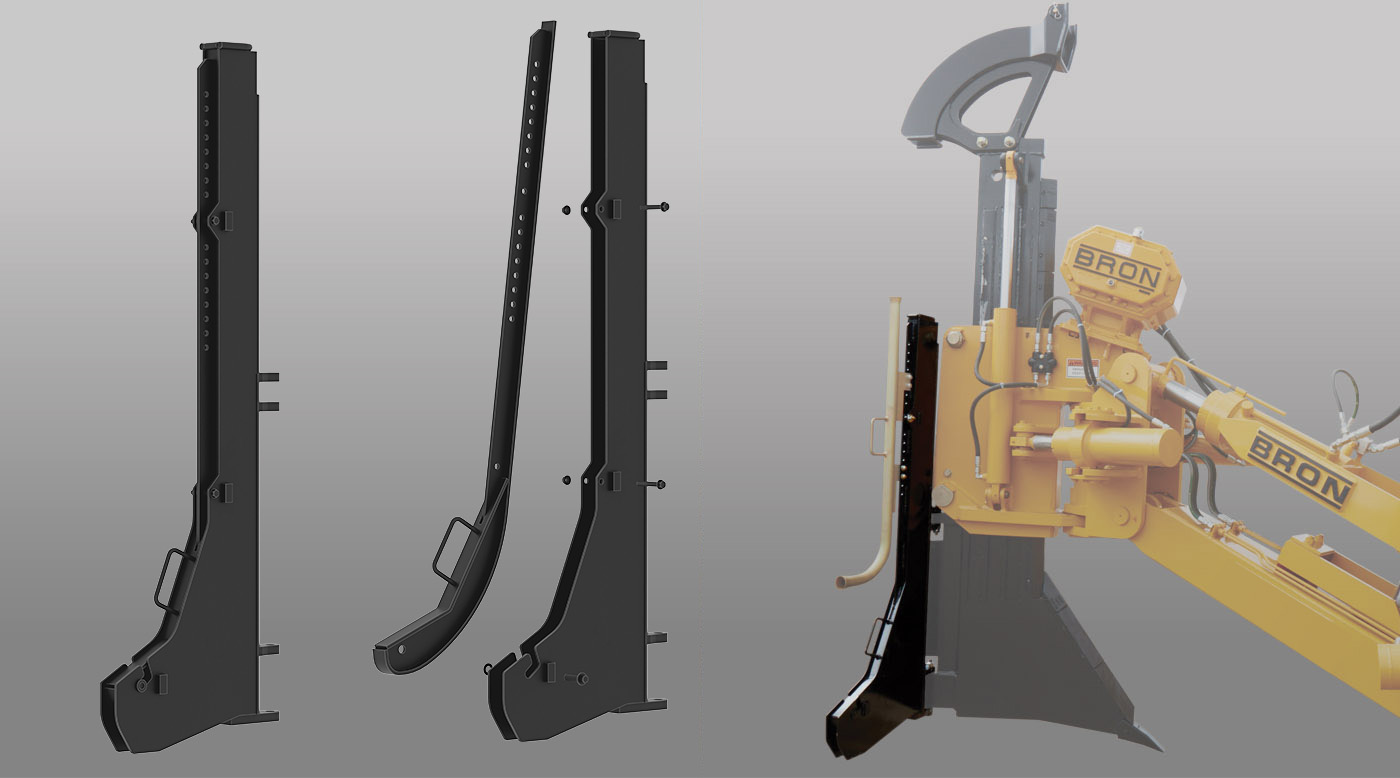

Single Chute
For installation of a single product. Various size ducts allow for various size product to be installed.

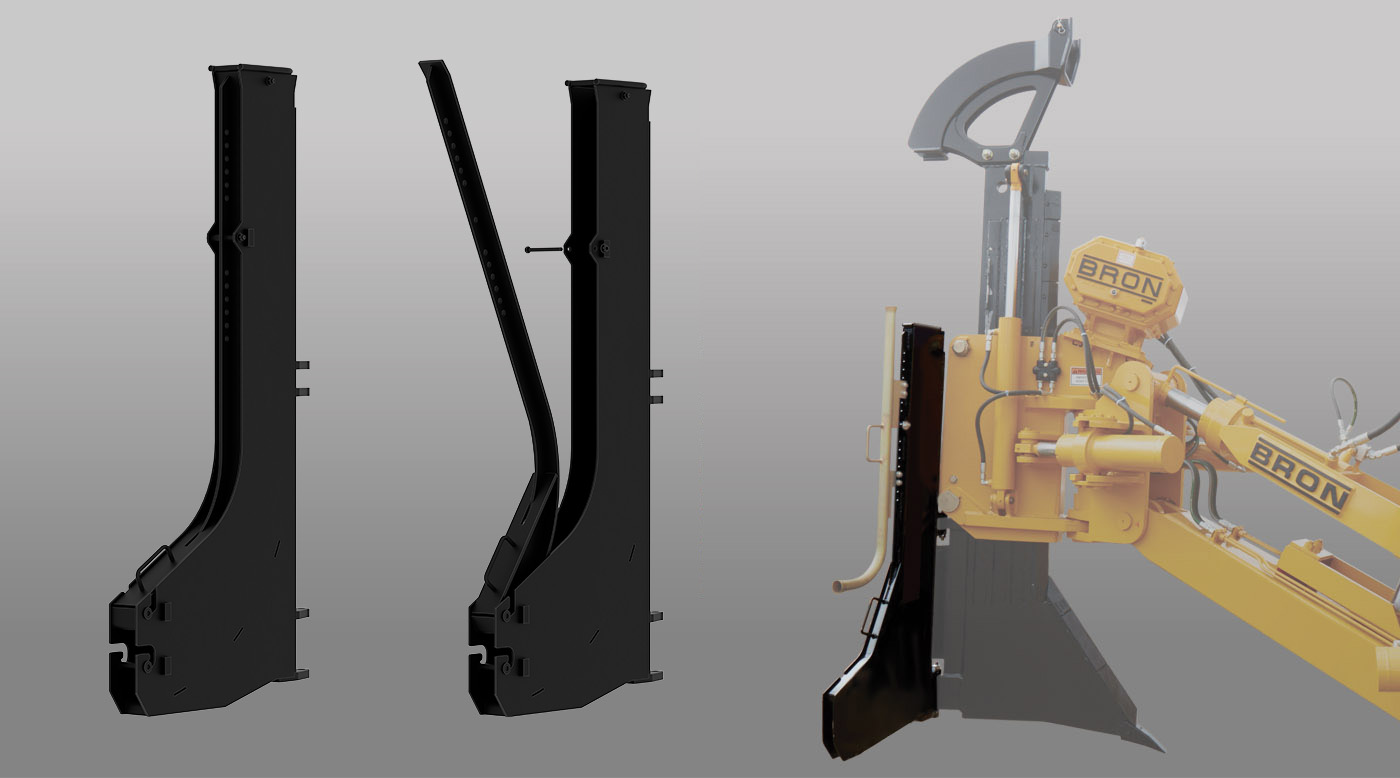

Dual Chute
For installation of two products. Separate ducts within the chute allow for dual product installation with separation.

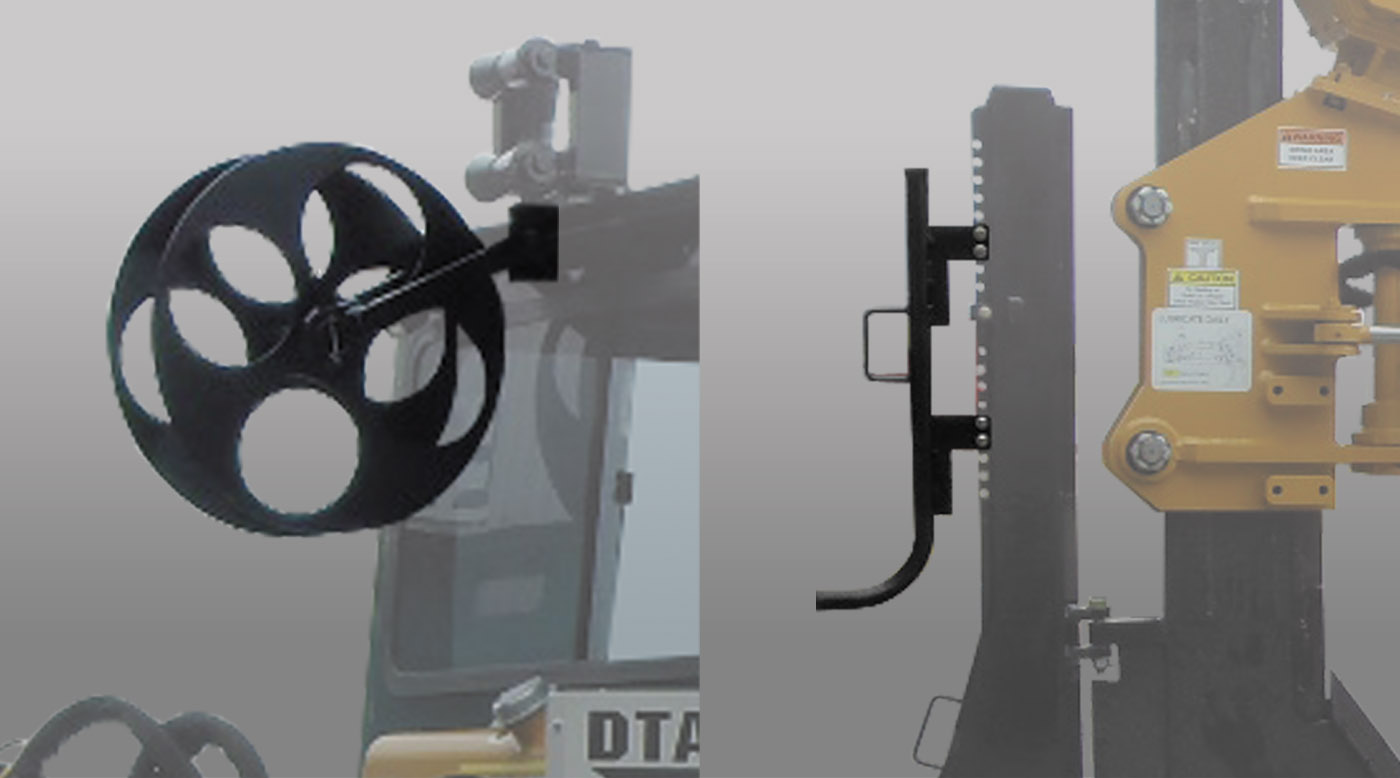

Tape Holder & Feed Tube
Adjustable Tape Holder and Feed Tube can install warning tape above the cable at various depths.

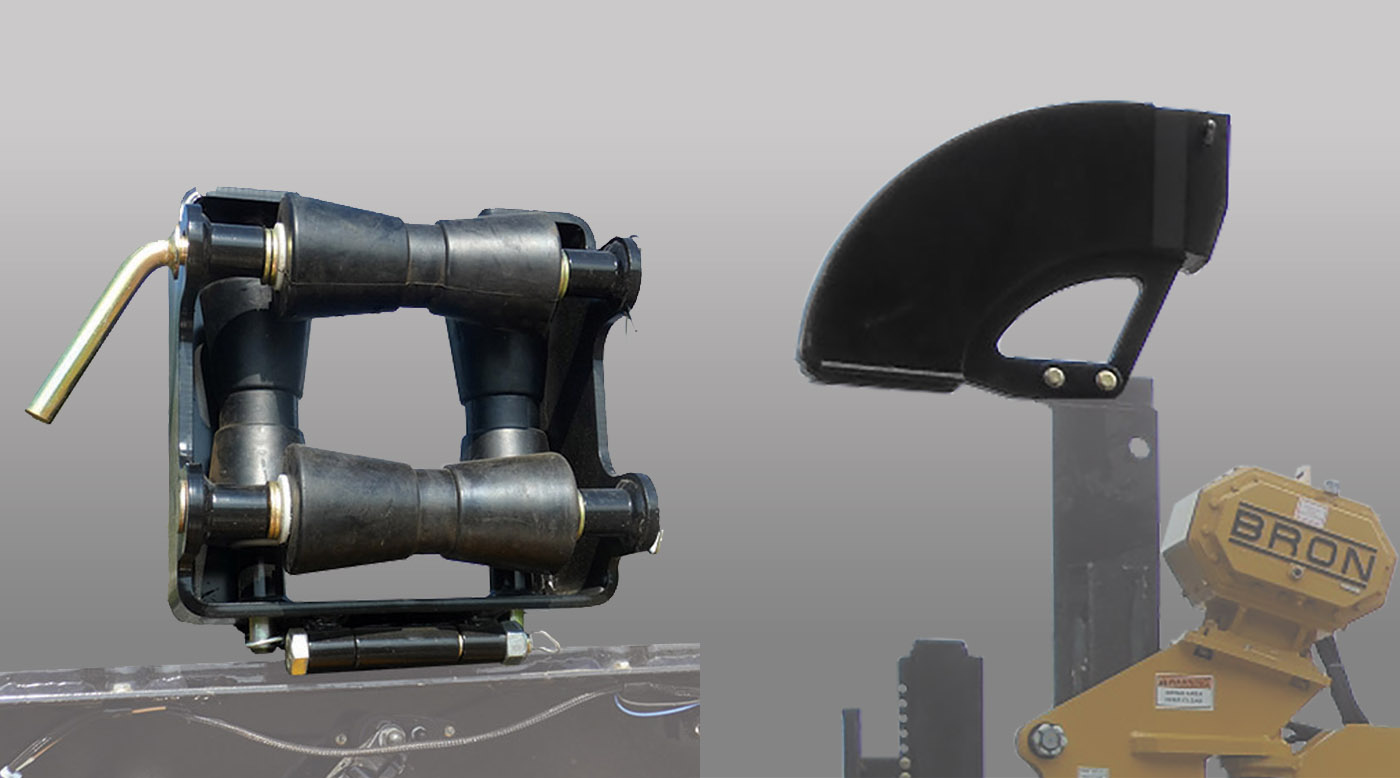

Fairleads & Slider Chute
Fairleads on the roof and a slider chute keep the cables in line, organized and ready for installation. Additional fairleads and 40" fairleads are available as options.

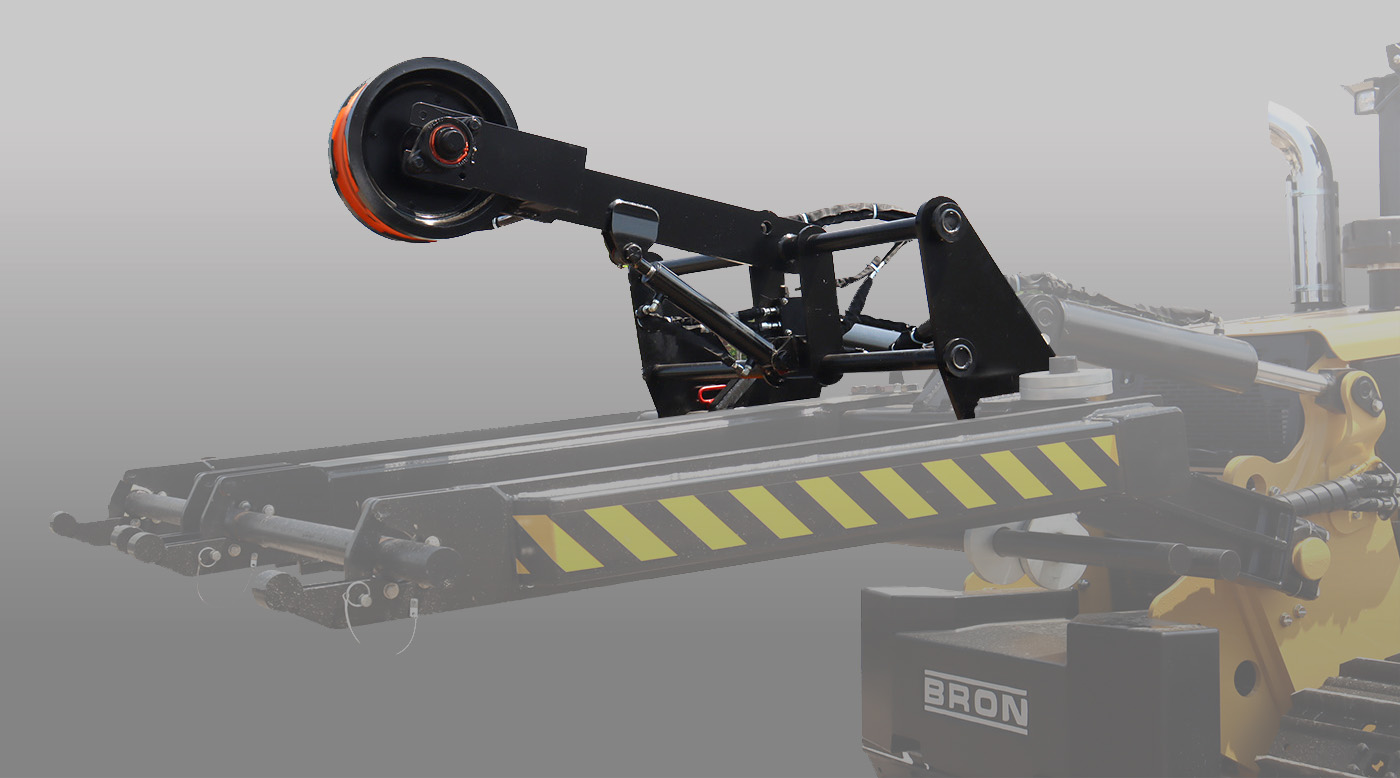

Power Rewind
Enables a figure 8 pattern as the cable/line comes on or off the reel, helping to prevent cable damage.

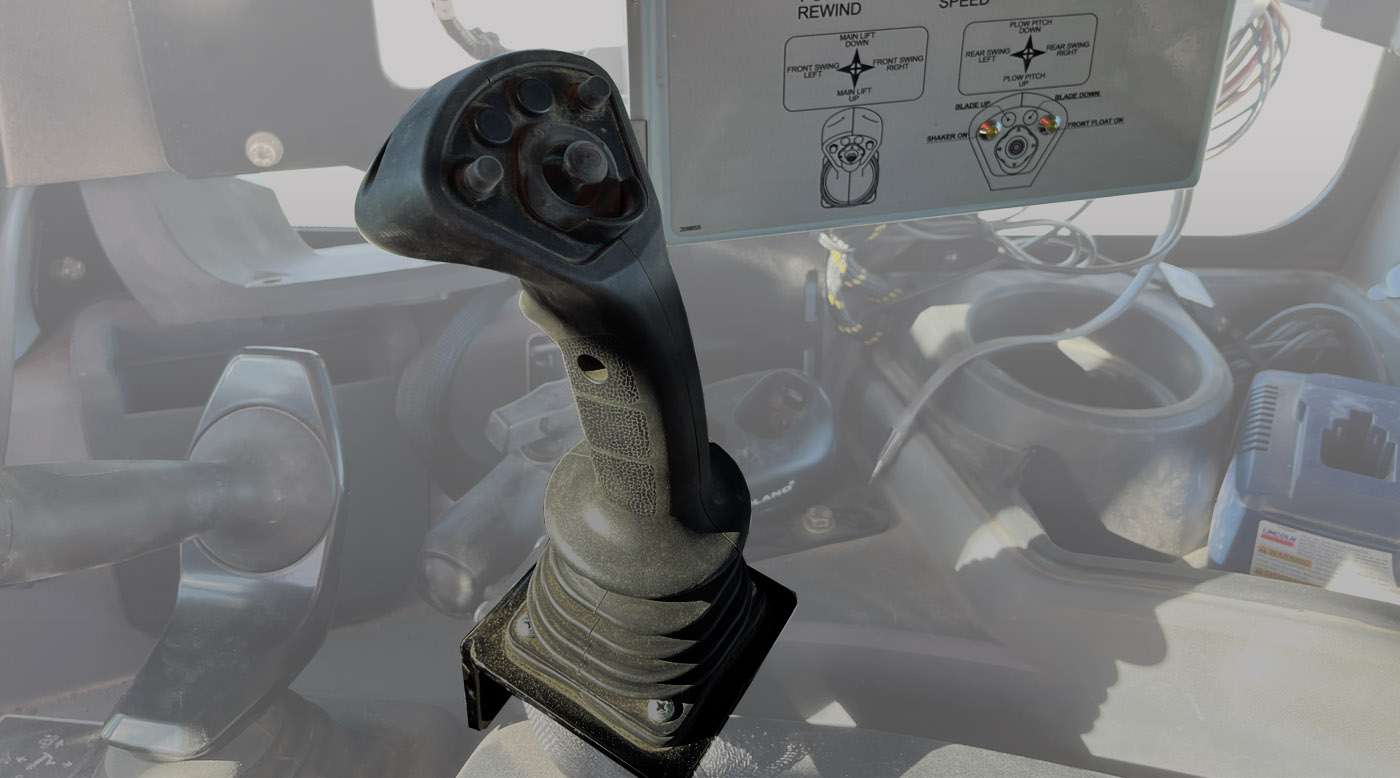

Single Joystick Controller
A single seat mounted joystick controls primary plow functions.

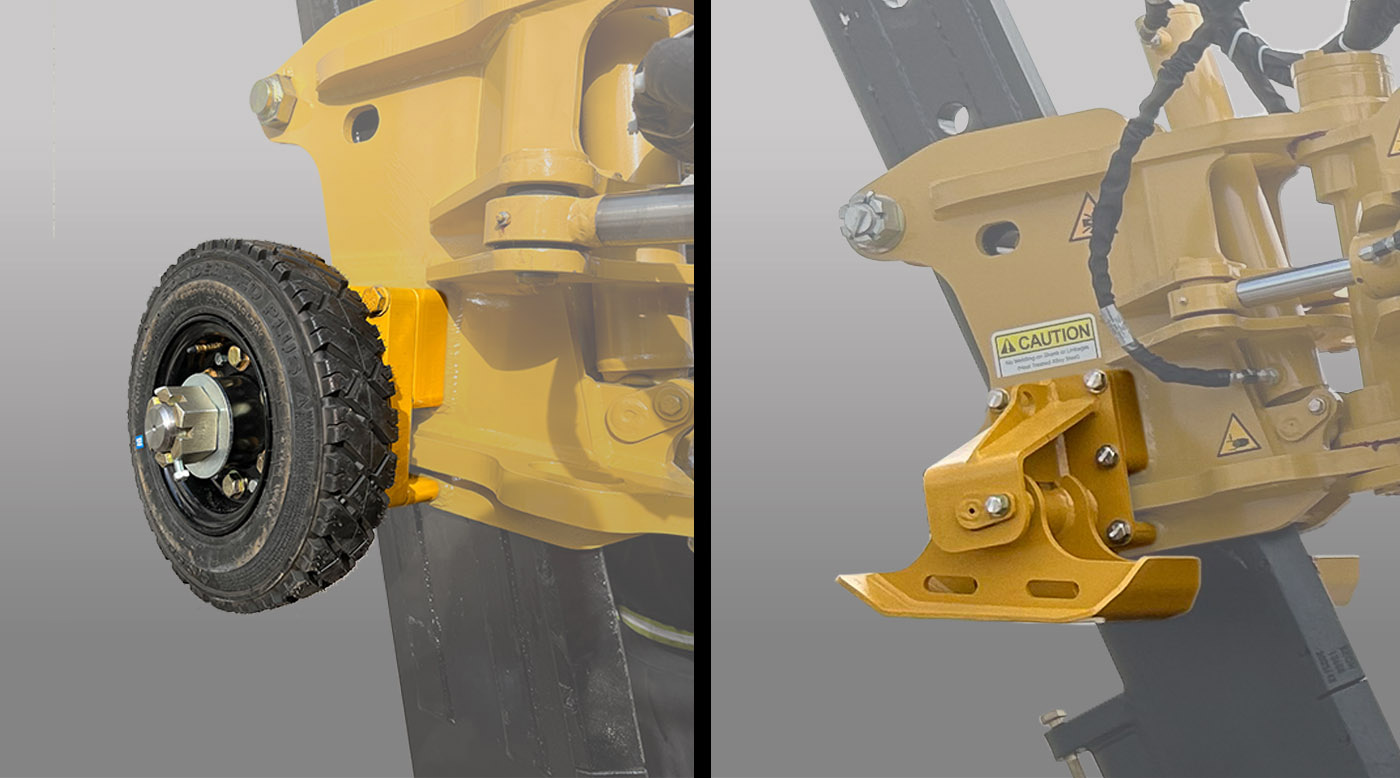

Tamper Wheels & Feet
A Tamper System allows the Blade Holder to follow the contour of the ground while Plowing in Float, while riding on the Ski or Wheel Assembly.

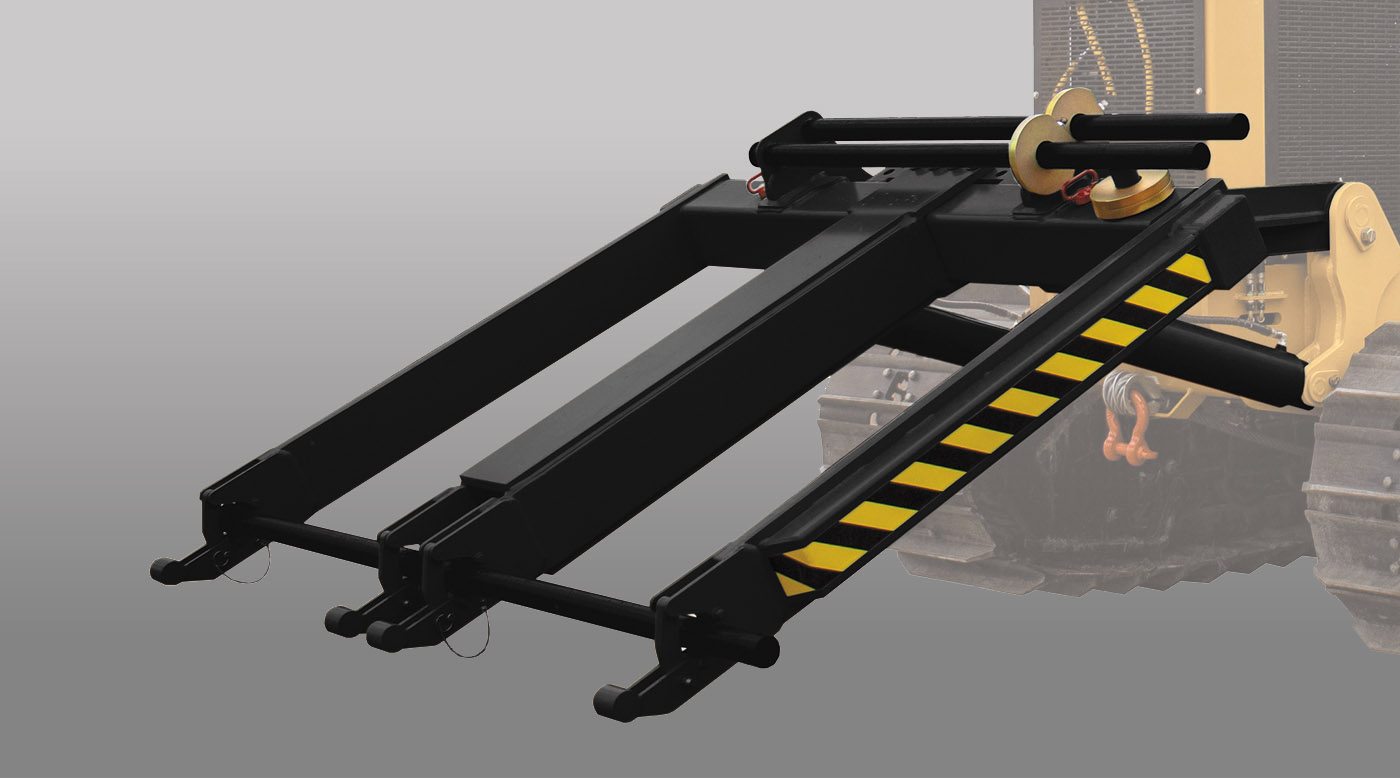

Dual Telescopic Reel Carrier
Carries one or two reels. Weight capacity of reels are dependent on the Tractors lift capacity.
Specifications
| Operating Weight | 4200 lbs (1905 kg) |
| Length of Plow Assembly (without chute) | 112" (2844 mm) |
| Maximum Depth | 54" (1372 mm) |
| Offset Range Left & Right of Center | 51" (1295 mm) |
| Approximate Blade Clearance in Transport Position | 20" (508 mm) Fully Retracted |
| Recommended Tractor Horse Power | 115 hp-150 hp (84 kW-110 kW) |
| Total Hydraulic Pump Flow Required | 40 US gpm |
