Power and Utility

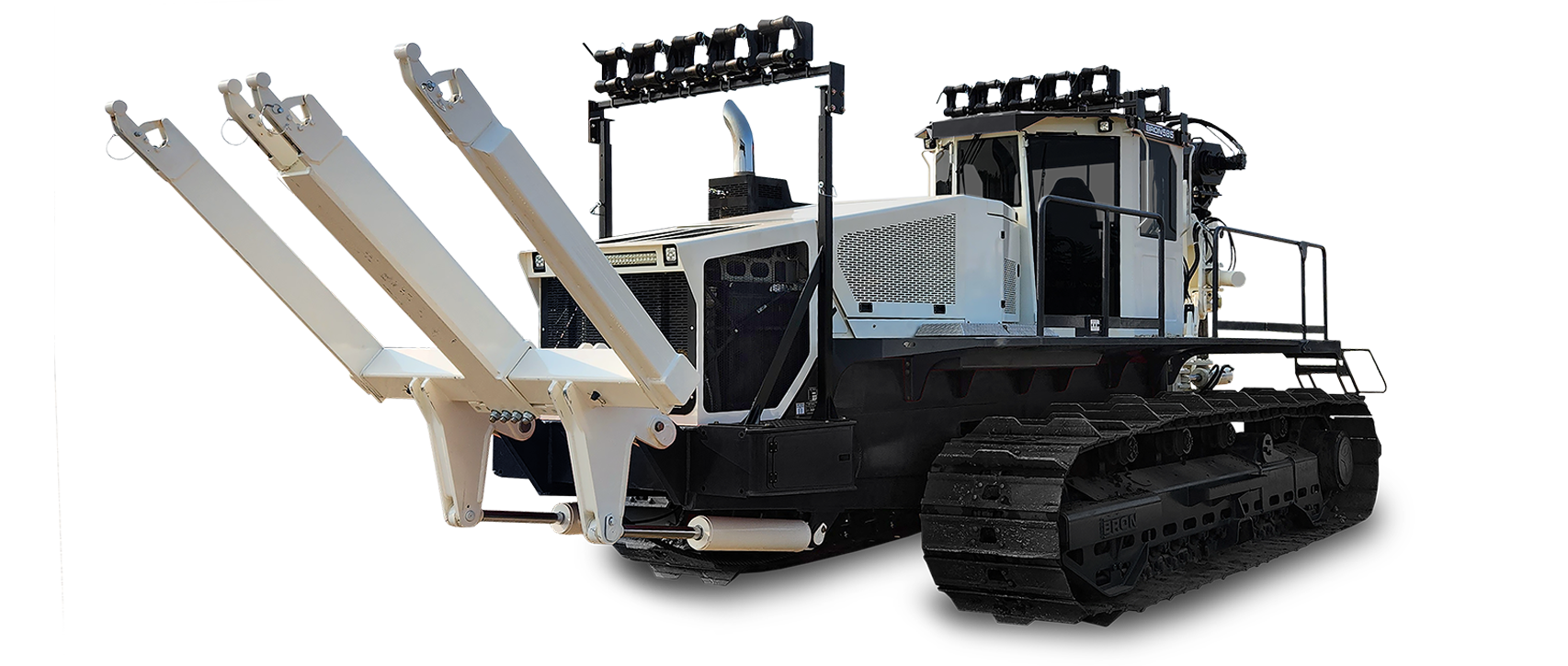

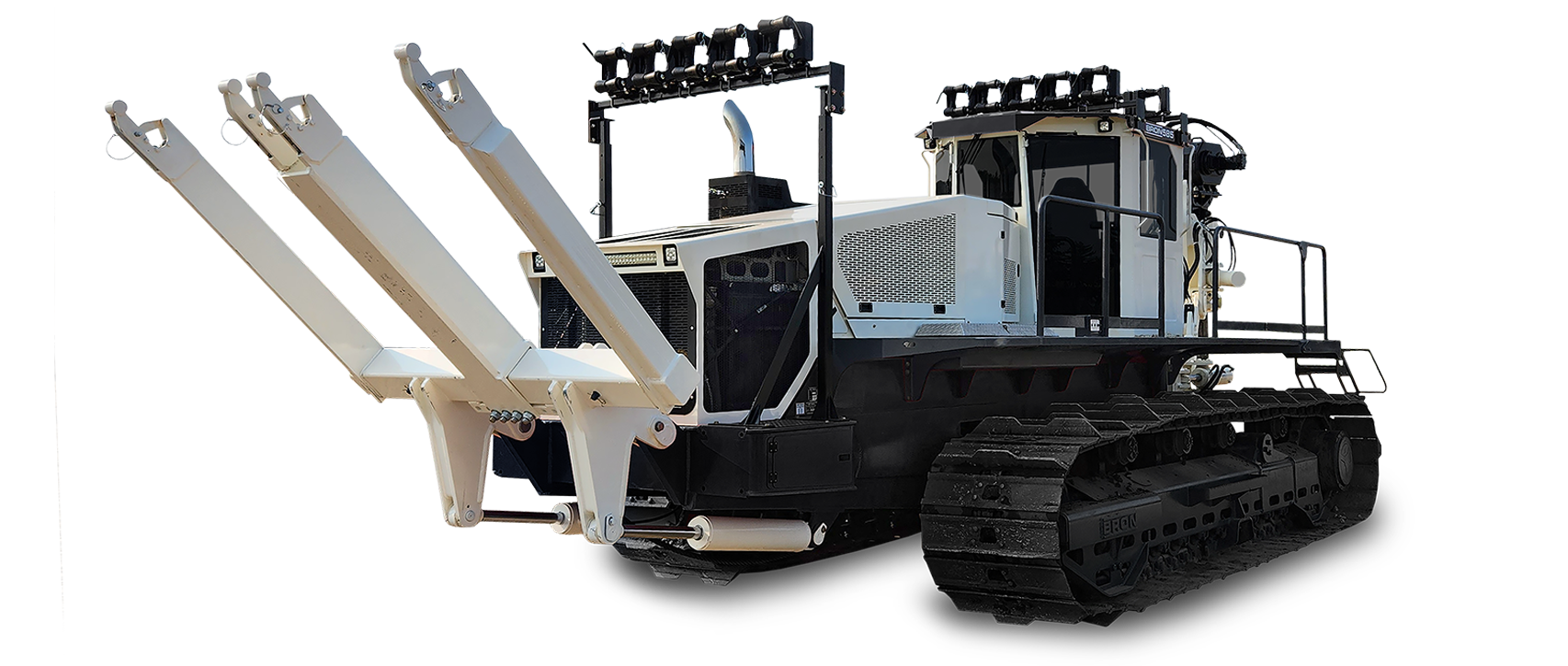

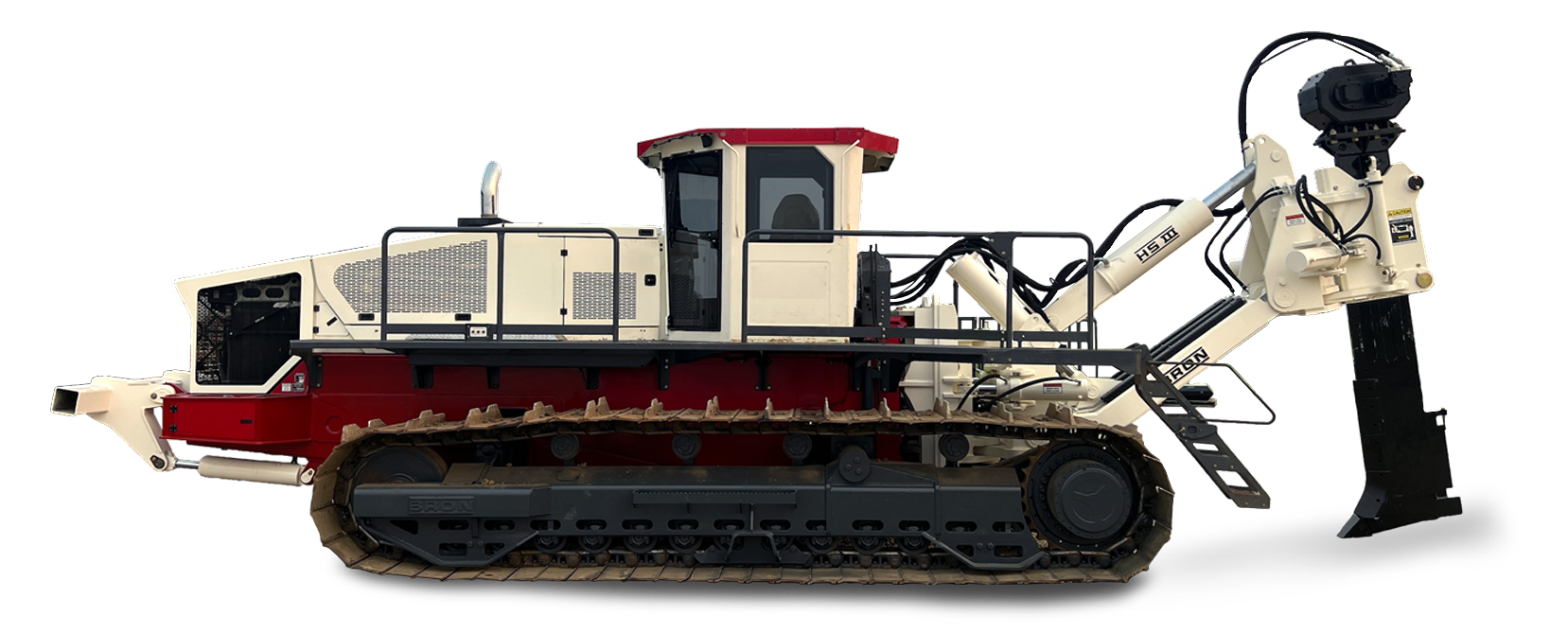

Installing 3-phase power has never been easier or quicker than with the BRON 585 Utility Tractor. The BRON 585UT is available with a patented installation chute that consists of multi-duct openings with a hopper to add your preferred aggregate around cables or ducts.
78,000 lbs
Weight90"
Depth536 hp
PowerD7
Undercarriage5.4 psi
Ground PressureApplications
Telecommunications
BRON connects your customers to the world by installing conduit, fibre optics, and power cable for communication networks.
Renewable Energy
Laying power and communication cables for various utilities like solar farms and wind turbines.

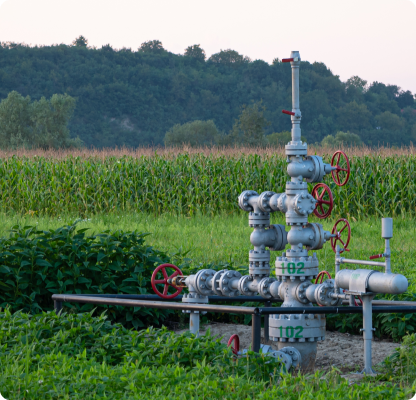

Water & Gas
Extending rural water and natural gas lines.
Features

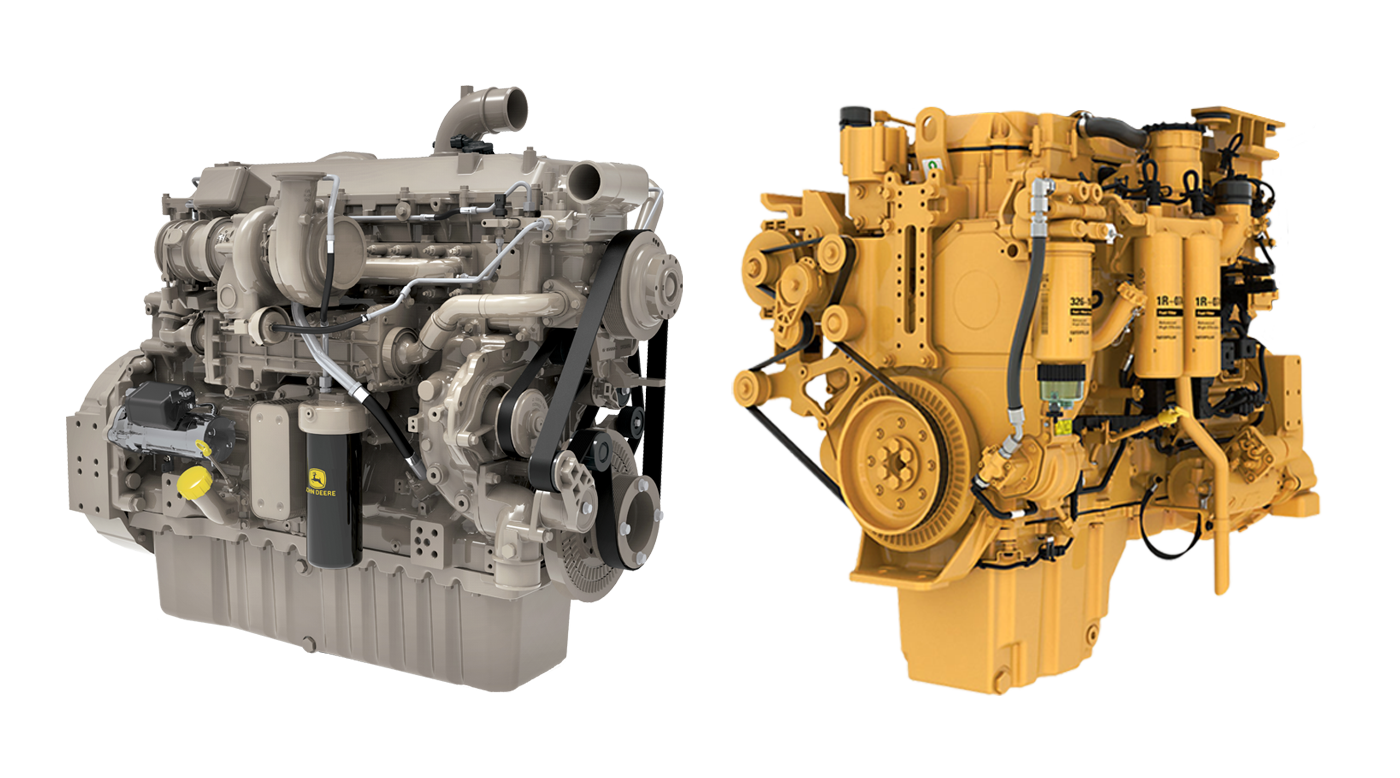

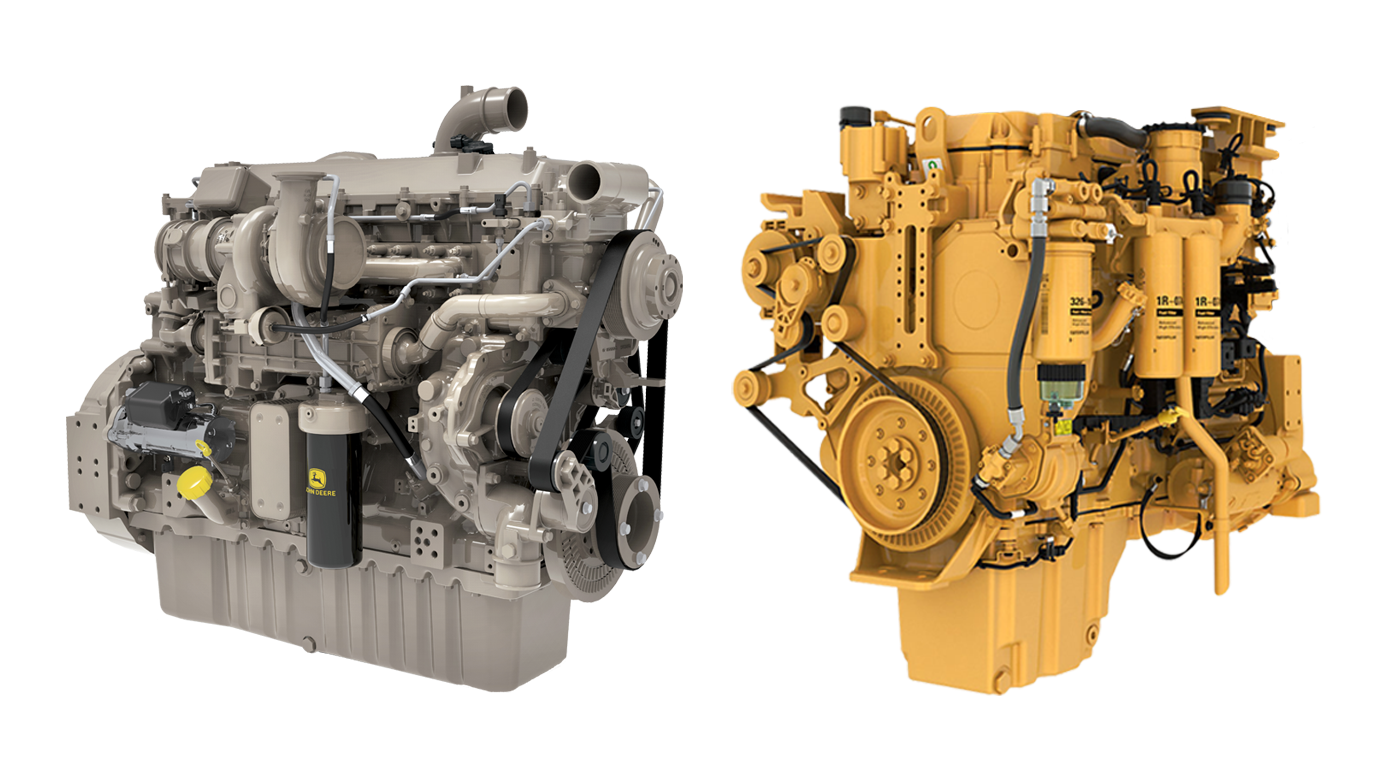

Cat C13B or John Deere JD14 Engine
The 585 Utility Tractor has two engine Tier 4 compliant power options: The CAT 13B is a 12.5 L turbo diesel engine that produces remarkable power and torque in a smaller, lighter size for long life and performance in the toughest conditions. The John Deere JD14 engine is a compact heavy-duty 13.5 L turbo diesel engine designed to provide high power density, efficiency, and durability in high load extreme conditions.

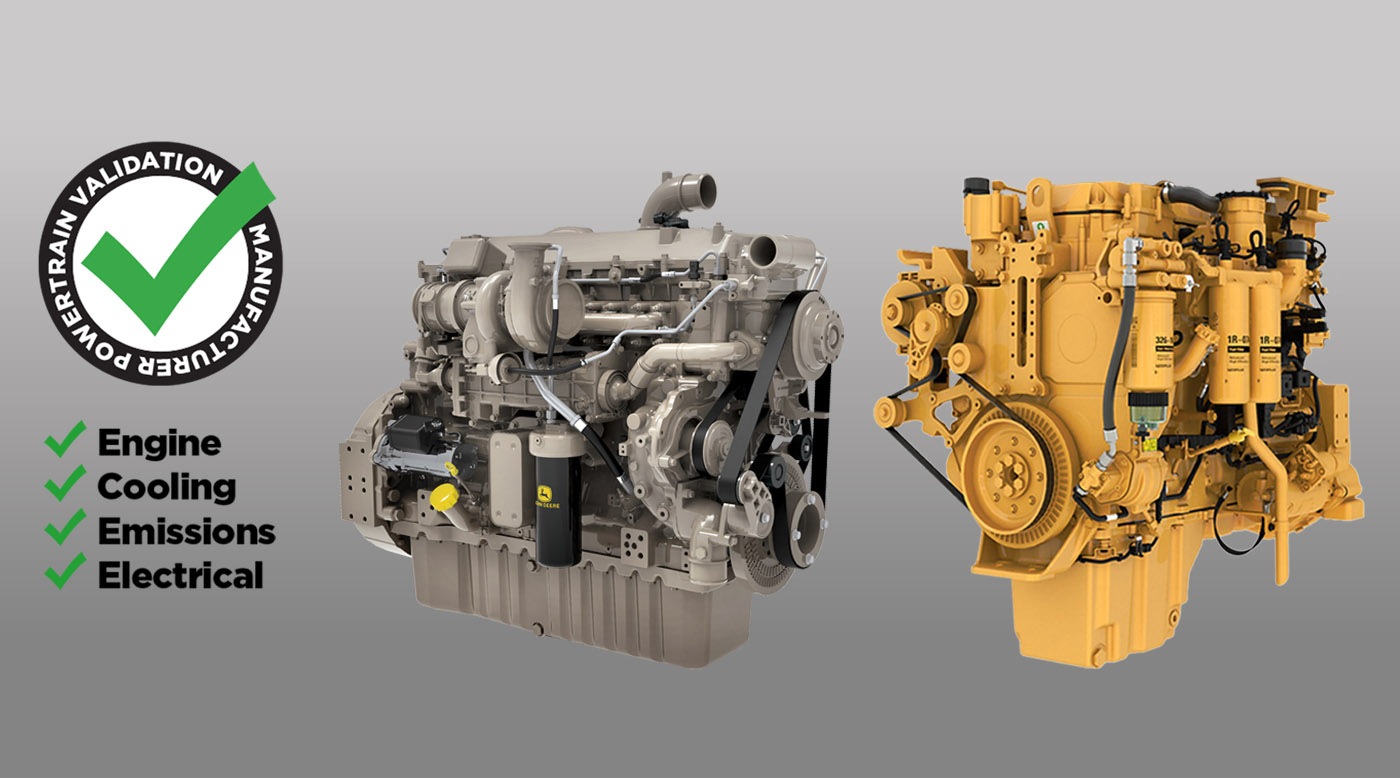

Manufacturer Validation
Every BRON powertrain is developed in collaboration with leading engine manufacturers like Cummins, Caterpillar, and John Deere. Each installation is reviewed to ensure the engine, cooling, emissions, and electrical systems work seamlessly together—so your machine is fully supported for long-term performance in the field.

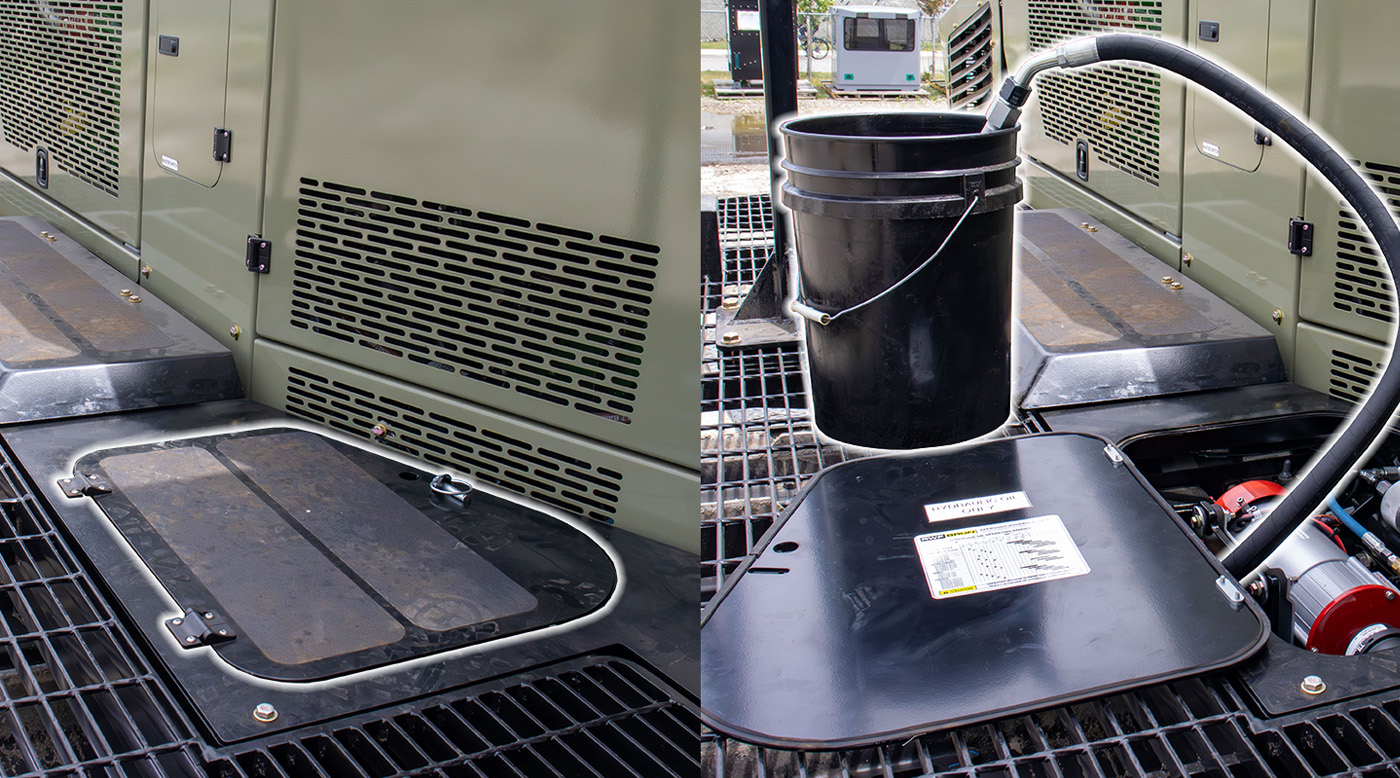

Hydraulic Oil Fill
The Electric Hydraulic Oil Fill Pump System provides a clean, efficient way to add hydraulic oil without manual lifting or risk of contamination. Using an electric pump, oil is transferred directly into the hydraulic system, reducing service time and minimizing the chance of introducing dirt or debris. This system improves maintenance safety, accuracy, and consistency while keeping equipment ready for reliable operation in the field.

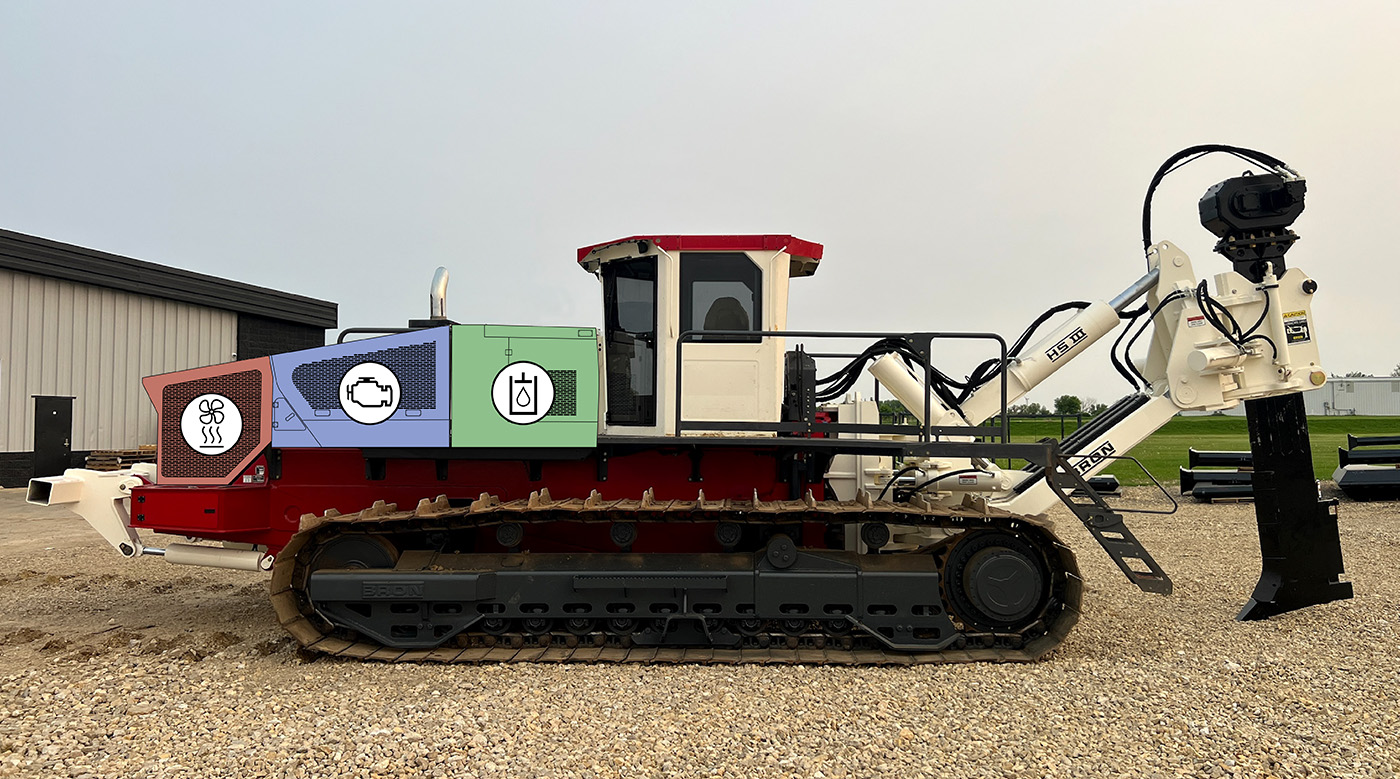

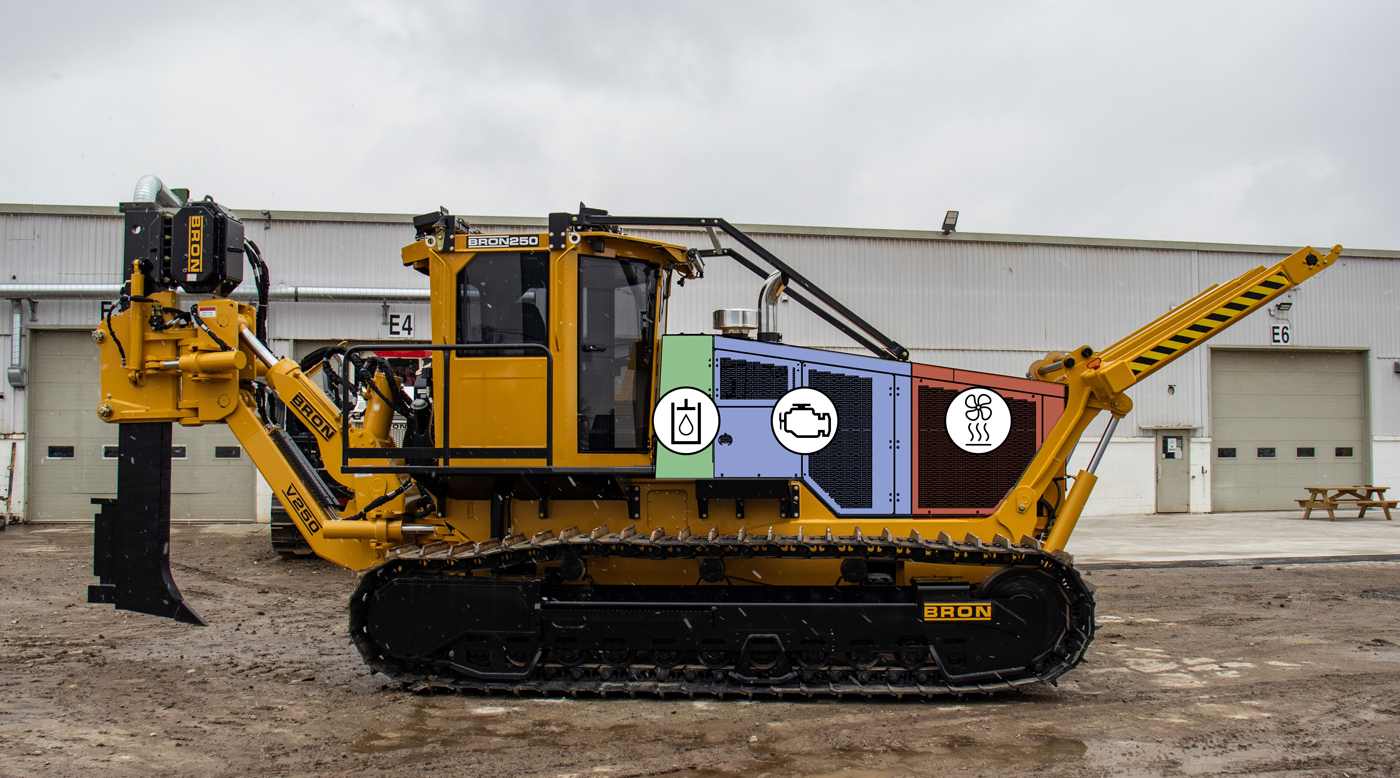

Separated Engine & Hydraulic Compartments
To enhance overall safety, reliability, and peace of mind in demanding operating conditions, BRON Utility Tractors are built with a separated engine and hydraulic compartments. Engineered with a skirted firewall design to isolate hydraulic components from the engine bay, this separation prevents hydraulic oil from spraying onto hot engine surfaces or the turbocharger in the event of a leak, significantly reducing fire risk.

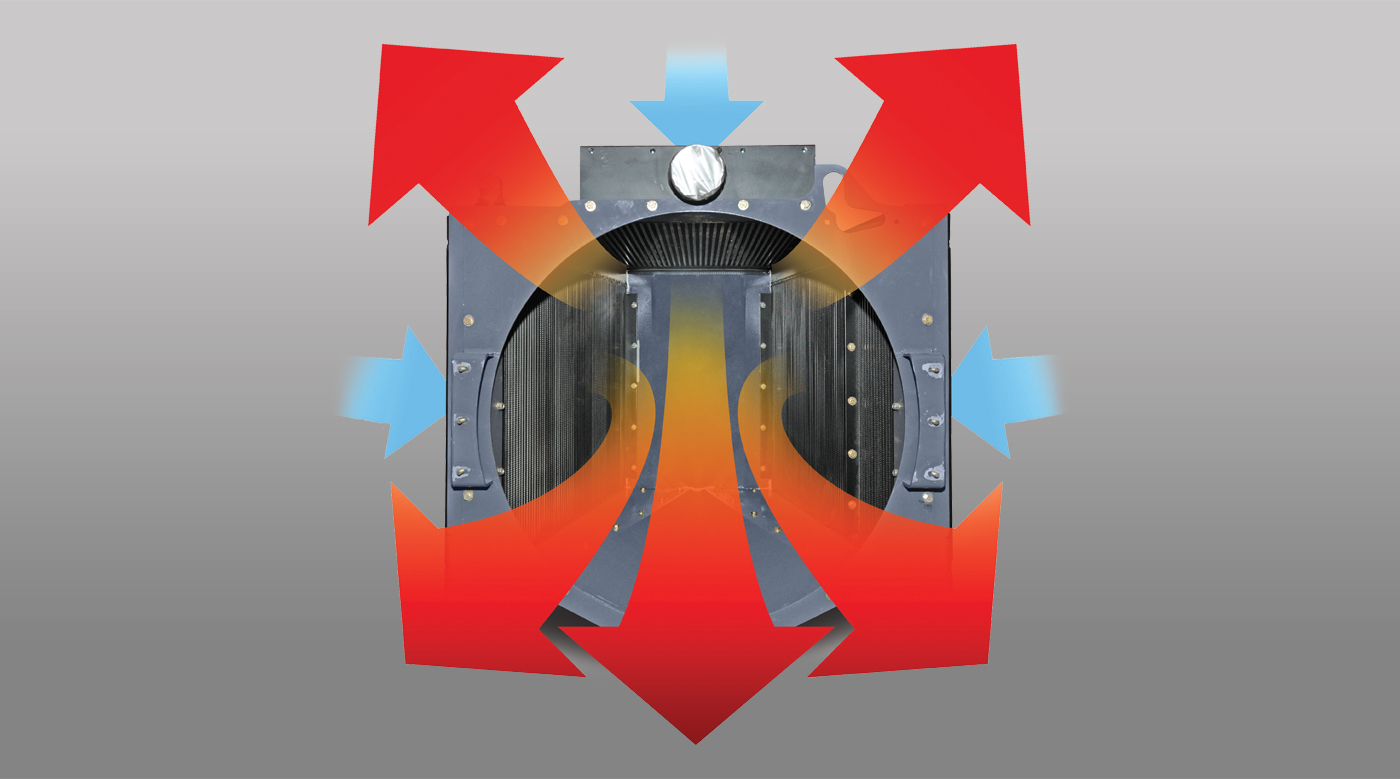

Single Layer All-In-One Cooling Package
The Single-Layer All-In-One Cooling Package is engineered for maximum efficiency, durability, and ease of service. Rated for continuous duty in ambient temperatures up to 50 °C, this best-in-class system meets the cooling demands of Tier 4 Final engines to help prolong engine life. The single-layer design provides easy, direct access for cleaning, reducing maintenance time while ensuring consistent performance in extreme working conditions

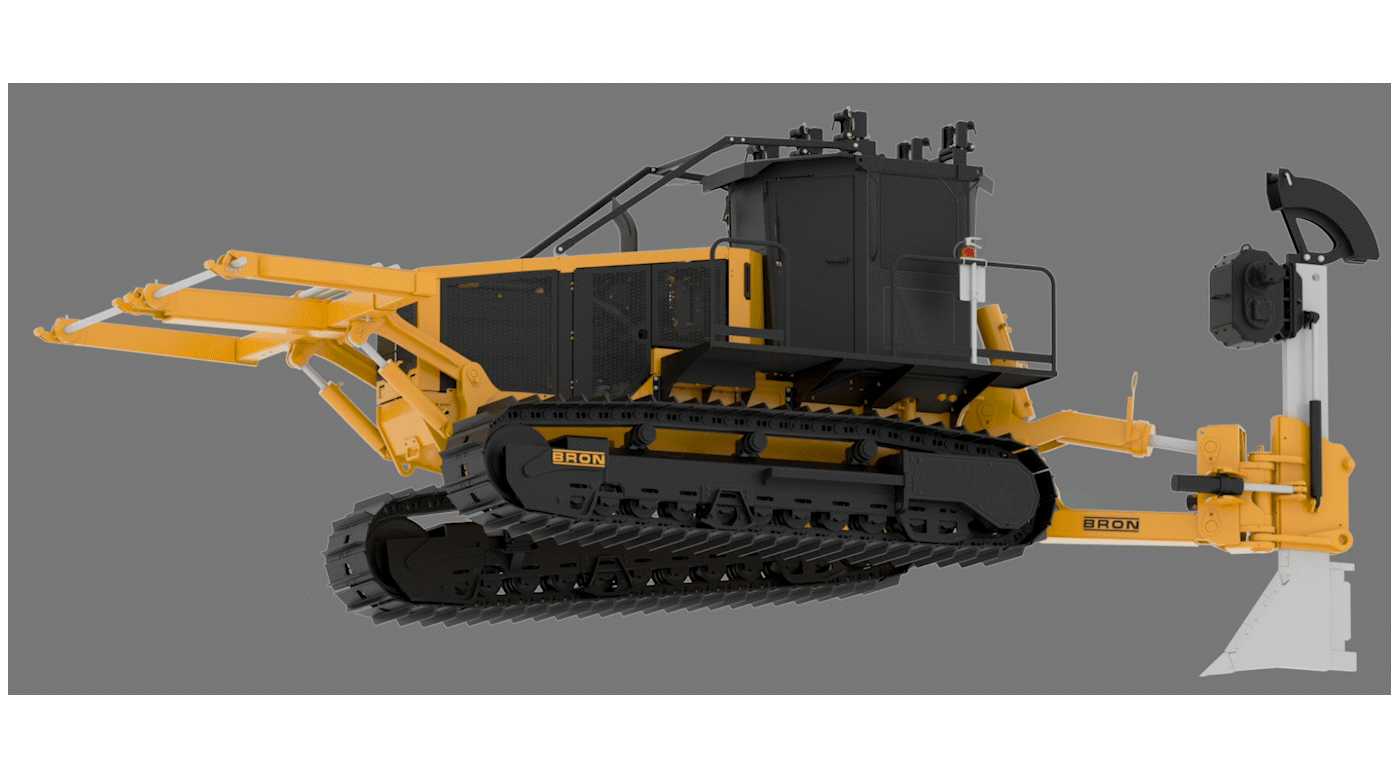

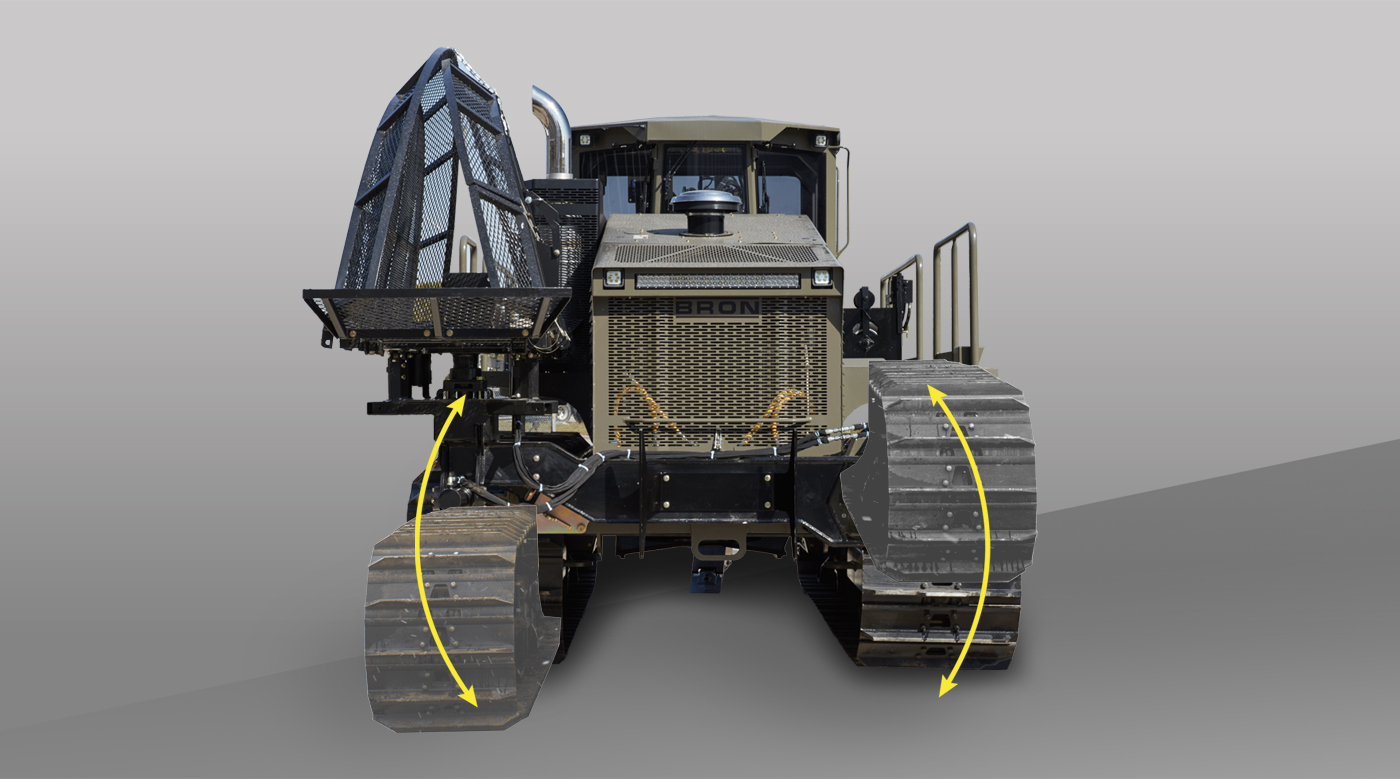

Oscillating Tracks
Helping to maintain ground contact and traction across uneven terrain, oscillating tracks can increase installation accuracy, reduce operator fatigue, and minimize ground disturbance. Tracks pivot independently for maximum traction while hydraulic cylinders keep the machine level for perfect grading across sloped surfaces.

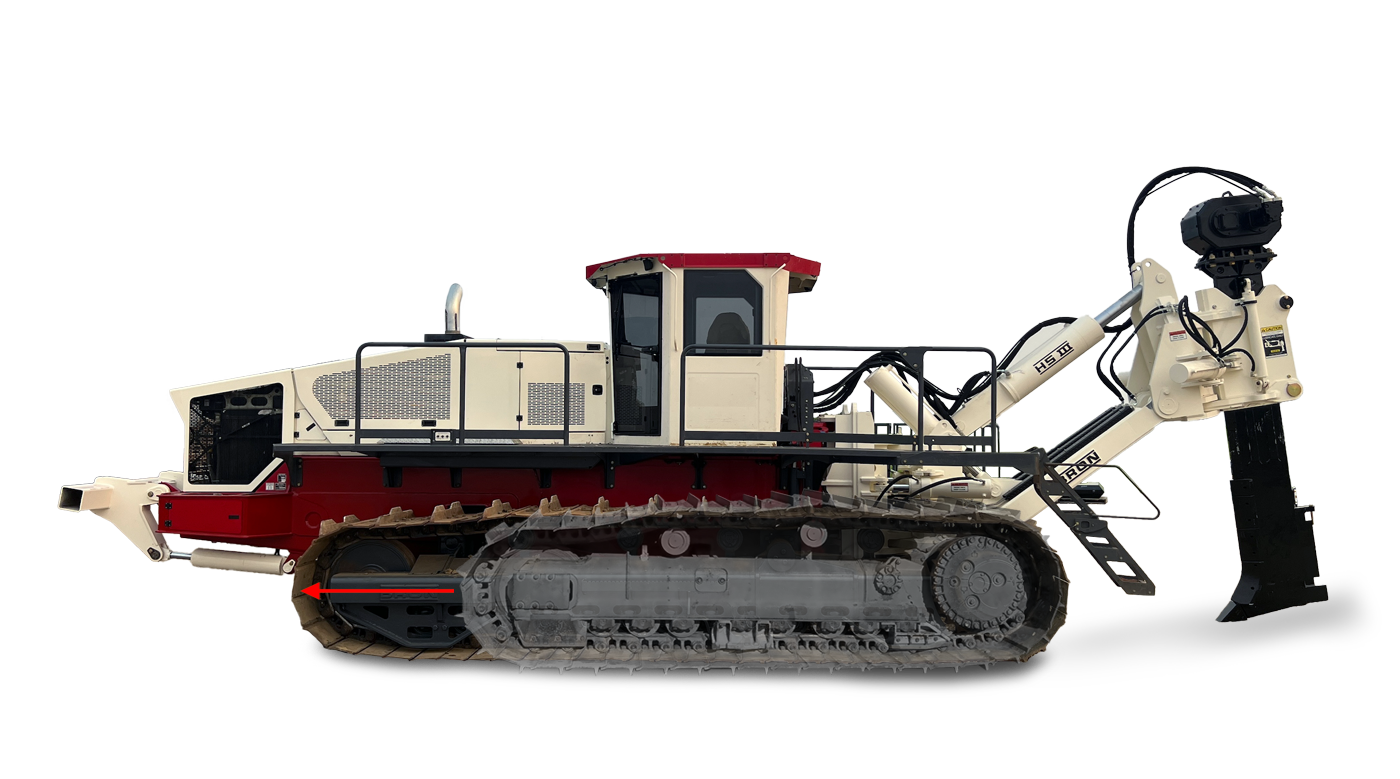

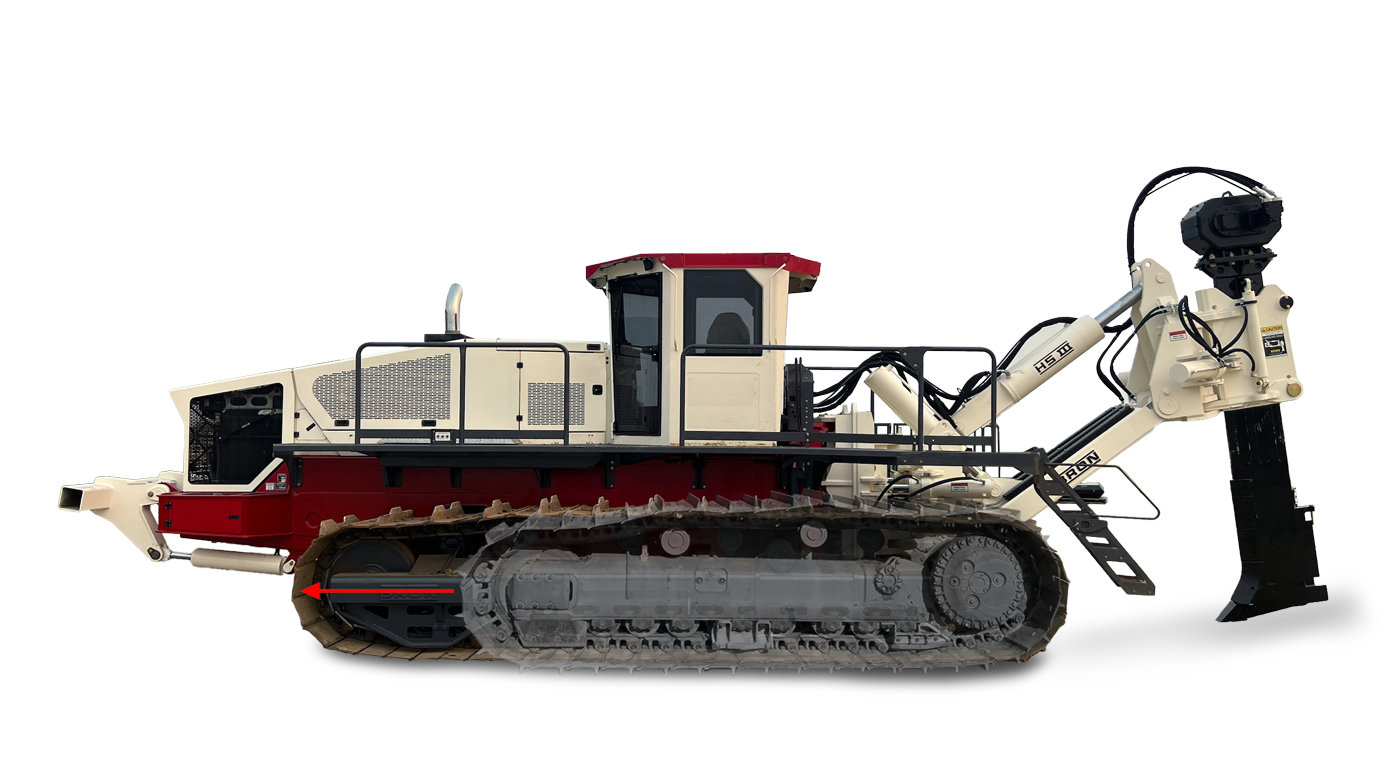

Long Track Frame
The BRON 250UT and 585UT are engineered with longer track frames than comparable OEM dozers in their class. Keeping the operation in mind, longer track frames provide a larger ground contact area, improves traction, flotation, and overall stability, especially when pulling heavy loads or working in soft or uneven terrain.

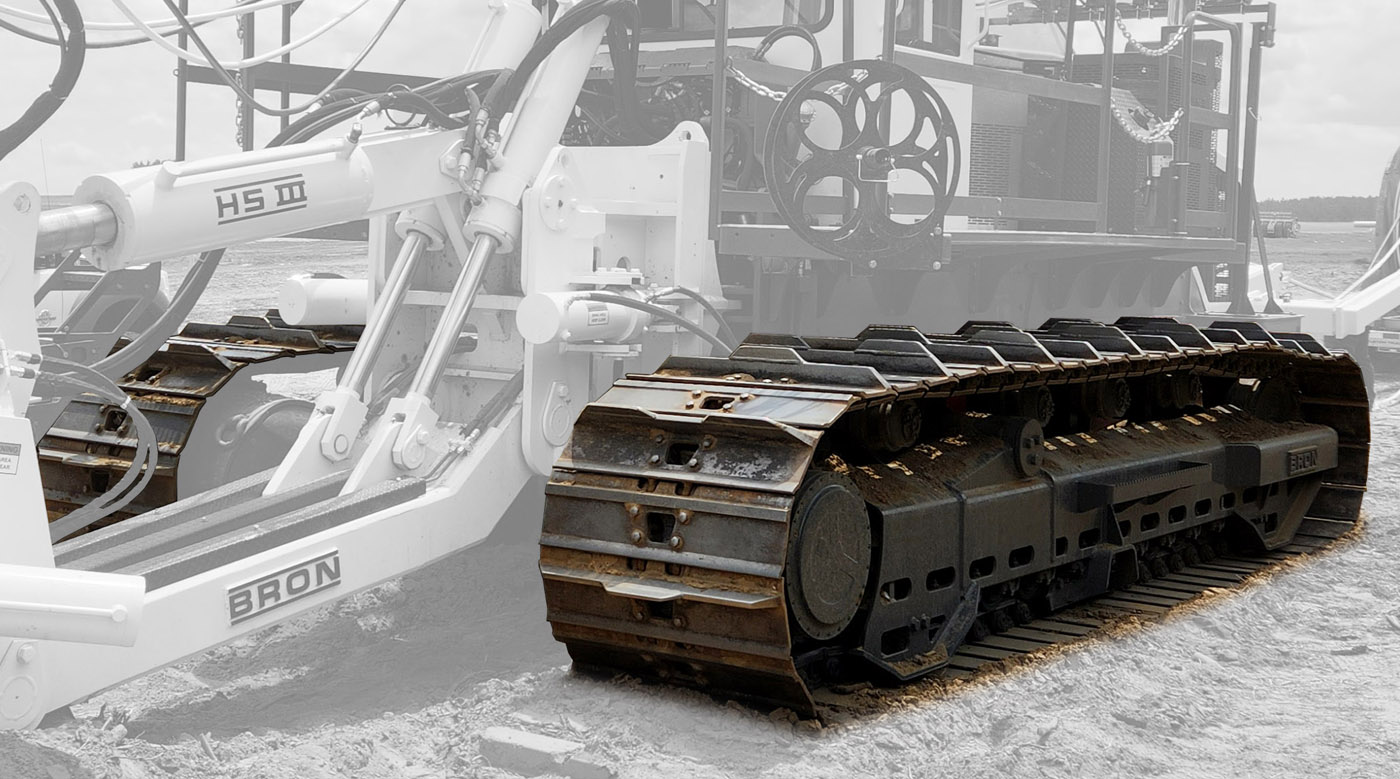

D7 Undercarriage
The BRON 585 comes standard with a durable D7 Undercarriage. Providing the perfect balance of power and ground pressure, the D7 Undercarriage offers exceptional flotation and drawbar pull while maintaining a low ground pressure of just 5.0 psi.

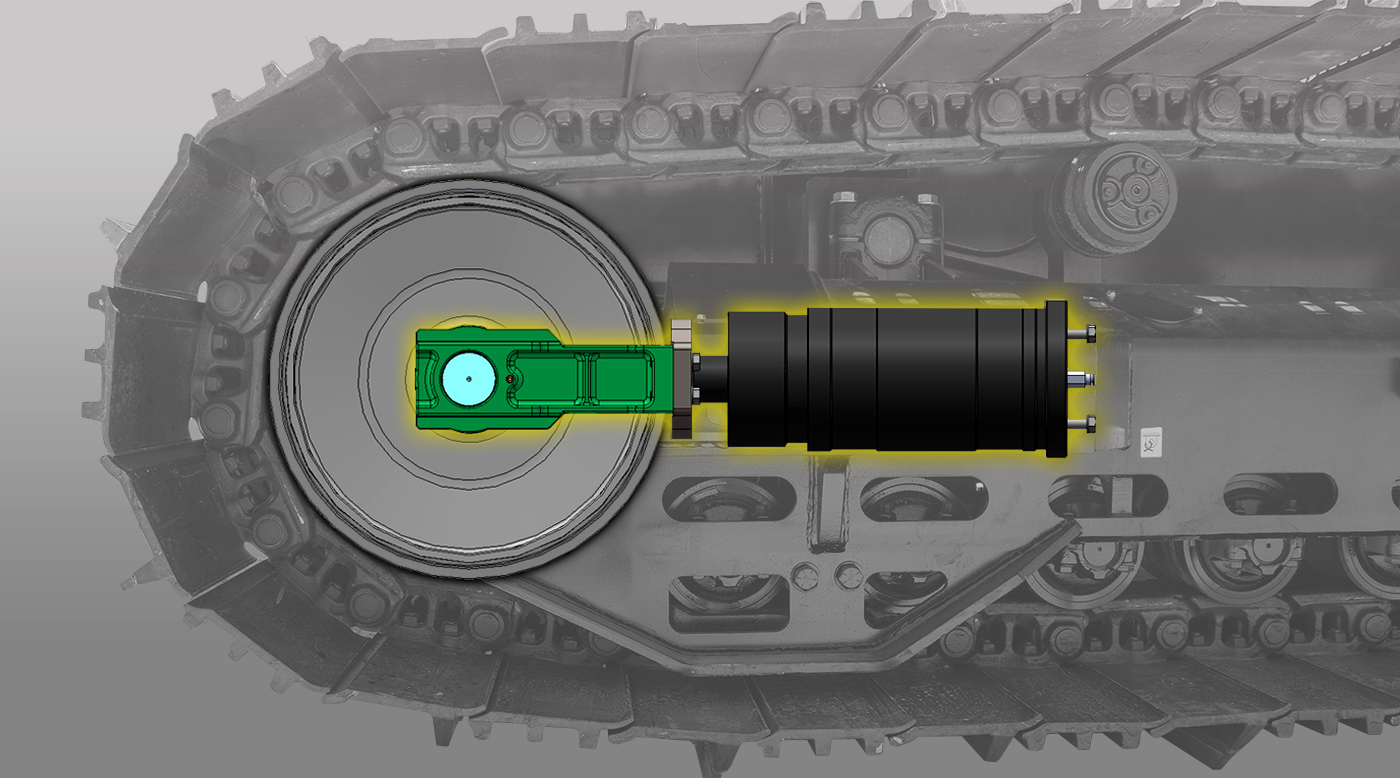

Elastomeric Tensioner
Designed for long-term reliability by using a rubber-like material as a spring system which eliminates mechanical parts that can break or nitrogen accumulators that may leak.

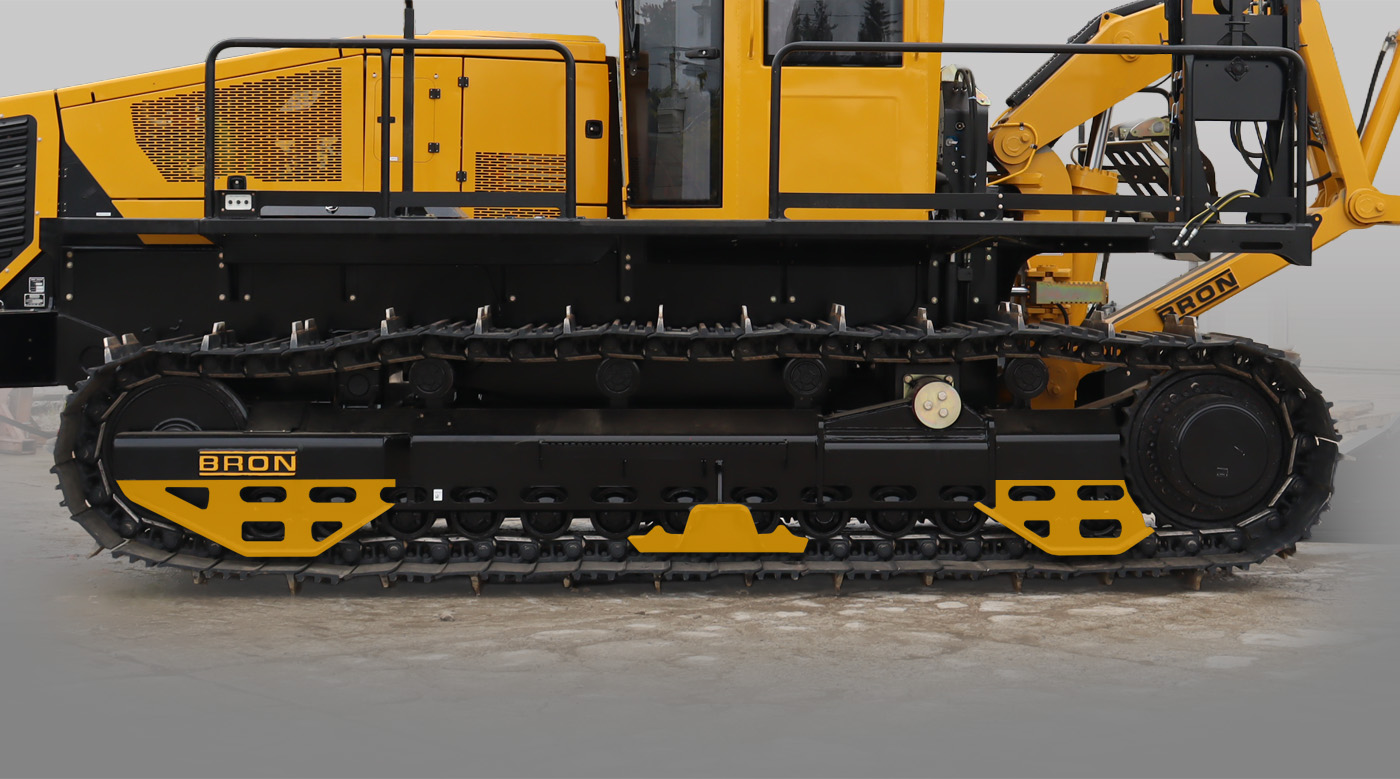

Track Guides
The BRON 175HD, 250UT, and 585UT feature mid-guides designed to support the track pads during oscillation, ensuring smoother operation, improved stability, and longer track life. These mid-guides help maintain proper track alignment as the tracks pivot over uneven terrain.

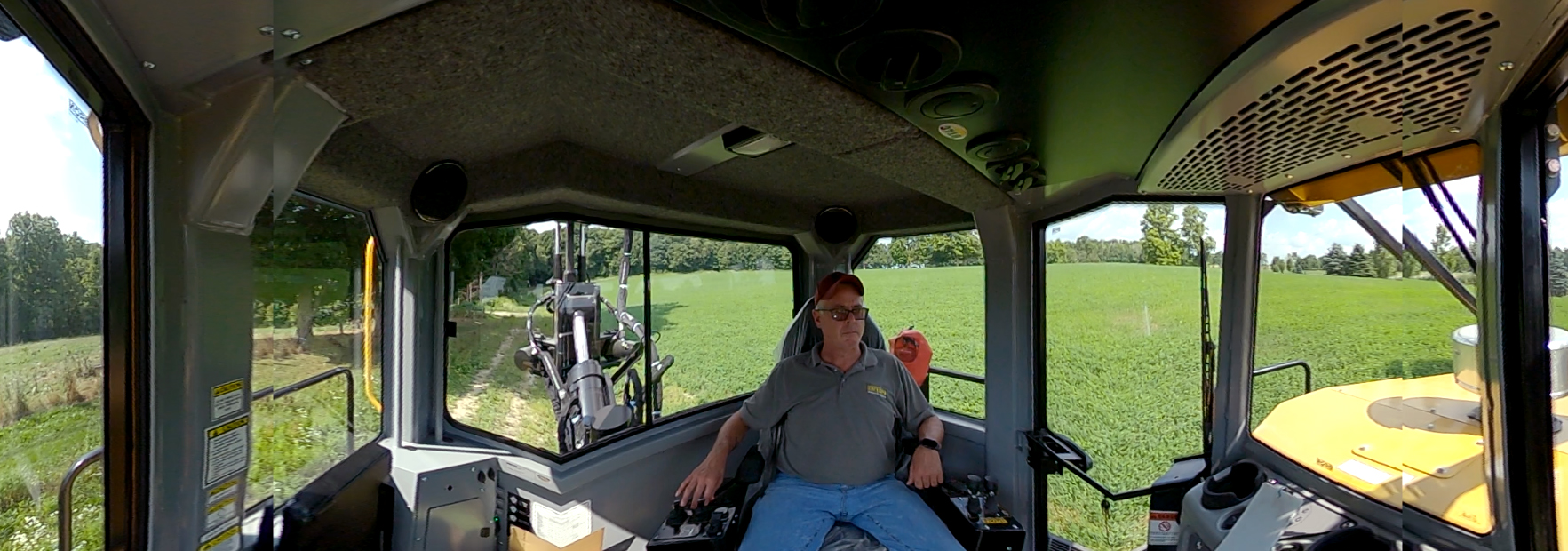

Visibility - 360-Degree View
360-Degree Cab Visibility provides the operator with a clear view in all directions from the cab, improving awareness with the jobsite, attachment, and surrounding obstacles. Large windows and optimized cab layout enhance sightlines to the blade, reel, and jobsite. This improved visibility increases operating confidence, precision, and overall jobsite safety.

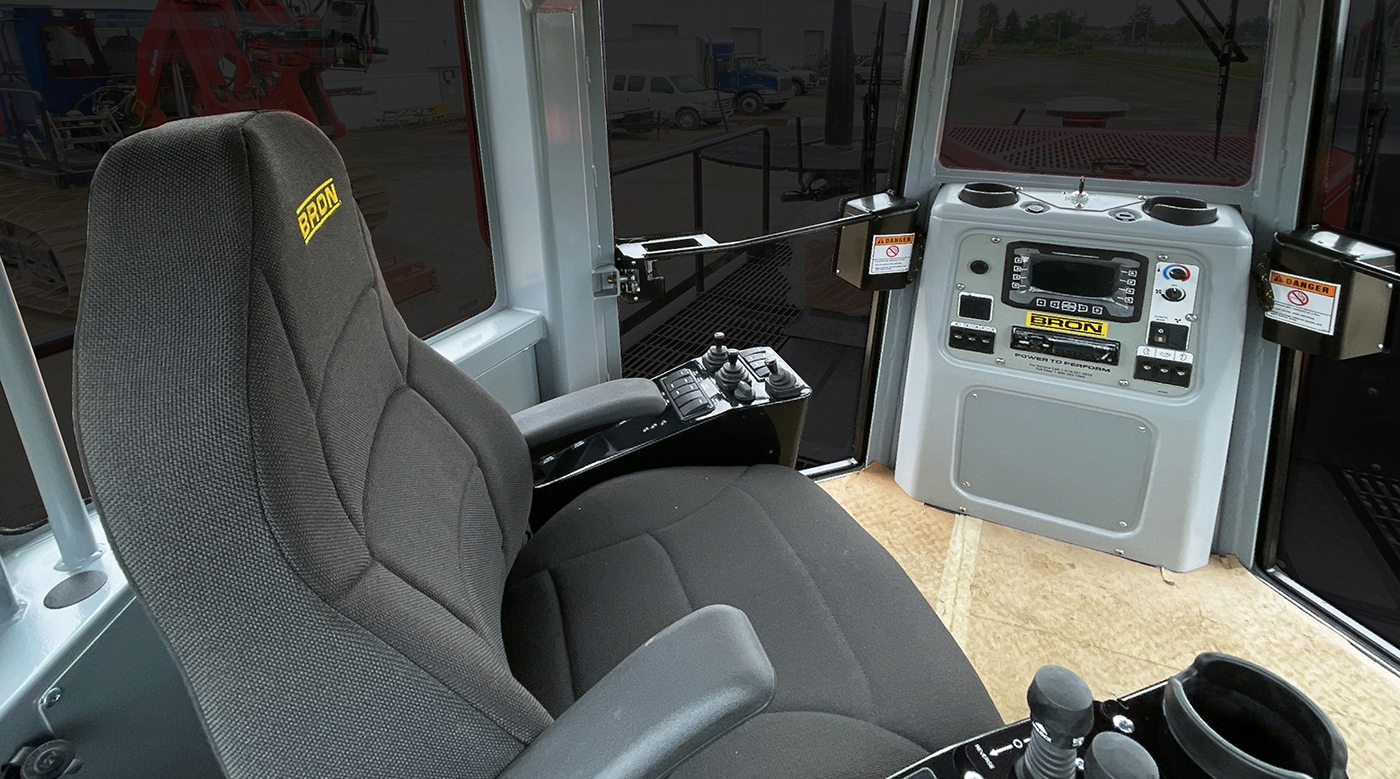

Spacious Interior
The Spacious Interior features a large, heated and air-conditioned cab designed for all-day operator comfort. Generous legroom, wide sightlines, and an ergonomic layout reduce fatigue during long shifts. This comfortable, climate-controlled environment helps operators stay focused, productive, and comfortable in all working conditions.

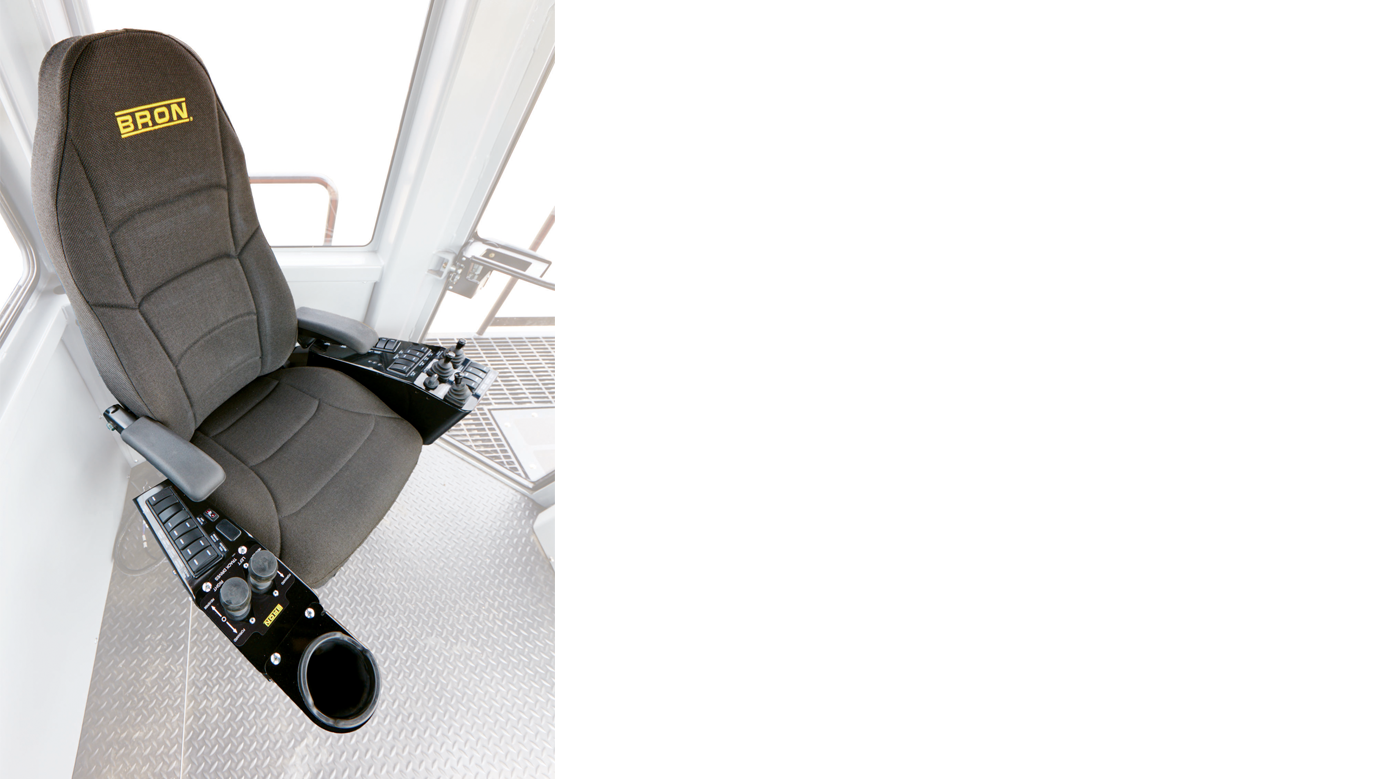

Swivel Seat With Mounted Controls
The high-back swivel seat is a standard feature, designed to maximize operator comfort and visibility during long workdays. Armrest-mounted plow and tractor controls rotate with the seat, keeping all primary functions within reach. This ergonomic layout reduces operator strain and fatigue while improving precision, control, and overall ease of operation in demanding applications.

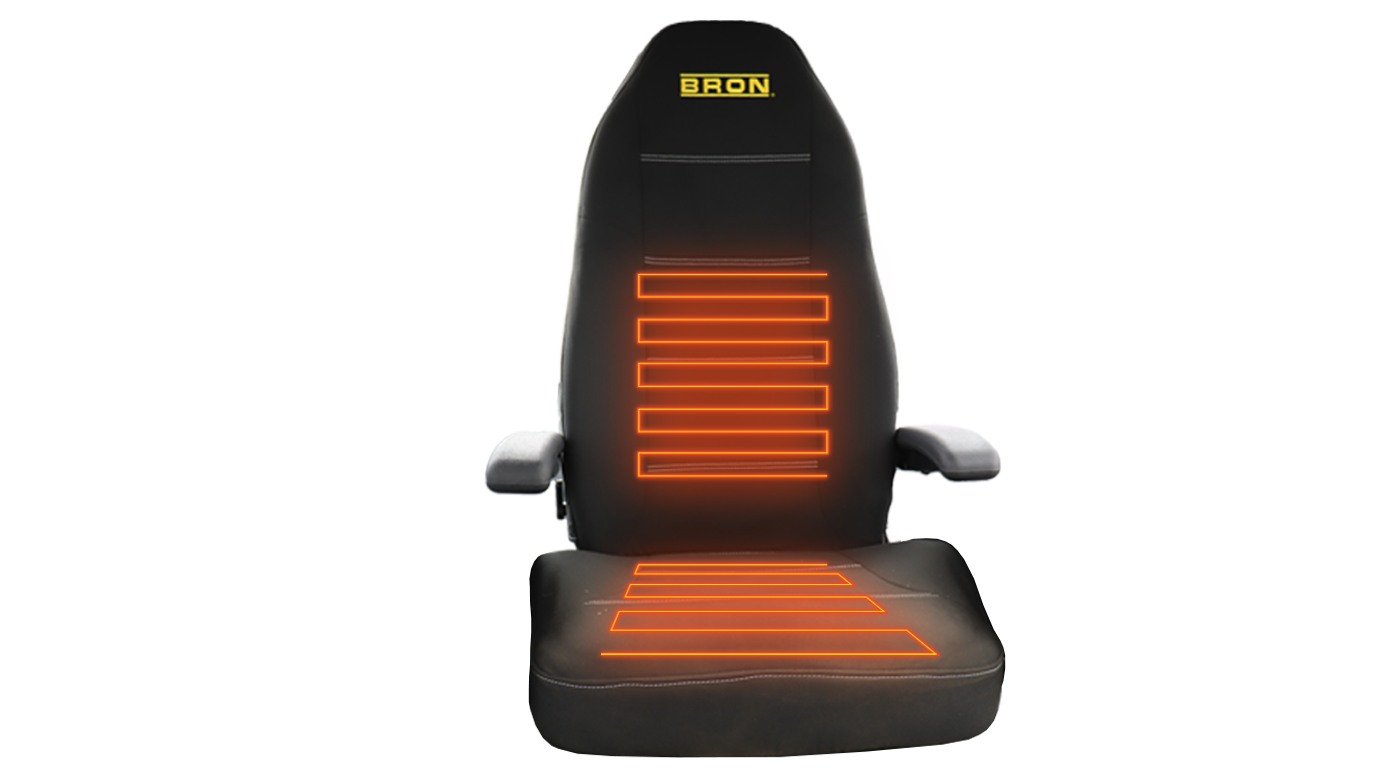

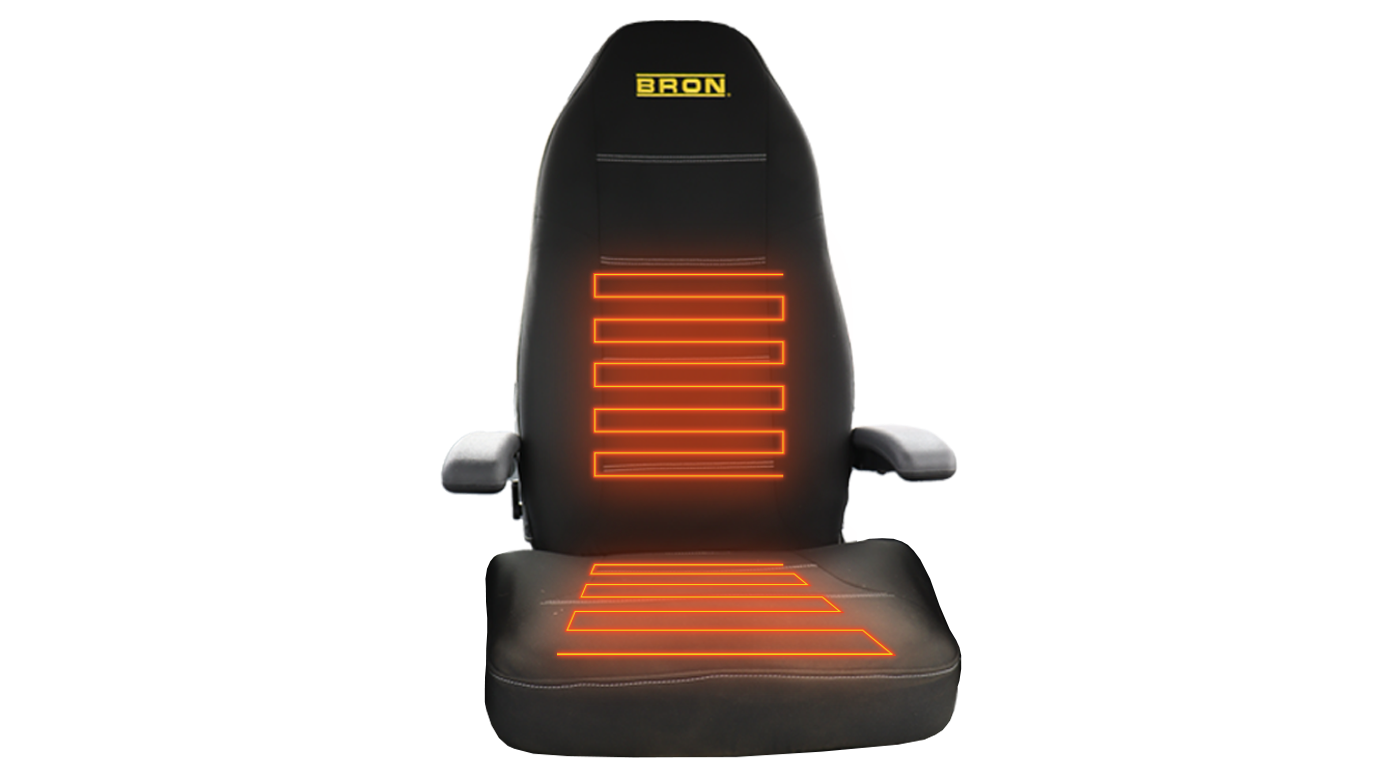

Heated Operator Seat
The heated operator seat provides added comfort in cold-weather conditions, helping maintain warmth and circulation during extended operating hours. Integrated heating reduces stiffness and fatigue, allowing the operator to stay focused, comfortable, and productive throughout the workday, especially in the winter and early-morning.

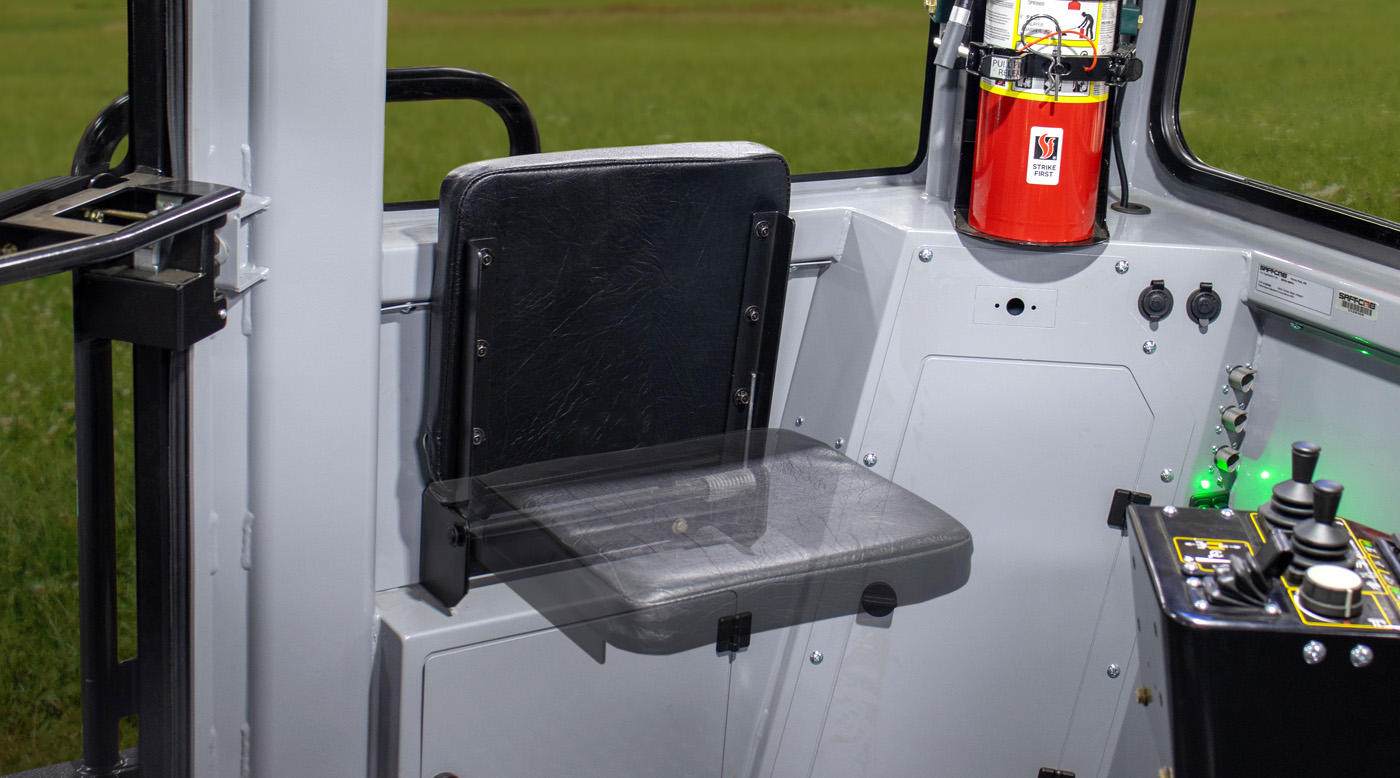

Passenger Seat
The integrated buddy seat provides space for a second occupant, making it ideal for operator training and on-the-job instruction. It allows trainers or supervisors to ride along safely while observing operation and providing real-time guidance.

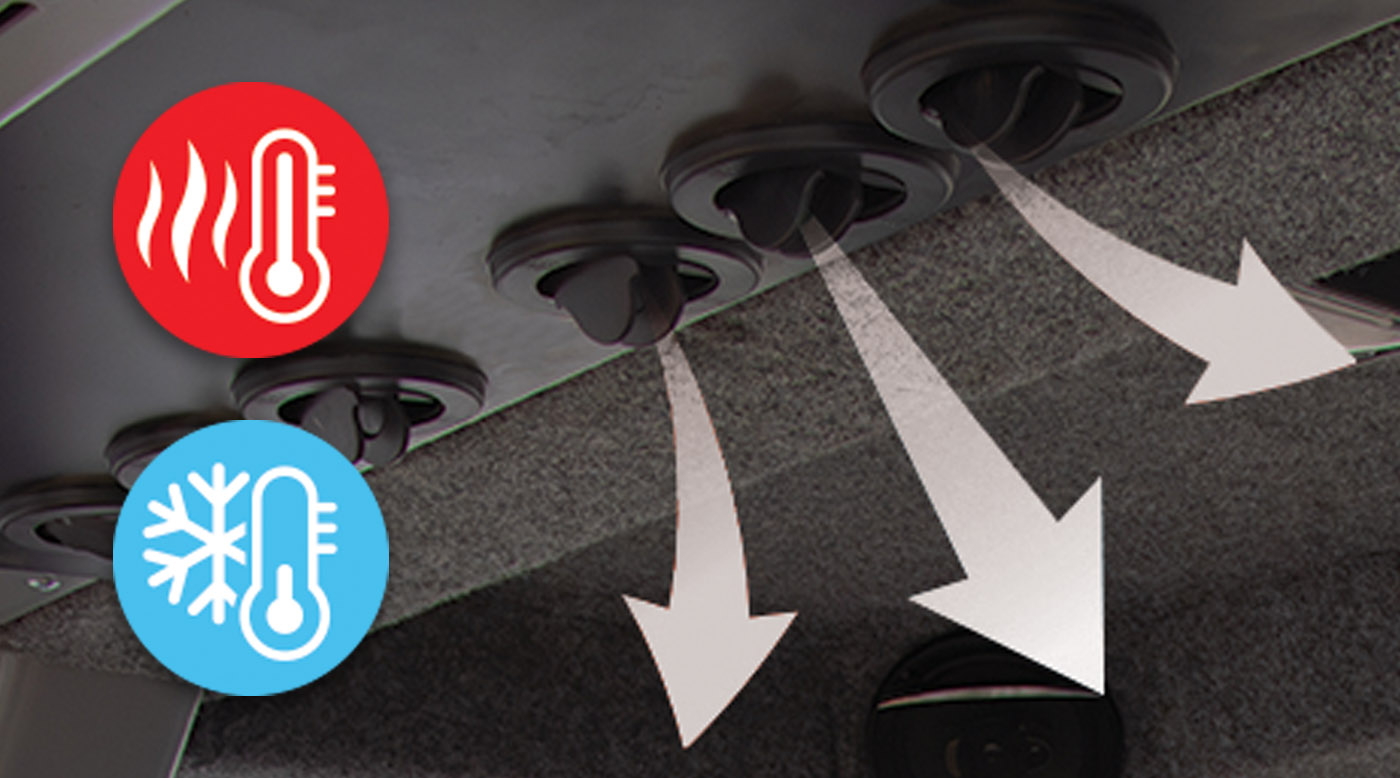

Climate Control A/C & Heated
The climate-controlled cab features integrated air conditioning and heating to maintain a comfortable operating environment in all weather conditions, helping reduce fatigue and keep operators productive year-round.

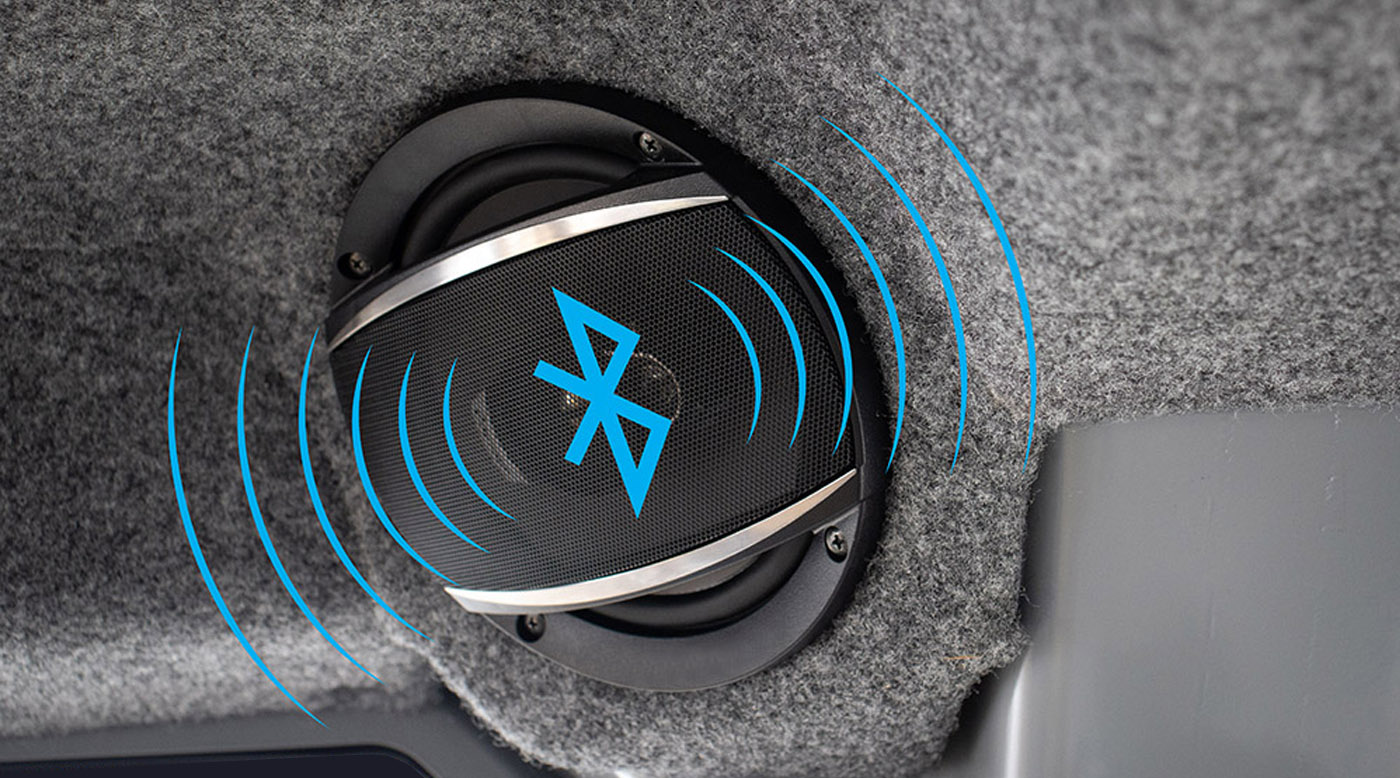

Bluetooth & Radio Equipped Audio System
The digital media receiver features AM/FM radio, USB input, and built-in Bluetooth®, allowing operators to stream audio directly from a mobile device for added convenience and comfort during long workdays.

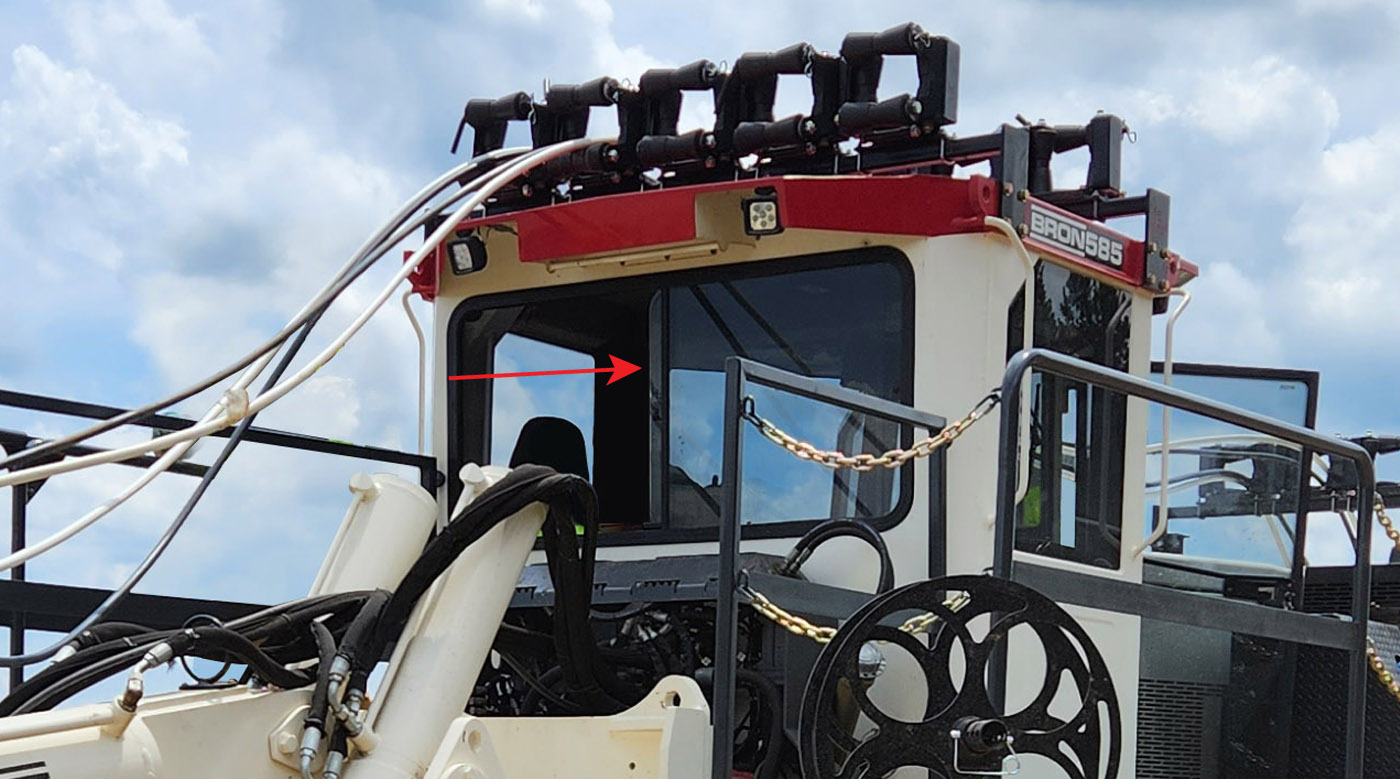

Sliding Rear Window
The sliding rear window provides quick access to the rear of the machine for improved visibility, communication, and convenience during operation. Designed for ease of use, it allows operators to interact with the jobsite without leaving the cab.

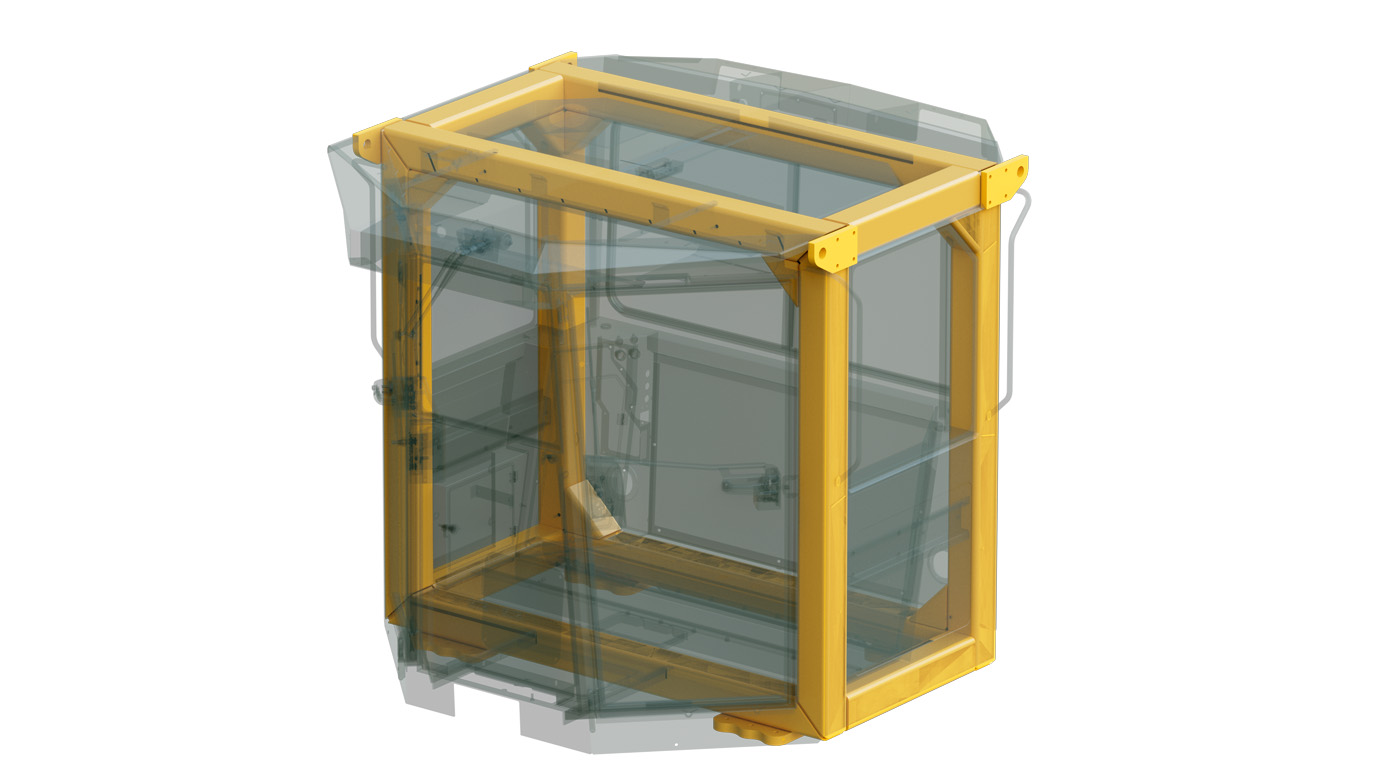

ROPS Certified
The ROPS certified structure is designed to protect the operator in the event of a rollover. Provides essential safety without compromising visibility or access during utility operations.

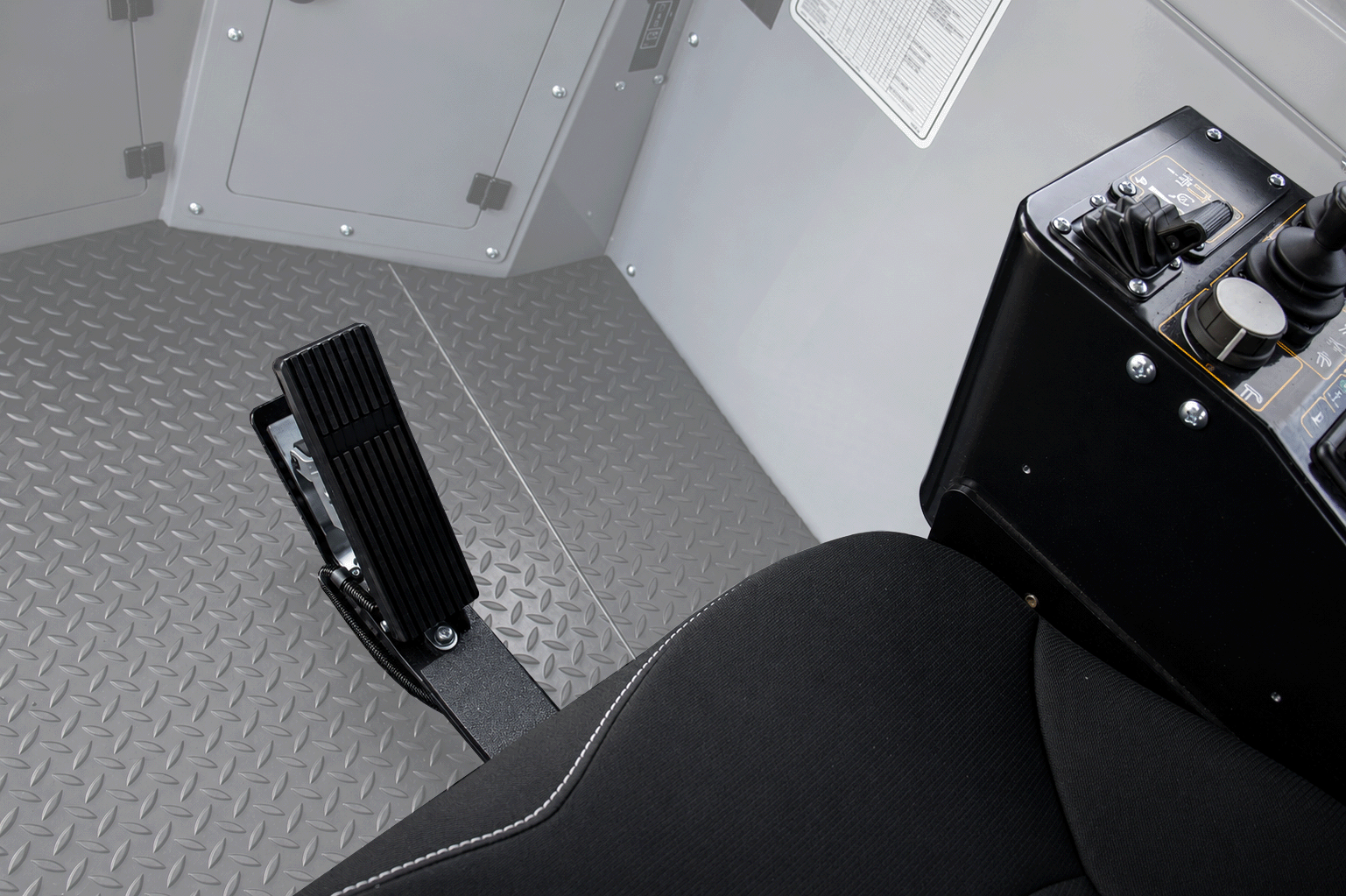

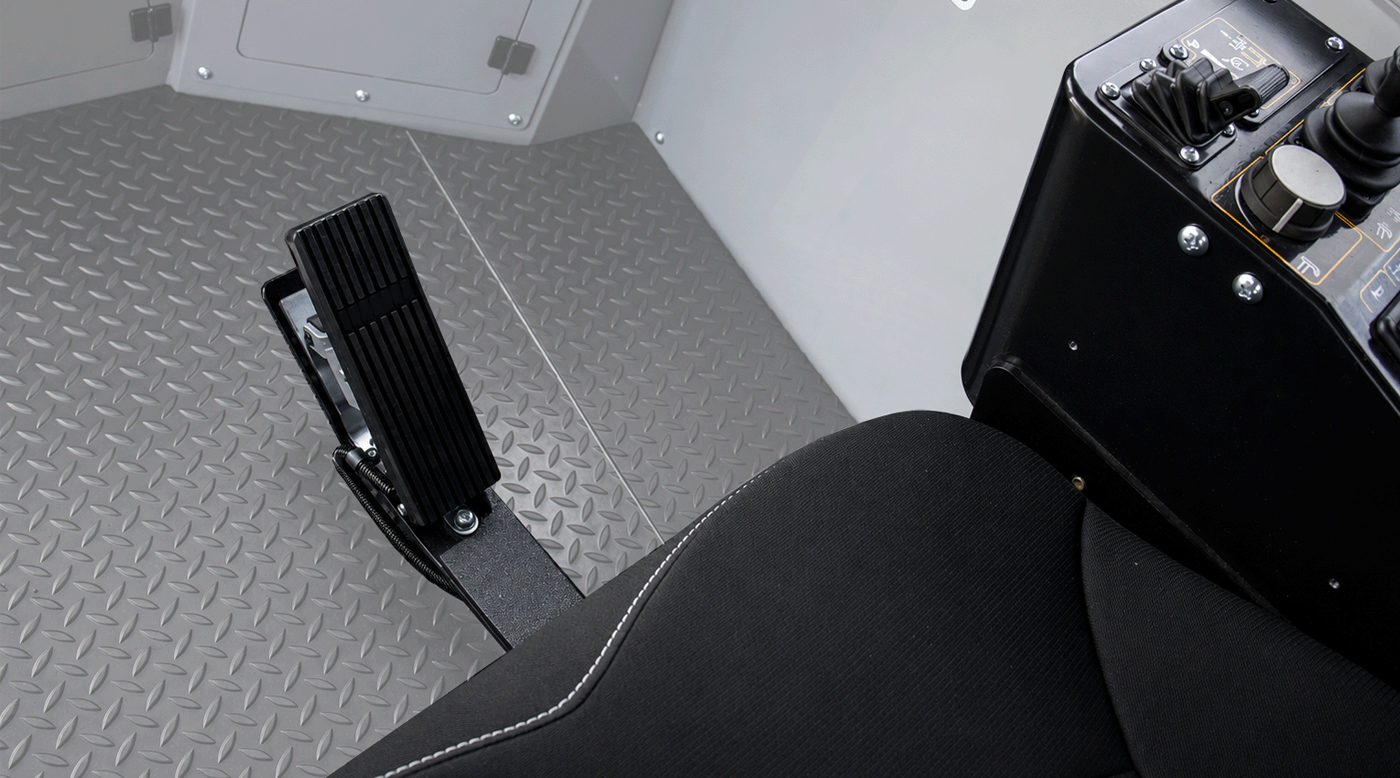

Decelerator Pedal
The Decelerator Pedal allows the operator to slow ground speed without reducing engine RPM or hydraulic output. This feature provides precise control for specific applications by maintaining full hydraulic flow to the plow while operating at slower travel speeds. The result is improved control, smoother operation, and consistent performance during demanding installation work.
Self-Levelling
To ensure precise plow installations, consistent grading, and improved traction, we utilize a self-levelling track system that automatically adjusts hydraulic cylinders to keep the machine level when working on slopes or uneven ground.

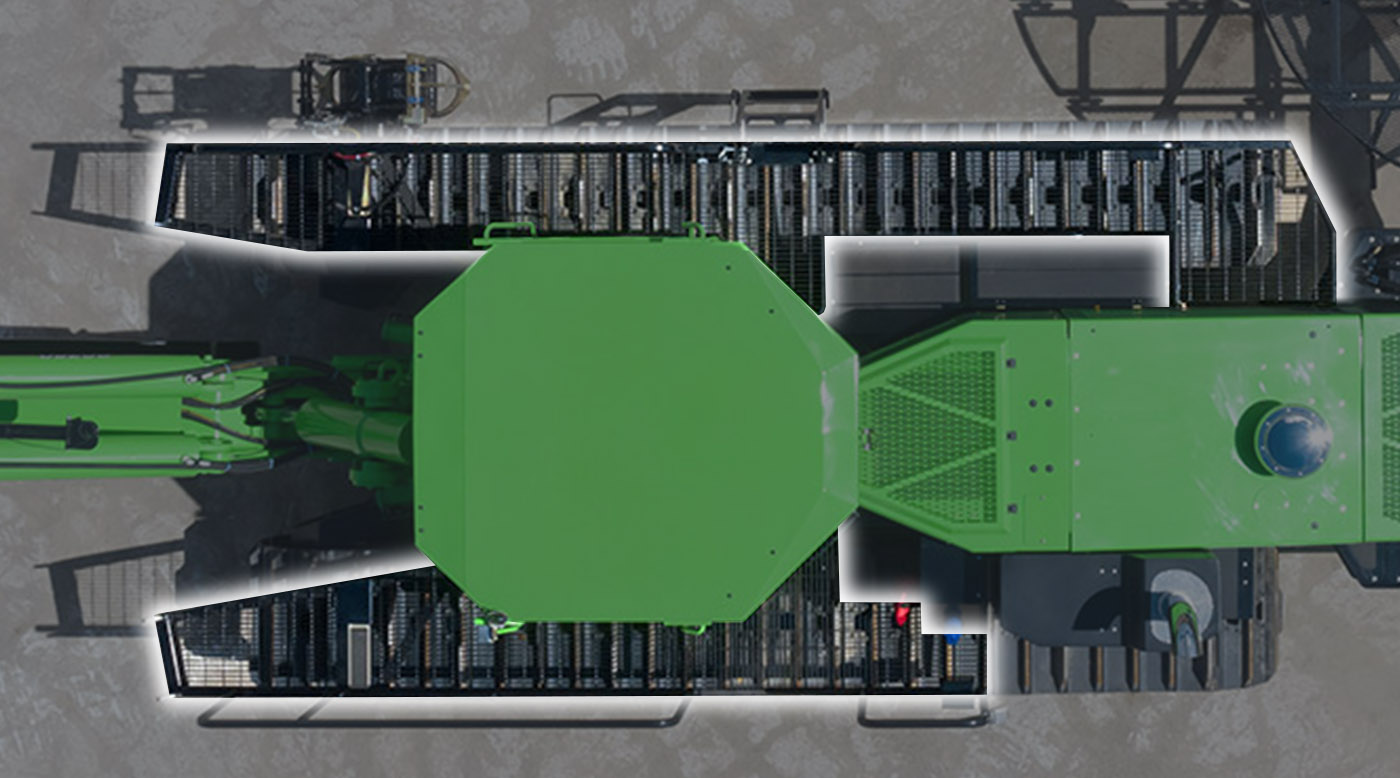

Catwalks
The BRON 585UT comes equipped with heavy duty catwalks, intended to provide safe and convenient access to key service points and operator areas.

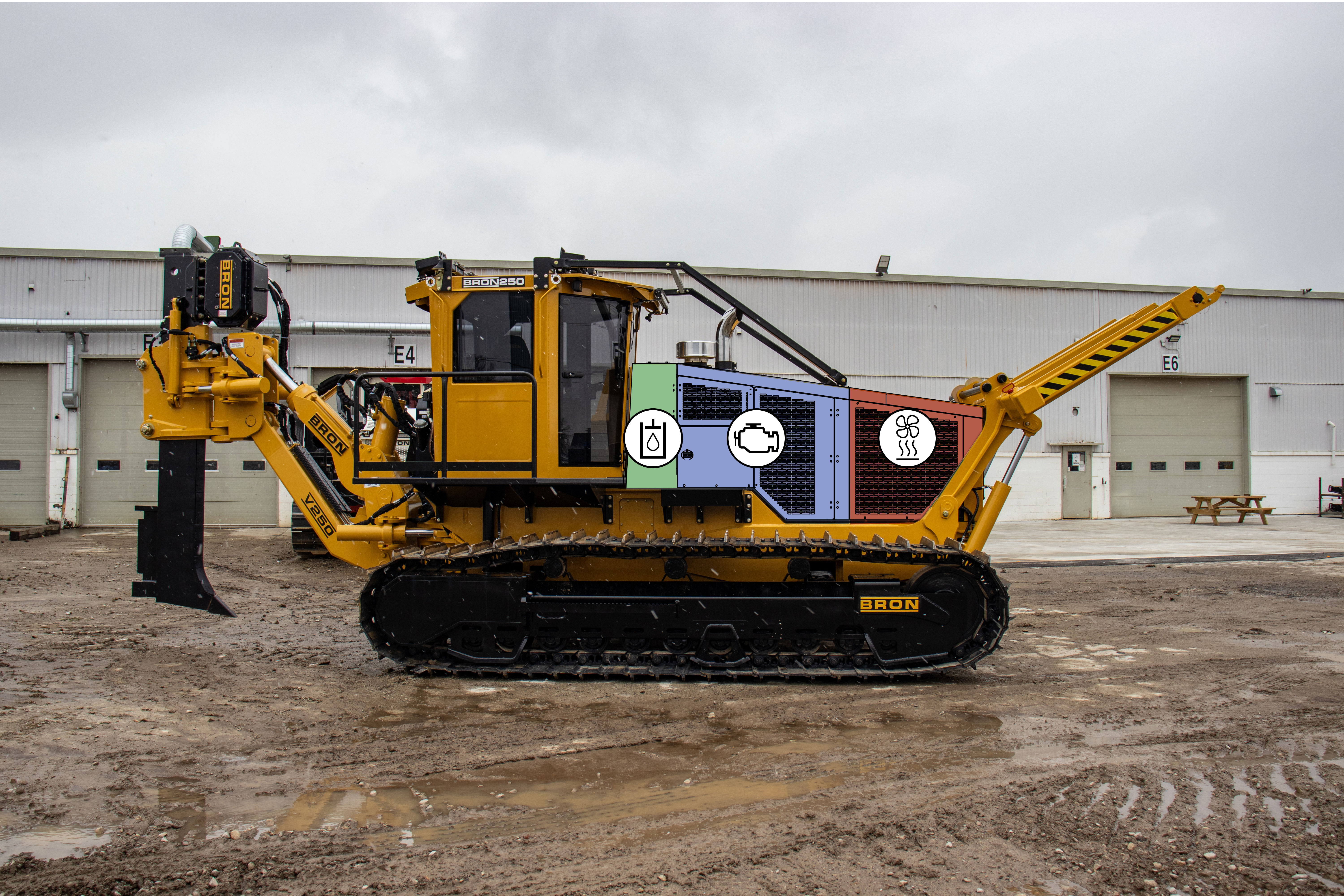

Separate Compartments
Divided into separate compartments for engine, hydraulics, and heat rejection, thereby separating hot ignition points from potential fuel sources. Keeps each compartment cleaner, making it easier to service and maintain for the duration of your ownership.

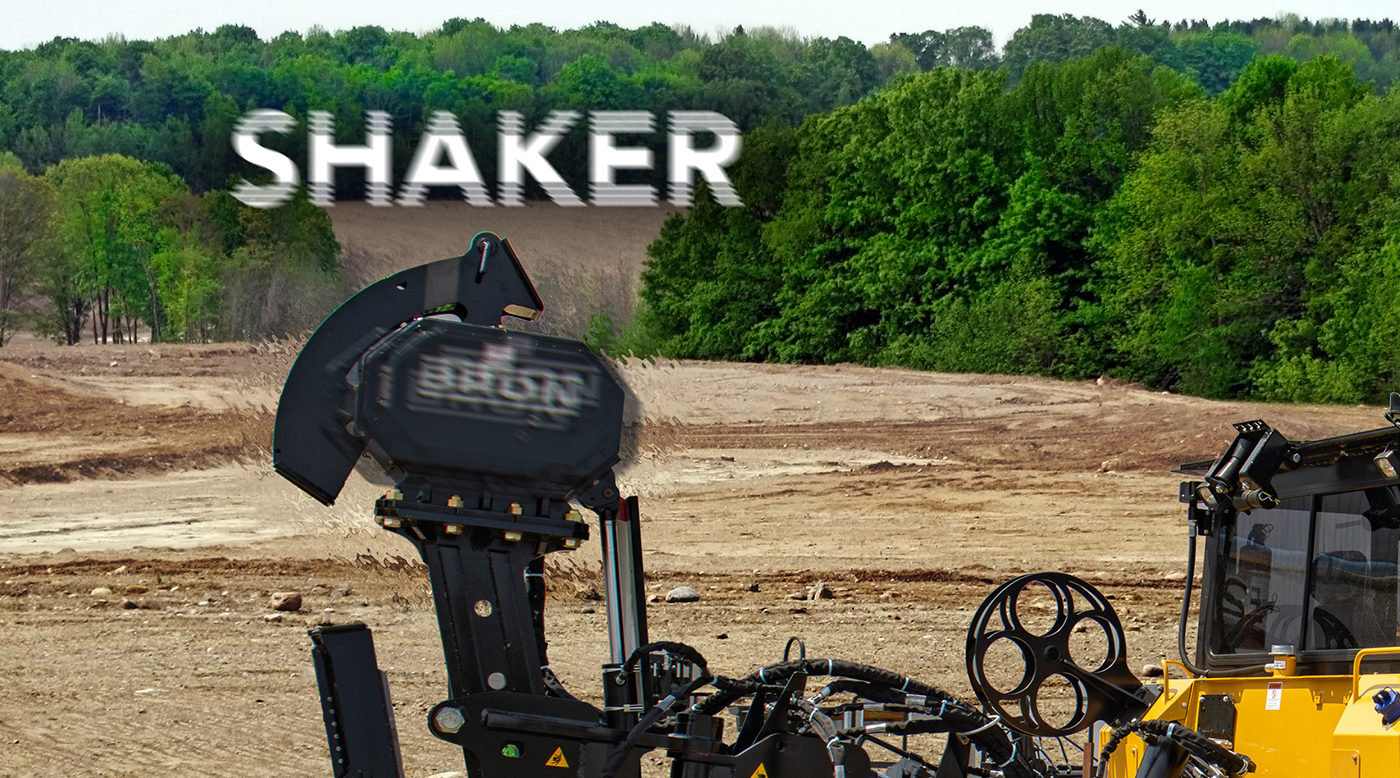

Vibratory - Blade Mounted
The blade-mounted vibratory system delivers vibration directly to the blade for maximum effectiveness. By applying energy at the point of soil engagement, it reduces required pull force, improves penetration in tough ground conditions, and increases overall installation efficiency. Designed for demanding utility applications, this system enhances performance while minimizing stress on the power unit.

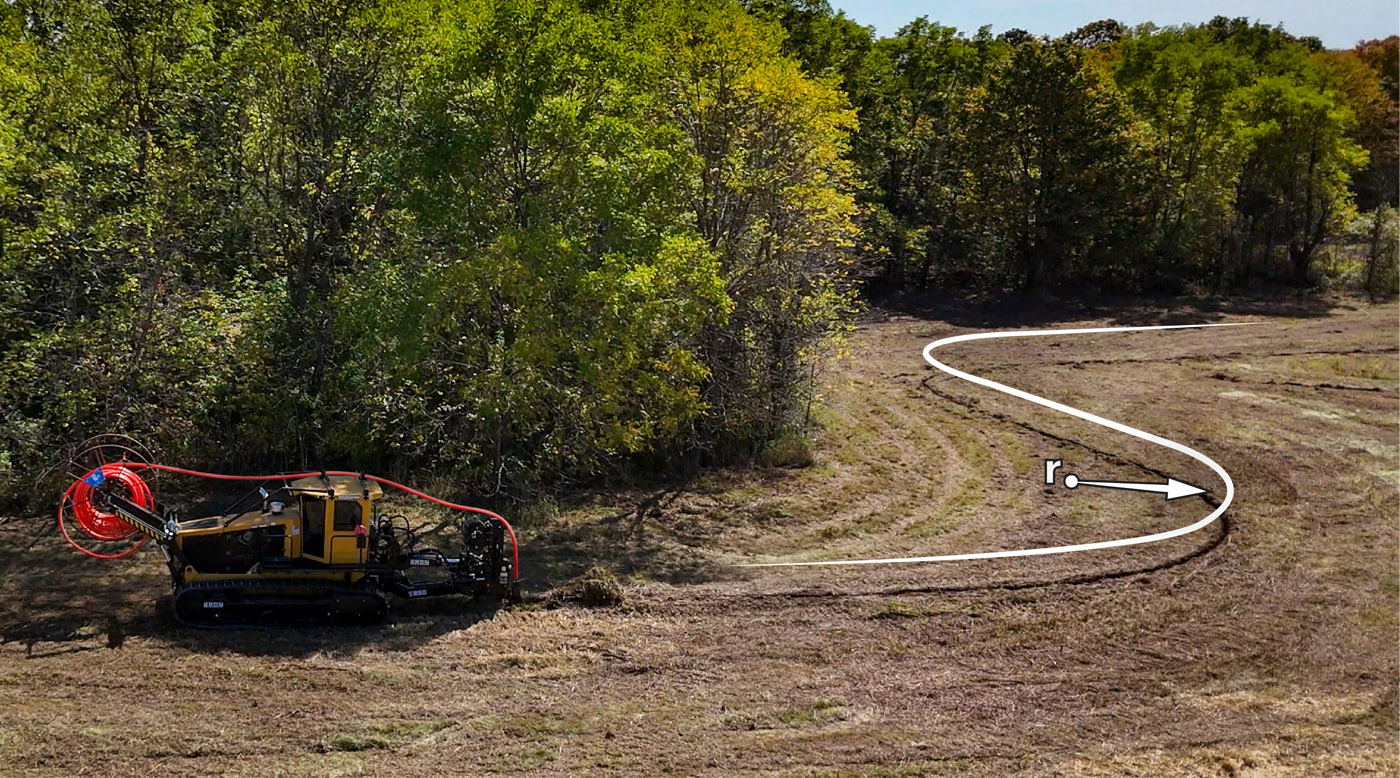

Tight Turning Radius
The tight turning radius allows BRON Utility Tractors to maneuver easily in confined spaces and tight job sites. This design improves control around obstacles, reduces repositioning time, and increases overall productivity during utility installations.

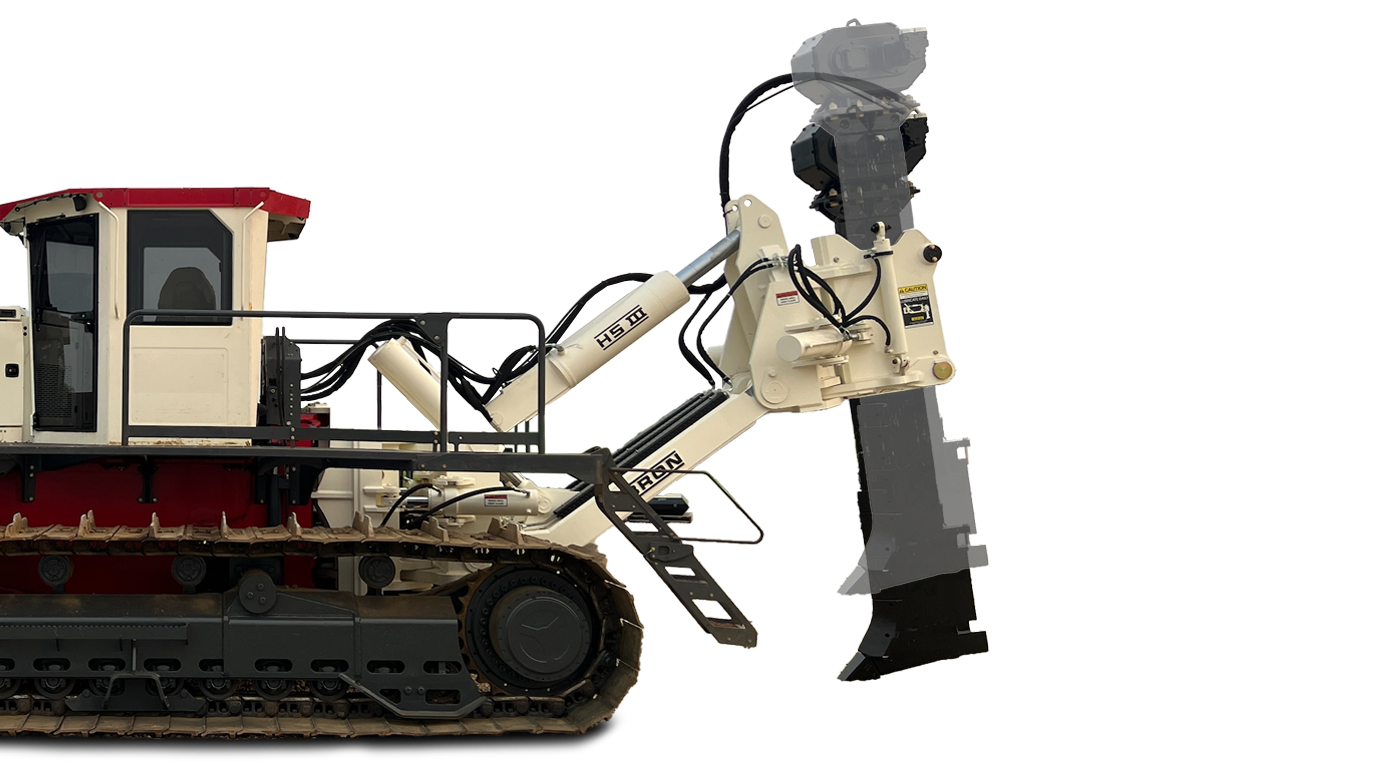

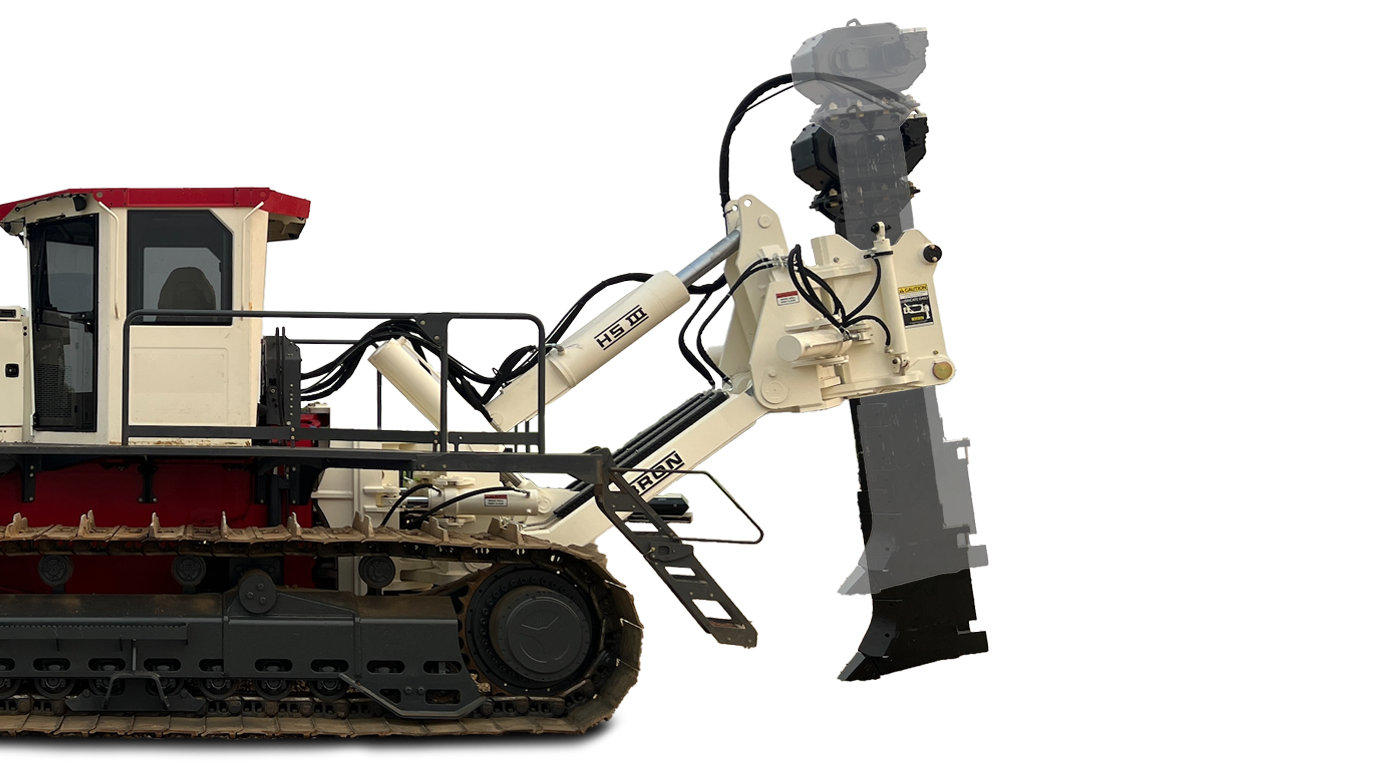

Hydraulic Blade Height Adjustment
Hydraulic blade height adjustment allows operators to precisely control blade height from the cab. This feature ensures accurate depth control, smooth transitions, and consistent installation performance across varying ground conditions.

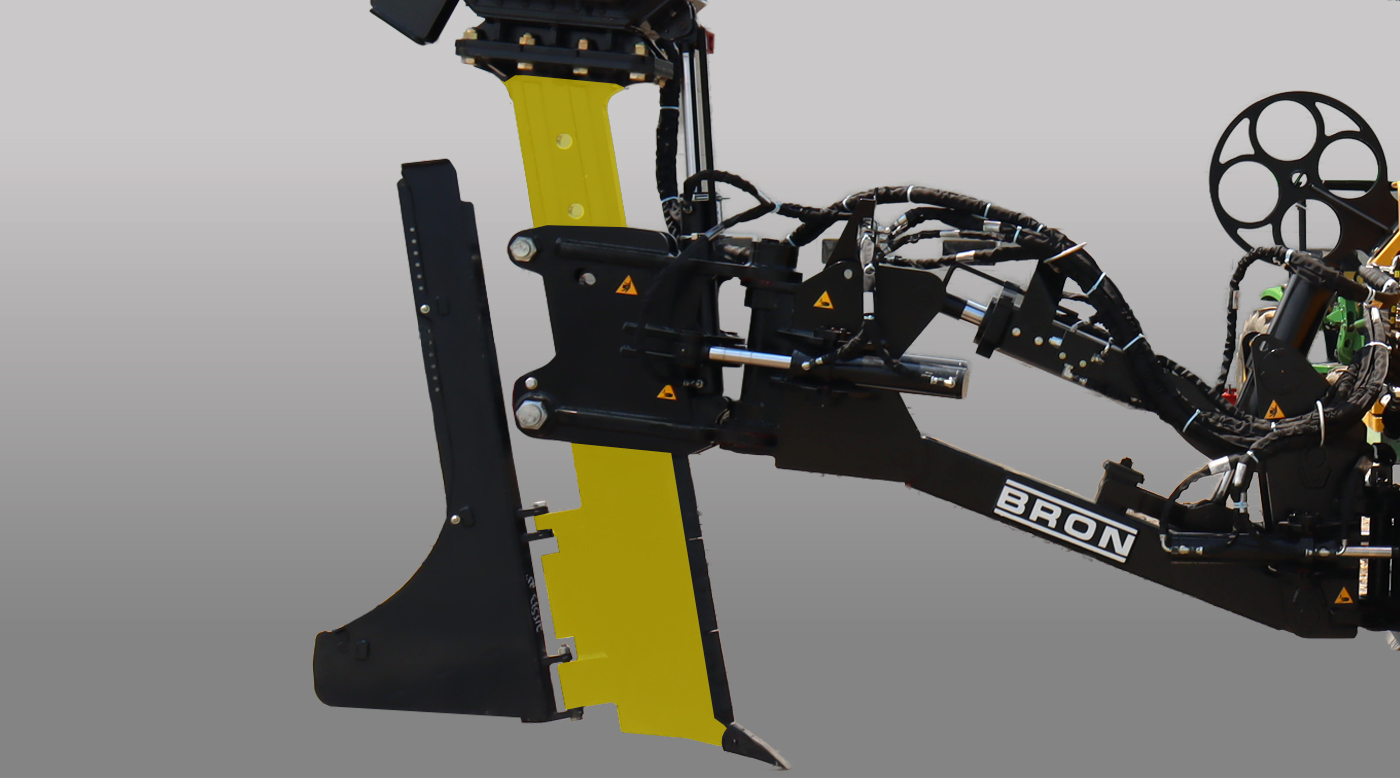

Abrasion Resistant Shank
Manufactured from high wear steel, the shank is designed to withstand abrasive soil conditions and high operating loads. This durable construction maintains consistent cutting performance while extending service life and reducing downtime.

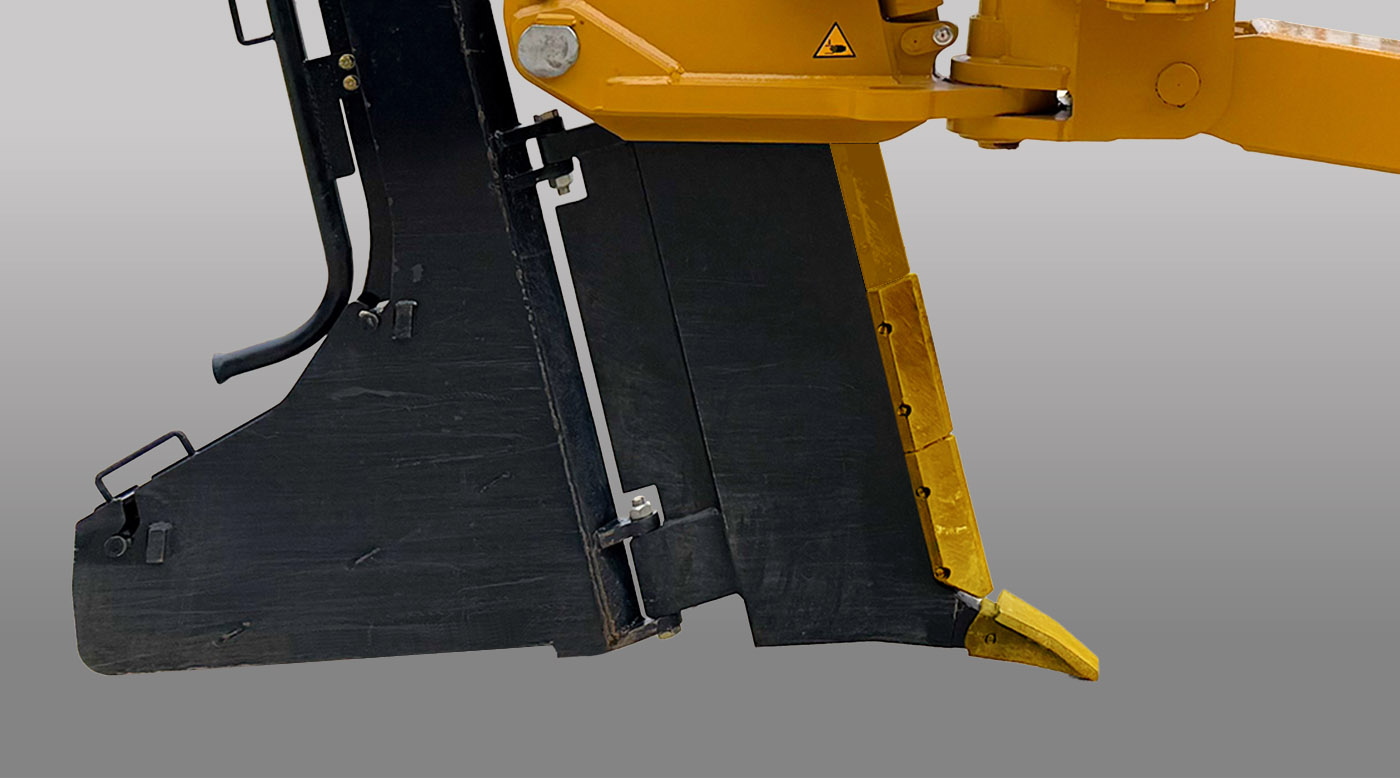

Replaceable Cutting Edges & Tip
Replaceable cutting edges and tips are designed to handle abrasive soil conditions while maintaining consistent cutting performance. Easily serviceable components reduce downtime and operating costs by allowing worn edges and tips to be replaced without removing the blade, ensuring long-term durability and field-proven reliability.

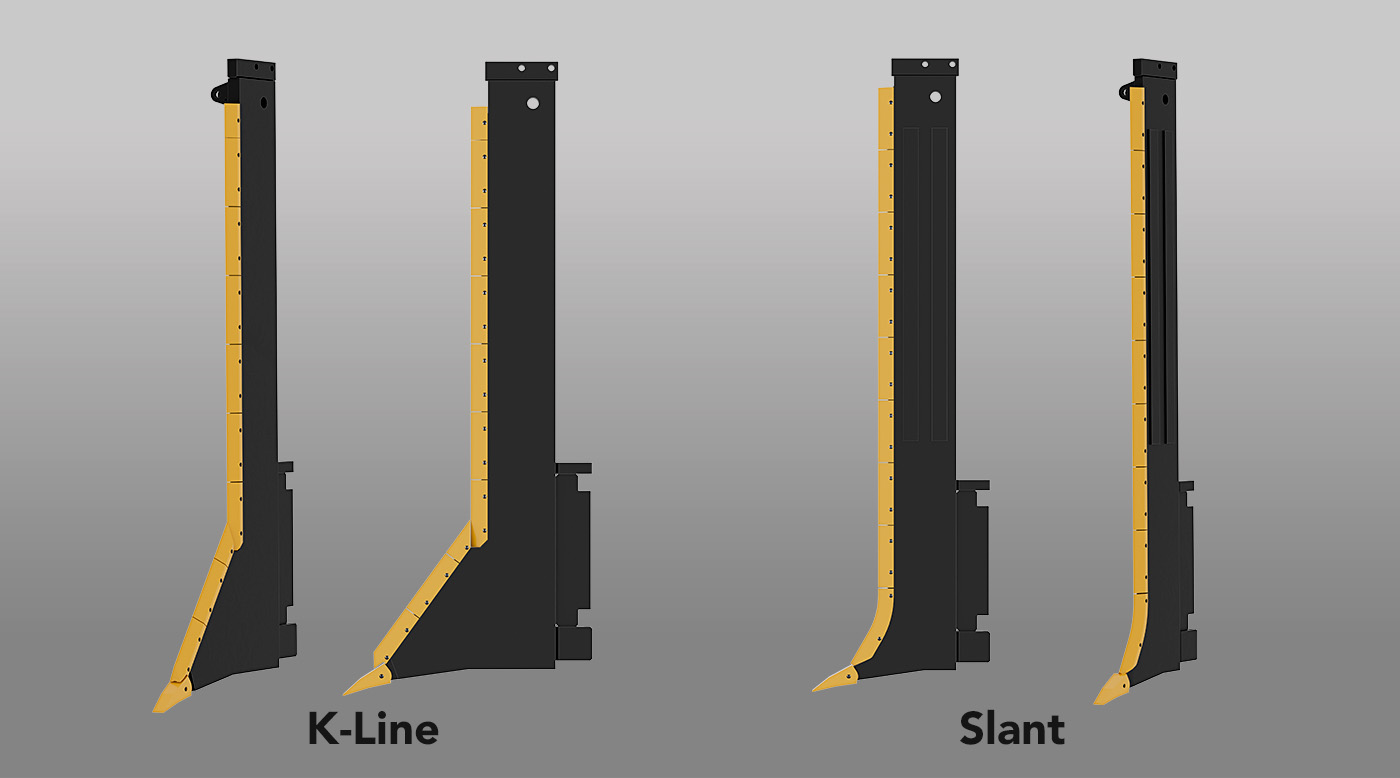

K-Line & Slant - Various Shank Profiles
BRON offers both K-Line and Slant shank profiles to suit varying soil conditions and installation requirements. K-Line shanks provide a more aggressive cutting profile for tougher ground, while Slant shanks reduce spoil and ground disturbance. Both designs are engineered to optimize pull force, maintain consistent depth, and deliver field-proven performance.

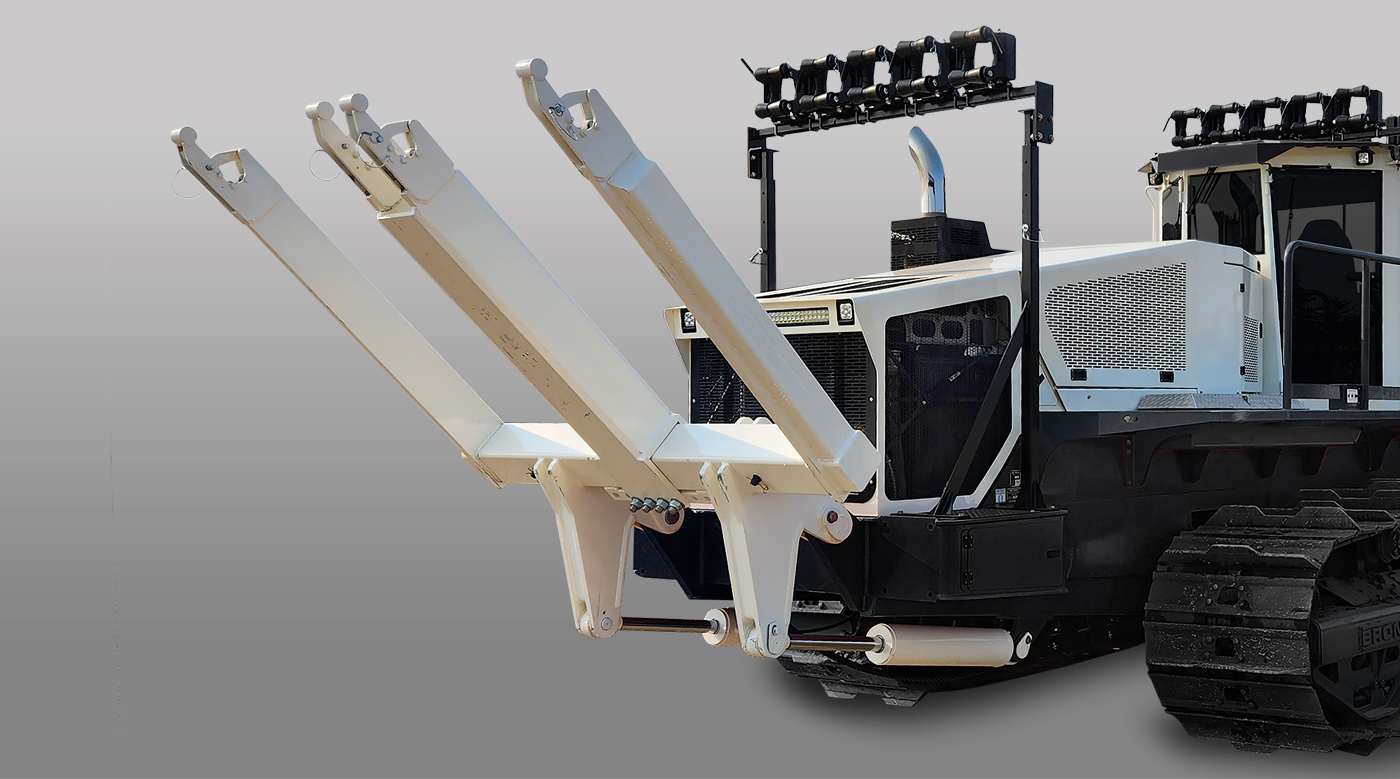

Adjustable Dual Reel Carrier
The 8,000 lb reel carrier can handle two spools of product for ease of dual installation. This reel carrier setup reduces downtime and improves jobsite productivity while keeping cables, conduit, or pipe organized and ready for continuous operation. - optional hyd., triple available.

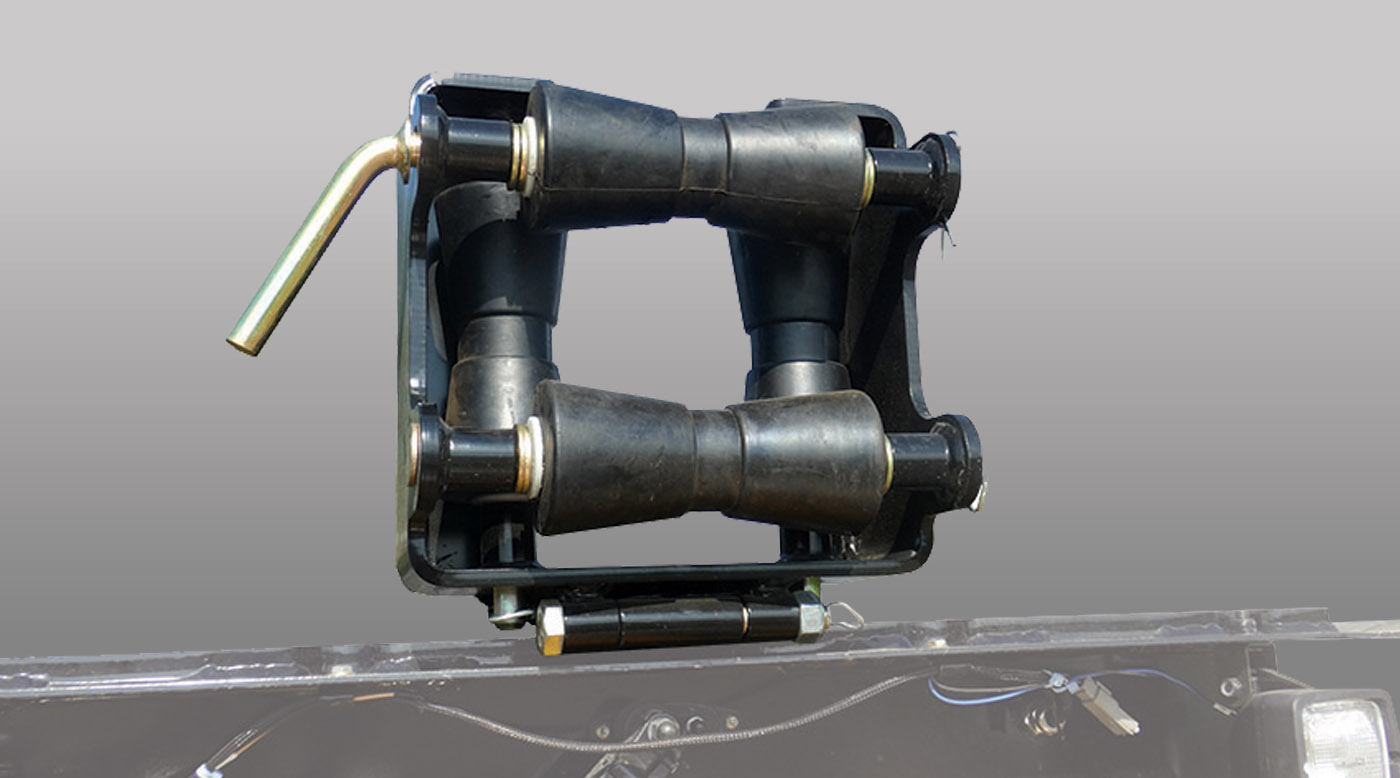

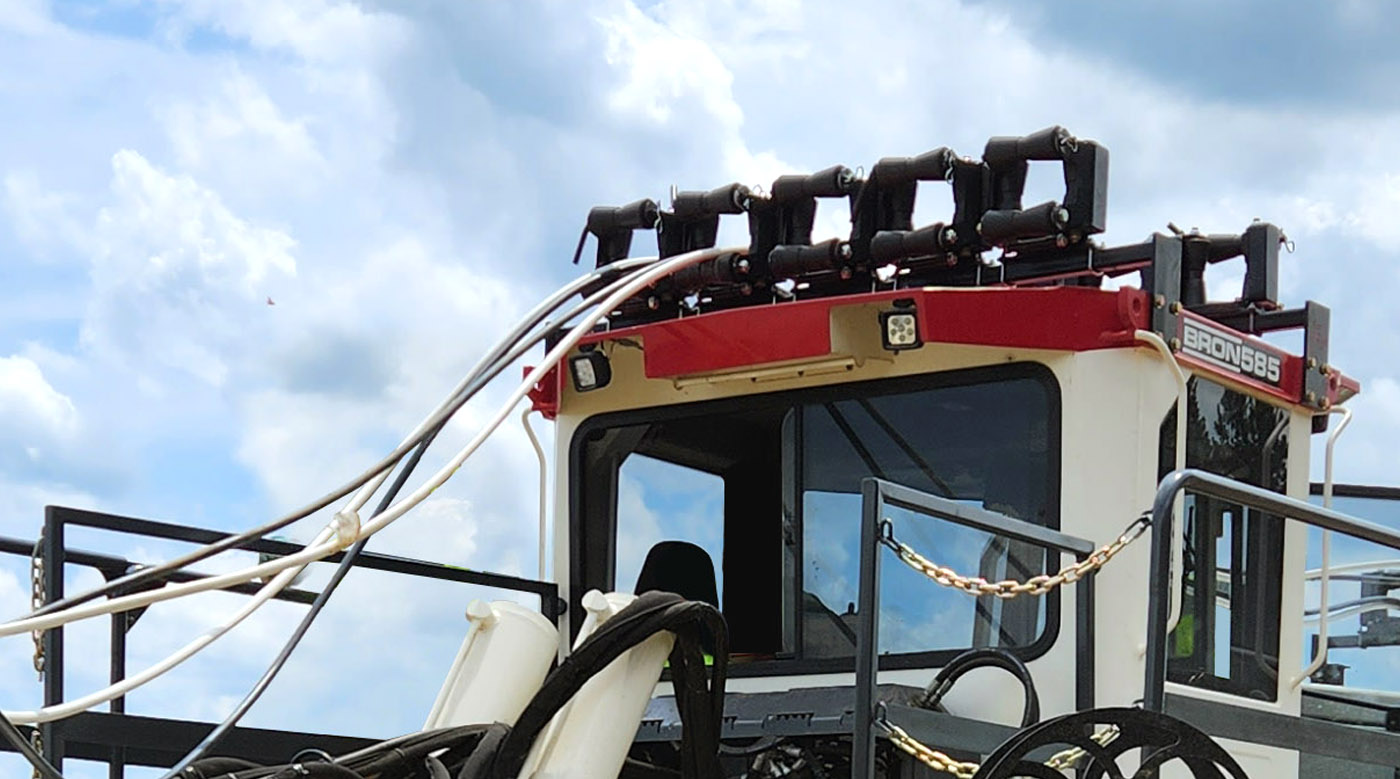

Fairleads
Fairleads on the cab-roof and a slider chute on the plow keep the cables in line, organized and ready for installation. Custom slider chutes, additional fairleads, and 40 fairleads are available as options.

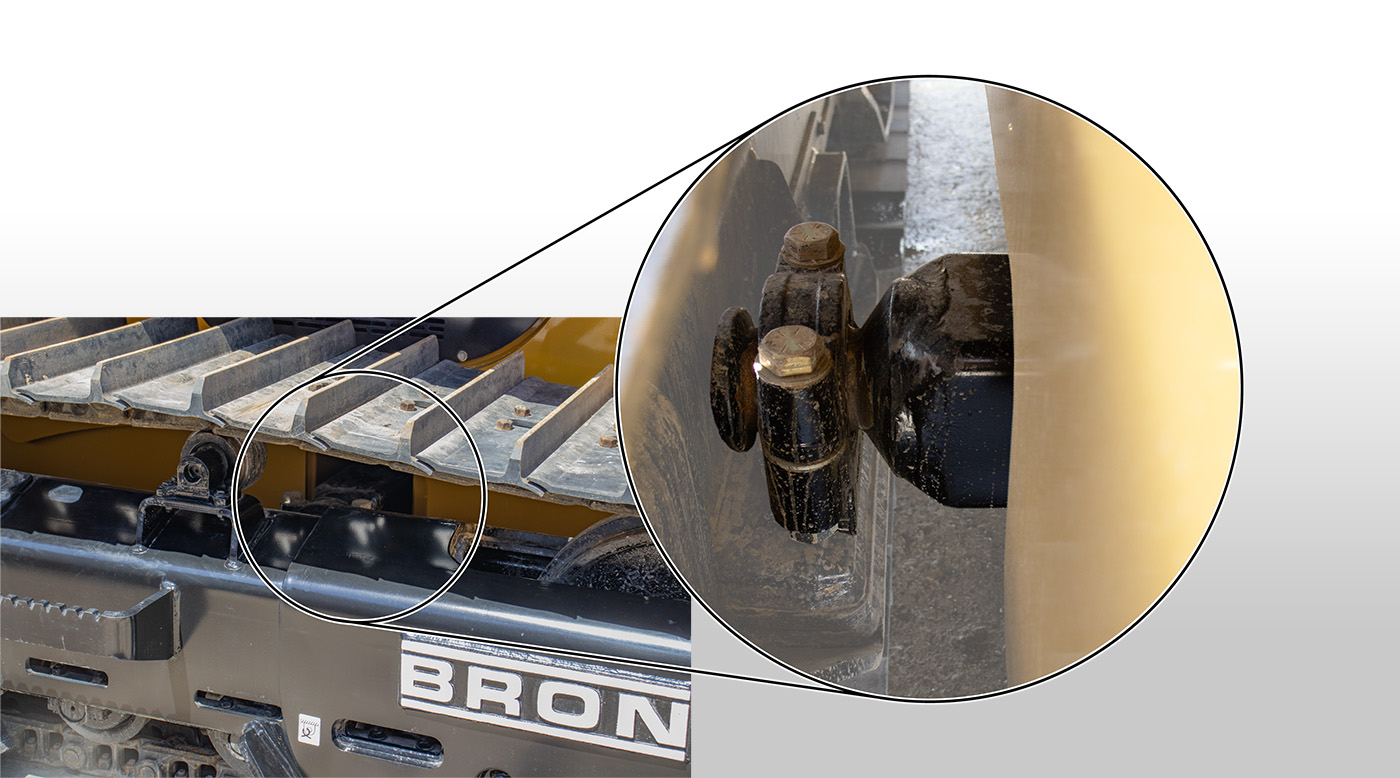

Trunnion Ball
The trunnion ball is a dry, maintenance-free spherical connection, used on the front axle and reel carrier frame mount connection. Designed to handle machine movement in demanding ground conditions, it allows pivotal motion while providing clearance for misalignment as the undercarriage oscillates. With no grease points required, this connection reduces daily service time and wear compared to traditional pinned joints.
Cat C13B or John Deere JD14 Engine
The 585 Utility Tractor has two engine Tier 4 compliant power options: The CAT 13B is a 12.5 L turbo diesel engine that produces remarkable power and torque in a smaller, lighter size for long life and performance in the toughest conditions. The John Deere JD14 engine is a compact heavy-duty 13.5 L turbo diesel engine designed to provide high power density, efficiency, and durability in high load extreme conditions.
Manufacturer Validation
Every BRON powertrain is developed in collaboration with leading engine manufacturers like Cummins, Caterpillar, and John Deere. Each installation is reviewed to ensure the engine, cooling, emissions, and electrical systems work seamlessly together—so your machine is fully supported for long-term performance in the field.
Hydraulic Oil Fill
The Electric Hydraulic Oil Fill Pump System provides a clean, efficient way to add hydraulic oil without manual lifting or risk of contamination. Using an electric pump, oil is transferred directly into the hydraulic system, reducing service time and minimizing the chance of introducing dirt or debris. This system improves maintenance safety, accuracy, and consistency while keeping equipment ready for reliable operation in the field.
Separated Engine & Hydraulic Compartments
To enhance overall safety, reliability, and peace of mind in demanding operating conditions, BRON Utility Tractors are built with a separated engine and hydraulic compartments. Engineered with a skirted firewall design to isolate hydraulic components from the engine bay, this separation prevents hydraulic oil from spraying onto hot engine surfaces or the turbocharger in the event of a leak, significantly reducing fire risk.
Single Layer All-In-One Cooling Package
The Single-Layer All-In-One Cooling Package is engineered for maximum efficiency, durability, and ease of service. Rated for continuous duty in ambient temperatures up to 50 °C, this best-in-class system meets the cooling demands of Tier 4 Final engines to help prolong engine life. The single-layer design provides easy, direct access for cleaning, reducing maintenance time while ensuring consistent performance in extreme working conditions
Oscillating Tracks
Helping to maintain ground contact and traction across uneven terrain, oscillating tracks can increase installation accuracy, reduce operator fatigue, and minimize ground disturbance. Tracks pivot independently for maximum traction while hydraulic cylinders keep the machine level for perfect grading across sloped surfaces.
Long Track Frame
The BRON 250UT and 585UT are engineered with longer track frames than comparable OEM dozers in their class. Keeping the operation in mind, longer track frames provide a larger ground contact area, improves traction, flotation, and overall stability, especially when pulling heavy loads or working in soft or uneven terrain.
D7 Undercarriage
The BRON 585 comes standard with a durable D7 Undercarriage. Providing the perfect balance of power and ground pressure, the D7 Undercarriage offers exceptional flotation and drawbar pull while maintaining a low ground pressure of just 5.0 psi.
Elastomeric Tensioner
Designed for long-term reliability by using a rubber-like material as a spring system which eliminates mechanical parts that can break or nitrogen accumulators that may leak.
Track Guides
The BRON 175HD, 250UT, and 585UT feature mid-guides designed to support the track pads during oscillation, ensuring smoother operation, improved stability, and longer track life. These mid-guides help maintain proper track alignment as the tracks pivot over uneven terrain.
Visibility - 360-Degree View
360-Degree Cab Visibility provides the operator with a clear view in all directions from the cab, improving awareness with the jobsite, attachment, and surrounding obstacles. Large windows and optimized cab layout enhance sightlines to the blade, reel, and jobsite. This improved visibility increases operating confidence, precision, and overall jobsite safety.
Spacious Interior
The Spacious Interior features a large, heated and air-conditioned cab designed for all-day operator comfort. Generous legroom, wide sightlines, and an ergonomic layout reduce fatigue during long shifts. This comfortable, climate-controlled environment helps operators stay focused, productive, and comfortable in all working conditions.
Swivel Seat With Mounted Controls
The high-back swivel seat is a standard feature, designed to maximize operator comfort and visibility during long workdays. Armrest-mounted plow and tractor controls rotate with the seat, keeping all primary functions within reach. This ergonomic layout reduces operator strain and fatigue while improving precision, control, and overall ease of operation in demanding applications.
Heated Operator Seat
The heated operator seat provides added comfort in cold-weather conditions, helping maintain warmth and circulation during extended operating hours. Integrated heating reduces stiffness and fatigue, allowing the operator to stay focused, comfortable, and productive throughout the workday, especially in the winter and early-morning.
Passenger Seat
The integrated buddy seat provides space for a second occupant, making it ideal for operator training and on-the-job instruction. It allows trainers or supervisors to ride along safely while observing operation and providing real-time guidance.
Climate Control A/C & Heated
The climate-controlled cab features integrated air conditioning and heating to maintain a comfortable operating environment in all weather conditions, helping reduce fatigue and keep operators productive year-round.
Bluetooth & Radio Equipped Audio System
The digital media receiver features AM/FM radio, USB input, and built-in Bluetooth®, allowing operators to stream audio directly from a mobile device for added convenience and comfort during long workdays.
Sliding Rear Window
The sliding rear window provides quick access to the rear of the machine for improved visibility, communication, and convenience during operation. Designed for ease of use, it allows operators to interact with the jobsite without leaving the cab.
ROPS Certified
The ROPS certified structure is designed to protect the operator in the event of a rollover. Provides essential safety without compromising visibility or access during utility operations.
Decelerator Pedal
The Decelerator Pedal allows the operator to slow ground speed without reducing engine RPM or hydraulic output. This feature provides precise control for specific applications by maintaining full hydraulic flow to the plow while operating at slower travel speeds. The result is improved control, smoother operation, and consistent performance during demanding installation work.
Self-Levelling
To ensure precise plow installations, consistent grading, and improved traction, we utilize a self-levelling track system that automatically adjusts hydraulic cylinders to keep the machine level when working on slopes or uneven ground.
Catwalks
The BRON 585UT comes equipped with heavy duty catwalks, intended to provide safe and convenient access to key service points and operator areas.
Separate Compartments
Divided into separate compartments for engine, hydraulics, and heat rejection, thereby separating hot ignition points from potential fuel sources. Keeps each compartment cleaner, making it easier to service and maintain for the duration of your ownership.
Vibratory - Blade Mounted
The blade-mounted vibratory system delivers vibration directly to the blade for maximum effectiveness. By applying energy at the point of soil engagement, it reduces required pull force, improves penetration in tough ground conditions, and increases overall installation efficiency. Designed for demanding utility applications, this system enhances performance while minimizing stress on the power unit.
Tight Turning Radius
The tight turning radius allows BRON Utility Tractors to maneuver easily in confined spaces and tight job sites. This design improves control around obstacles, reduces repositioning time, and increases overall productivity during utility installations.
Hydraulic Blade Height Adjustment
Hydraulic blade height adjustment allows operators to precisely control blade height from the cab. This feature ensures accurate depth control, smooth transitions, and consistent installation performance across varying ground conditions.
Abrasion Resistant Shank
Manufactured from high wear steel, the shank is designed to withstand abrasive soil conditions and high operating loads. This durable construction maintains consistent cutting performance while extending service life and reducing downtime.
Replaceable Cutting Edges & Tip
Replaceable cutting edges and tips are designed to handle abrasive soil conditions while maintaining consistent cutting performance. Easily serviceable components reduce downtime and operating costs by allowing worn edges and tips to be replaced without removing the blade, ensuring long-term durability and field-proven reliability.
K-Line & Slant - Various Shank Profiles
BRON offers both K-Line and Slant shank profiles to suit varying soil conditions and installation requirements. K-Line shanks provide a more aggressive cutting profile for tougher ground, while Slant shanks reduce spoil and ground disturbance. Both designs are engineered to optimize pull force, maintain consistent depth, and deliver field-proven performance.
Adjustable Dual Reel Carrier
The 8,000 lb reel carrier can handle two spools of product for ease of dual installation. This reel carrier setup reduces downtime and improves jobsite productivity while keeping cables, conduit, or pipe organized and ready for continuous operation. - optional hyd., triple available.
Fairleads
Fairleads on the cab-roof and a slider chute on the plow keep the cables in line, organized and ready for installation. Custom slider chutes, additional fairleads, and 40 fairleads are available as options.
Trunnion Ball
The trunnion ball is a dry, maintenance-free spherical connection, used on the front axle and reel carrier frame mount connection. Designed to handle machine movement in demanding ground conditions, it allows pivotal motion while providing clearance for misalignment as the undercarriage oscillates. With no grease points required, this connection reduces daily service time and wear compared to traditional pinned joints.
Options
Blade & Guards
Slant Blades & K-Line Blades are available for the HS-3 plow. Various size guards are available based on the size of product being installed.

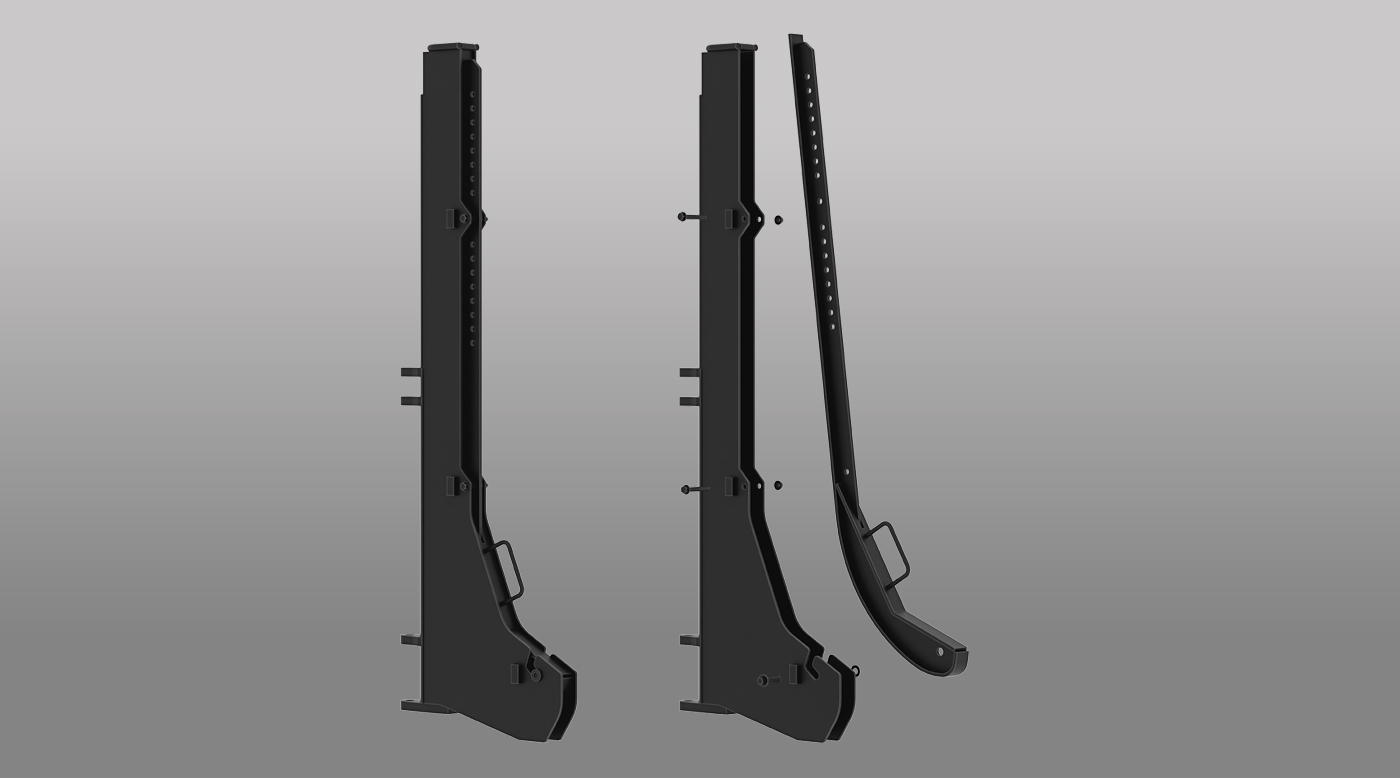

Chute & Hopper
A variety of chutes are available to accommodate your installation requirements, including sand hopper and custom solutions.

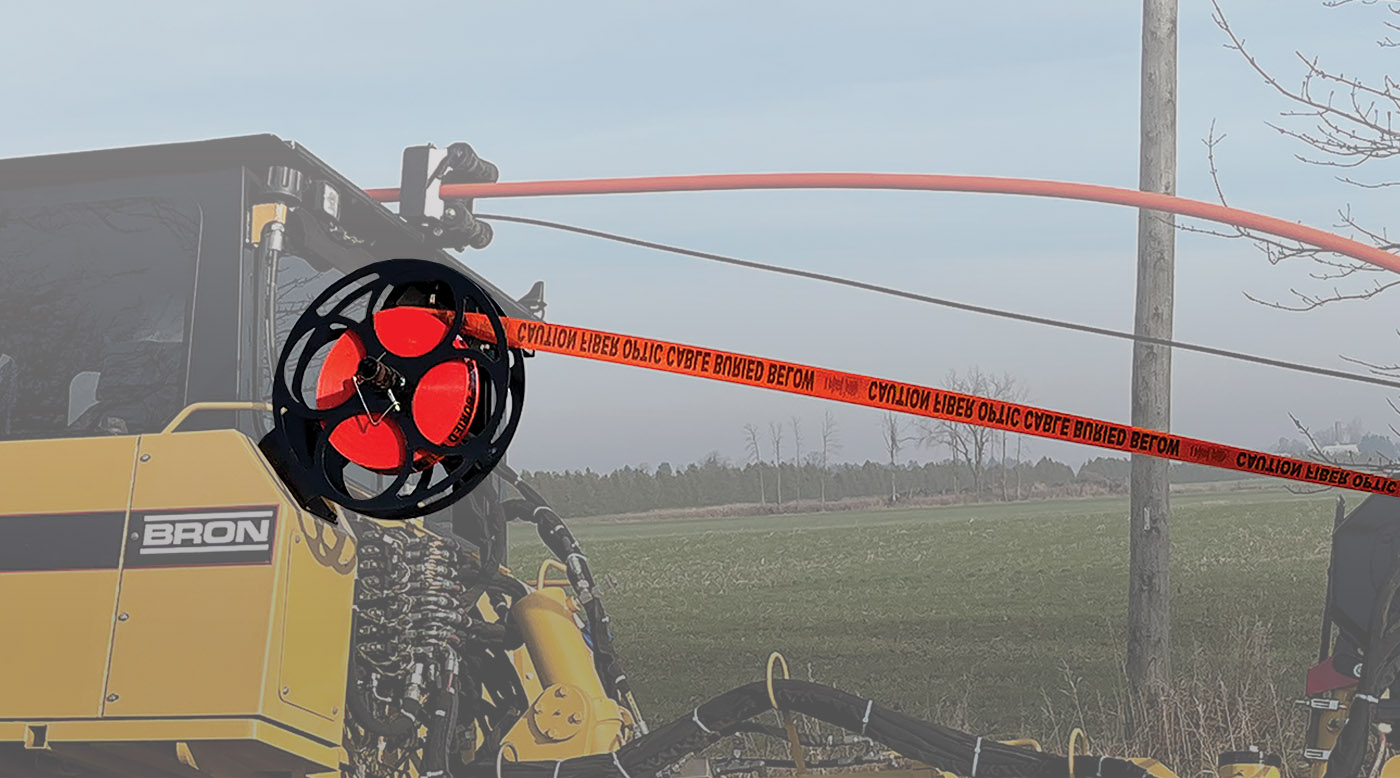

Adjustable Warning Tape Reel
The adjustable width warning tape reel allows various warning tapes to be mounted onboard for feeding into the tape feed tube during installations.

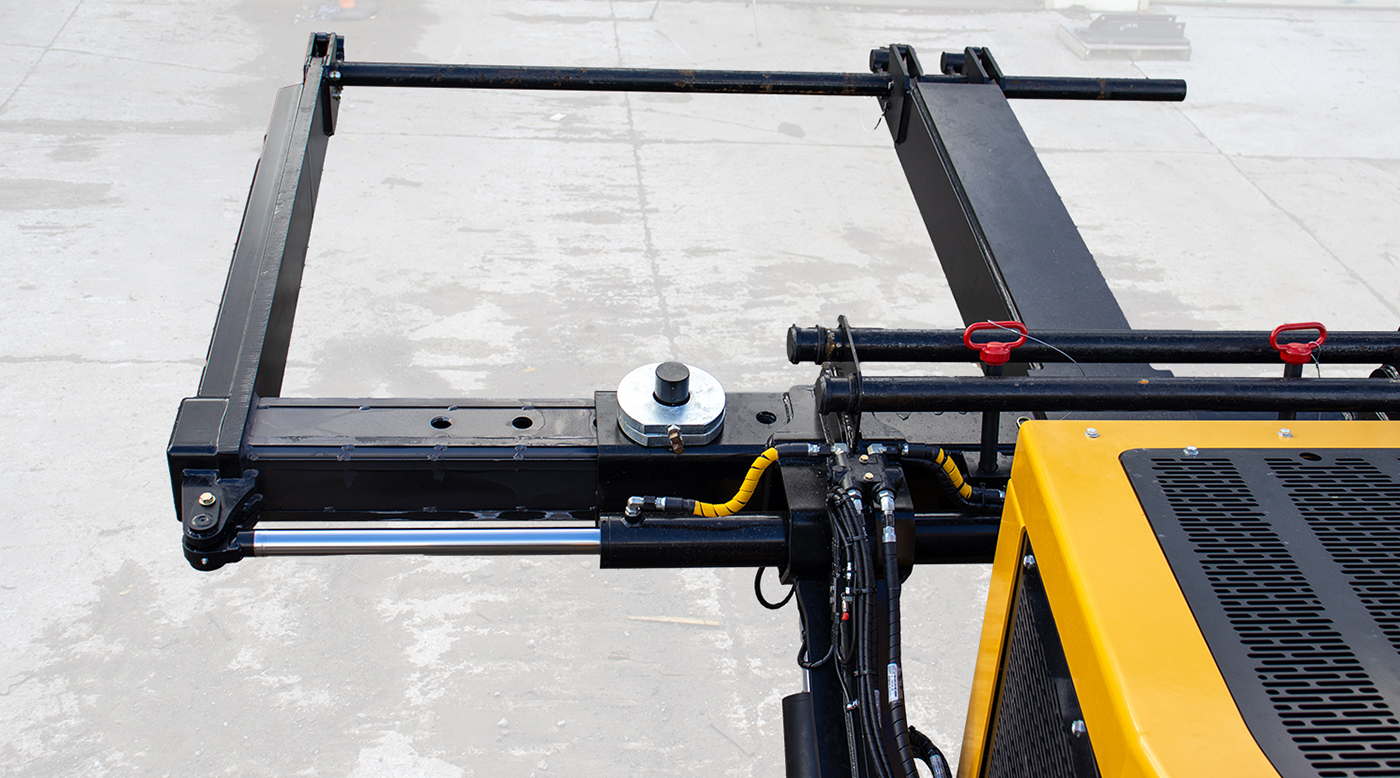

Hydraulic Adjustable Reel
Hydraulic adjustable reel carrier arms enable the outboard arms to adjust with fingertip controls from the operator’s station. This permits quick and easy adjustment of the reel arms to accommodate different width spools or combinations of spools, while making it easier to retract to meet narrow shipping requirements.

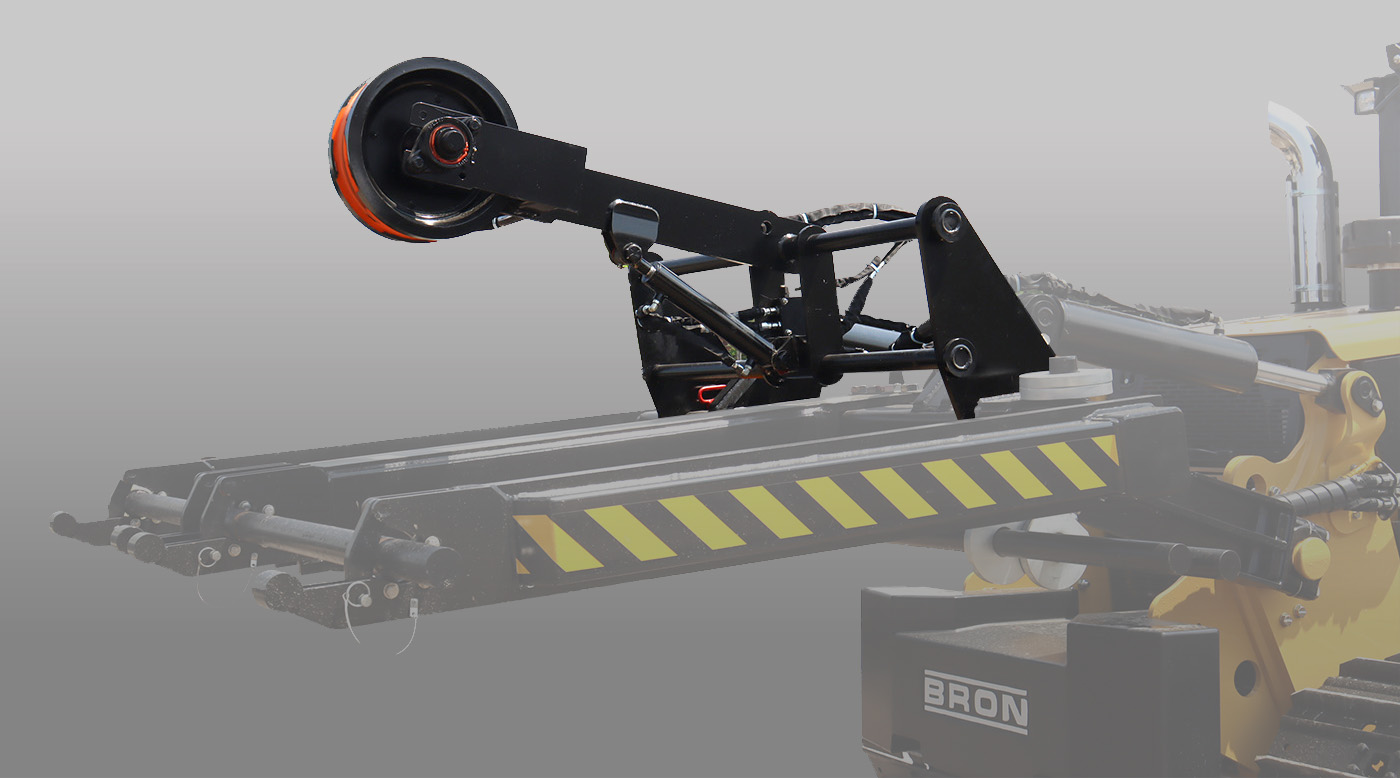

Power Rewind
Power Rewind actively controls reel rotation to manage how cable and conduit are laid out and retrieved. By guiding the product, it minimizes twisting, kinking, and internal stress that can occur during handling. This controlled rewind reduces the risk of damage.

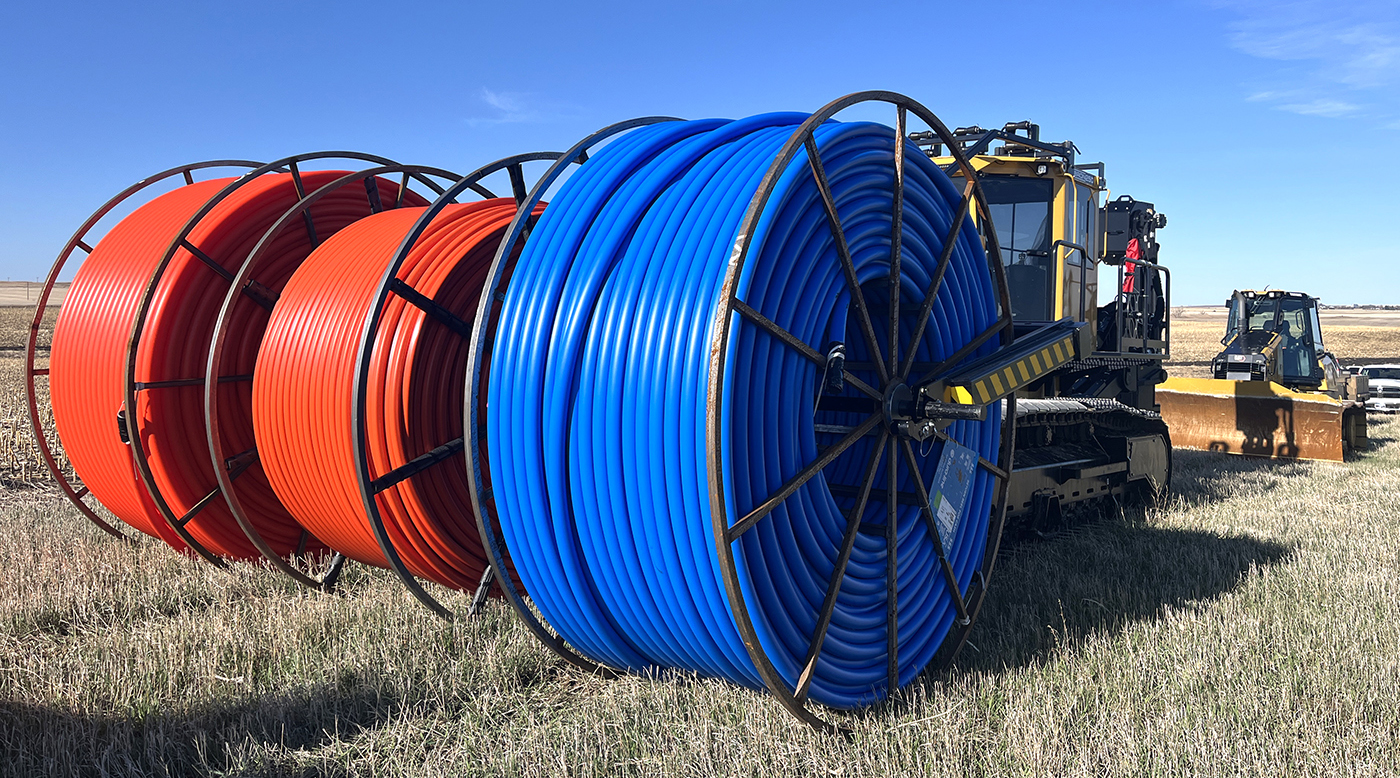

Adjustable Triple Reel Carrier
Higher capacity Triple Reel Carrier versions are available.

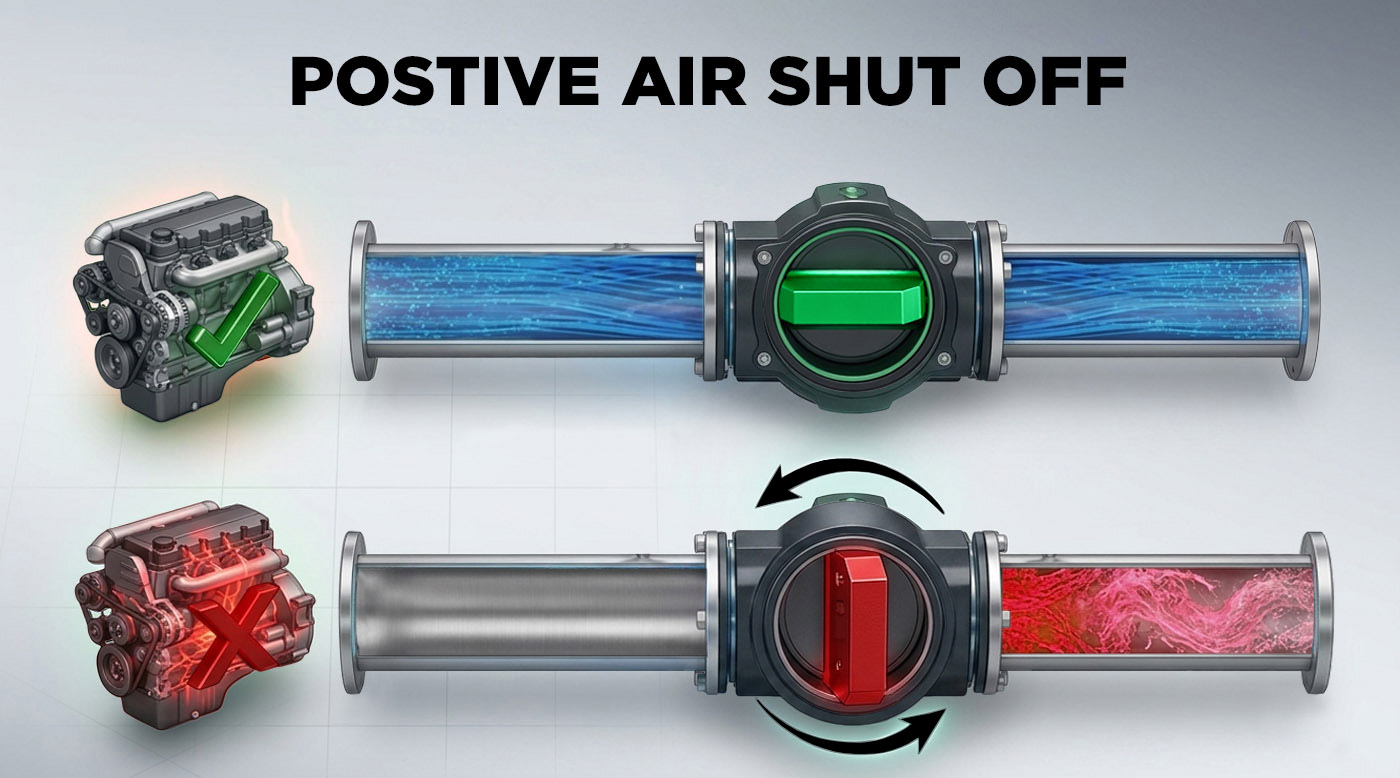

Positive Air Shut-Off
Positive Air Shut-Off provides an added layer of engine protection by immediately shutting down the engine through the interruption of air intake. This system enables the engine to be safely stopped in emergency situations or in the event of uncontrolled fueling, thereby preventing severe engine damage and enhancing safety.
Specifications
| Engine Make & Model | Cat C13B or John Deere JD14 |
| Emissions Certified | Tier 4F |
| Net Power | 536 hp (400 kW) Peak 557 hp (415 kW) |
| Fuel Tank Capacity | 233 U.S. Gal (882 L) |
| Hydraulic Tank Capacity | 50 U.S. Gal (189 L) |
| Operating Weight | 78,000 lbs (35,380 kg) |
| Overall Width (Footprint) | 132" (3353 mm) |
| Overall Height | 135" (3429 mm) |
| Length With Attachment | 406" (10,312 mm) |
| Ground Pressure | 5.4 psi (37.2 kPa) |
| Ground Clearance | 24" (610 mm) |
| Compatible Plow Styles | HS-II & HS-III |
| Maximum Cutting Depth | 90” (2286 mm) |
| Undercarriage | D7 |
| Travel Speed | 3.5 mph (5.6 kph) |
| Track Drive | Hydrostatic 2-speed automatic (variable speed) |
| Shoe Width | 34" (864 mm) |
| Rollers Per Side | 13 |
| Cab | Fully enclosed cab with HVAC (ROPS) |
| Steering | Joystick |
