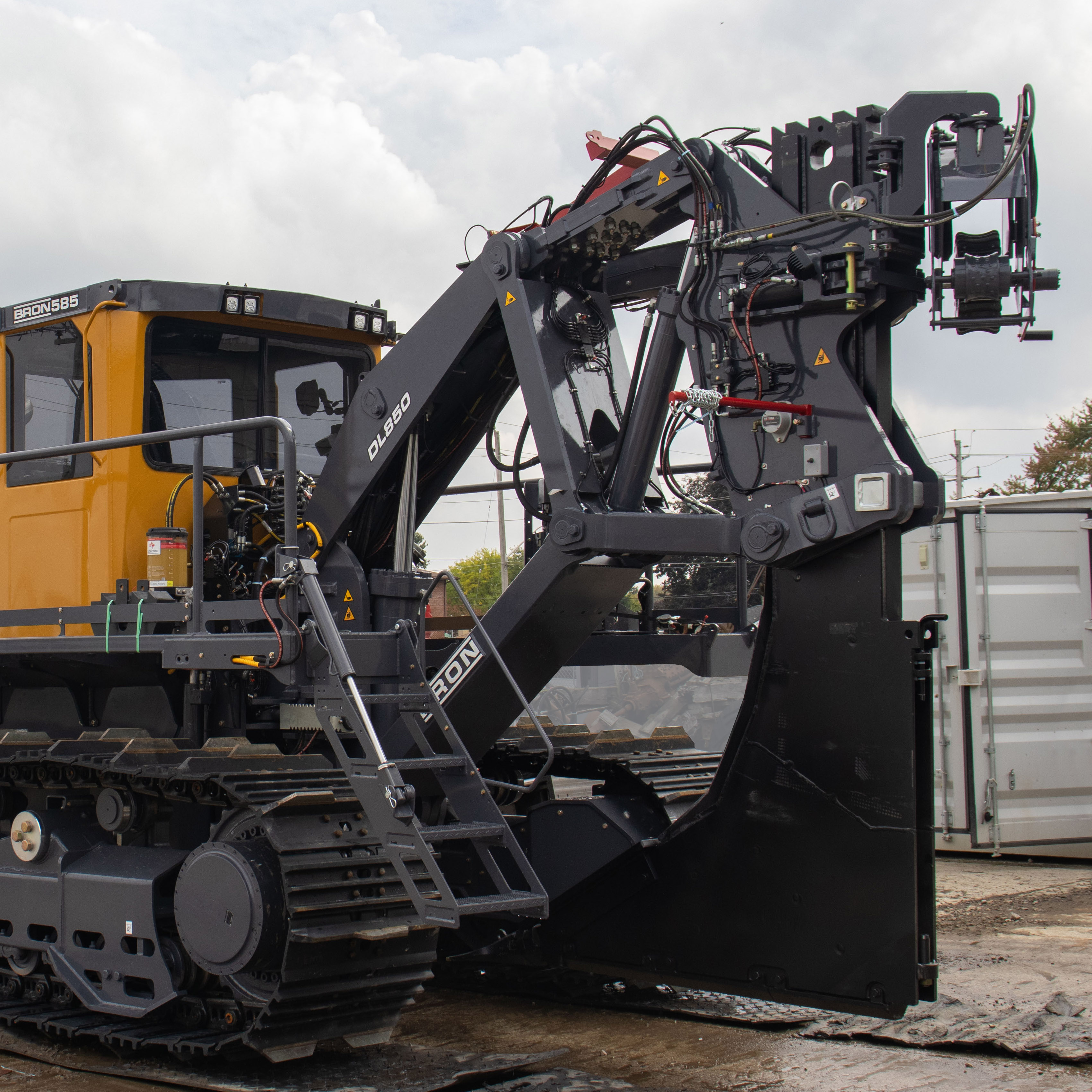

BRON DL850

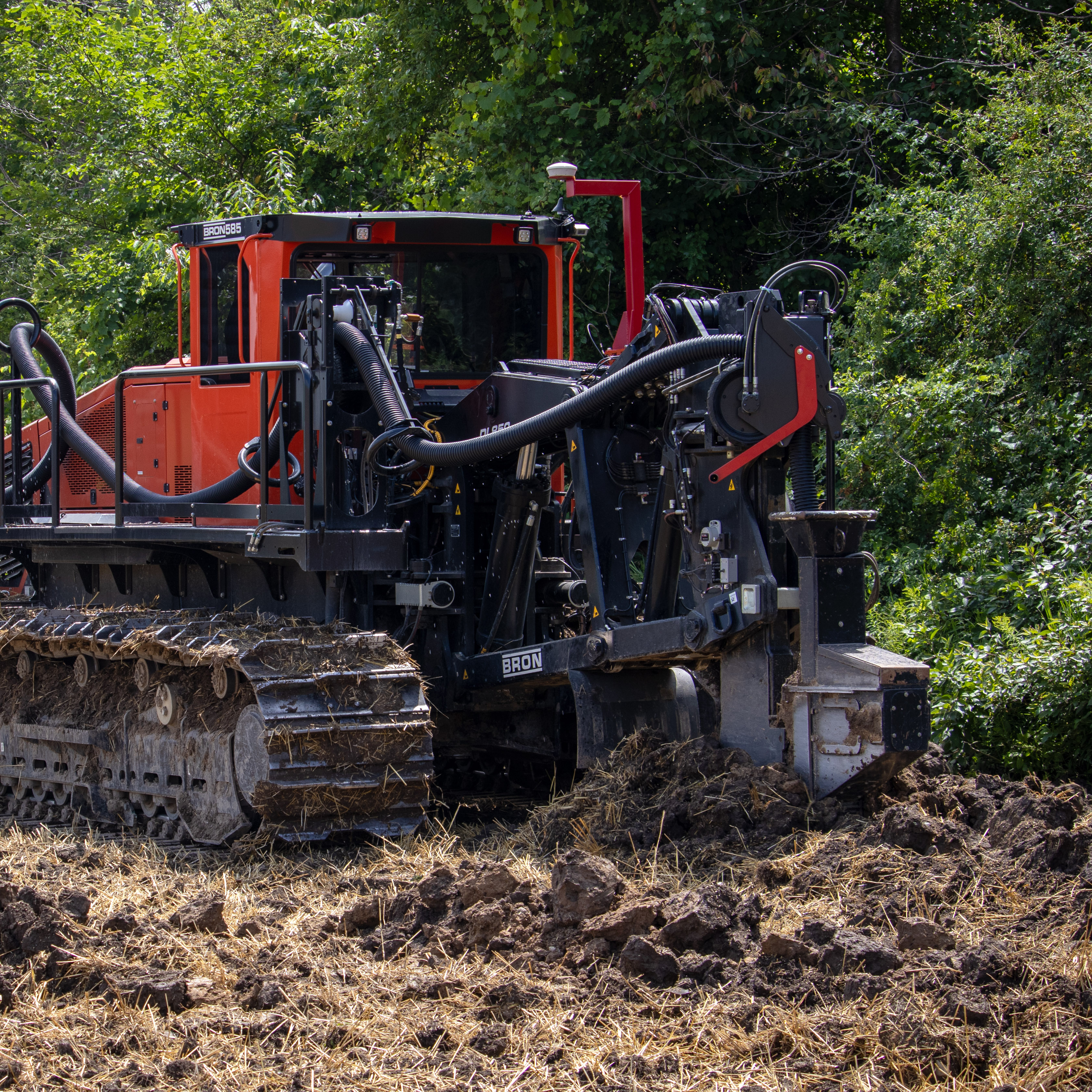

Installing high level farm drainage tile accurately with a BRON DL850 Add-on Drainage Plow, to a full depth of 90”. Suitable for dozers and larger tractors, the heavy-duty DL850 is recommended for its strength and size.
14,000 lbs
Weight90"
Depth900 hp
Quad-Track Tractor HP Min375 hp
Crawler HP MinFeatures

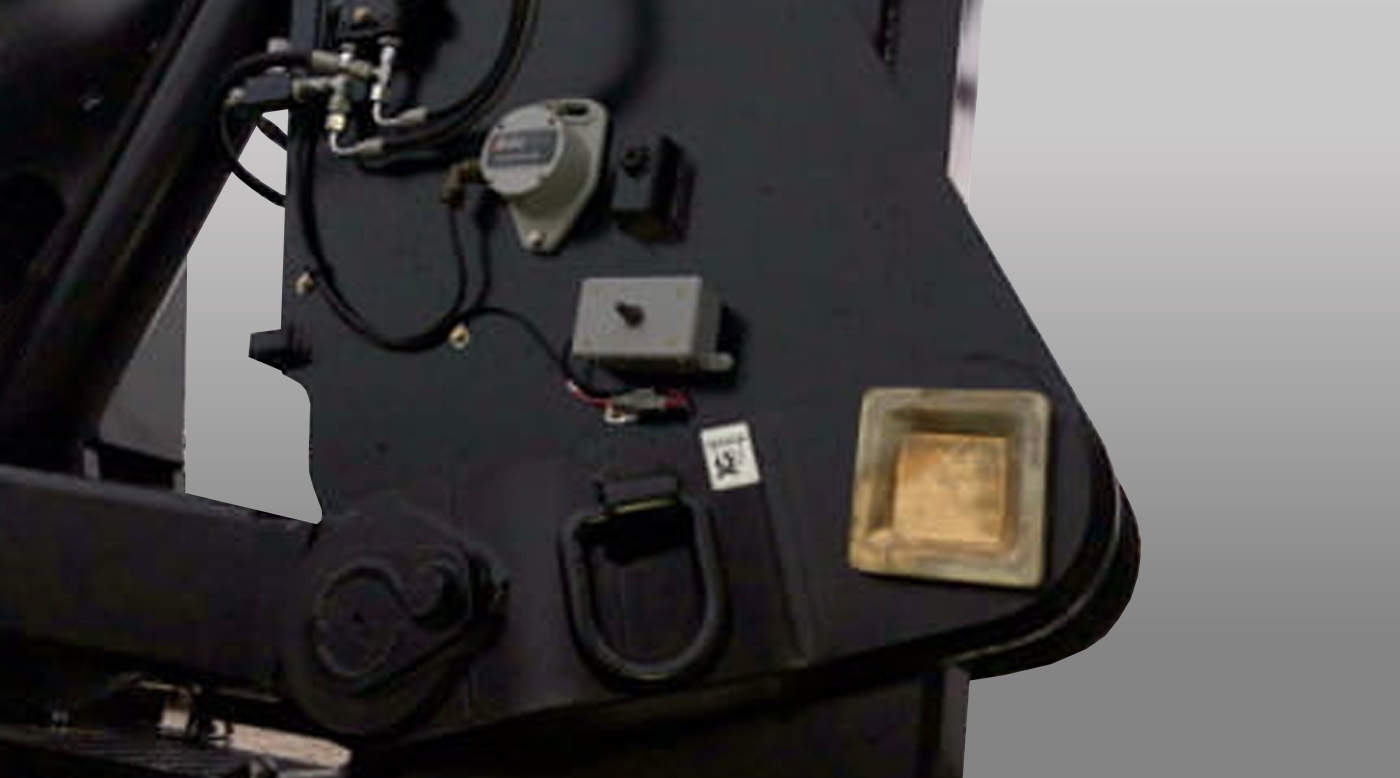

Hydraulic Blade Lock
A combination of an internal hydraulic cylinder and an external hydraulic cylinder that fixes the blade in place at the required digging depth. The operator can also remove the blade without any additional equipment.

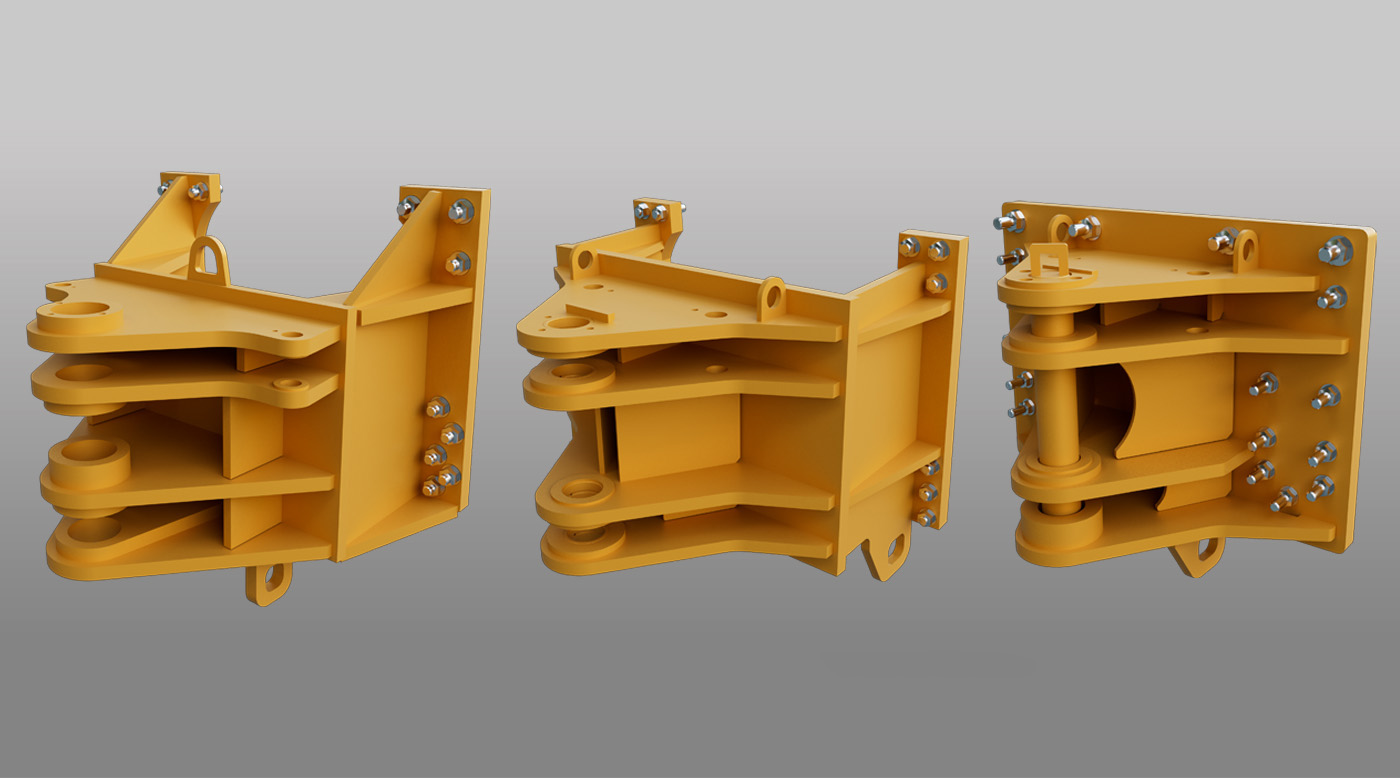

Tractor Specific Backplate
Each plow comes with a custom backplate or mounting plate based on the machine the plow will be mounted to. Bulldozers, tractors, and even 3 point hitch mounting is available.

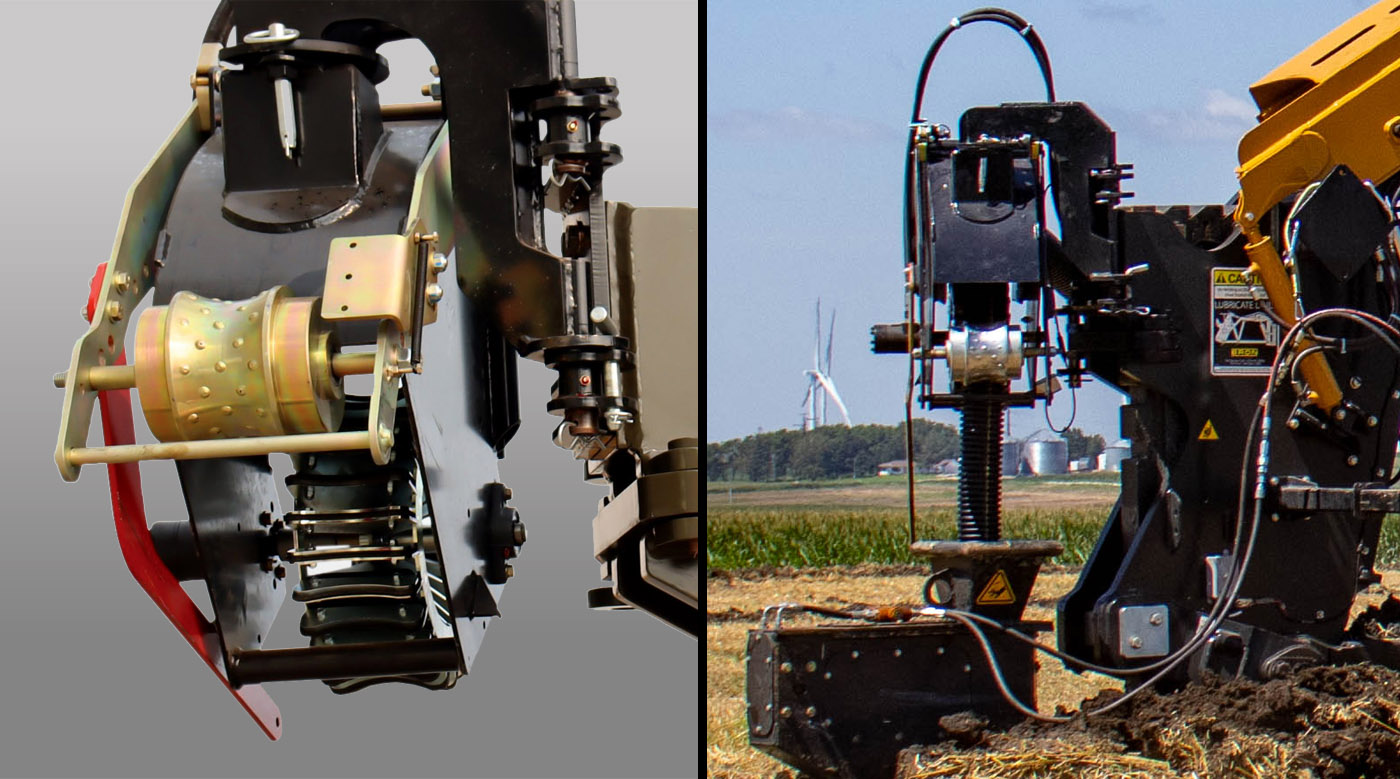

Hydraulic Power Feeder
Positions the tile between a hydraulically adjustable drive wheel and a weight wheel which guides the tile into the installation chute preventing stretching. Available in 6" & 8" sizes, blade holder or chute mount configurations.

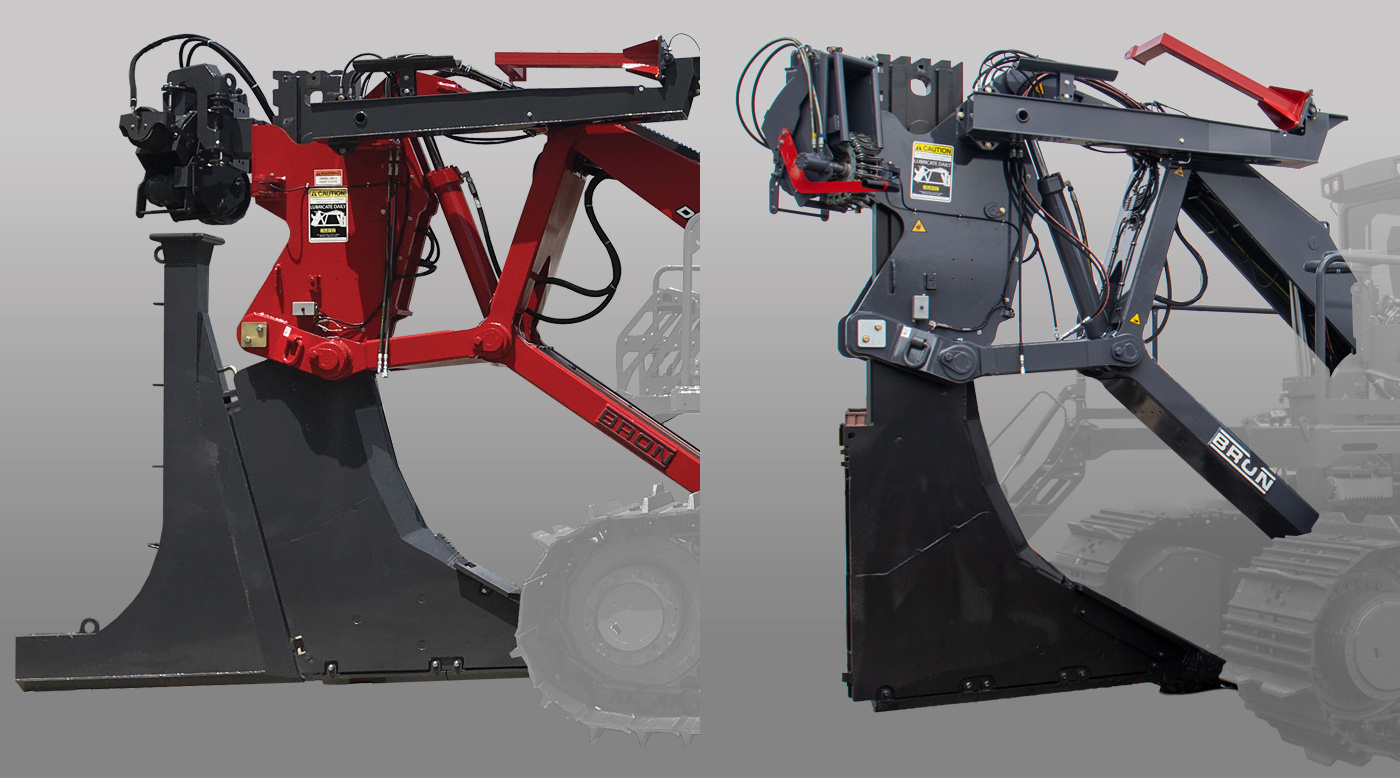

Blades
Straight back or slant back blades available on all our Add-On Drainage Plows.
Options

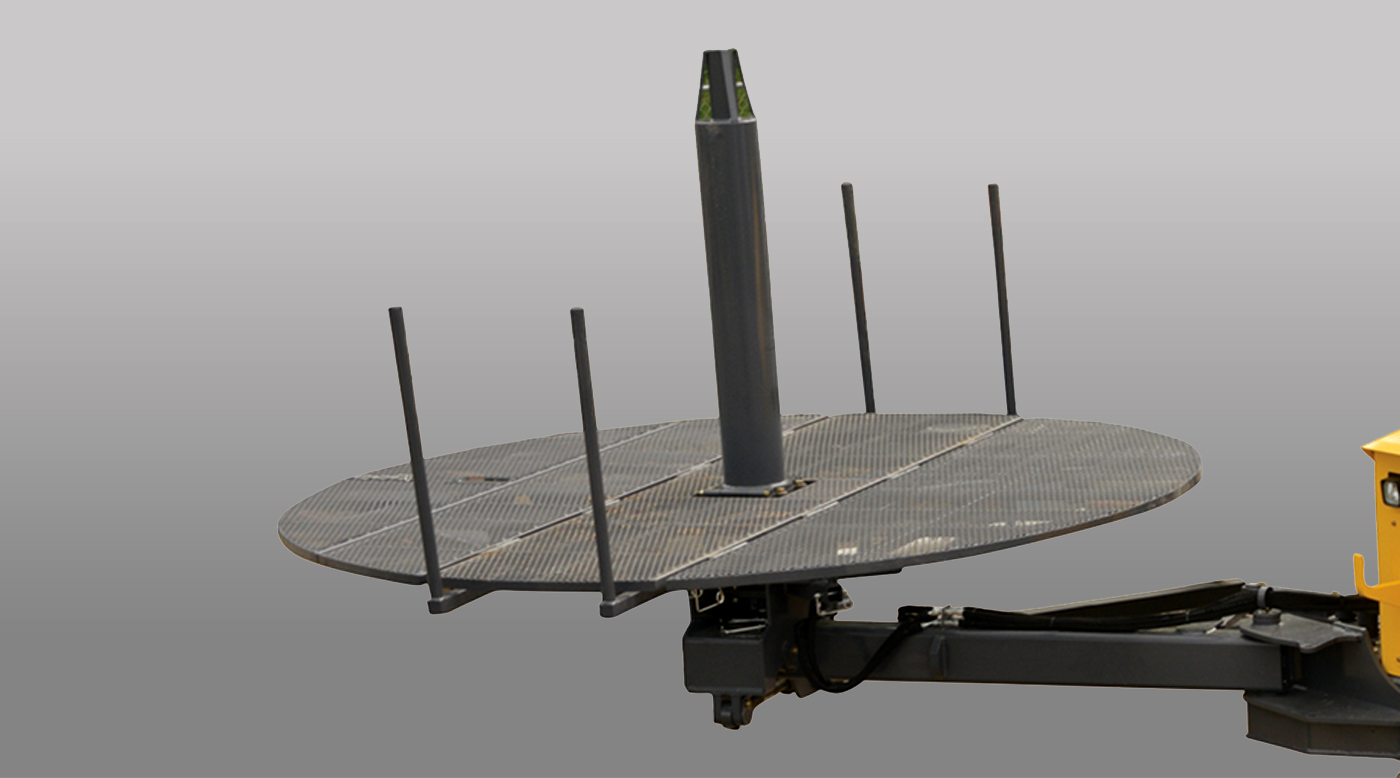

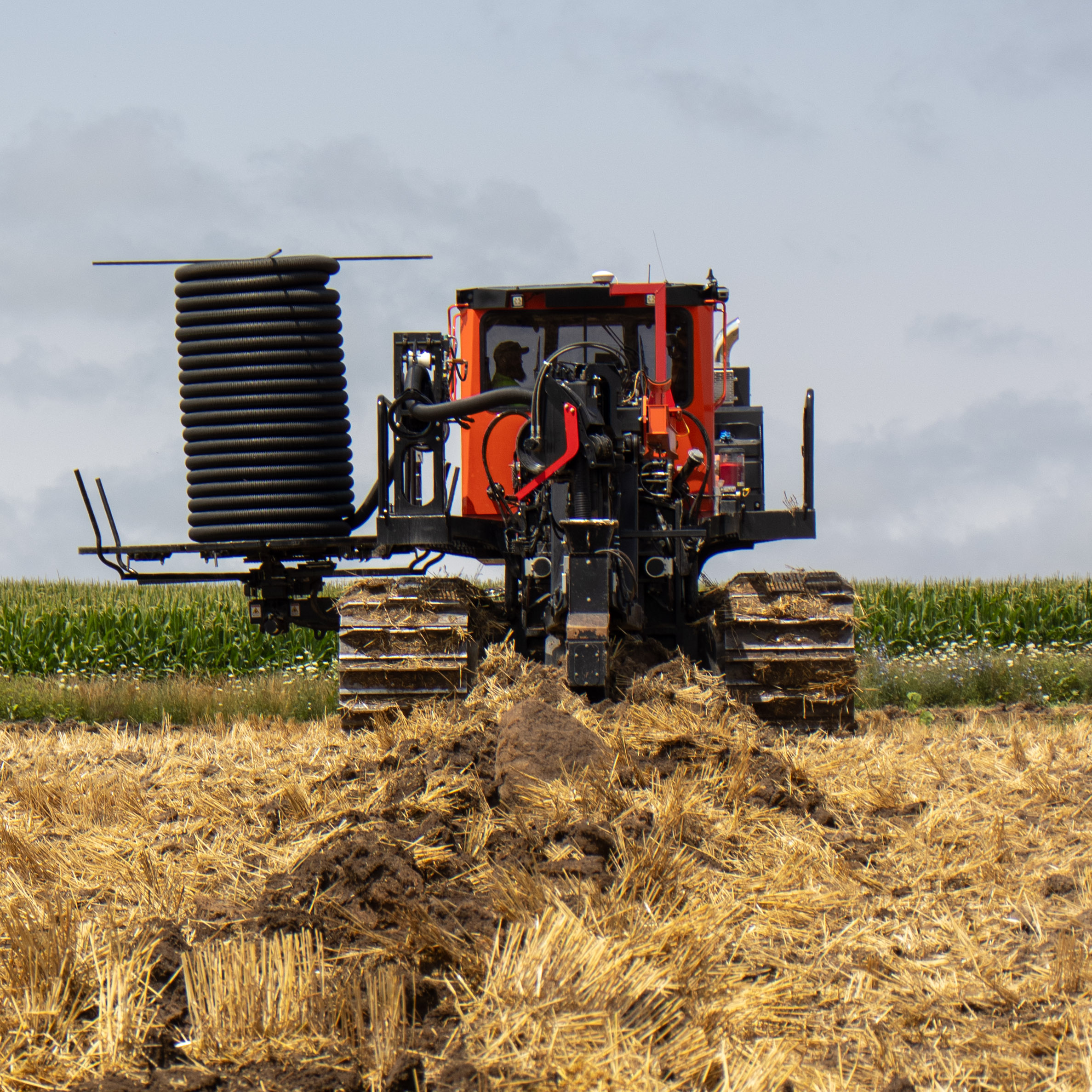

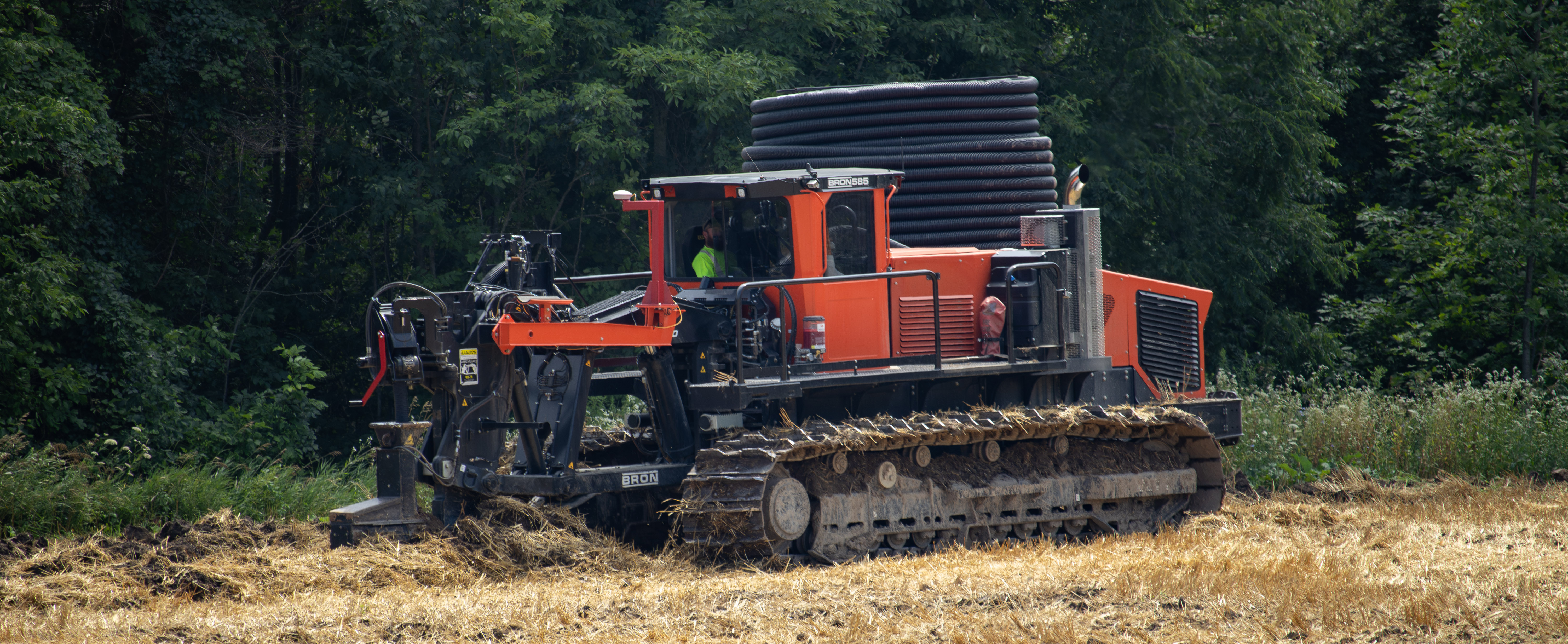

On-Board Reel
The On-Board Reel carries a roll of tile on the machine. This is beneficial when travelling and plowing in the wet and muddy conditions. This option eliminates the use of a stringer tractor or trailer.

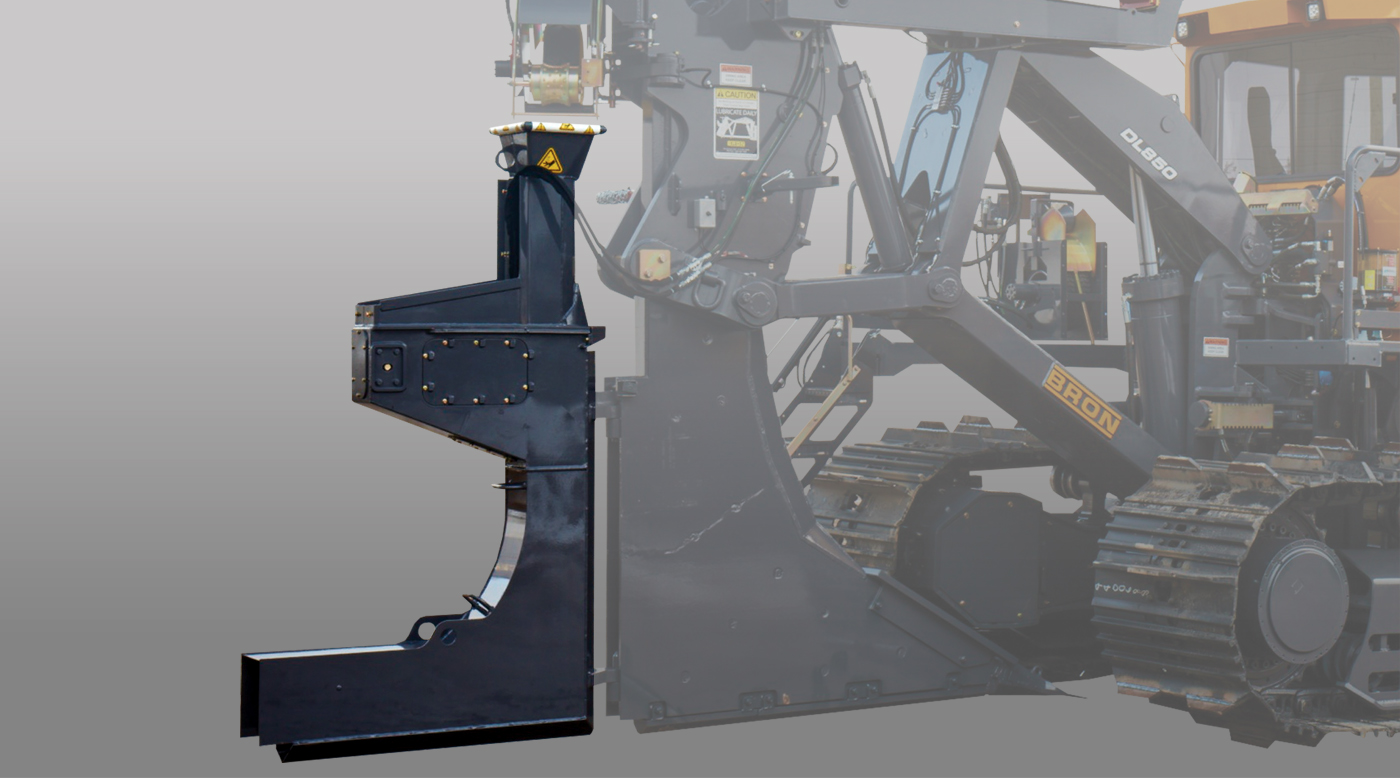

Custom Chute
Chute offerings from 3" to 15" based on plow size. Stainless or Teflon side wear guards available. Specialty chute available on request.

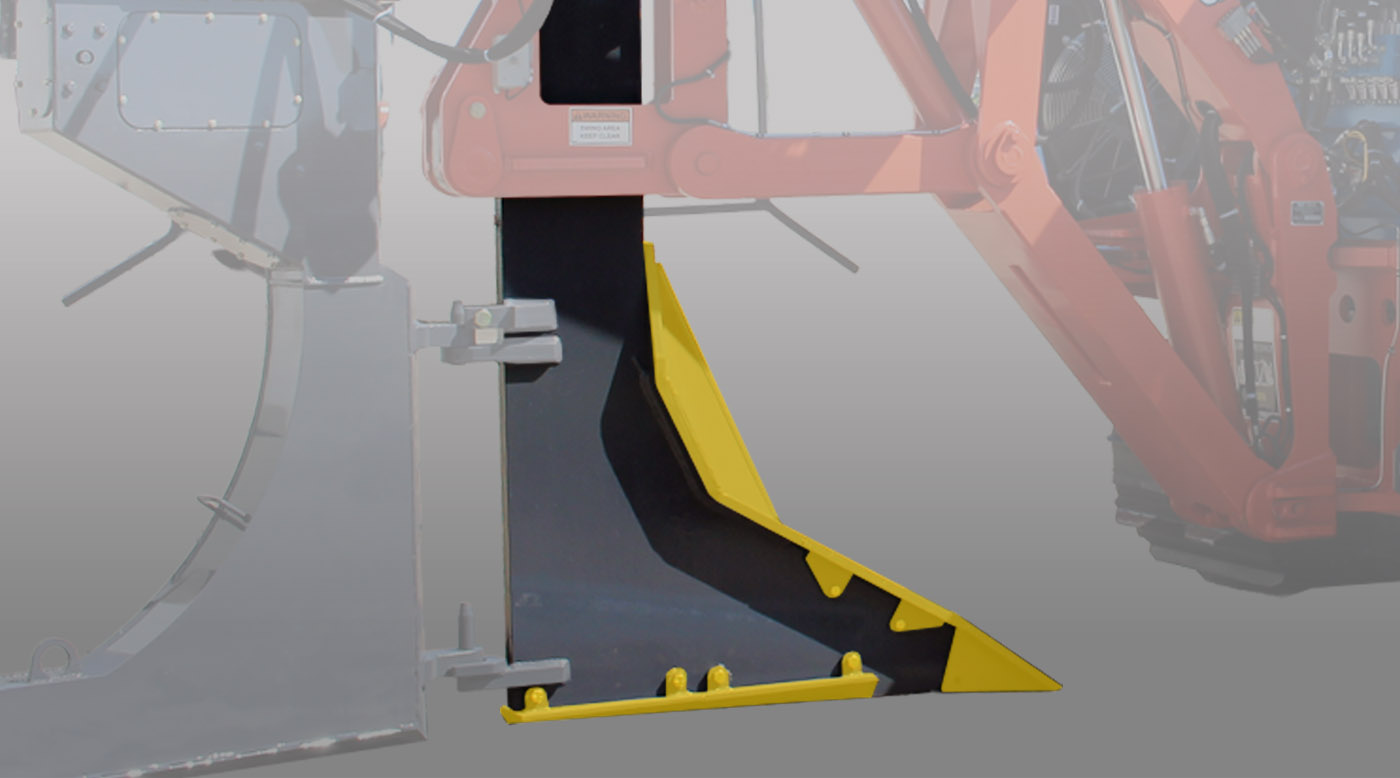

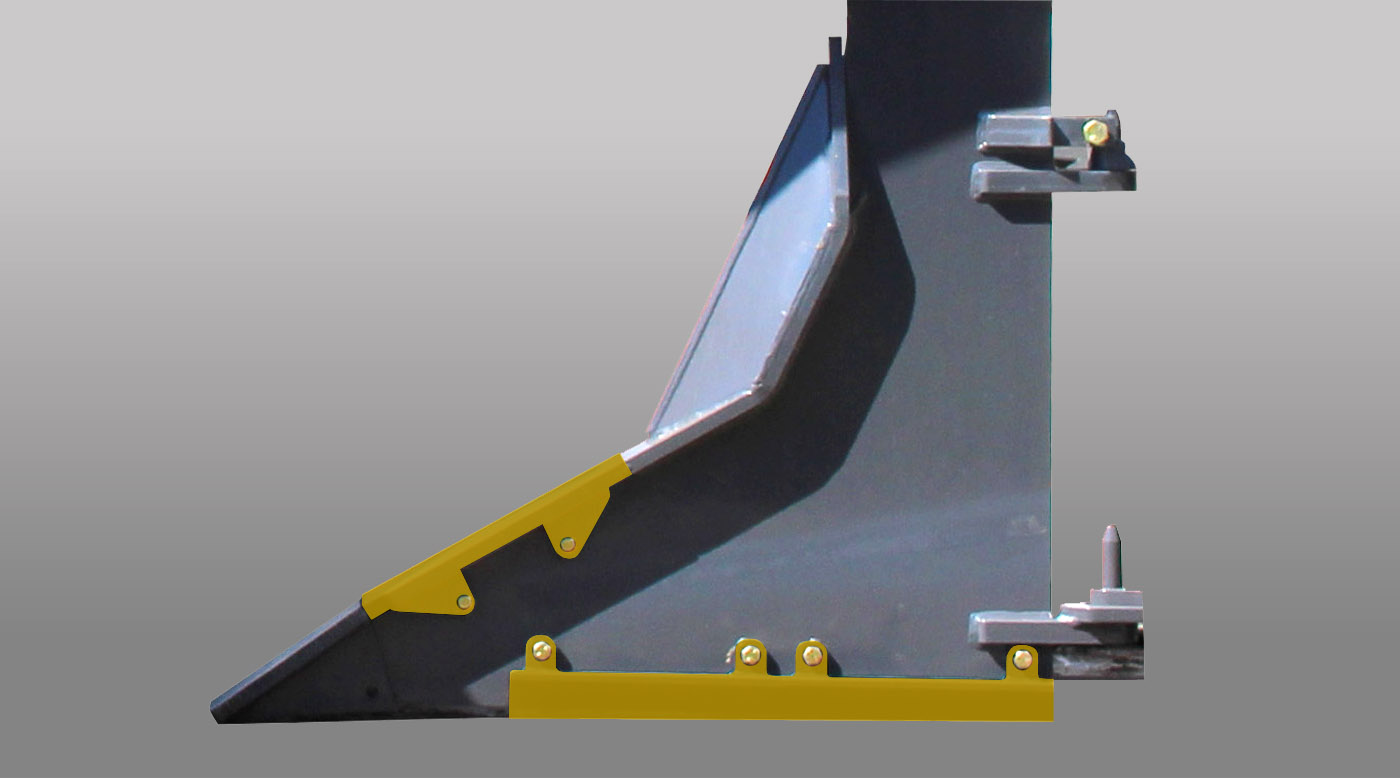

Mouldboard & Teeth
Various size mouldboards and teeth available depending on the size of pipe installation required.

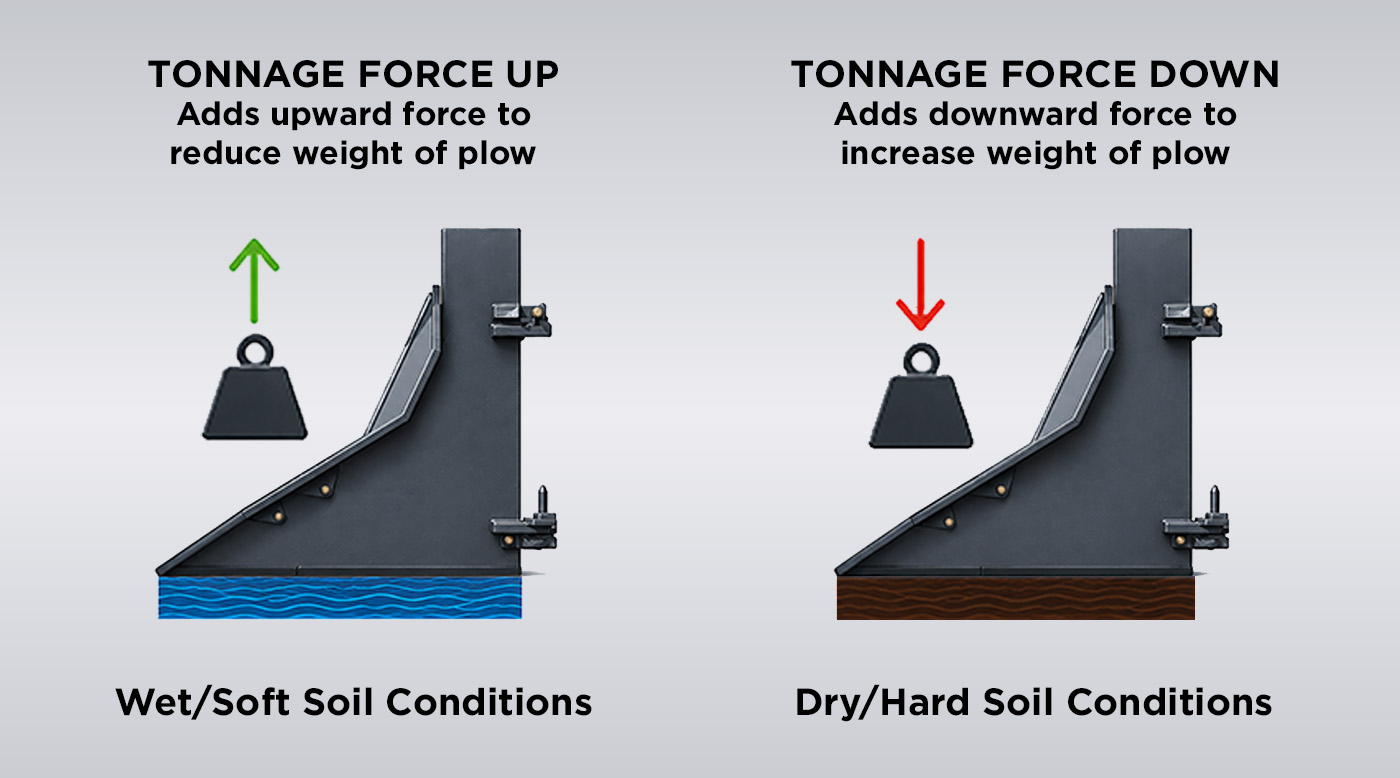

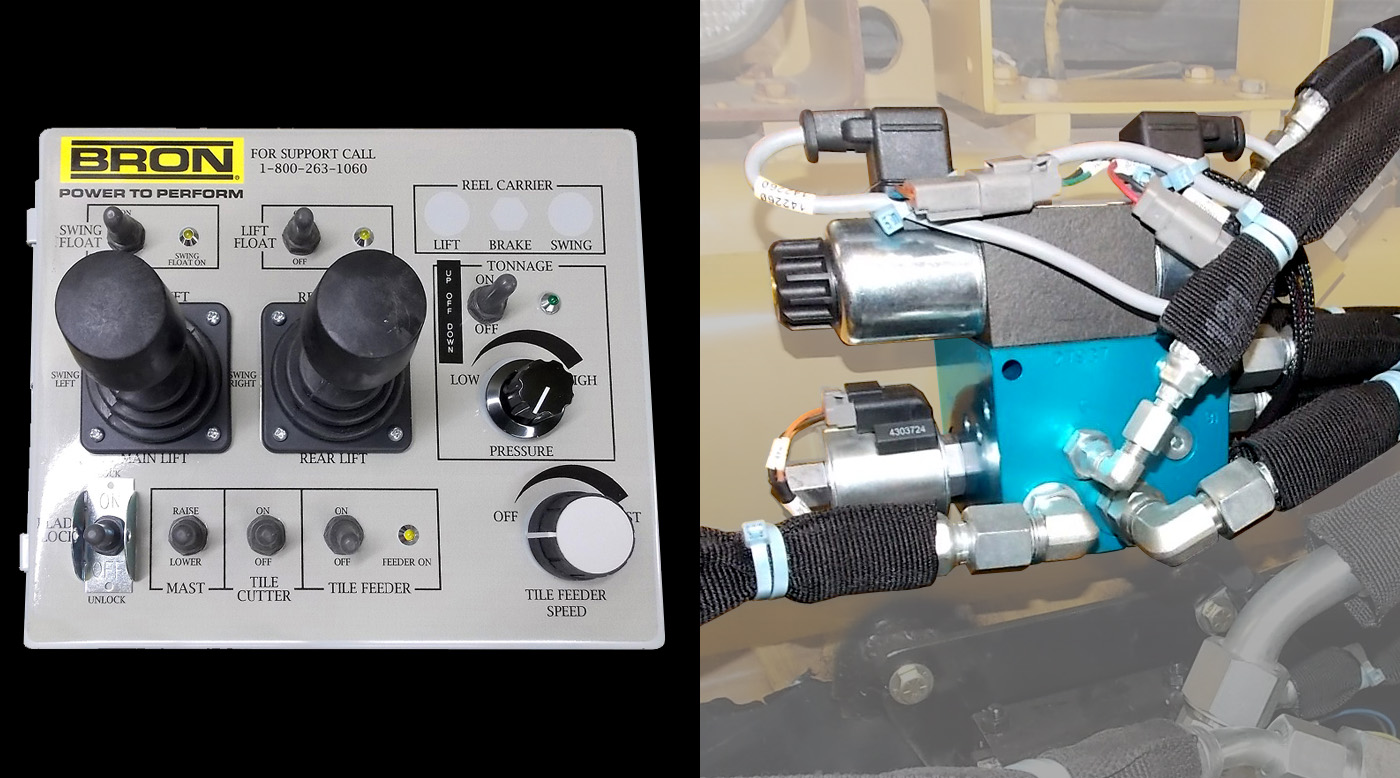

Tonnage Control
Additional tonnage available for working in less ideal soil conditions.

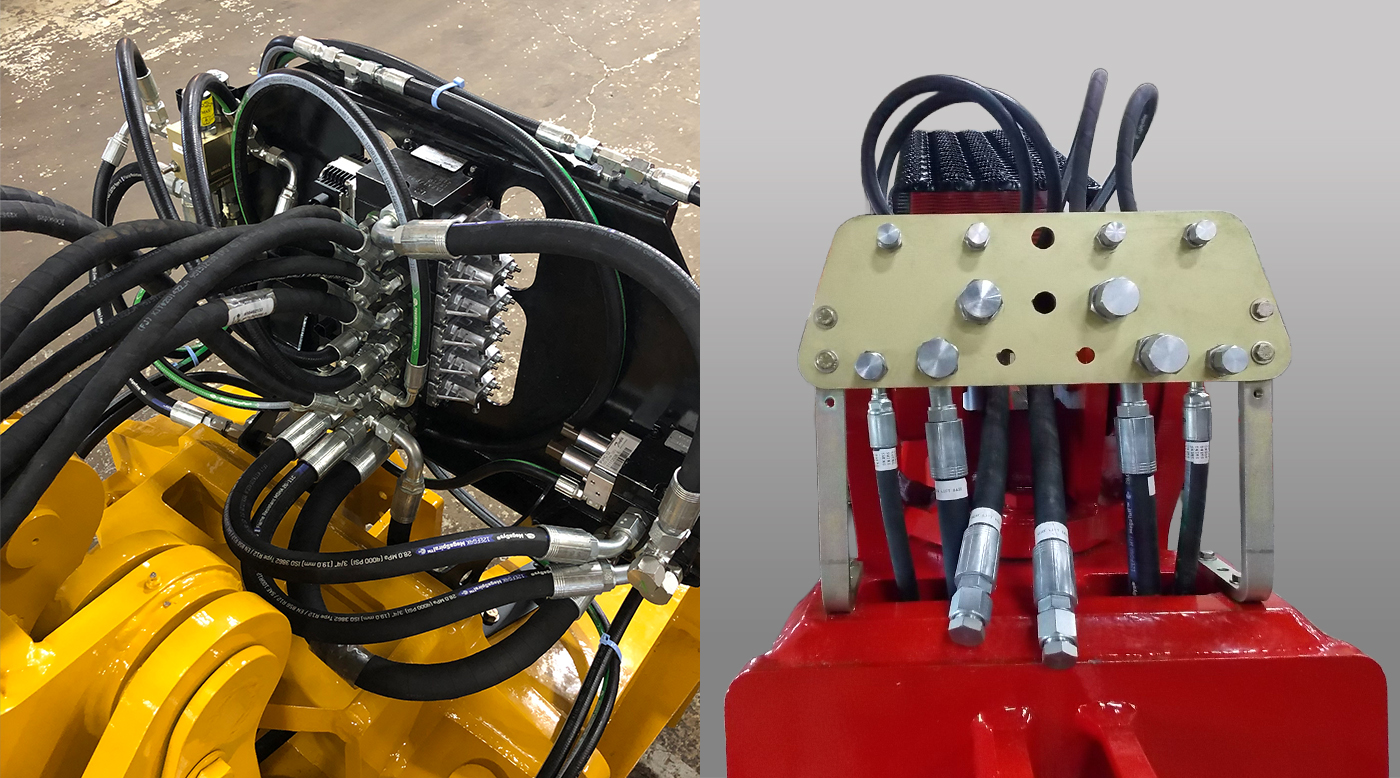

Hydraulic Valve To Fit All Makes
BRON Add-On Drainage Plows are attached to many different brands of equipment. We have valves and hydraulic schematics available for most equipment manufactures models suited for our plows.

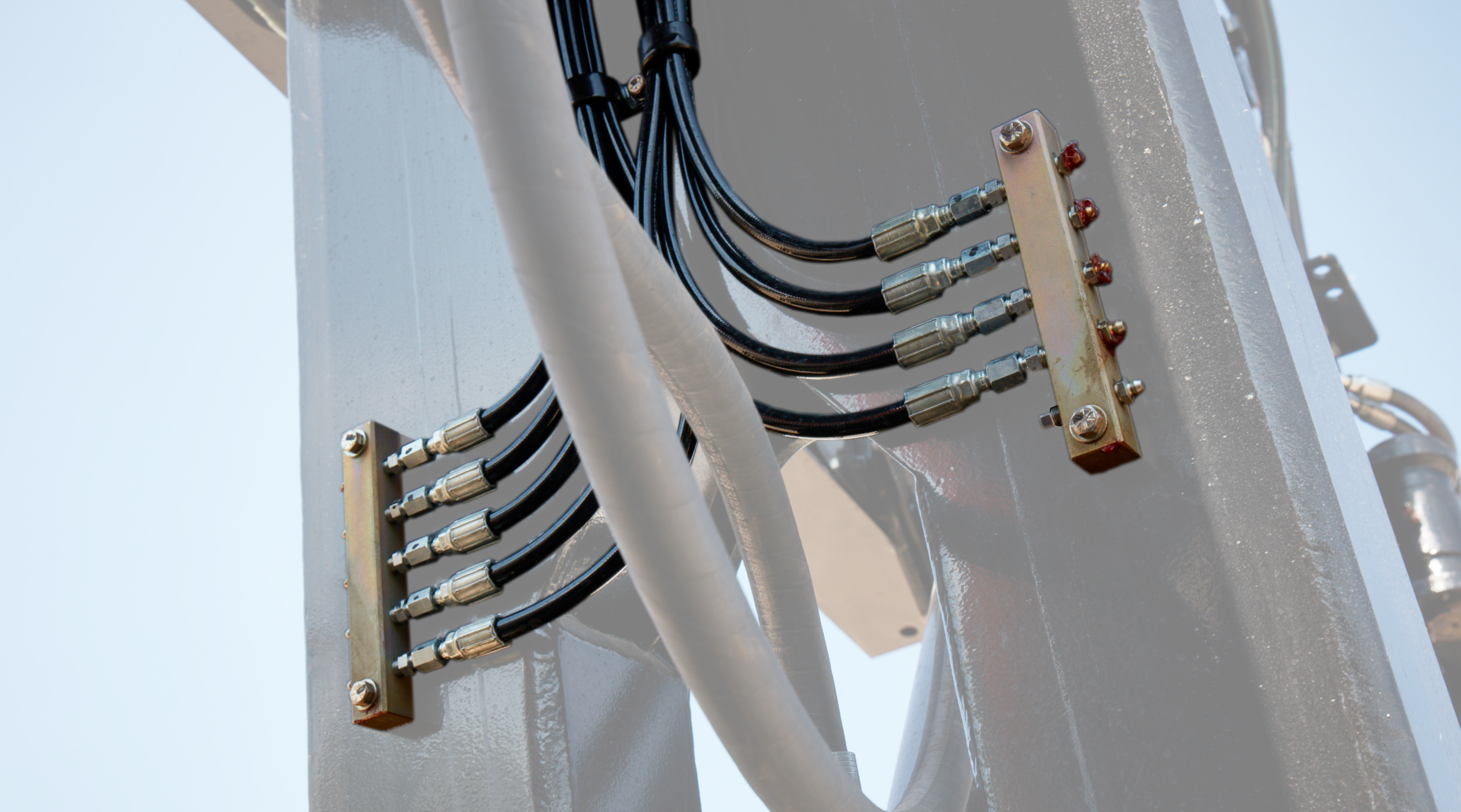

Centralized Grease Banks
Provides easy access to grease points from the ground in a central location.

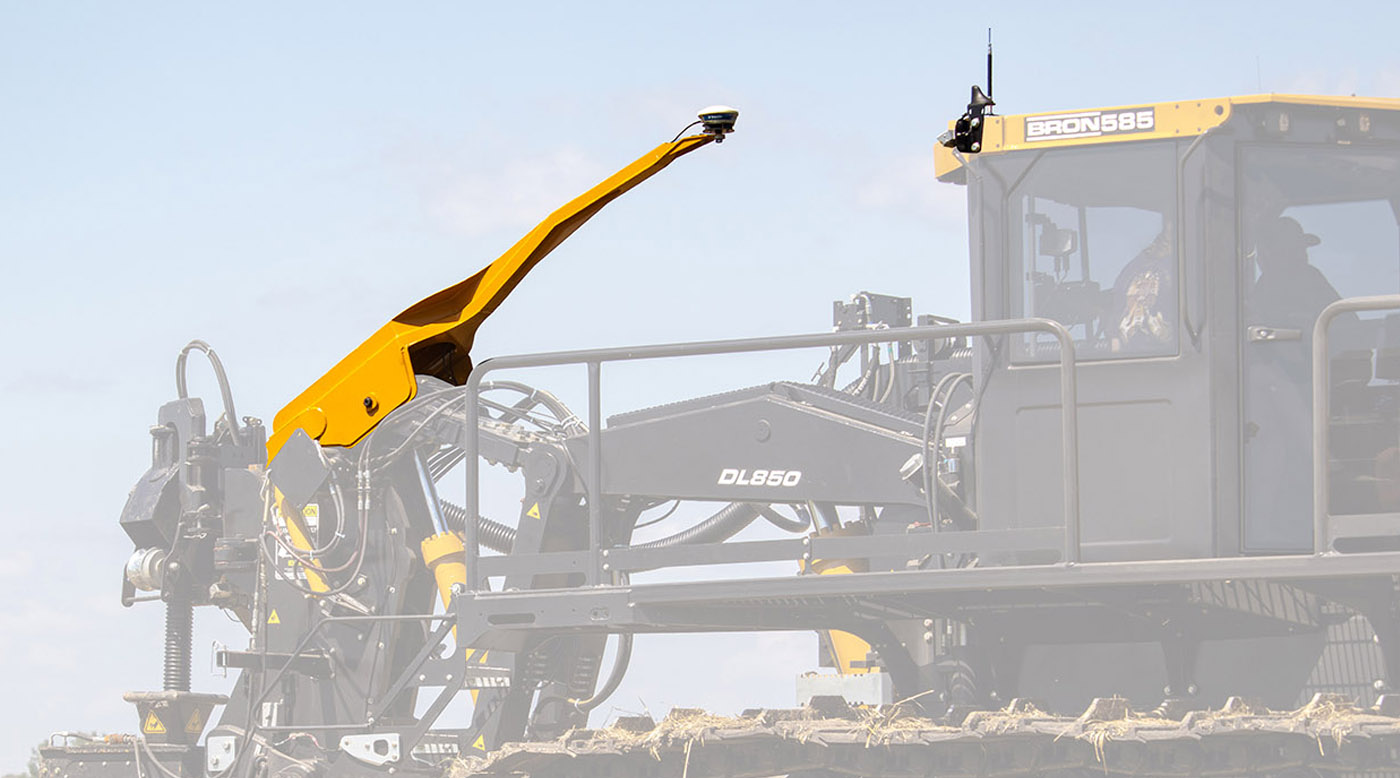

GPS and Laser Masts
Controlled from inside the cab by the operator, these masts can be raised for tile installation or lowered for transport with the touch of a button.
Specifications
| Rubber-Tired Tractor (Min.) | 900 hp (662 kW) |
| Crawler Tractor (Min.) | 375 hp (276 kW) |
| Max Cutting Depth | 90" (2.2 m) |
| Blade Ground Clearance (Field) | 24" (61 cm) |
| Blade Ground Clearance (Transport) | 24" (61 cm) |
| Plow Height (Transport) | 144" (365 cm) |
| Plow Weight | 14,500 lbs (6577 kg) |
| Installation Chute Sizes Available | 3-15" (7.62-38.1 cm) |
