Drainage
Installing farm drainage tile accurately with a BRON DL400 Add-on Drainage Plow, to a depth of 60”. Suitable for dozers and tractors, the DL400 is a versatile solution where a lighter footprint is necessary.
9500 lbs
Weight60"
Depth300 hp
Quad-Track Tractor HP Min180 hp
Crawler Power MinFeatures

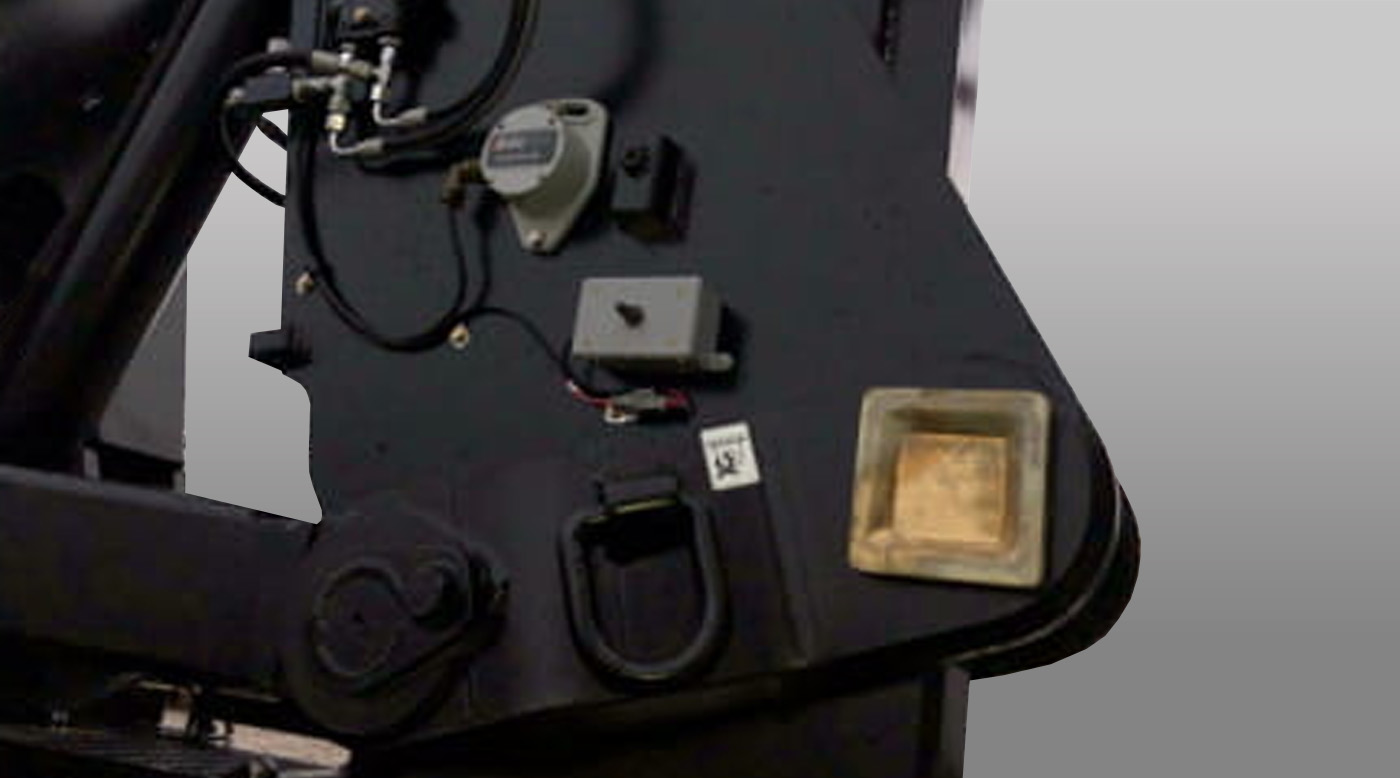

Hydraulic Blade Lock
A combination of an internal hydraulic cylinder and an external hydraulic cylinder that fixes the blade in place at the required digging depth. The operator can also remove the blade without any additional equipment.

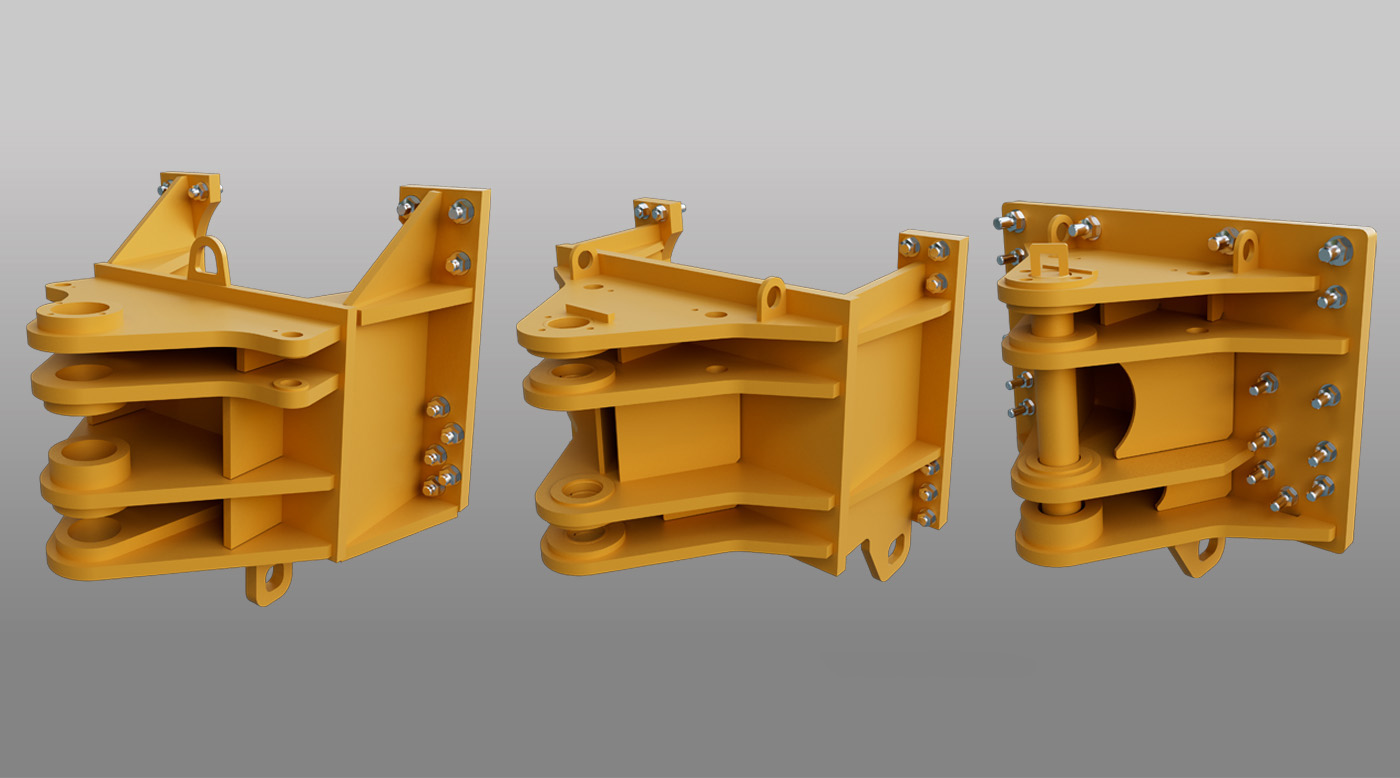

Tractor Specific Backplate
Each plow comes with a custom backplate or mounting plate based on the machine the plow will be mounted to. Bulldozers, tractors, and even 3 point hitch mounting is available.

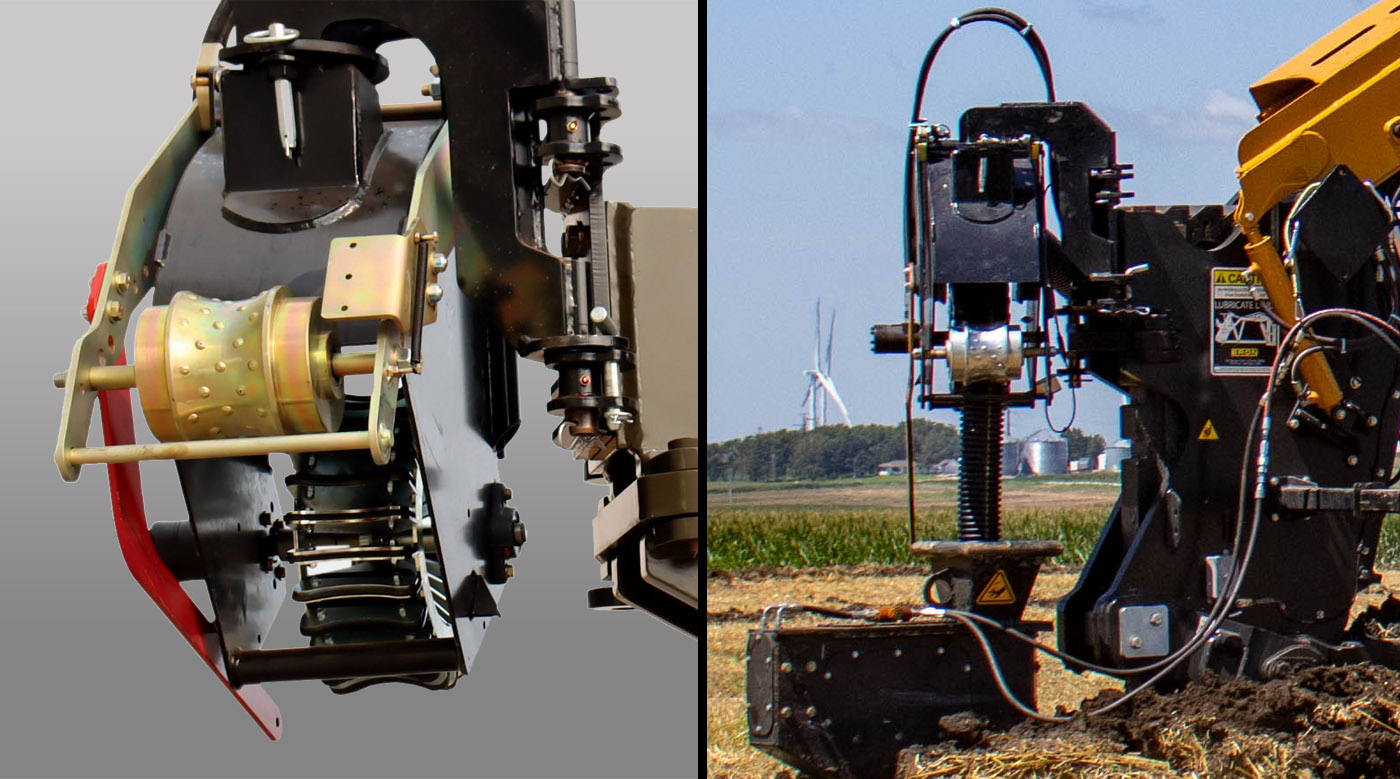

Power Feeder
Positions the tile between a hydraulically adjustable drive wheel and a weight wheel which guides the tile into the installation chute preventing stretching. Available in 6" & 8" sizes, blade holder or chute mount configurations.

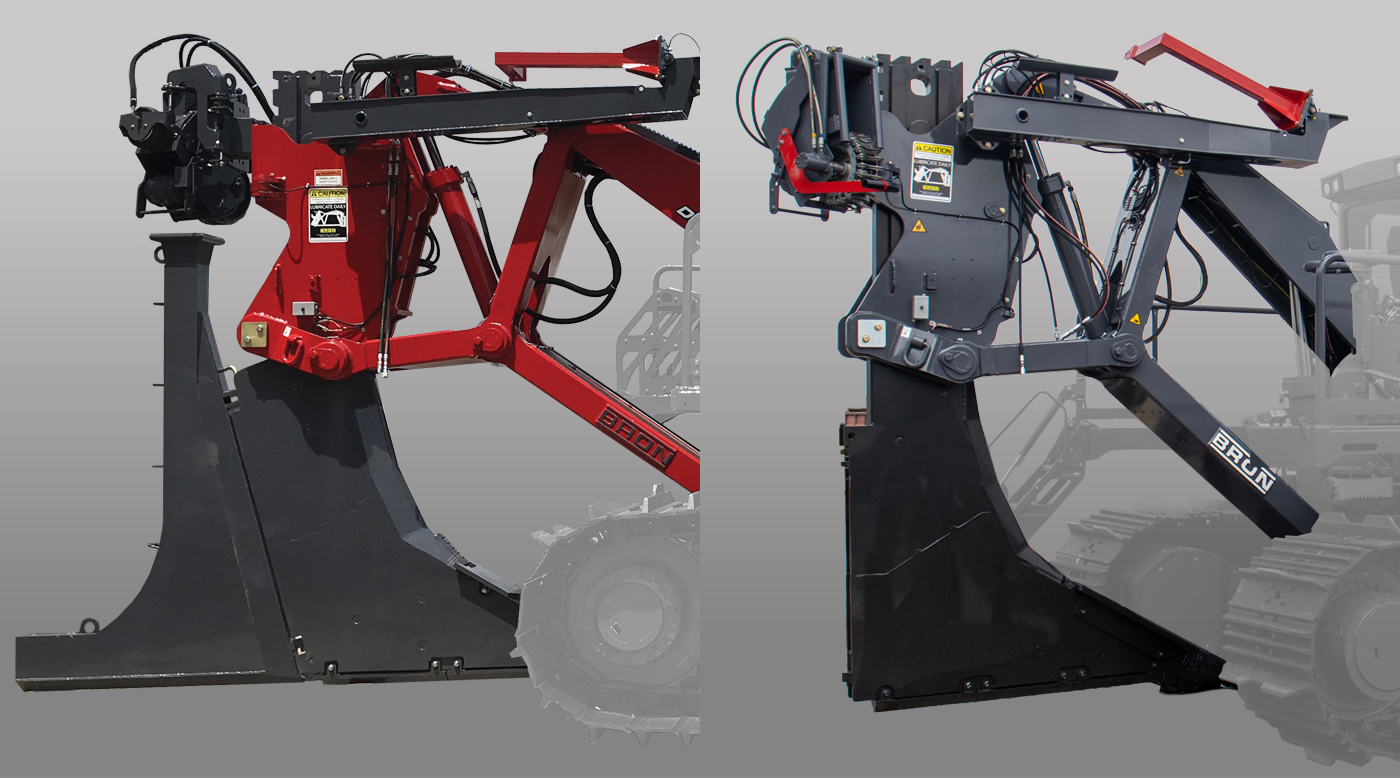

Blades
Straight back or slant back blades available on all our Add-On Drainage Plows.

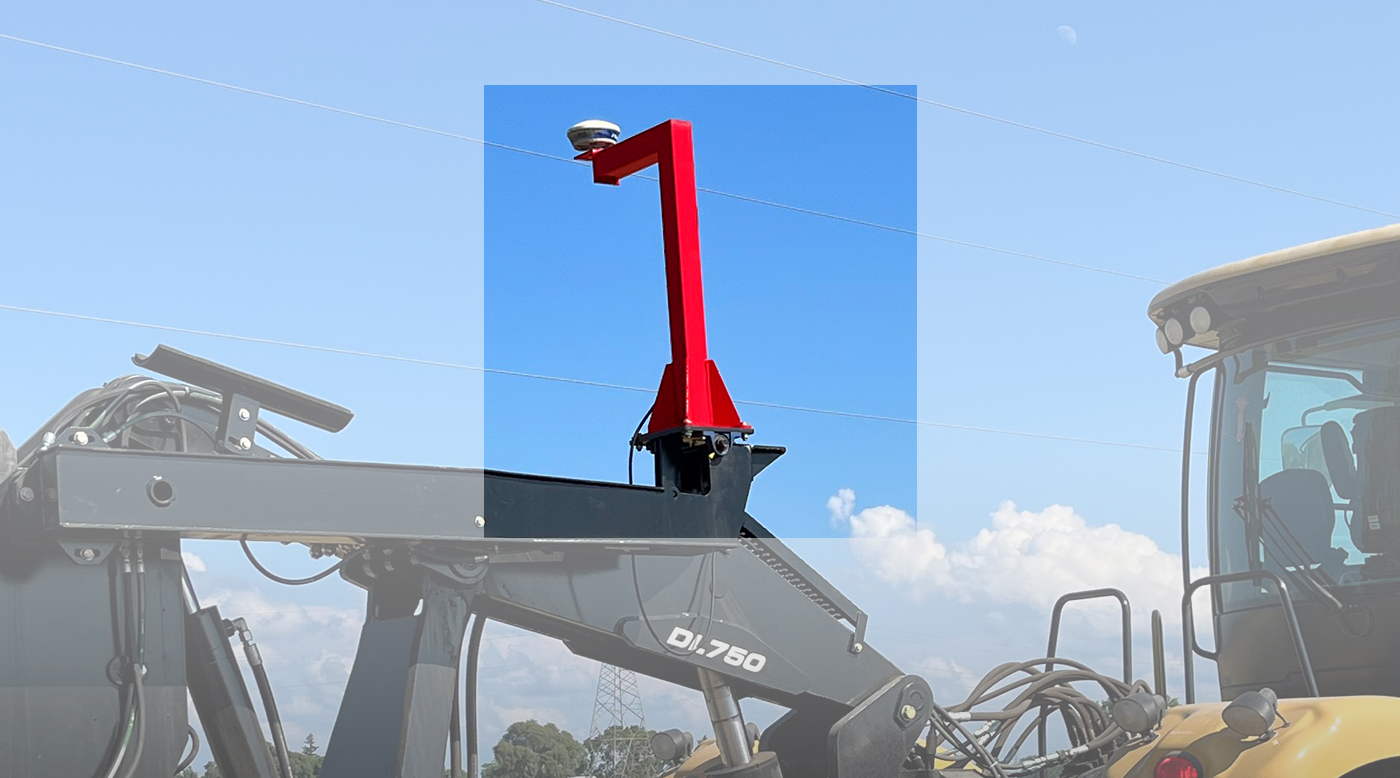

GPS/Laser Arm
GPS or Laser can be mounted on this arm that is attached to the blade holder. This arm hydraulically raises for work mode and hydraulically lowers for transport mode.
Options

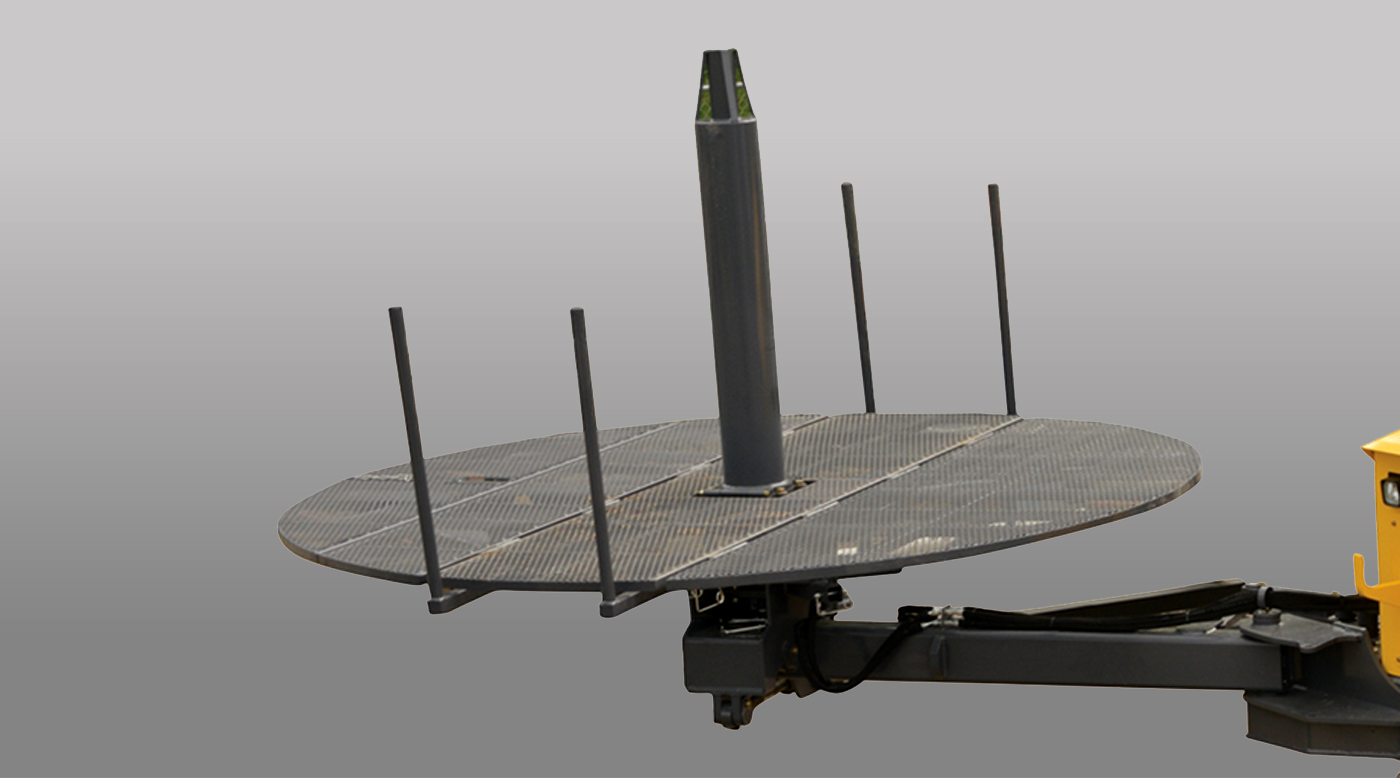

On-Board Reel
The On-Board Reel carries a roll of tile on the machine. This is beneficial when travelling and plowing in the wet and muddy conditions. This option eliminates the use of a stringer tractor or trailer.

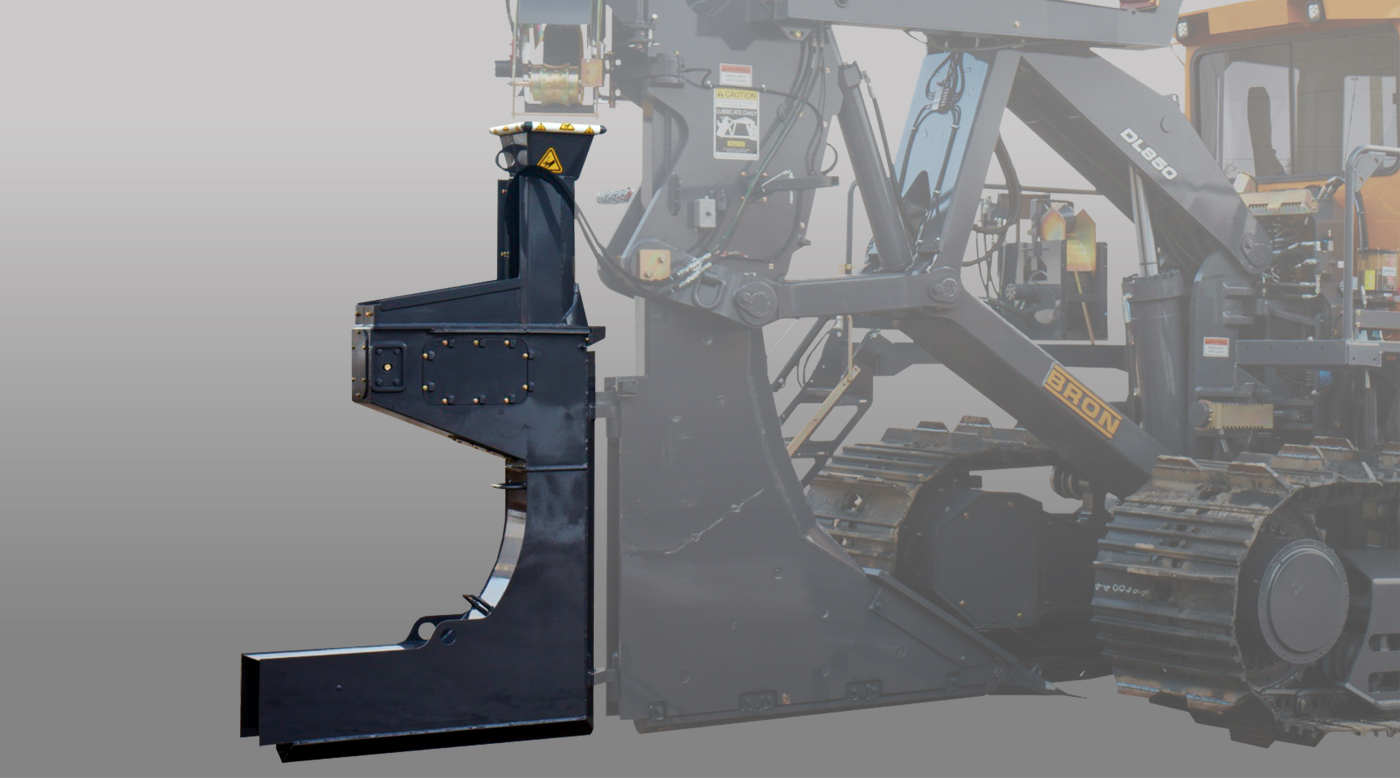

Custom Chutes
Chute offerings from 3" to 15" based on plow size. Stainless or Teflon side wear guards available. Specialty chute available on request.

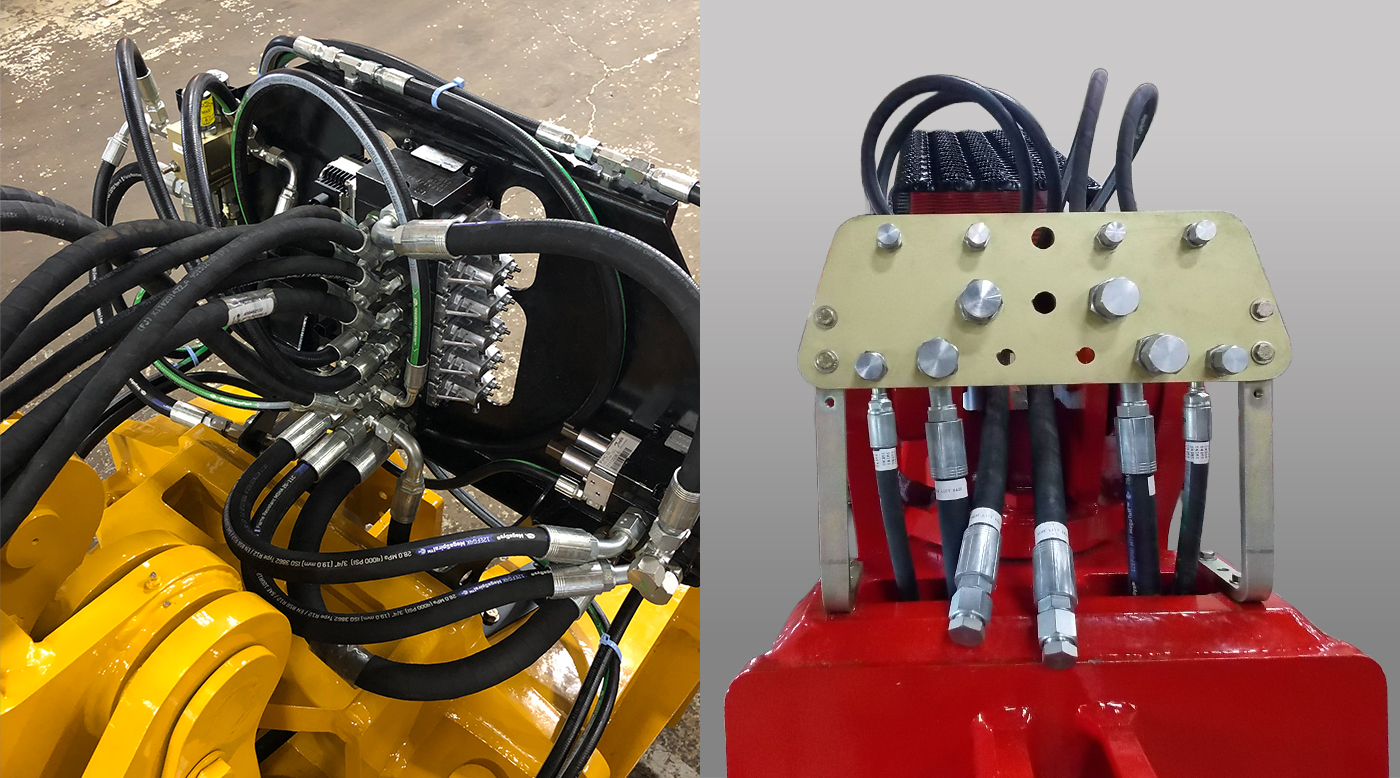

Hydraulic Valve To Fit All Makes
BRON Add-On Drainage Plows are attached to many different brands of equipment. We have valves and hydraulic schematics available for most equipment manufactures models suited for our plows.

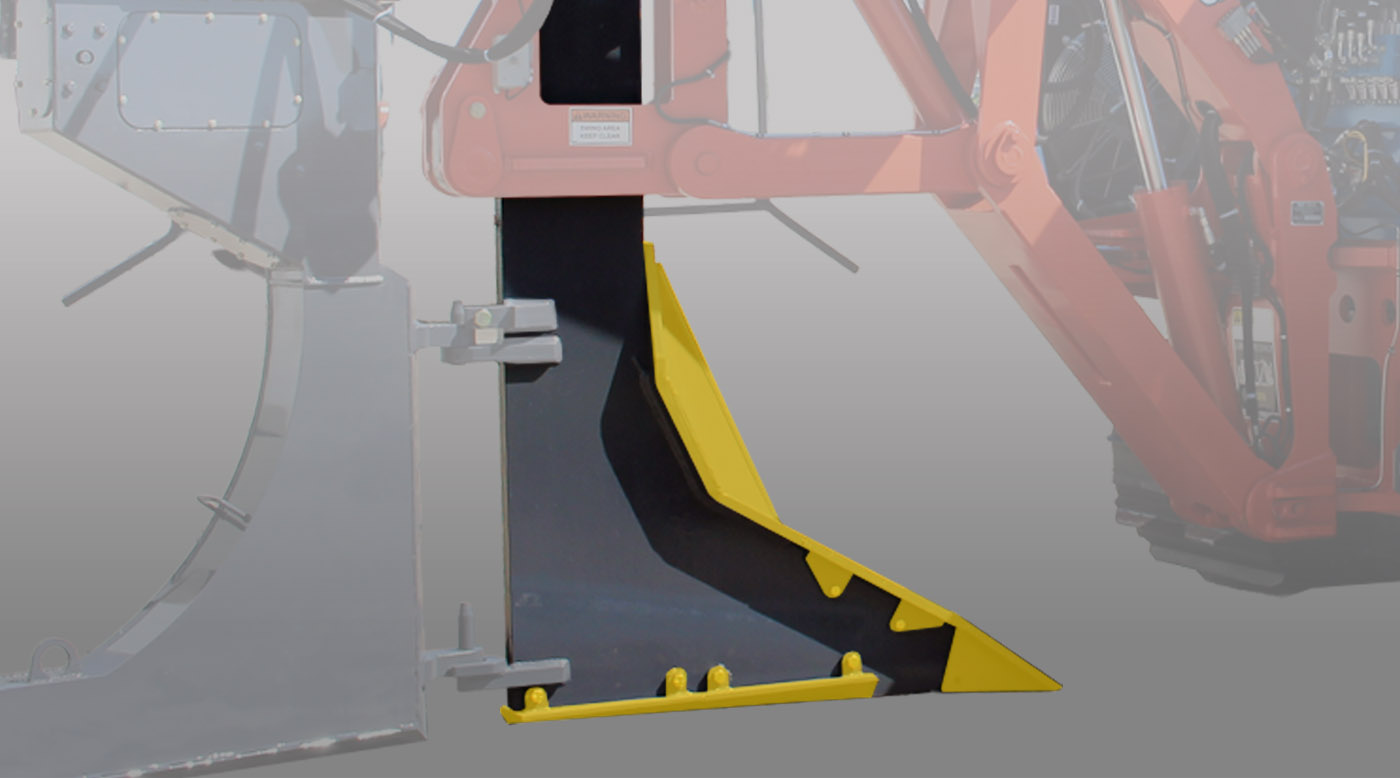

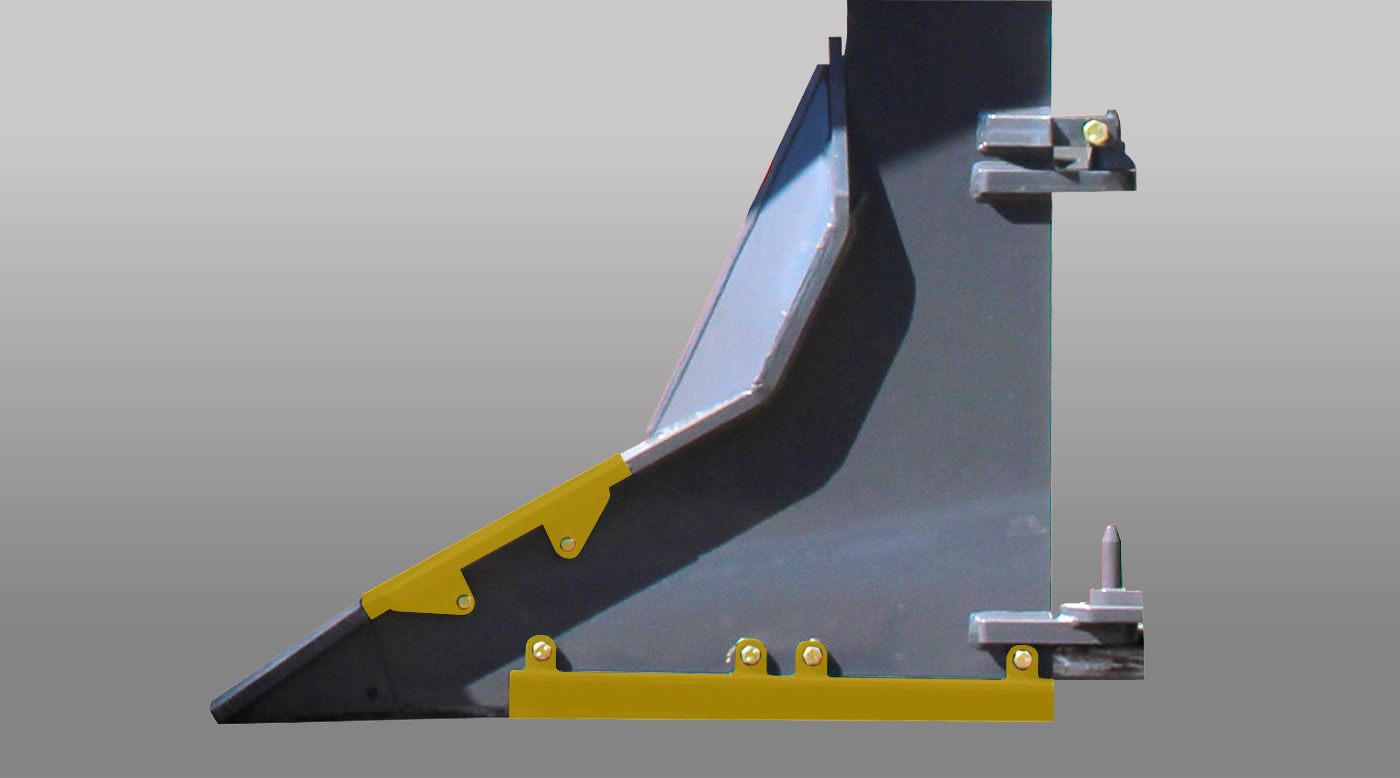

Mouldboard & Teeth
Various size mouldboards and teeth available depending on the size of pipe installation required.

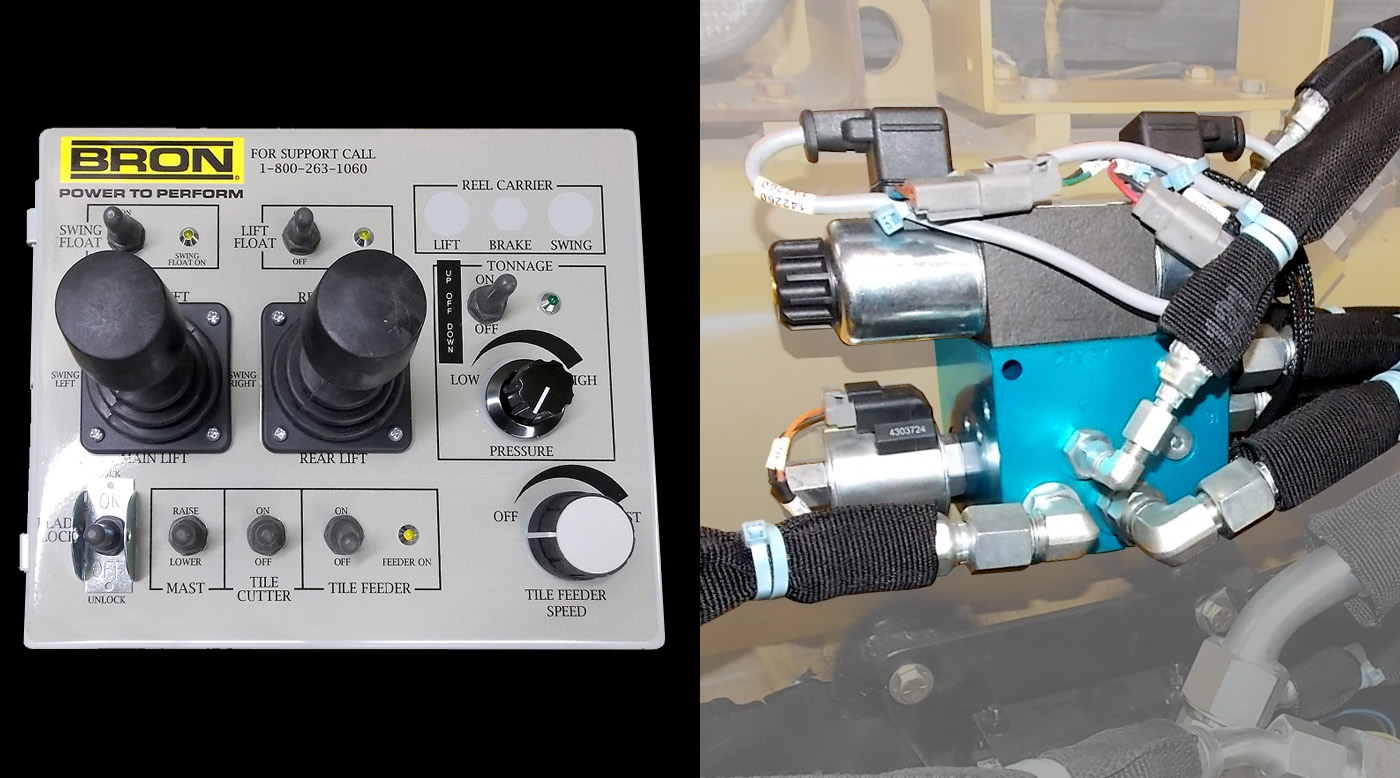

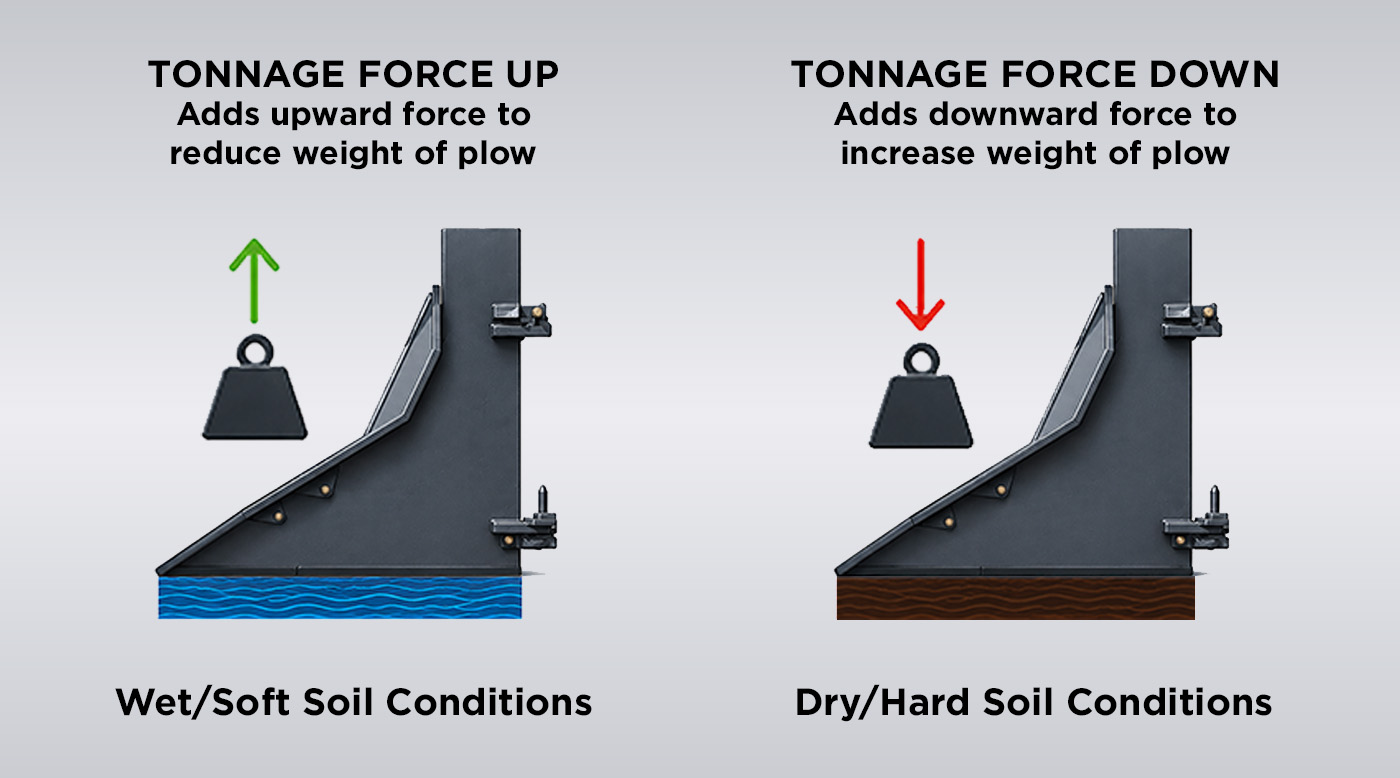

Tonnage Control
Additional tonnage available for working in less ideal soil conditions.

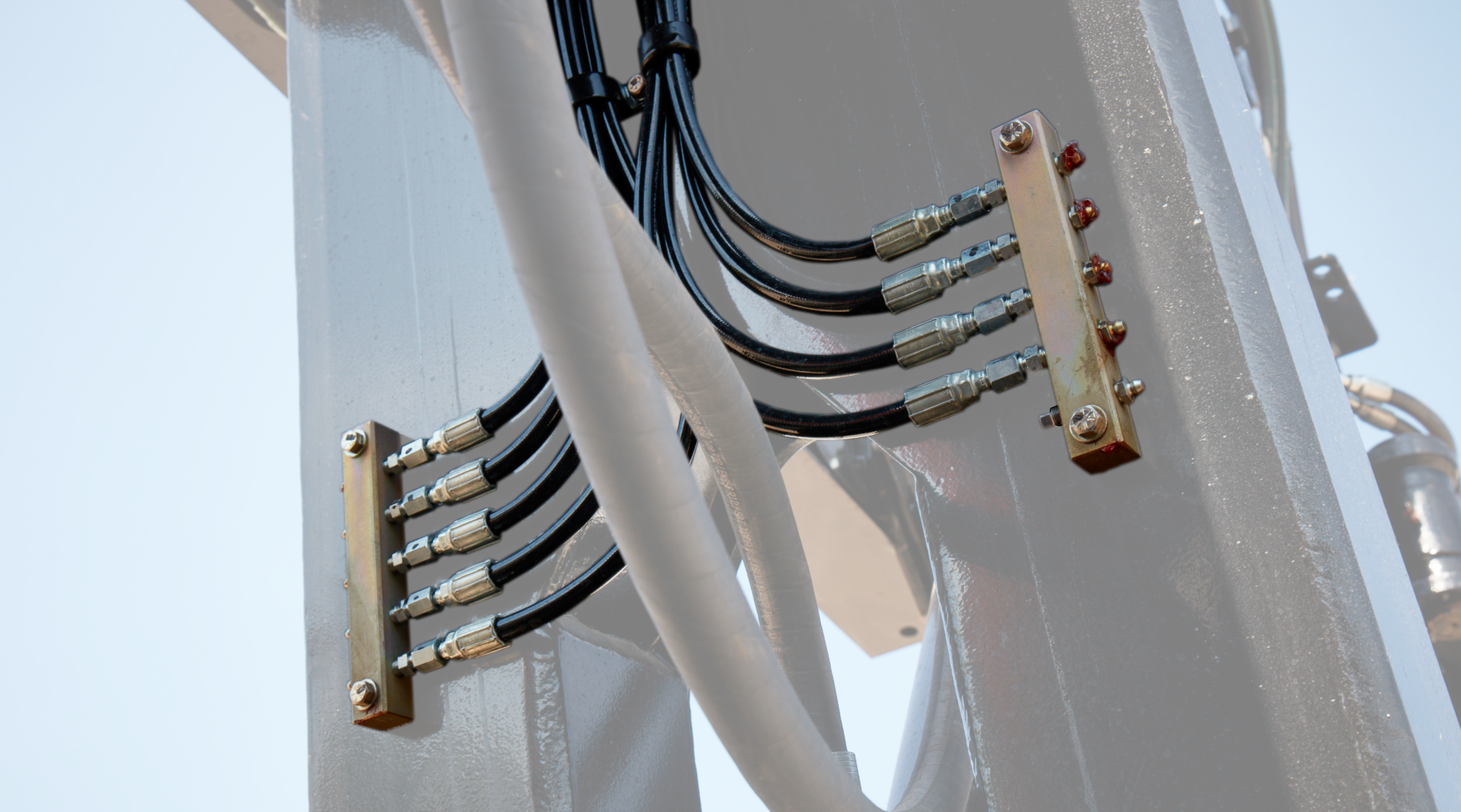

Centralized Grease Banks
Provides easy access to grease points from the ground in a central location.
Specifications
| Rubber-Tired Tractor (Min.) | 300 hp (224 kW) |
| Crawler Tractor (Min.) | 180 hp (134 kW) |
| Max Cutting Depth | 60" (1.5 m) |
| Blade Ground Clearance (Field) | 16" (40.6 cm) |
| Blade Ground Clearance (Transport) | 16" (40.6 cm) |
| Plow Height (Transport) | 134" (340 cm) |
| Plow Weight | 9500 lbs (4308 kg) |
| Installation Chute Sizes Available | 3-8" (7.62-20.3 cm) |
